Description

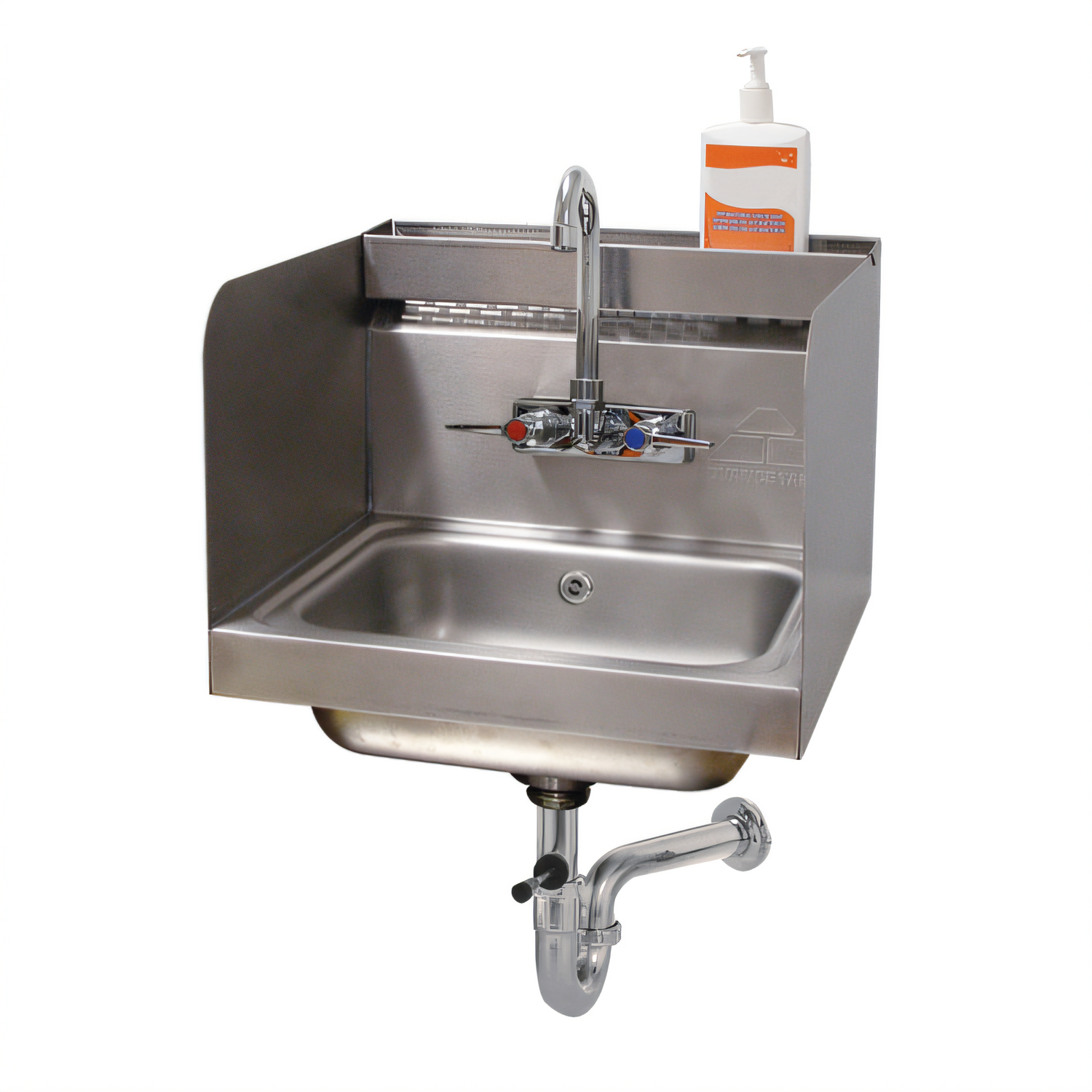

Advance Tabco Wall-Mount Hand Sink with 12" Side Splashes & Utility Tray
Model 7-PS-76 | 14" × 10" × 5" Bowl | 304 Stainless SteelCreate a dedicated, code-compliant hand-washing station in minutes. The Advance Tabco 7-PS-76 arrives as a complete package—sink, faucet, drain, overflow, P-trap and wall bracket—so your team can install it, plumb it and get back to work fast.
Key Features
- Deep-drawn bowl: 14" W × 10" F/B × 5" D for comfortable washing without splash-back.
- 12" welded side splashes keep water contained and help meet health-code requirements.
- Full-length removable utility tray (17-1/4" L × 3" W × 2-5/16" D) stores gloves, soap or utensils above the bowl.
- Splash-mounted 4" O.C. gooseneck faucet (K-59) with 1.0 GPM aerator; NSF/ANSI 61 & 9 lead-free compliant.
- Lever-operated drain with built-in overflow safeguards against accidental over-fill.
- 1-1/2" IPS stainless steel basket strainer plus 1-1/2" IPS P-trap—everything you need for the waste line.
- 20-gauge type 304 stainless steel, TIG-welded and satin-finished for long-lasting durability.
- Galvanized offset wall bracket simplifies mounting and allows height adjustment.
- Third-party approvals: NSF listed & cCSAus certified for North American installations.
Technical Specifications
| Construction | One-piece, 20 ga. 304 stainless steel |
|---|---|
| Bowl Size | 14" W × 10" F/B × 5" D (356 × 254 × 127 mm) |
| Overall Width | 17-1/4" (438 mm) |
| Side Splash Height | 12" (305 mm) |
| Utility Tray | 17-1/4" L × 3" W × 2-5/16" D, perforated & removable |
| Faucet Centers / Inlets | 4" on-center, 1/2" IPS male hot & cold |
| Flow Rate | 1.0 GPM (3.8 LPM) @ 60 PSI |
| Drain Outlet | 1-1/2" IPS lever drain with overflow |
| P-Trap | 1-1/2" IPS chrome-plated brass (included) |
| Shipping Weight | 27 lb. (12.2 kg) |
| Certifications | NSF, NSF/ANSI 61 & 9 Lead-Free, cCSAus |
Perfect For
- Commercial kitchens & commissaries
- Food trucks, kiosks & concession trailers
- Laboratories & clean rooms
- Healthcare & pharmaceutical prep areas
California Prop 65 Notice: This product can expose you to chemicals, including lead, known to
the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit p65warnings.ca.gov.
Need wrist-action handles or additional accessories? Contact us—Advance Tabco options ship in as little as 1–2 business days.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF, cCSAus
Height
17.0in
Width
17.25in
Depth
15.25in
Shipping Weight
27.0lbs
Bowl Height (rim to drain)
5" deep
Bowl Width (left to right)
13" - 14"
Faucet
faucet included
Bowl Depth (front to back)
9" - 10" front-to-back
Style
wall mounted
Features
side splash(es)
Specifications
Hand Sink, wall mounted, 14" wide x 10" front-to-back x 5" deep bowl, 20 gauge 304 stainless steel, 12" high side splashes with removable utility tray, with heavy duty splash mounted goose neck faucet, lever drain with overflow, P-trap, wall bracket, NSF, cCSAus
