Advance Tabco  |  SKU: 7-PS-747

Advance Tabco 7-PS-747 Hand Sinks

$1,948.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing rough in Installation manual Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

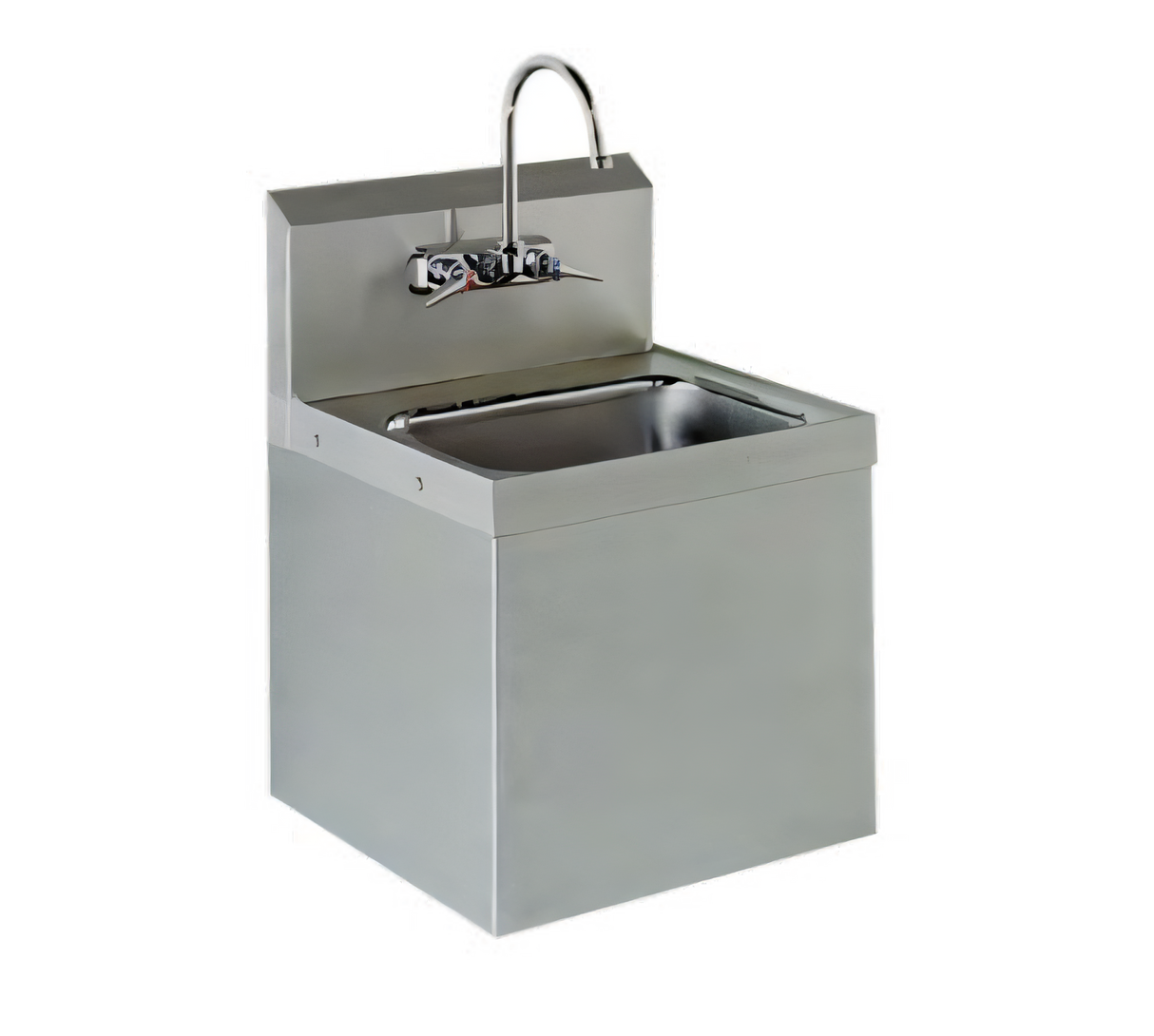

Advance Tabco 7-PS-747 Class 2 Security Wall-Mounted Hand Sink

14" × 10" × 5" Deep Bowl – 304 Stainless Steel – Concealed Drain – Vandal-Resistant Faucet

Built for the most demanding correctional and high-security environments, this fully enclosed hand sink combines heavy-gauge stainless steel strength with tamper-proof details to deliver years of reliable, hygienic service.

Key Benefits

  • Class 2 Security design: skirted enclosure hides all plumbing, features tamper-proof fasteners and a vandal-proof aerator.
  • One-piece deep-drawn bowl (14" W × 10" D × 5" H) with 2" inside corner radii for easier cleaning and greater capacity.
  • Fabricated from heavy-gauge type 304 stainless steel, TIG-welded and satin-finished to resist abuse, chemicals and corrosion.
  • Splash-mounted 4" on-center gooseneck faucet (K-59) with 1.0 GPM aerator meets NSF 61/9 Lead-Free requirements.
  • Concealed 1-1/2" IPS drain keeps plumbing out of reach and maintains a sleek, ligature-resistant profile.
  • Galvanized offset wall bracket supplied for secure, level installation.
  • NSF & cCSAus listed for food-service and institutional use.

Specifications

Model 7-PS-747 (Class 2 Security)
Mounting Style Wall mounted, fully enclosed skirt
Overall Width 17 1/4"
Overall Front-to-Back ≈ 15 7/8"
Bowl Interior 14" W × 10" D × 5" H
Material Type 304 stainless steel, satin finish
Faucet Splash-mounted 4" O.C. gooseneck, 1/2" IPS inlets, 1.0 GPM vandal-proof aerator
Drain Size 1-1/2" IPS (concealed)
Unit Weight 45 lb (shipping)
Certifications NSF, NSF 61/9 Lead Free, cCSAus

Ideal Applications

  • Correctional & detention facilities
  • School security areas & stadiums
  • Transportation hubs & public rest areas
  • Back-of-house food-service locations where vandal resistance is critical

Tailpiece, P-trap and supply stops are not included unless otherwise specified.

California Proposition 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, cCSAus

Height

23.5in

Width

17.25in

Depth

15.25in

Shipping Weight

45.0lbs

Bowl Height (rim to drain)

5" deep

Bowl Width (left to right)

13" - 14"

Bowl Depth (front to back)

9" - 10" front-to-back

Faucet

faucet included

Style

wall mounted

Specifications

Hand Sink, class 2 upgrade, security unit, wall mounted, 14" wide x 10" front-to-back x 5" deep bowl, 304 stainless steel construction, with heavy duty splash mounted gooseneck faucet, concealed drain, NSF, cCSAus
