Advance Tabco  |  SKU: 7-PS-58

Advance Tabco 7-PS-58 Hand Sinks

$1,304.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing rough in Optional mixing valve Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

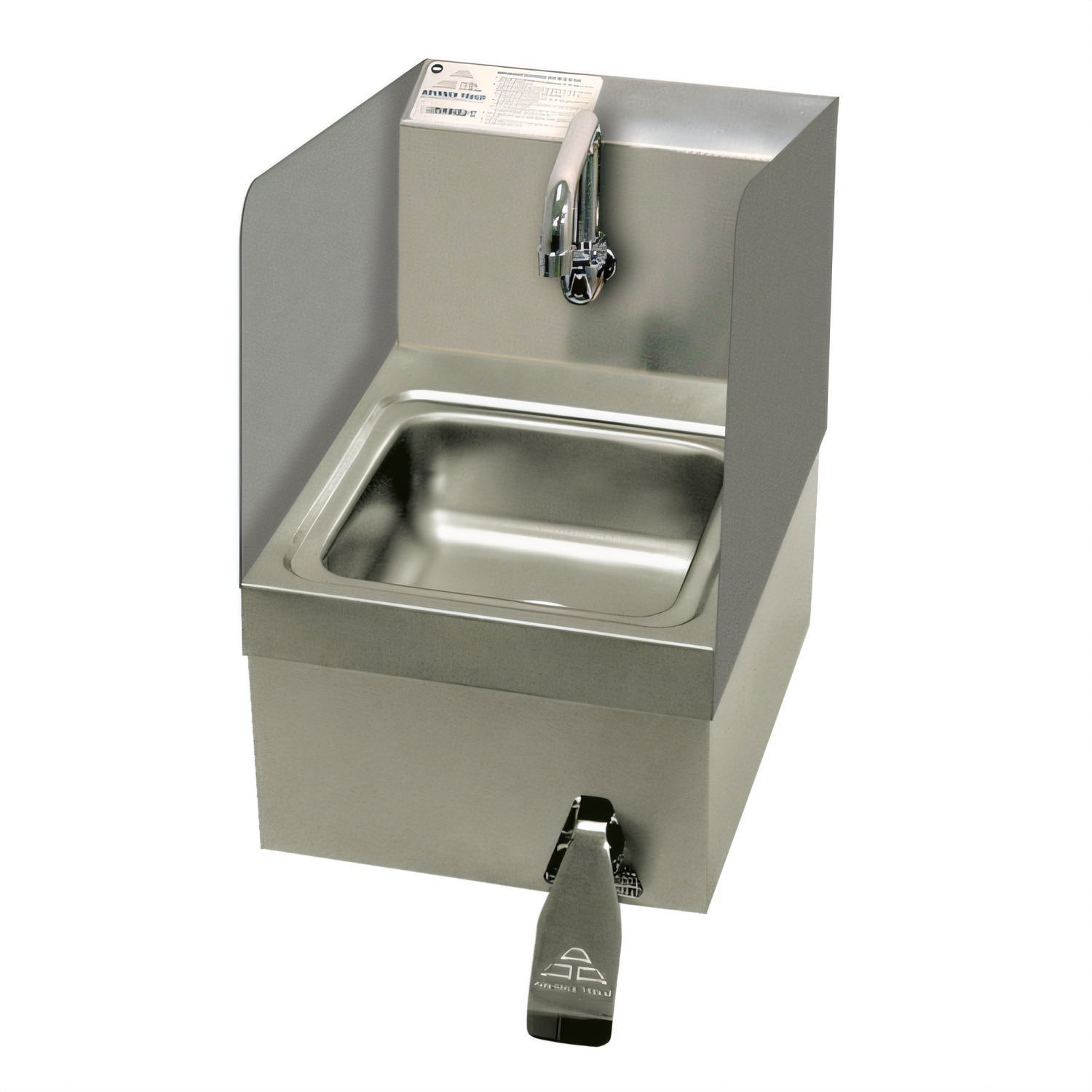

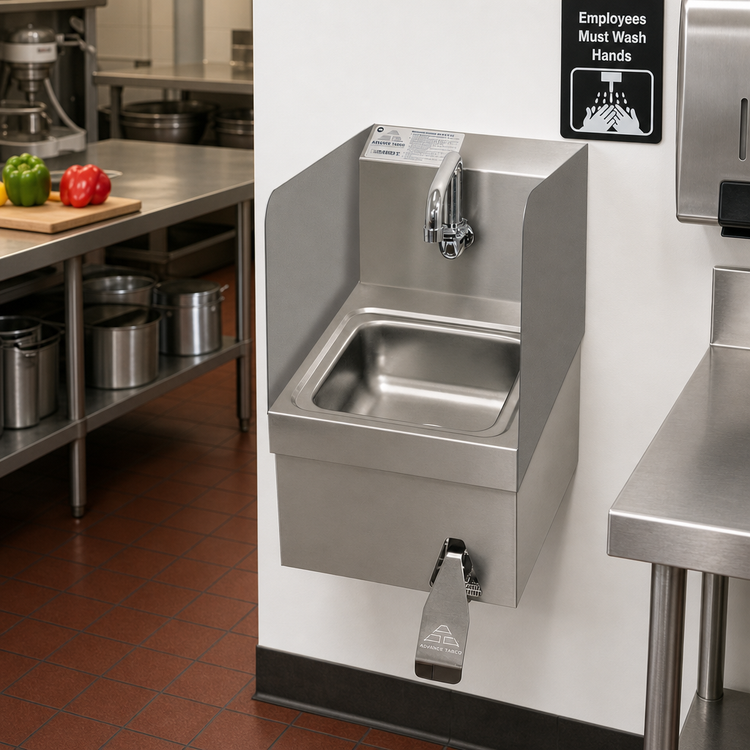

Deep Drawn™ Wall-Mounted Hand Sink with Knee Valve

Advance Tabco Model 7-PS-63  |  NSF & cCSAus Listed

Designed for tight prep areas, food trucks, laboratories, and anywhere true hands-free sanitation is a must, this compact 9 in. × 9 in. Deep Drawn™ hand sink delivers big-sink durability in a space-saving footprint.

Key Features

  • One-piece 20 ga. 304 Stainless Steel bowl – no seams to trap bacteria.

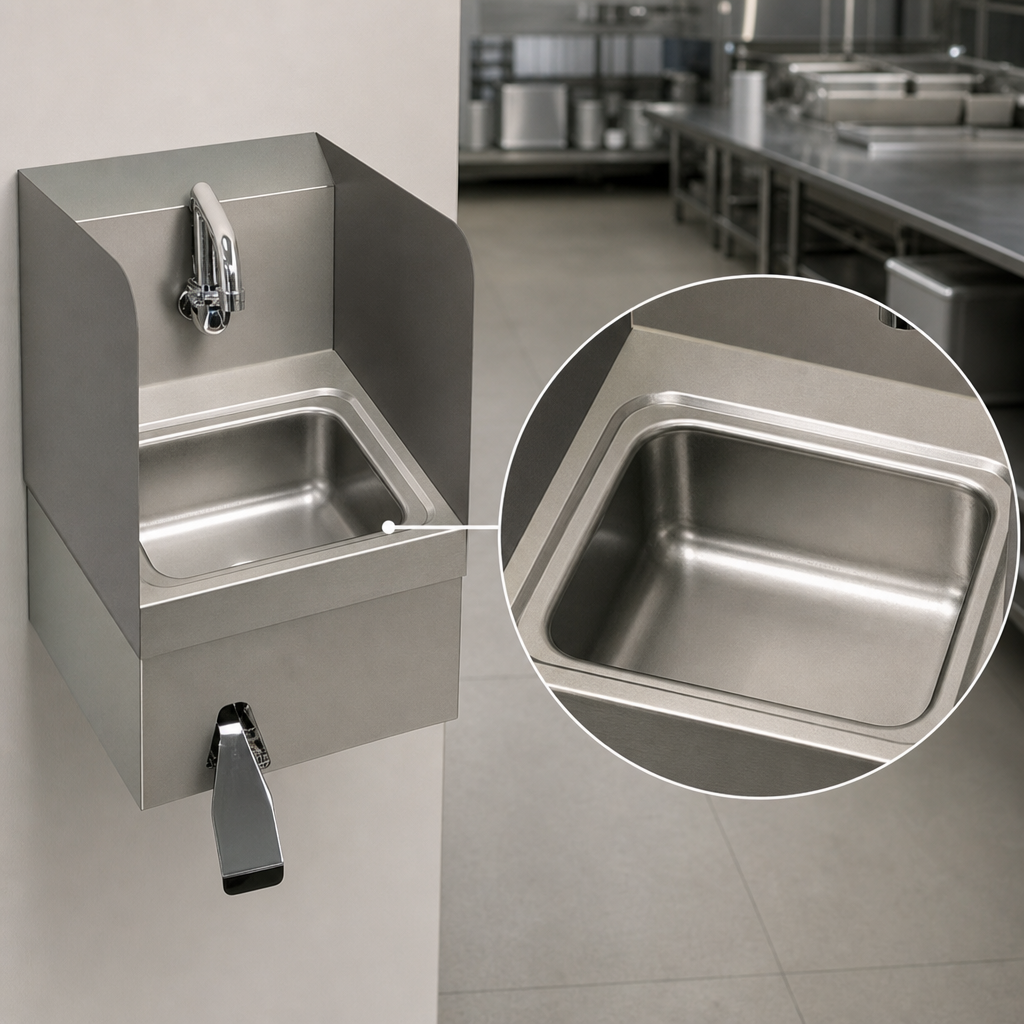

  • Deep Drawn™ basin with smooth 2 in. radius corners for easy cleaning.
  • 9 in. W × 9 in. F-B × 5 in. D bowl provides ample clearance for thorough hand-washing.
  • Factory-welded 7 3⁄4 in. high side splashes protect surrounding walls from overspray.
  • Heavy-duty splash-mounted faucet with 1.0 GPM aerator; supplies connect via ½ in. IPS male.
  • Hands-free knee valve delivers water on demand—perfect for HACCP compliance.
  • Integrated skirt (apron) hides all plumbing on three sides for a clean, professional look.
  • 1½ in. IPS crumb basket/drain included.
  • Galvanized keyhole wall-mount bracket for fast, level installation.
  • Certified lead-free: complies with NSF/ANSI 61 & 372; cCSAus & Prop 65 ready.

Technical Specifications

Bowl dimensions (W × F-B × D) 9 in. × 9 in. × 5 in.
Overall width × front-to-back 12 1⁄4 in. × 16 1⁄8 in.
Side splash height 7 3⁄4 in.
Material & gauge 304 Stainless Steel, 20 ga.
Faucet flow rate 1.0 GPM (3.8 LPM) @ 60 PSI
Valve type Knee-operated, barrel-style
Drain connection 1½ in. IPS male
Supply connection ½ in. IPS male (to faucet)
Unit weight ≈ 20 lb.
Certifications NSF Listed, cCSAus, Lead-Free

Installation & Rough-In Tips

  • Mount basin so rim sits 34 in. above finished floor for ADA compliance.
  • Hot & cold inlets on knee valve are ⅜ in. NPT female; installer to provide flex lines.
  • Optional K-425 thermostatic mixing valve (not included) integrates easily for tempered water.
  • Requires standard 1½ in. waste line and P-trap (not included).
Prop 65 Notice: This product may expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Need a different bowl size, deck-mount faucet, or built-in soap dispenser? Contact us for custom Advance Tabco configurations.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, cCSAus

Height

16.13in

Width

12.25in

Depth

16.0in

Shipping Weight

26.0lbs

Bowl Width (left to right)

9" - 12"

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

9" - 10" front-to-back

Faucet

faucet included

Style

wall mounted

Specifications

Hand Sink, wall mounted with skirt, 9" wide x 9" front-to-back x 5" deep bowl, Deep Drawn™ sink bowl, 20 gauge 304 stainless steel, welded 7-3/4" H side splashes, heavy duty splash mounted faucet, knee valve, 1-1/2" crumb basket, keyhole wall mount bracket, NSF, cCSAus
