Advance Tabco  |  SKU: 7-PS-52

Advance Tabco 7-PS-52 Hand Sinks

$1,973.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing rough in Installation manual Troubleshooting manual Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

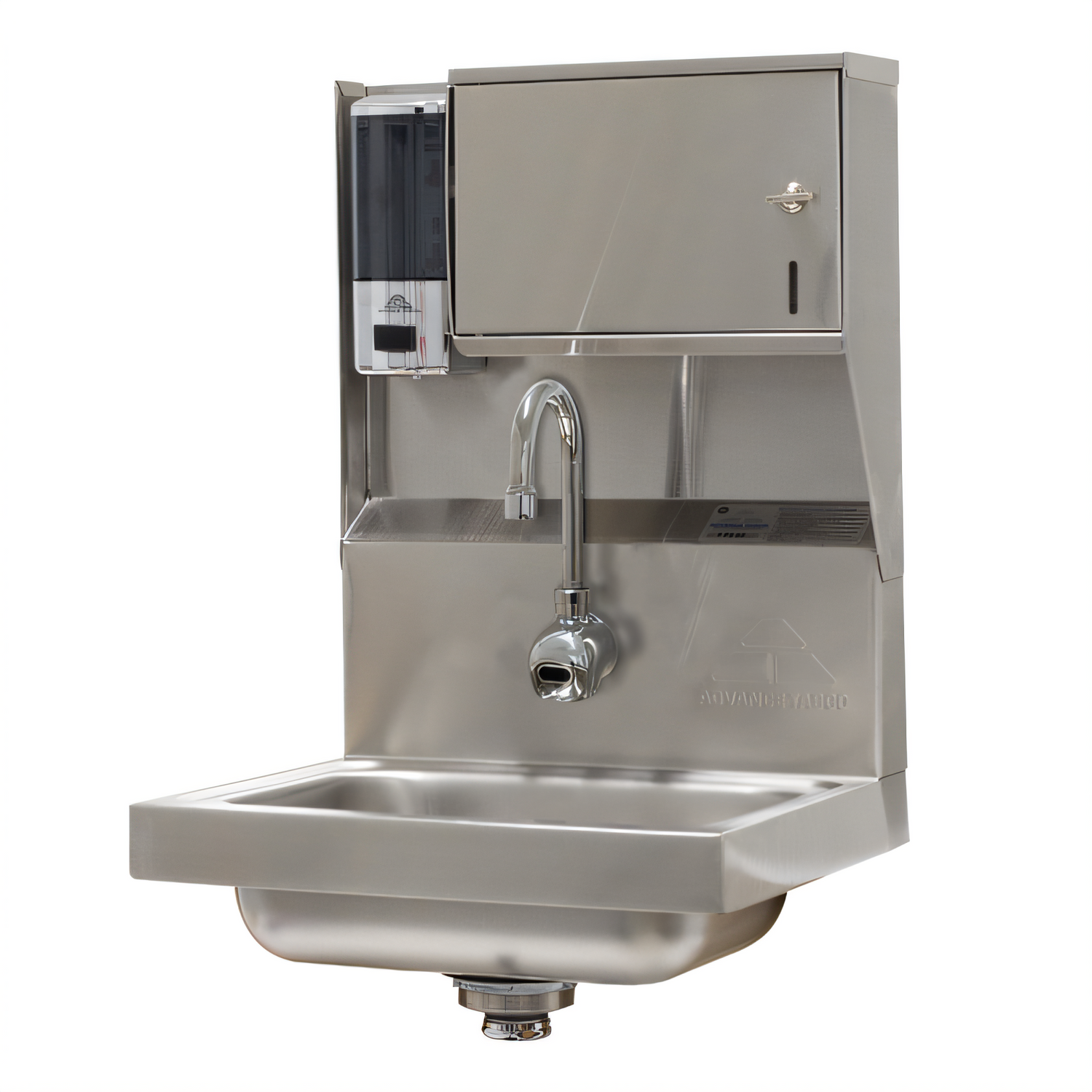

Advance Tabco Wall-Mounted Electronic Hand Sink – 14" W x 10" D x 5" H Bowl

Touch-Free Hand-Washing Station with Built-In Soap & Towel Dispenser

Give staff and guests an easy, hygienic way to wash up—even in the tightest spaces. This compact Advance Tabco sink combines a deep-drawn 14" x 10" bowl, an infrared electronic faucet and a convenient soap/towel module in one rugged, wall-mounted unit.

Why You’ll Love It

  • Hands-free operation: Infrared sensor turns water on/off automatically, reducing cross-contamination.
  • Premium 304 stainless steel: 20-gauge, TIG-welded and polished to a sanitary satin finish.
  • Deep-drawn seamless bowl: One-piece construction with generous 2" radii for fast, thorough cleaning.
  • Built-in dispensing: Hinged towel box accepts standard C-fold towels; liquid soap dispenser refills from the front.
  • No-drip counter edge: 3⁄8" offset keeps water inside the sink, not on the floor.
  • Ready to install: Includes stainless wall bracket, basket drain (1 ½" IPS) and AC/DC control module – operates on the included plug-in adapter or 4 AA batteries (not supplied).
  • Certified safe: NSF Listed, NSF 61/9 lead-free compliant and cCSAus approved.

Specifications

Bowl size 14" W x 10" front-to-back x 5" deep (356 mm x 254 mm x 127 mm)
Overall sink size Approx. 17 ¼" W x 15 ¼" D (wall to rim)
Material / gauge Type 304 stainless steel, 20 ga.
Faucet type Advance Tabco K-175 splash-mounted electronic gooseneck
Flow rate 2.2 GPM (8.3 LPM) @ 60 PSI  |  ½" MIP inlet
Power options Plug-in 100-240 VAC adapter or 4 AA batteries (alkaline)
Dispensers Liquid soap (refillable) & C-fold paper towel, front loading
Drain 1 ½" IPS stainless steel basket drain
Mounting Stainless steel offset wall bracket (included)
Certifications NSF, NSF 61/9, cCSAus

Perfect For

  • Restaurant prep areas & cook lines
  • Food trucks and mobile concessions
  • Deli, bakery or bar hand-washing stations
  • Healthcare, school and laboratory wash areas
California Proposition 65 Notice: This product can expose you to chemicals, including lead, known to the State of California to cause cancer or birth defects. For more information, visit www.p65warnings.ca.gov.

Need a knee-pedal or low-flow aerator? Ask our team about available options and accessories.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, cCSAus

Height

26.5in

Width

17.25in

Depth

15.25in

Shipping Weight

31.0lbs

Bowl Height (rim to drain)

5" deep

Faucet

faucet included

Bowl Width (left to right)

13" - 14"

Bowl Depth (front to back)

9" - 10" front-to-back

Style

wall mounted

Specifications

Hand Sink, wall mounted, 14" wide x 10" front-to-back x 5" deep bowl, 20 gauge 304 stainless steel, electronic faucet, basket drain, soap & towel dispenser, wall bracket, NSF, cCSAus
