Advance Tabco 7-PS-51 Hand Sinks
Description

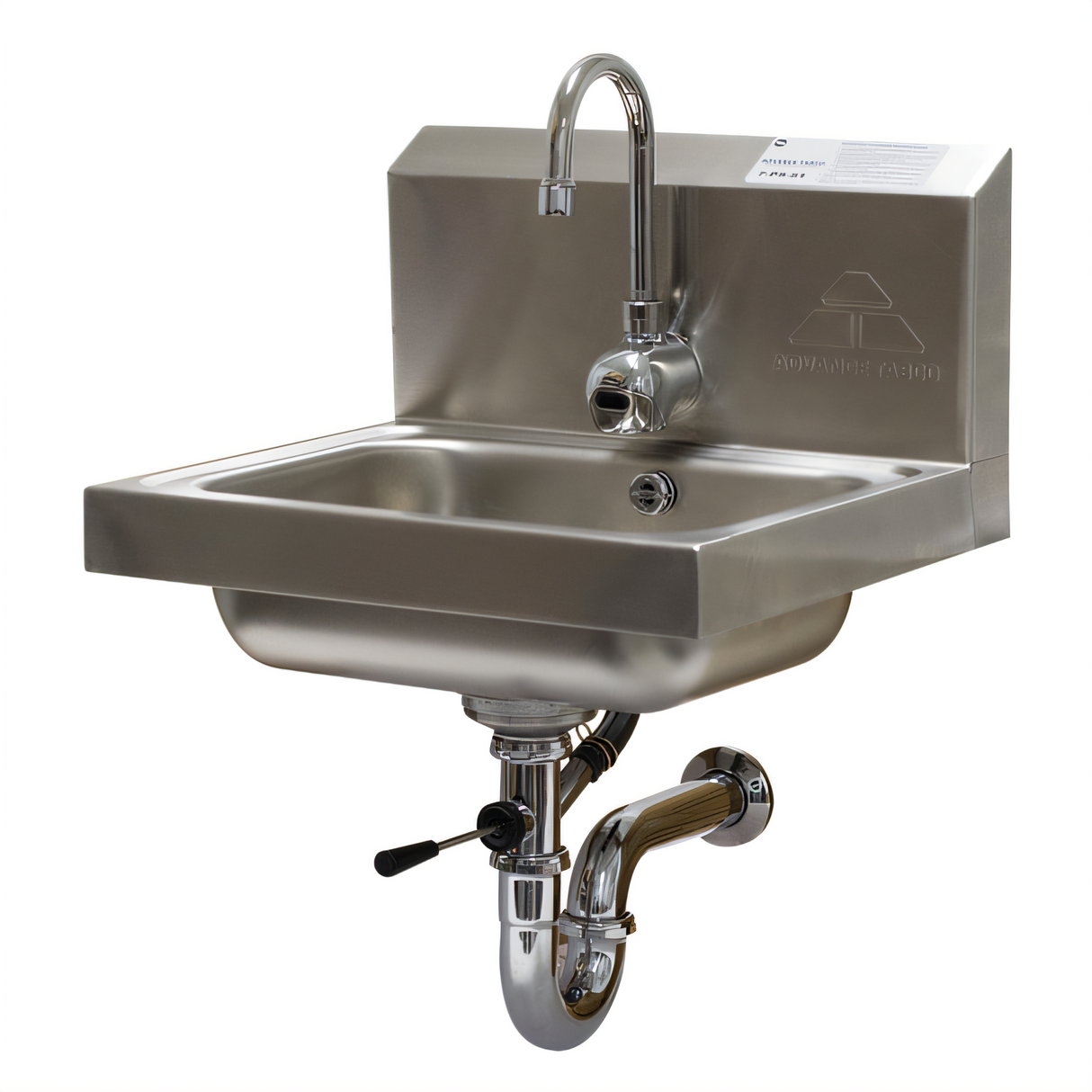

Advance Tabco Wall-Mounted Electronic Hand Sink – 14" x 10" Bowl
Touch-free hygiene in a compact, NSF-listed packagePerfect for tight prep areas, food trucks, laboratories, and healthcare facilities, this 20-gauge, 304 stainless-steel hand sink delivers hands-free operation with a factory-supplied electronic faucet that runs on either batteries or the included 110 V adapter. A lever drain with overflow, P-trap, and wall bracket are all shipped in one carton for fast, code-compliant installation.
Why You’ll Love It
- Deep-drawn 14" W x 10" F/B x 5" D bowl maximizes usable basin space without eating up wall real estate.
- Touchless infrared faucet reduces cross-contamination and saves water (2.2 GPM aerated flow).
- Dual-power design – choose 4 AA batteries or plug into any 110 V outlet (both modules included).
- Integral lever drain with built-in overflow helps maintain proper fill level and meets many health codes.
- 1½" P-trap and wall-mount bracket supplied for quick, professional installation.
- One-piece TIG-welded construction, satin-finished for easy clean-up and long service life.
- NSF & cCSAus compliant; faucet meets NSF 61/9 lead-free requirements.
Included Components
- 20-gauge type 304 stainless-steel sink with 3⁄8" no-drip countertop edge
- Splash-mounted electronic gooseneck faucet (model K-175) with sensor & swing spout
- AC control module with 6 ft cord & UL-listed adapter (100–240 VAC)
- Battery module (uses 4 AA batteries – first set included)
- Lever-operated drain assembly with overflow tube & spring clamps
- 1½" stainless-steel basket drain & 1½" P-trap
- Stainless-steel offset wall-mounting bracket & hardware
Technical Specifications
| Bowl size (W × F/B × D) | 14" × 10" × 5" (356 × 254 × 127 mm) |
|---|---|
| Overall width | 17 ¼" (438 mm) |
| Overall front-to-back | 15 ¼" (387 mm) |
| Material / gauge | 304 series stainless steel, 20 ga |
| Faucet flow rate | 2.2 GPM (8.3 LPM) @ 60 PSI; optional 0.5 GPM aerator available |
| Power options | 4 × AA batteries (supplied) -or- 110 V AC via included adapter |
| Drain | Lever-operated with built-in overflow, 1 ½" IPS outlet |
| P-trap | 1 ½" stainless-steel P-trap included |
| Mounting type | Wall mounted (offset stainless bracket) |
| Certifications | NSF, NSF 61/9, cCSAus |
| Shipping weight | Approx. 21 lb (9.5 kg) |
Ideal For
- Commercial kitchens & food prep lines
- Food trucks & concession trailers
- Healthcare & laboratory hand-wash stations
- Daycare & educational facilities
- Back-of-house bar or server stations
Need a low-flow aerator, side splashes, or a matching touchless soap dispenser? Contact our team—most options ship with the sink when ordered together.
