Advance Tabco | SKU:
7-PS-47
Advance Tabco 7-PS-47 Hand Sinks
$1,802.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 7-PS-47 Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 7-PS-47 Hand Sinks
$1,802.00
Unit price
/
Unavailable
Description

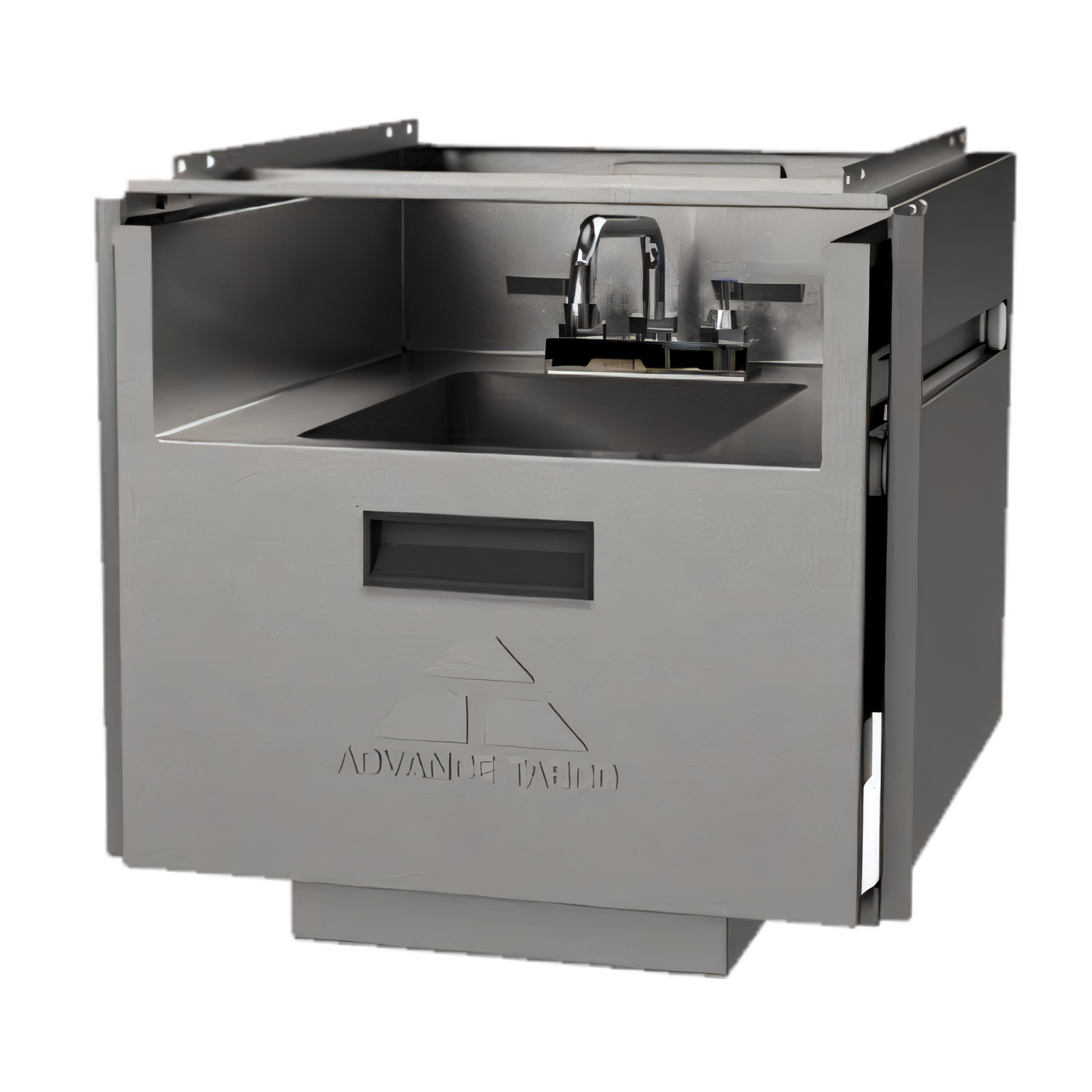

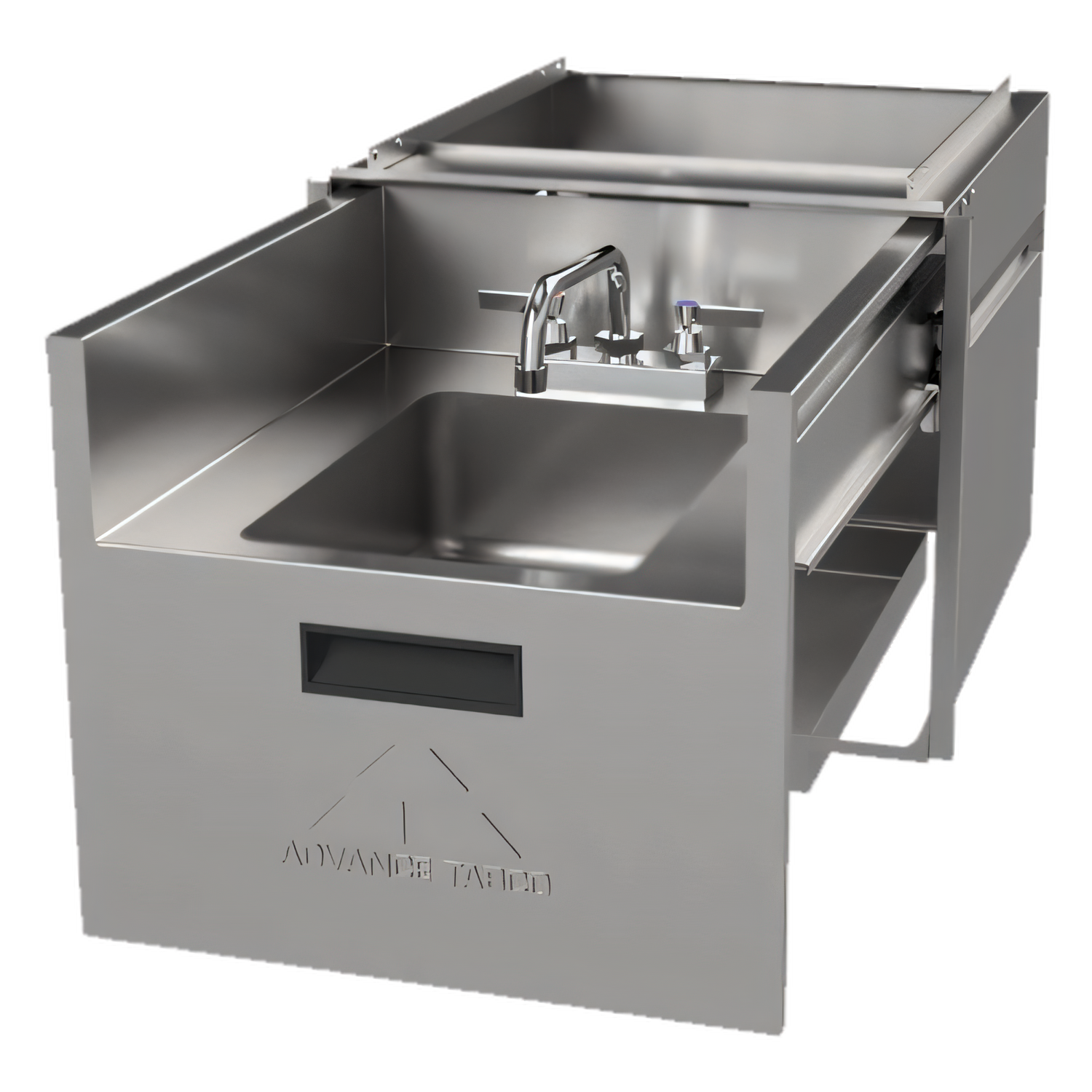

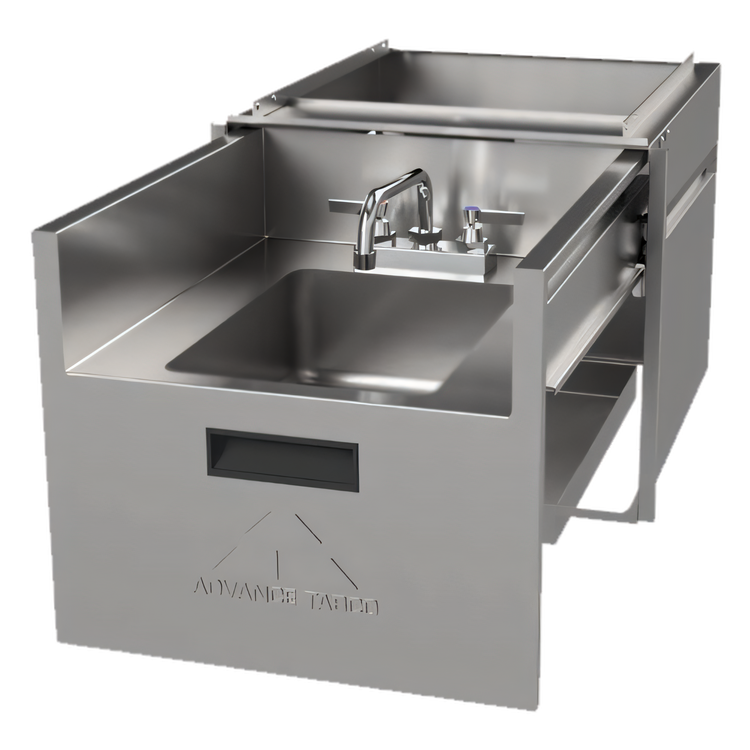

Advance Tabco 7-PS-47 Concealed Sink Drawer

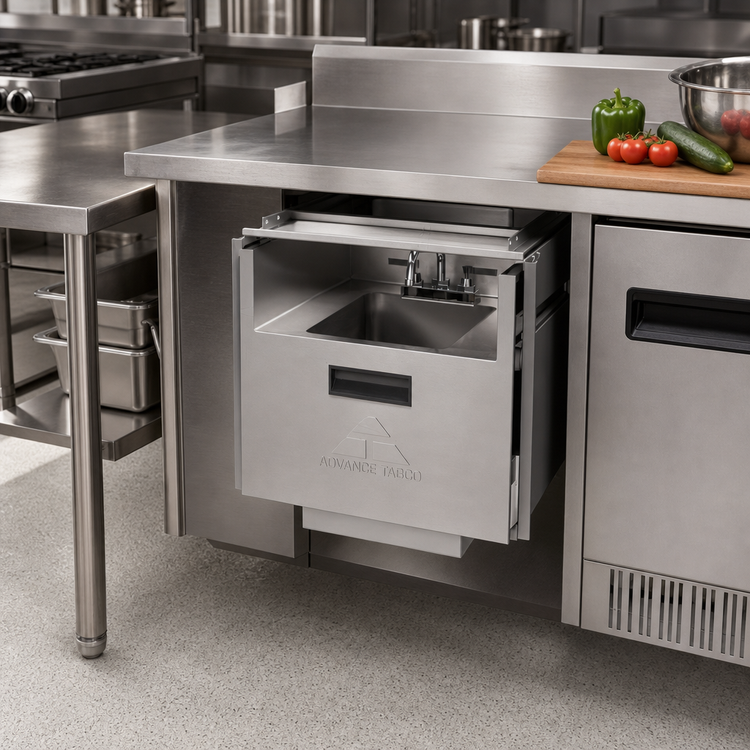

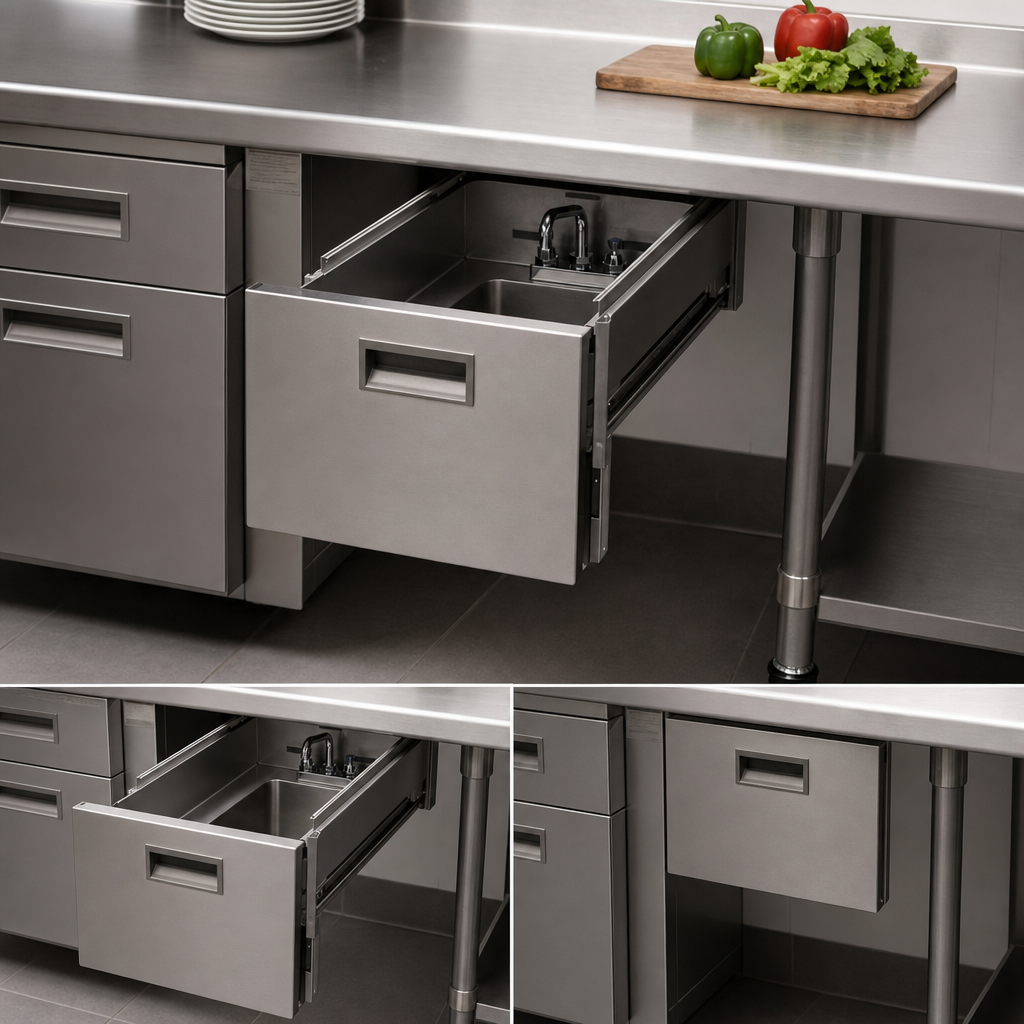

Under-table hand-wash station with faucet & drain panReclaim every inch of your work surface. The 7-PS-47 slides out only when you need it, providing a fully functional hand sink that disappears beneath the table the rest of the time.
Why you’ll love it
- Space-saving drawer design keeps countertops clear and compliant.
- Mounts directly to most 30 in Advance Tabco work tables—no cutting required.
- 10 in × 14 in × 5 in deep, 16 ga stainless bowl with 1 ½ in drain & strainer plate.
- Integrated drain pan with its own 1 ½ in stainless drain prevents splash-over inside cabinetry.
- Heavy-duty K-50 8 in swing-spout faucet included (1 ⁄ 2 in IPS male hot & cold inlets).
- Smooth, welded drawer slides feature a built-in “Safety Stop” to prevent accidental pull-outs.
- All TIG-welded, satin-finished 16 ga interior / 18 ga exterior for long-term durability.
- NSF listed and complies with NSF/ANSI 61 & 9 lead-free requirements.
Quick specs
| Model | 7-PS-47 |
|---|---|
| Overall dimensions | 22 5⁄8 in W × 19 7⁄8 in D × 19 1⁄4 in H |
| Bowl size | 10 in W × 14 in D × 5 in H |
| Material | 16 ga stainless interior / 18 ga exterior |
| Faucet | K-50, 8 in swing spout, 1 ⁄ 2 in IPS male inlets |
| Drain outlets | (2) 1 ½ in IPS stainless drains (bowl & pan) |
| Weight | Approx. 70 lb |
| Table compatibility | Advance Tabco 30 in deep work tables (not for 24 in wide tables) |
| Certifications | NSF, NSF/ANSI 61 & 9 lead-free |
Installation note: Flexible water supply lines (by others) are required. The drain outlet is fixed
and may need to be hard-piped. Verify under-table clearance before ordering.
Prop 65 warning: This product can expose you to chemicals including lead, which are known to the
State of California to cause cancer or birth defects or other reproductive harm. For details visit
www.p65warnings.ca.gov.
Mounting to non-Advance Tabco equipment? Ask about TA-90 adapter brackets and custom Smart Fabrication™ solutions.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
19.25in
Width
19.88in
Depth
22.63in
Shipping Weight
70.0lbs
Bowl Width (left to right)
9" - 12"
Bowl Depth (front to back)
11" - 14" front-to-back
Faucet
faucet included
Style
drawer
Bowl Height (rim to drain)
5" deep
Specifications
Sink Drawer, to mount under work table, 10"W x 14"D x 5" deep bowl, includes heavy duty faucet, drainage pan & free flow drain, mounts under work table & pulls out for use (flexible supply lines by others, drain is ‘fixed’ and may be hard piped by others), NSF
