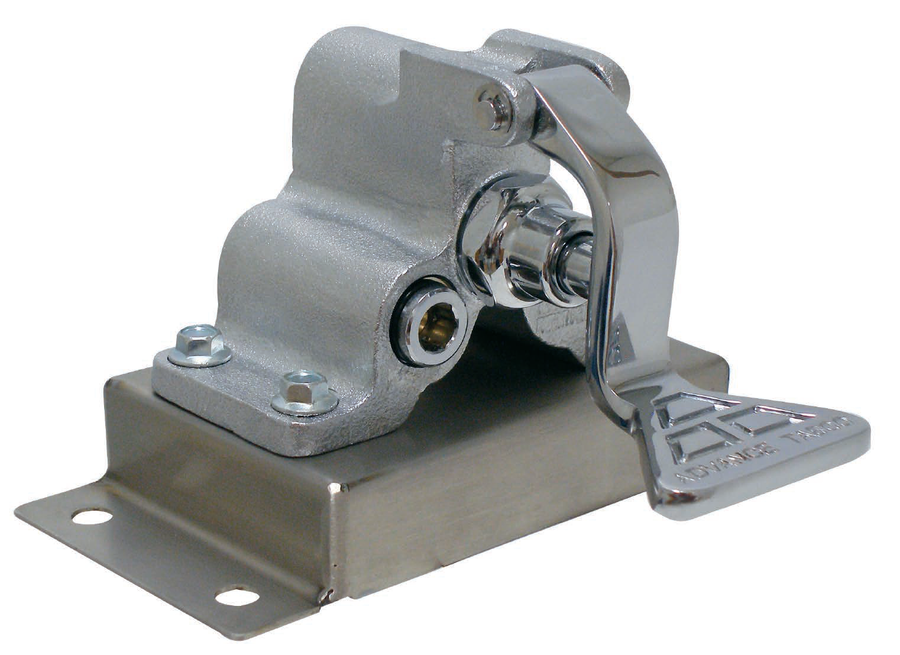

Advance Tabco Foot Pedal Water Mixing Valve Assembly with Floor Bracket
Hot/Cold Water, 3/8 Inch NPT Female Connections
Hands-free water control with adjustable hot-and-cold mixing and secure floor-mounted support.
- Foot-actuated design supports hands-free water operation.
- Mixes hot and cold water for adjustable outlet temperature.
- Built-in check valves help protect against backflow.
- Includes floor bracket for secure mounting.
- Chrome-plated brass valve body with chrome-plated pedal and stainless steel bracket.
Overall Dimensions:
8.0"W x 8.0"D x 8.0"HProduct Weight:
5.0 lbFoot-Actuated Operation
Pedal-controlled valve operation for hands-free water flow.
Hot And Cold Water Mixing
Designed to blend hot and cold water for adjustable delivery temperature.
Built-In Check Valves
Integrated check valves are included to help prevent reverse flow.
Tempering Mixing Valve
The valve adjusts water temperature at the outlet for manual tempering control.
Includes Floor Bracket
Supplied with a floor bracket for secure installation.
Material Construction
Chrome-plated brass body, chrome-plated pedal, and 304 stainless steel bracket.
Type
Foot Pedal Valve
Style
Tempering Mixing Valve
Installation Type
Floor Model (With Bracket)
Material
Brass
Finish
Chrome Plated
Water Inlet Size
3/8 Inch NPT Female
Outlet Size
3/8 Inch NPT Female
Selling Unit
Each
Units Per Case
1
Frequently Asked Questions
Yes, the valve includes the floor bracket.
It is a foot-actuated pedal valve for hot and cold water mixture.
The hot inlet, cold inlet, and outlet to faucet are 3/8 inch NPT female connections.
Yes, it includes a tempering mixing valve to adjust water temperature.
No. The document notes that it is a tempering valve only and does not meet ASSE 1070 specs.
