Advance Tabco 7-PS-30 Hand Sinks
Description

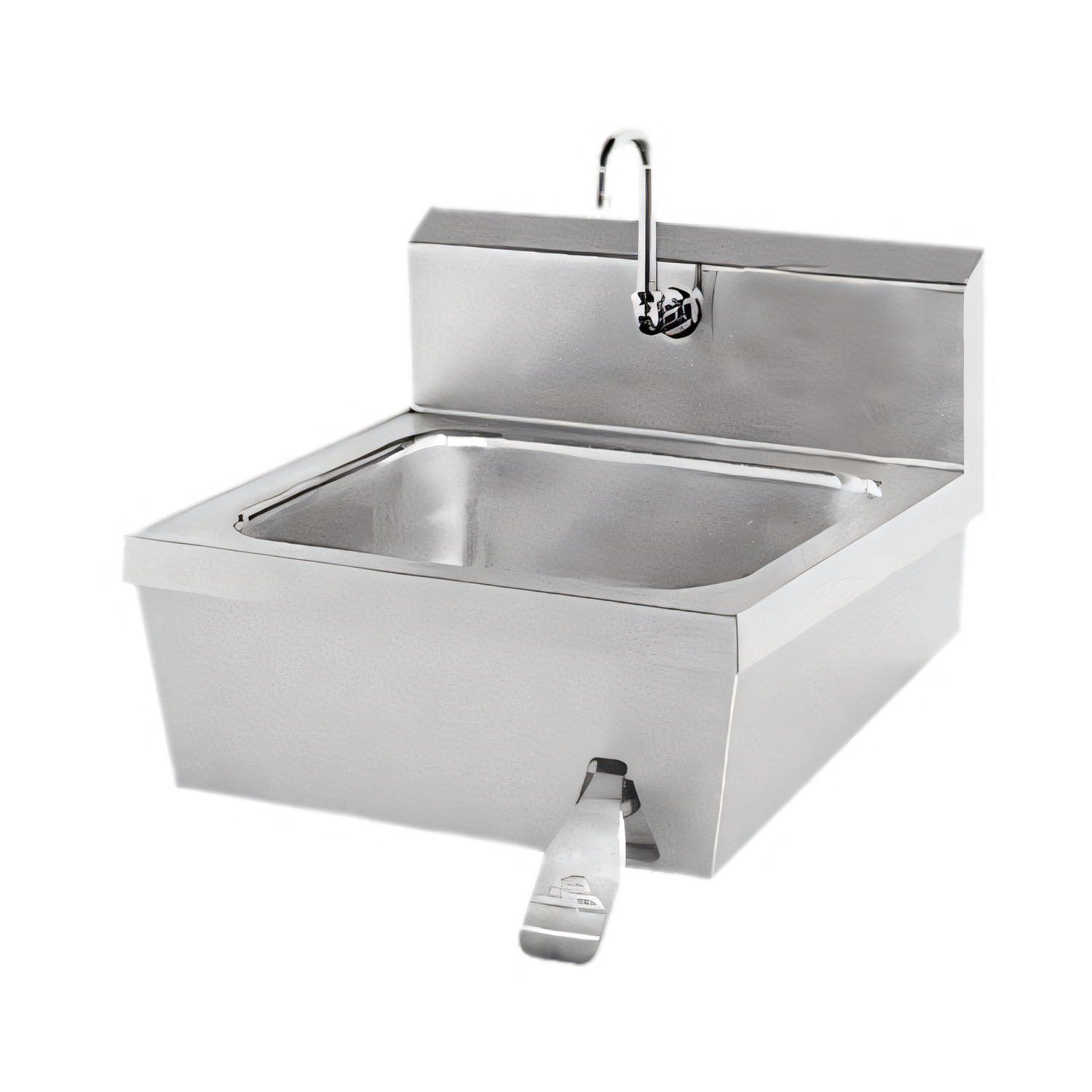

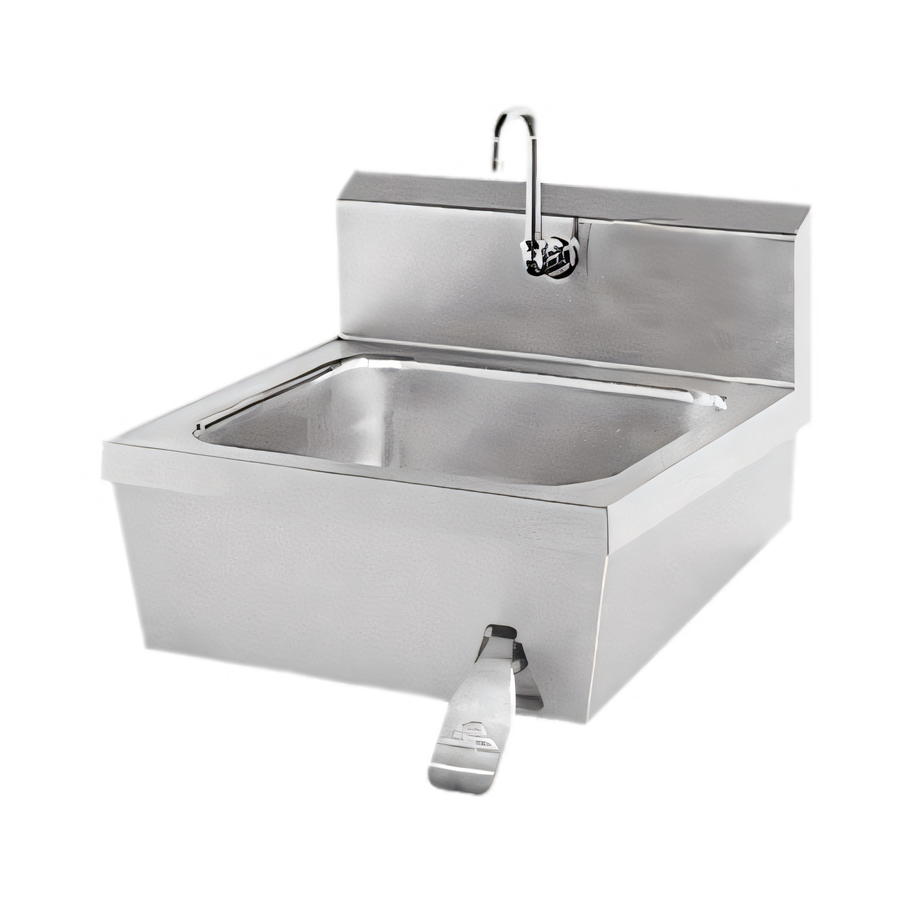

Advance Tabco 7-PS-30 Deep Drawn™ Wall-Mounted Hand Sink
Hands-free knee valve • 18-gauge type 304 stainless steel • NSF & cCSAus listedEngineered for busy commercial kitchens, prep areas and healthcare facilities, the 7-PS-30 delivers true hands-free hygiene in a rugged, space-saving design. Its one-piece Deep Drawn™ bowl, heavy-duty gooseneck faucet and pedal-activated knee valve combine to keep cross-contamination at bay while standing up to daily wear and tear.
Why you’ll love it
- One-piece Deep Drawn™ bowl eliminates seams where bacteria can hide.
- 18-gauge, type 304 stainless steel resists corrosion and cleans up fast.
- Generous 14" W x 16" F-B x 6" D interior handles large pots, pans and sheet trays.
- Splash-mounted gooseneck faucet (1.0 GPM aerator) keeps water where it belongs.
- Knee valve activation provides 100 % hands-free operation—no handles to touch.
- Apron front and sides conceal plumbing for a crisp, professional look.
- Keyhole wall-mount bracket speeds installation and locks sink securely to the wall.
- 1 ½" IPS stainless steel basket drain included—ready for hook-up.
- Conforms to NSF/ANSI 61 & 9 lead-free standards; cCSAus certified.
Technical specifications
| Model | 7-PS-30 |
|---|---|
| Bowl size (W × F-B × D) | 14" × 16" × 6" (356 × 406 × 152 mm) |
| Material / gauge | 18-ga. type 304 stainless steel, satin finish |
| Faucet | Splash-mounted gooseneck, 1/2" IPS male supply, 1.0 GPM aerator |
| Valve type | Pedal-style knee valve, 3/8" NPT inlets with built-in check valves |
| Drain | Stainless steel basket drain, 1 ½" IPS outlet |
| Mounting hardware | Galvanized steel keyhole wall bracket (included) |
| Overall weight | 33 lb / 15 kg (shipping) |
| Certifications | NSF, cCSAus, Lead-Free compliant |
Installation & plumbing
- Mount rim 34" above finished floor for ADA compliance (check local code).
- Spout supply: ½" IPS male thread.
- Hot & cold water to knee valve: 3/8" NPT female inlets.
- Optional K-425 thermostatic mixing valve connects directly to knee valve for tempered water (sold separately).
Professional installation recommended. Installer must connect faucet to knee valve.
