Advance Tabco  |  SKU: 19-FM-80KV  |  UPC: 747545217141

Advance Tabco 19-FM-80KV Hand Sinks

$4,265.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation Optional mixing valve
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

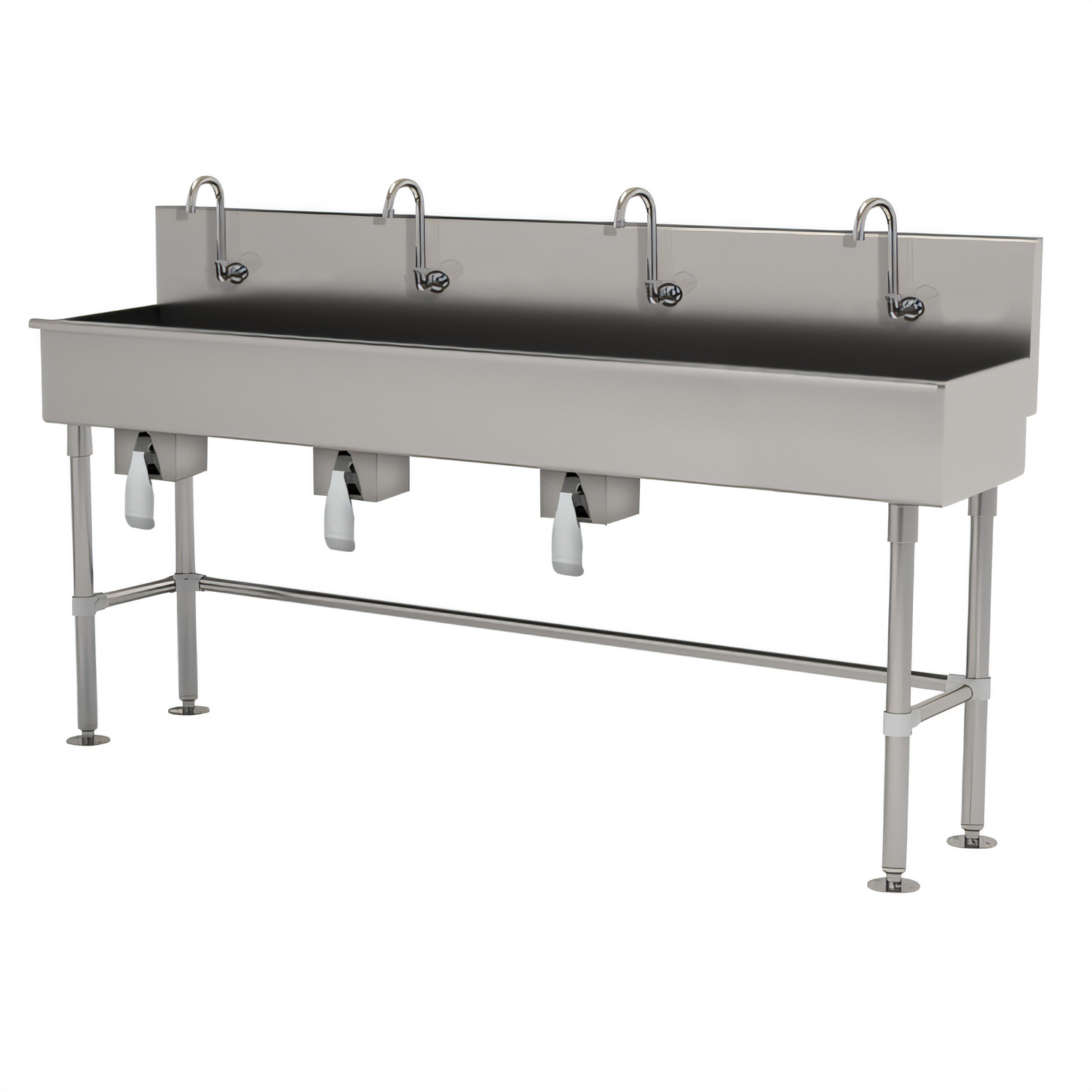

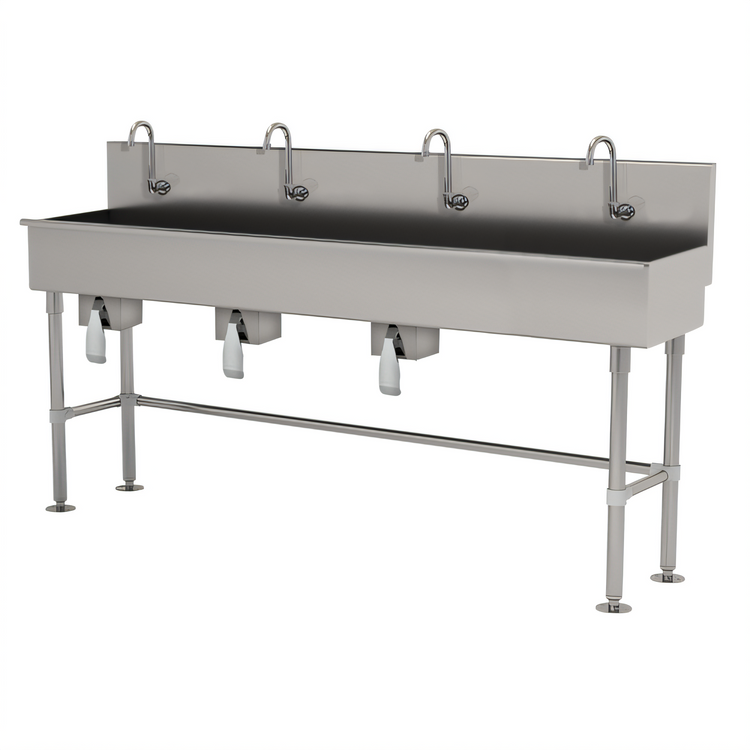

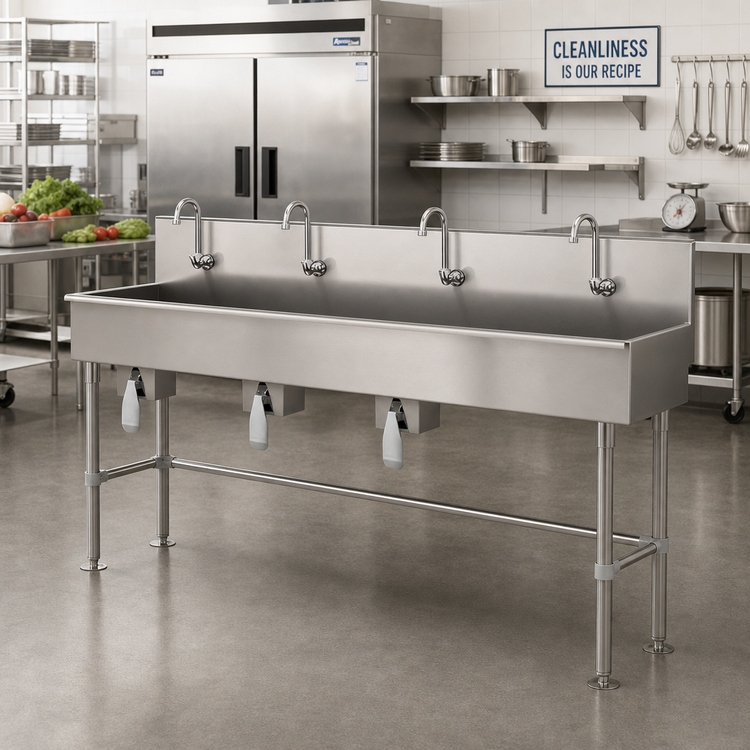

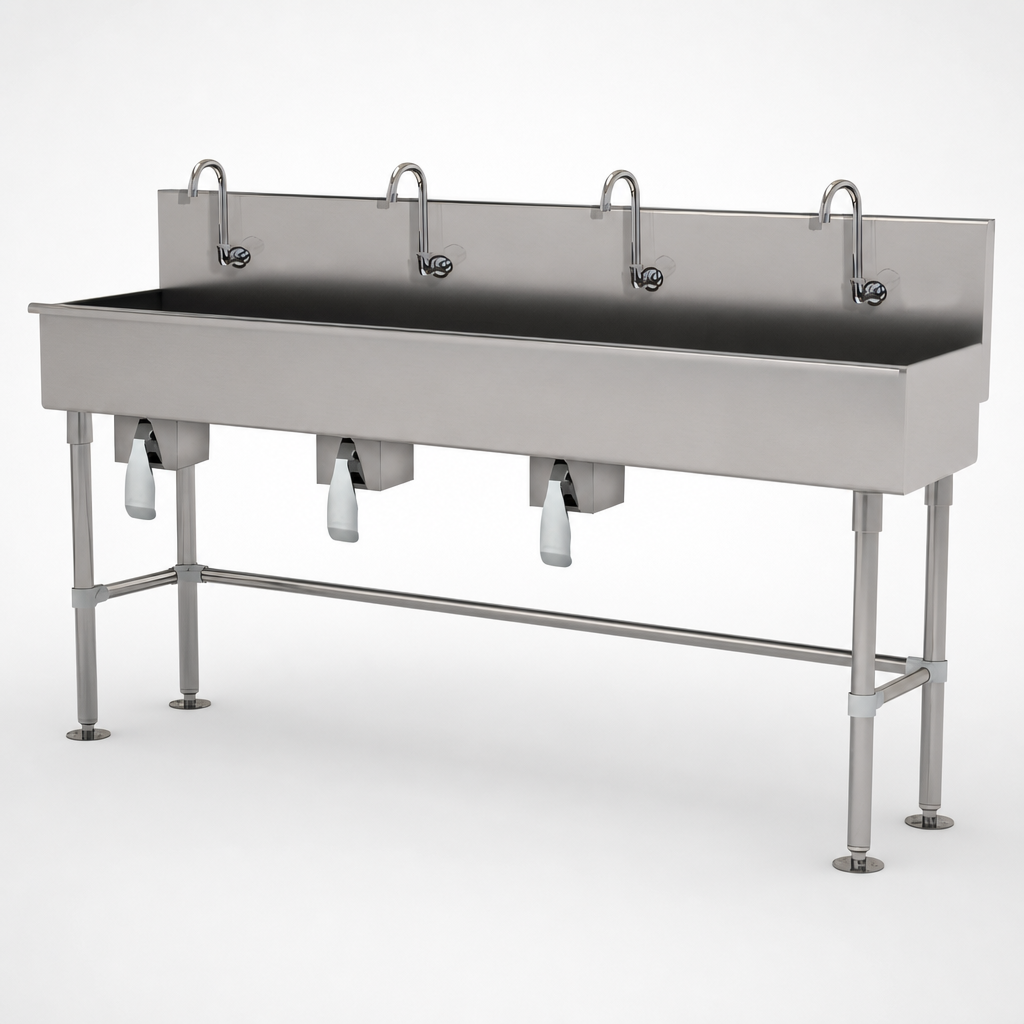

Advance Tabco 19-FM-80KV Multi-Wash Hand Sink – 4 Station, Knee Operated

80" W x 19-1/2" D x 42-1/2" H overall • 16 ga. 304 SS construction

Designed for high-volume environments, this floor-mounted, knee-activated sink allows four users to wash up simultaneously without ever touching a handle—helping you meet the strictest hygiene standards while streamlining workflow.

Key features

  • Hands-free operation — (4) AT 7-PS-32 knee valves paired with K-121 gooseneck spouts
  • One-piece 80" sink body with (4) 16" front-to-back x 8" deep bowls
  • 8-1/2" high backsplash pre-punched with single-hole mount at each station
  • 16 ga. type 304 stainless steel sink and 1-5/8" Ø tubular legs resist corrosion and heavy use
  • Flanged feet plus side and rear adjustable cross-bracing for rock-solid stability
  • TIG-welded square-corner design; welds blended to a smooth satin finish
  • 3-1/2" K-6 rear basket drain included
  • NSF listed & ready for commercial installation

Specifications

Model 19-FM-80KV
Stations 4
Overall dimensions 80" W × 19-1/2" D × 42-1/2" H
Bowl size (each) 16" front-to-back × 8" deep
Backsplash height 8-1/2"
Faucet holes (4) single-hole, 1 per station
Drain 3-1/2" rear basket drain (included)
Material & thickness 16 ga. type 304 stainless steel
Legs / supports 1-5/8" Ø 304 SS tubular legs with adjustable side & rear cross-bracing; flanged feet
Finish Satin polish, welded seams blended
Operation Knee pedal – hands-free
Certifications NSF

Ideal for

  • Commercial kitchens & commissaries
  • Food-processing and packaging plants
  • Laboratories, pharmaceutical & clean-room facilities
  • Industrial wash-up & maintenance areas
Proposition 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Ships knocked down to reduce freight costs. Assembly hardware and wall "Z" brackets included.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

80.0in

Depth

19.5in

Shipping Weight

152.0lbs

Features

multi-station

Style

freestanding

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet included

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, with knee valve, 80"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (4) single faucet holes, gooseneck spouts, includes basket drain, 16 gauge 304 stainless steel construction
