Advance Tabco 19-FM-80FV Hand Sinks
Description

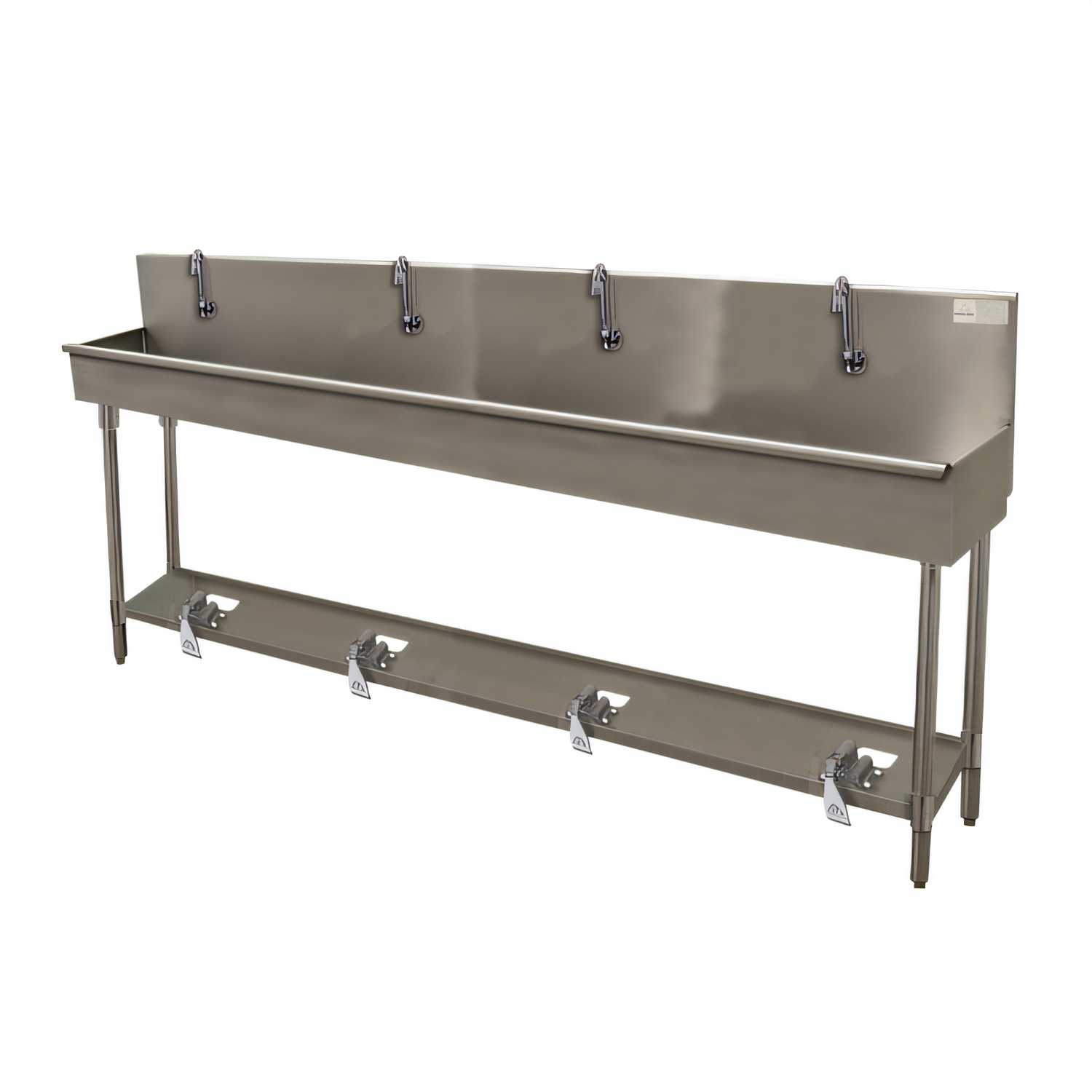

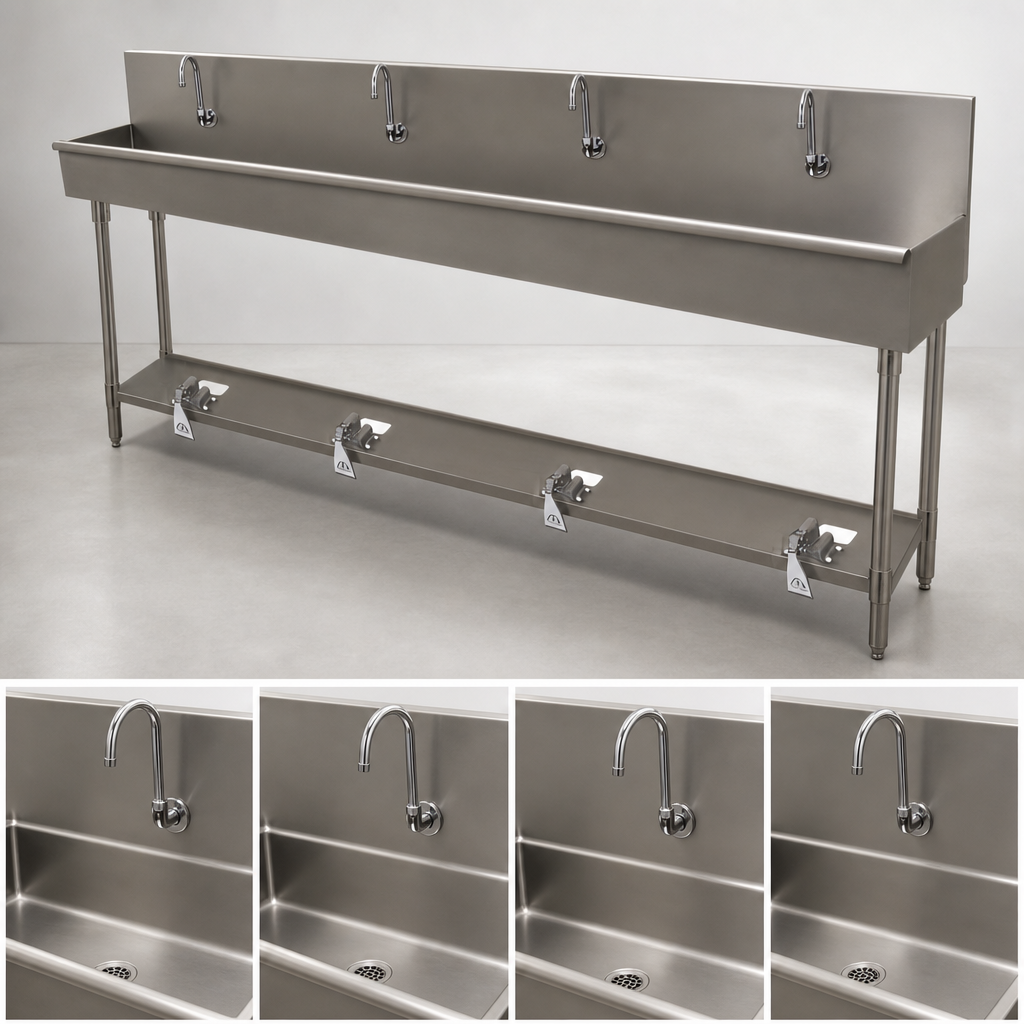

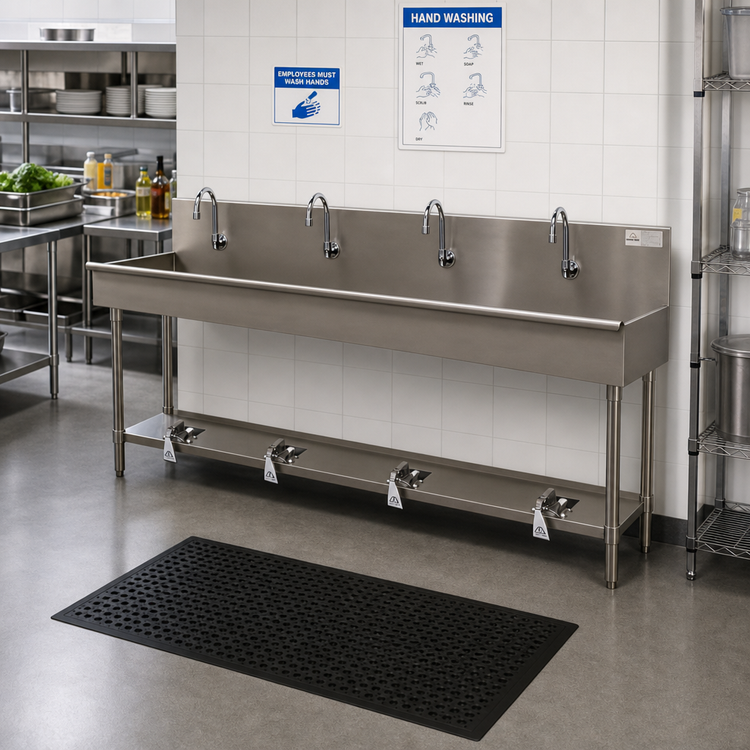

Advance Tabco 19-FM-80FV Multi-Station Hand Sink
80" Floor-Mounted • 4 Stations • Toe-Push OperatedEngineered for high-volume hand-washing, the 19-FM-80FV delivers four spacious stations in one rugged, easy-to-sanitize unit. Built from 16-gauge type 304 stainless steel and activated by durable toe-push valves, this sink keeps hands away from levers and handles—perfect for foodservice, production, or lab environments where hygiene is non-negotiable.
Key Features
- 80 in. wide × 19 1⁄2 in. deep × 42 1⁄2 in. high (overall)
- Four 16 in. front-to-back × 8 in. deep bowls with square corners
- Hands-free K-104 toe-push valves with built-in tempering/mixing
- Four K-121 lead-free gooseneck spouts (single-hole punched)
- 8 1⁄2 in. high integral backsplash protects walls from splashes
- 3 1⁄2 in. rear basket drain (K-6) with strainer included
- TIG-welded construction blended to a satin finish—no crevices for bacteria
- 1 5⁄8 in. tubular stainless steel legs with flanged feet & pedal support shelf
- Side & rear adjustable cross-bracing for rock-solid stability
- NSF compliant & proudly made in the USA
Technical Specifications
| Model | 19-FM-80FV |
|---|---|
| Number of Stations | 4 |
| Operation | Foot pedal (toe-push) – one K-104 valve per station |
| Faucet Type | K-121 gooseneck spouts, lead-free, single temperature mixing |
| Overall Dimensions | 80" W × 19-1/2" D × 42-1/2" H |
| Bowl Dimensions (each) | 16" F-B × 8" D |
| Backsplash Height | 8-1/2" |
| Material / Gauge | 16-ga Type 304 stainless steel |
| Drain | 3-1/2" rear basket drain with strainer |
| Mounting | Floor-mounted legs with flanged feet & wall “Z” brackets (included) |
| Finish | Satin-blended TIG welds |
| Certifications | NSF, Lead-Free (NSF 61/9) |
Why Choose Toe-Push?
- True hands-free activation reduces cross-contamination risk.
- Heavy-duty pedal & valve assembly rated for commercial abuse.
- No electronics or batteries—pure mechanical reliability.
Included With Your Sink
- (4) Stainless steel toe pedals & mixing valves
- (4) Gooseneck spouts
- (1) 3-1/2" basket drain assembly
- (4) Tubular legs with adjustable flanged feet
- Pedal support shelf / cross brace
- Stainless “Z” wall brackets & hardware
Need a different length or knee-activated model? Explore the full Advance Tabco 19-FM series or contact us for a custom quote.
