Advance Tabco  |  SKU: 19-FM-80EFADA

Advance Tabco 19-FM-80EFADA Hand Sinks

$5,894.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

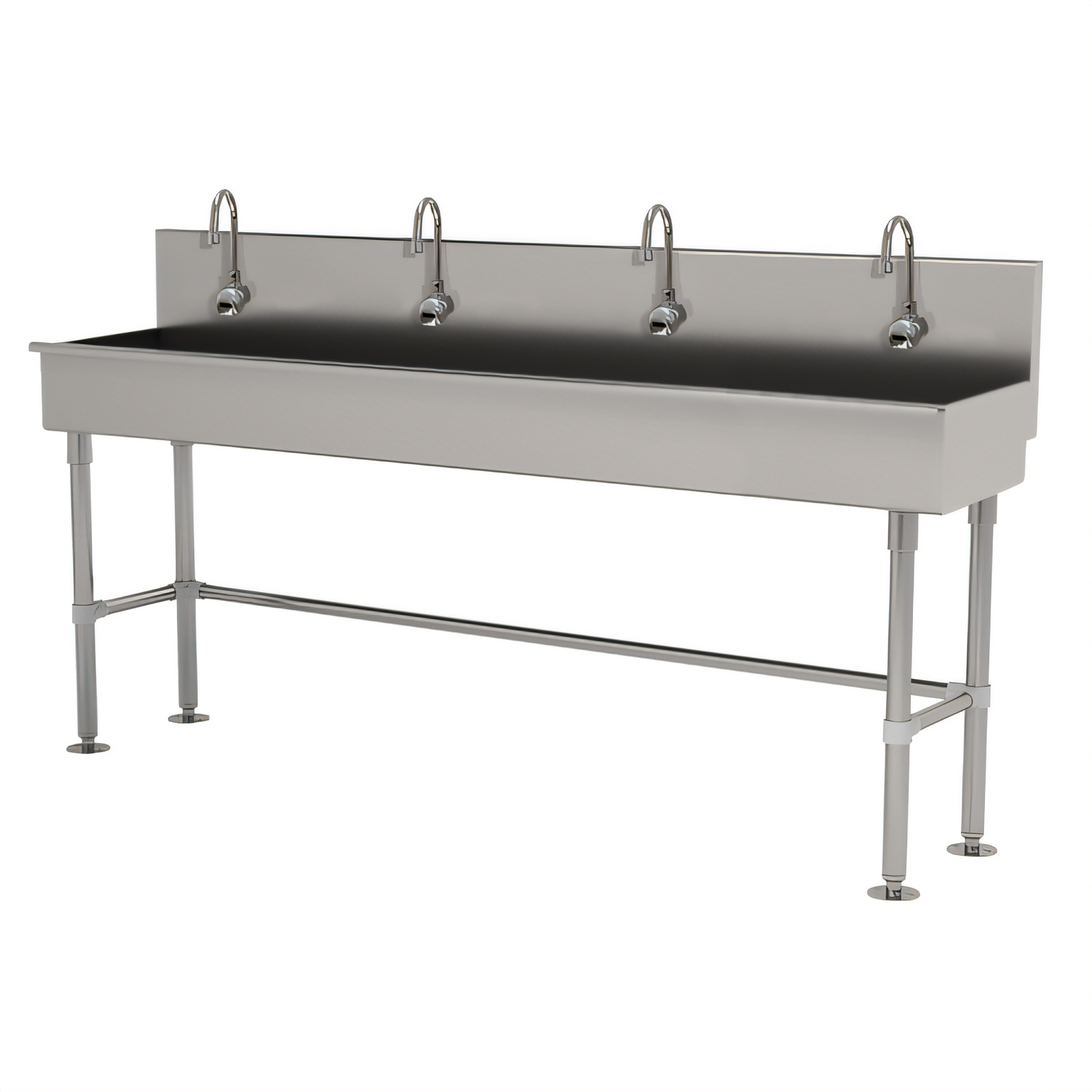

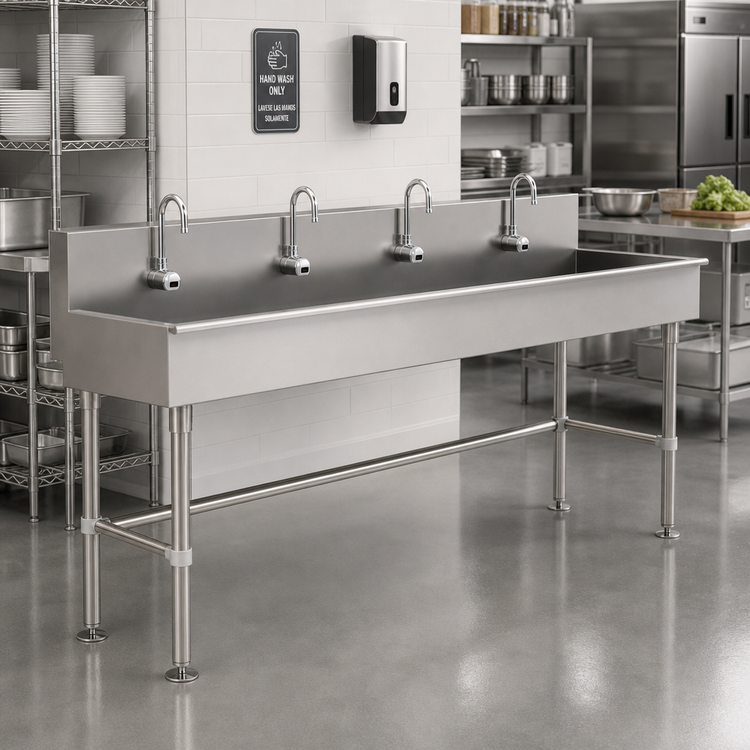

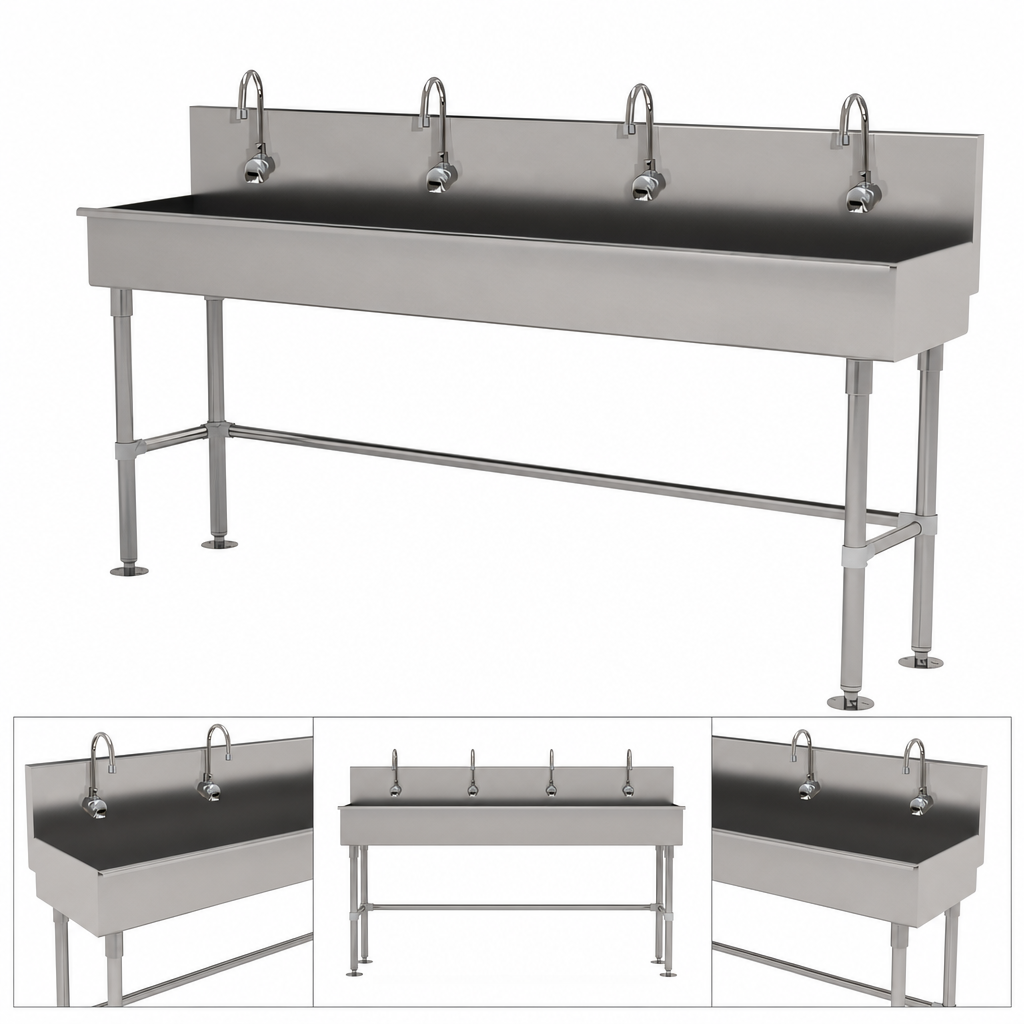

Advance Tabco 80" ADA Electronic Multi-Station Hand Sink

Model 19-FM-80EFADA  •  4 Stations / 4 Touch-Free Faucets

Purpose-built for high-traffic locations that demand maximum hygiene, this free-standing stainless steel hand-wash sink serves four users at once and meets ADA accessibility guidelines. Its rugged 16-gauge construction, touch-free electronic faucets and easy-to-clean square-corner design make it the smart choice for foodservice, healthcare, education and industrial facilities.

Key Features

  • Generous 80" width with 4 individual stations keeps lines moving during peak periods.
  • (4) Advance Tabco K-175 splash-mounted electronic faucets – 2.2 GPM aerators, AC adapter included; optional 0.5 GPM low-flow aerators available.
  • ADA compliant 5" bowl depth and 34" rim height accommodate seated or standing users.
  • Durable 16 ga. Type 304 stainless steel with satin finish resists corrosion and simplifies sanitation.
  • 8-1/2" high integral backsplash contains splashes and accepts the supplied stainless “Z” wall brackets.
  • 1 5/8" Ø tubular stainless steel legs with adjustable cross-bracing and flanged feet for rock-solid floor support.
  • Pre-punched single faucet hole at each station for simple installation and service.
  • Includes 3-1/2" rear basket drain (K-6) to streamline plumbing connections.
  • All TIG-welded; welds blended for a seamless appearance.

Dimensions

Overall Size (W × D × H) 80" × 19 1/2" × 42 1/2"
Bowl Size (each) 16" front-to-back × 5" deep
Backsplash Height 8 1/2"
Rim Height 34"
Number of Faucets / Stations 4
Drain Connection 3 1/2" rear basket drain (included)

Touch-Free Advantage

  • Infrared sensor activation minimises cross-contamination.
  • Factory-installed mixing valve delivers tempered water at every outlet.
  • Automatic 30-second shut-off prevents water waste and flooding.
  • Quick-change control box and aerator keep maintenance simple.

What’s in the Crate

  • Multi-station stainless steel sink body with pre-punched holes
  • (4) K-175 electronic sensor faucets with 6' power adapter & control box
  • (2) Stainless “Z” wall-mounting brackets
  • 1 5/8" tubular legs, cross-bracing & flanged feet hardware
  • 3-1/2" K-6 rear basket drain assembly
  • Installation & operation manual

Certifications

  • NSF compliant lead-free faucets
  • Meets current ADA guidelines for accessibility
California Proposition 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. Learn more.

Specifications are subject to change without notice as Advance Tabco continually improves its products.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

42.5in

Width

80.0in

Depth

19.5in

Shipping Weight

112.0lbs

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

5" deep

Style

freestanding

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, with (4) electronic faucets, 80"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (4) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, ADA compliant
