Advance Tabco 19-FM-80EF Hand Sinks
Description

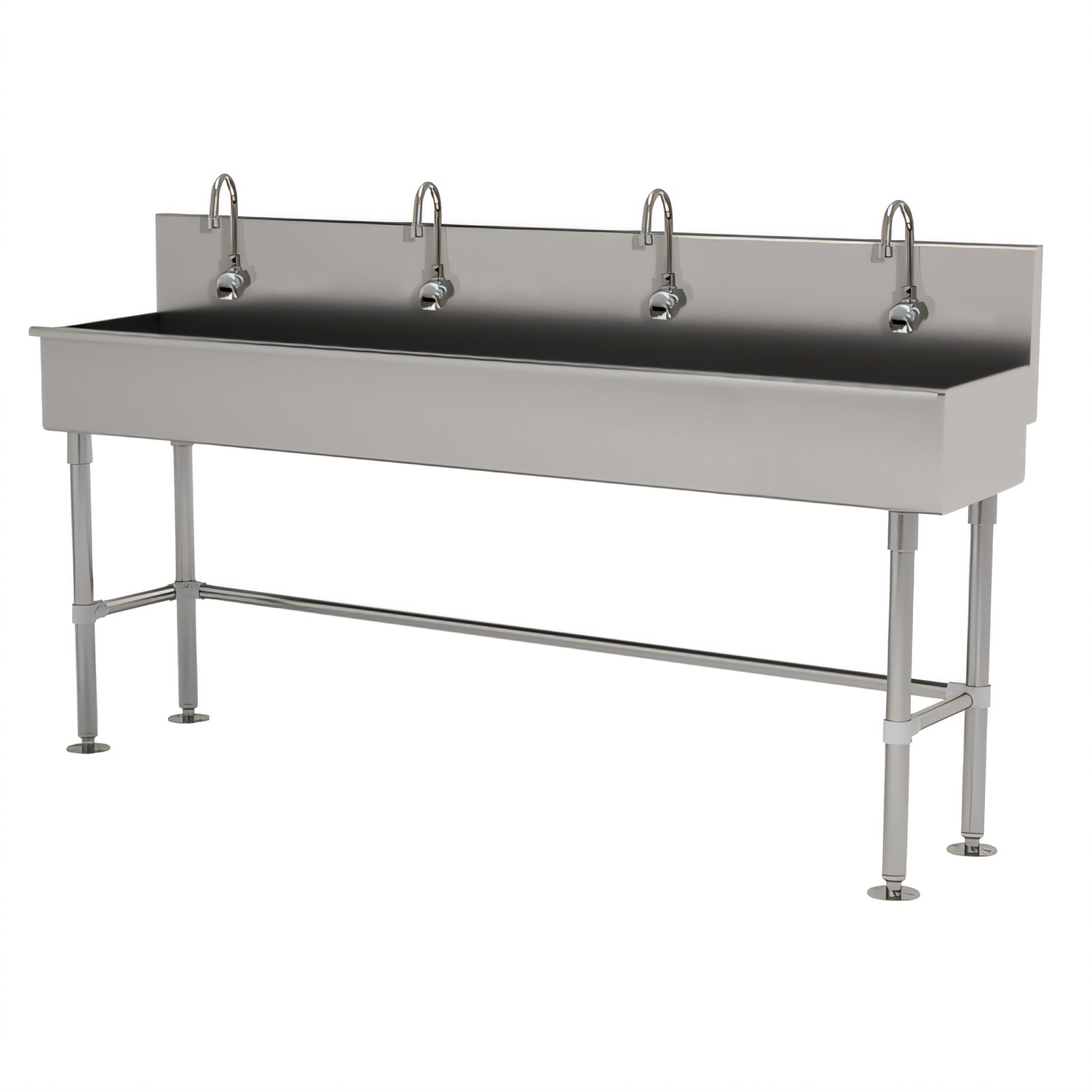

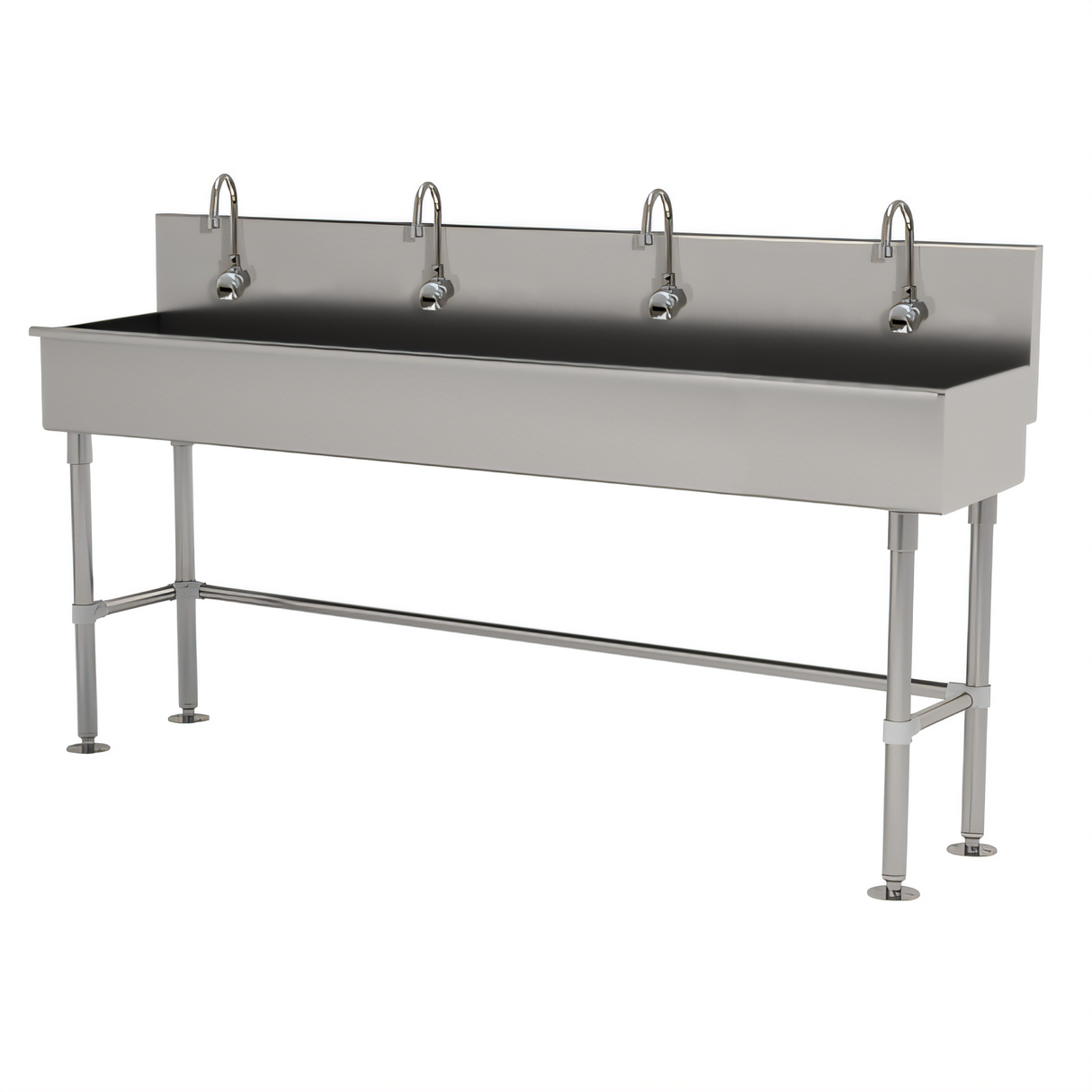

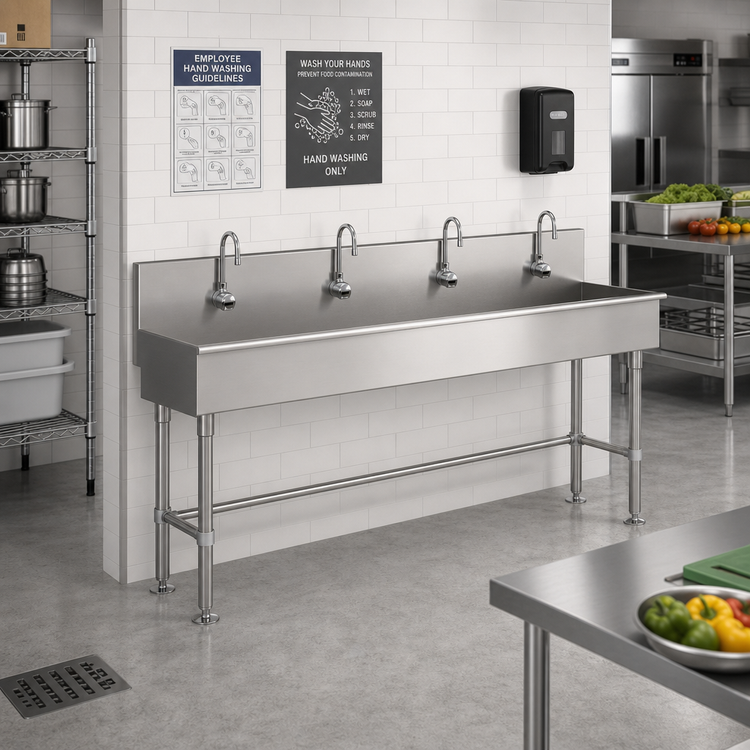

Advance Tabco 19-FM-80EF Multi-Station Hand Sink
80" W • 4 Electronic Faucets • Floor-MountedGive four team members touch-free hand-washing at once with this rugged, space-saving sink built entirely from 16-gauge 304 stainless steel. The 19-FM-80EF ships ready to plumb with K-175 electronic faucets, drain assembly and heavy-duty tubular legs—making it the perfect hygiene solution for busy kitchens, factories and schools.
Key Features
- 4 x K-175 splash-mounted electronic faucets for completely touch-free operation
- 80" overall width provides four generous wash stations
- 16" front-to-back x 8" deep bowl with square corners for easy clean-out
- 8 ½" high integrally welded backsplash helps protect surrounding walls
- 3 ½" K-6 rear basket drain included—no extra kit to buy
- 16-gauge type 304 stainless steel sink body TIG-welded to a smooth satin finish
- 1 5⁄8" Ø tubular stainless steel legs with adjustable cross-bracing & flanged feet for rock-solid floor mounting
- Pre-punched single faucet hole at every station for quick installation
Specifications
| Model | 19-FM-80EF |
|---|---|
| Number of stations | 4 |
| Overall dimensions | 80" W × 19 ½" D × 42 ½" H |
| Bowl size (each) | 16" F/B × 8" D |
| Backsplash height | 8 ½" |
| Material thickness | 16 ga (1.5 mm) 304 stainless steel |
| Included faucets | 4 x Advance Tabco K-175 electronic, 2.2 GPM |
| Drain type | 3 ½" K-6 basket drain (rear) |
| Legs / feet | 1 5⁄8" Ø 304 SS tubular legs with flanged feet |
| Mounting | Floor-standing with supplied wall “Z” brackets for added support |
| Finish | Satin |
| NSF listed | Yes |
Benefits at a Glance
- Touch-free sensors cut water waste and reduce cross-contamination risk.
- All-stainless construction stands up to heavy commercial sanitation chemicals.
- Modular leg bracing lets you fine-tune stability on uneven floors.
- Factory-installed faucet holes & drain speed up installation—just connect supply and waste lines.
Need additional options such as low-flow aerators, knee-valve operation, or ADA 5" deep bowls? Contact our team and we’ll build the perfect configuration.
