Advance Tabco 19-FM-80-ADA-F Hand Sinks
Description

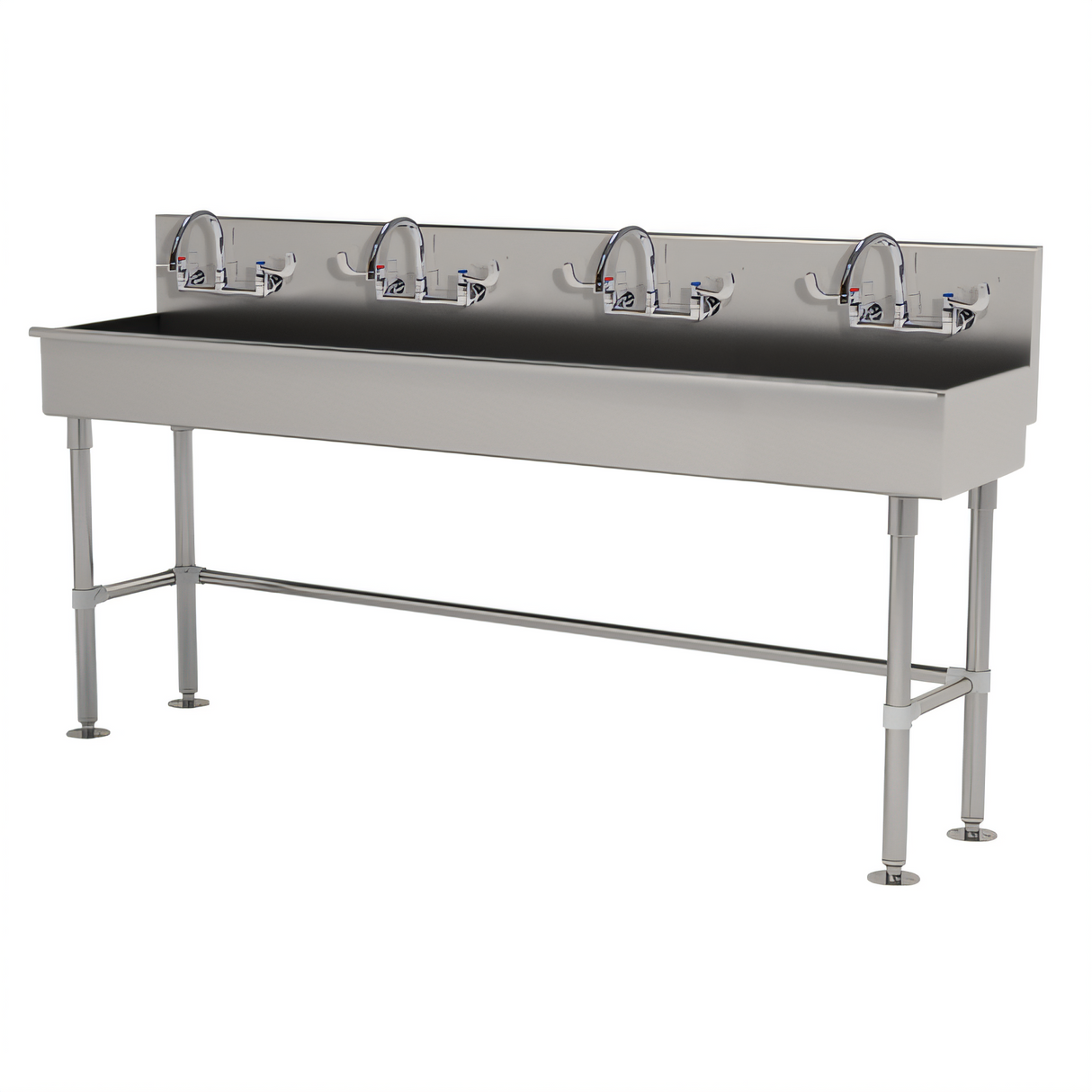

80" ADA Multi-Station Hand Sink – 4 Faucets
Advance Tabco Model 19-FM-80-ADA-FEngineered for high–volume hand-washing and full ADA accessibility, this 4-station Advance Tabco floor-mounted sink streamlines hygiene wherever people work, learn, or prepare food. A rugged 16-gauge 304 stainless steel body, factory-installed wrist-blade faucets, and a space-saving single drain give you years of worry-free service in even the toughest environments.
Key advantages
- ADA-compliant 5" deep bowl allows comfortable, forward-approach access

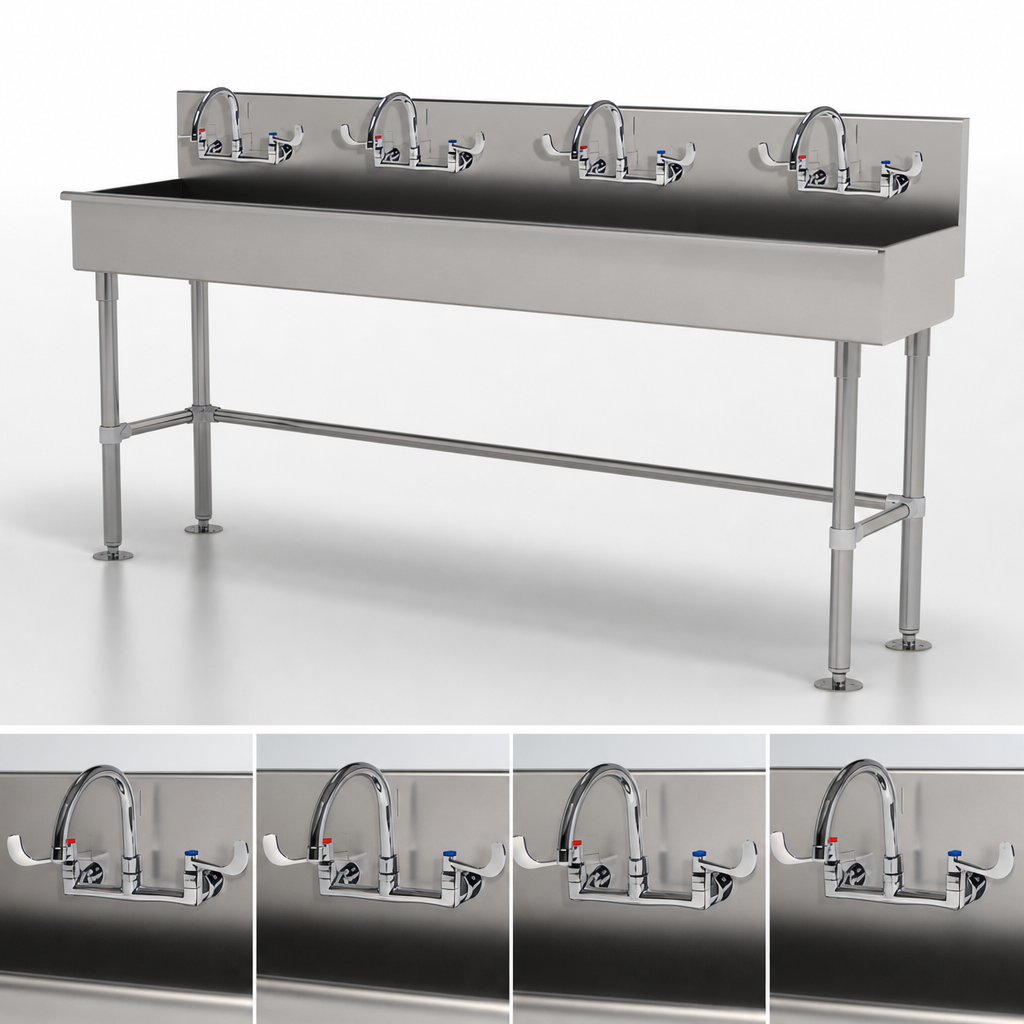

- Four K-161-LU manual gooseneck faucets with 4" wrist-blade handles included
- One-piece TIG-welded 16 ga 304 stainless steel top & bowl with easy-clean satin finish
- 8 ½" high backsplash pre-punched with four 8"-on-center faucet holes
- Heavy-duty 1 ⅝" O.D. tubular legs with adjustable side/rear cross-bracing & flanged feet
- Factory-installed 3 ½" rear basket drain (K-6) simplifies plumbing
- Stainless steel “Z” mounting bracket supplied for additional wall support
- NSF listed for sanitation & built to withstand daily commercial use
Detailed specifications
| Stations / Faucets | 4 |
|---|---|
| Overall width | 80" (2032 mm) |
| Overall depth | 19 ½" (495 mm) |
| Overall height (to top of backsplash) | 42 ½" (1080 mm) |
| Work height (rim) | 34" (864 mm) |
| Bowl front-to-back | 16" (406 mm) |
| Bowl depth | 5" (127 mm) |
| Backsplash height | 8 ½" (216 mm) |
| Faucet hole centers | 8" O.C. |
| Drain connection | 3 ½" basket drain, rear mount |
| Material / gauge | 304 stainless steel, 16 ga |
| Shipping weight | Approx. 108 lb / 49 kg |
| Certifications | NSF, ADA |
What’s in the box
- (1) 80" four-station hand sink assembly
- (4) K-161-LU 8 ½" gooseneck faucets with wrist-blade handles
- (1) 3 ½" rear basket drain kit
- (1) Stainless steel “Z” wall bracket
- Installation hardware & documentation
Perfect for
- Food-service kitchens & commissaries
- Schools, stadiums & arenas
- Manufacturing & packaging facilities
- Laboratories and healthcare support areas
Looking for other sizes, depths, or electronic operation? Advance Tabco’s full 19-FM series is also available without faucets or with sensor-activated models.
