Description

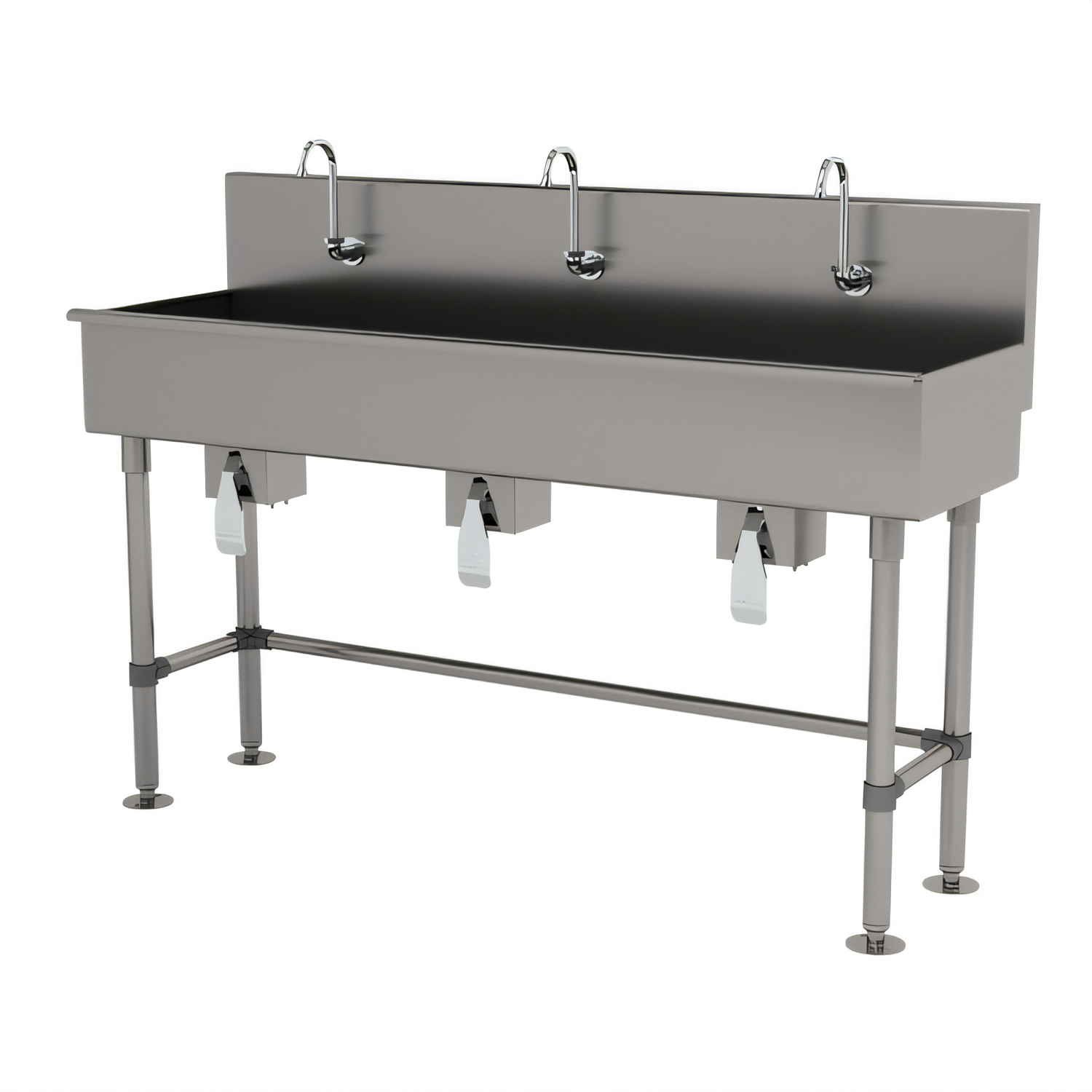

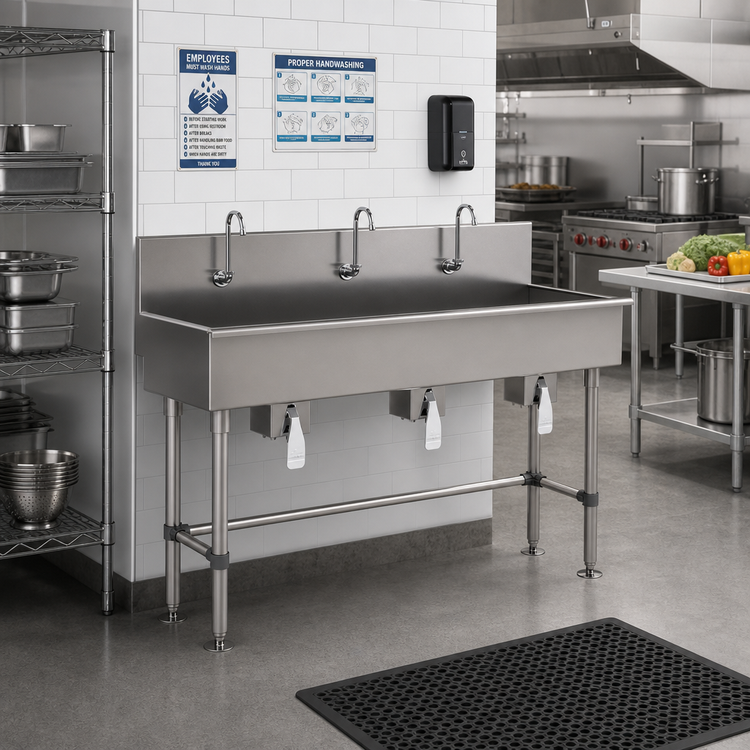

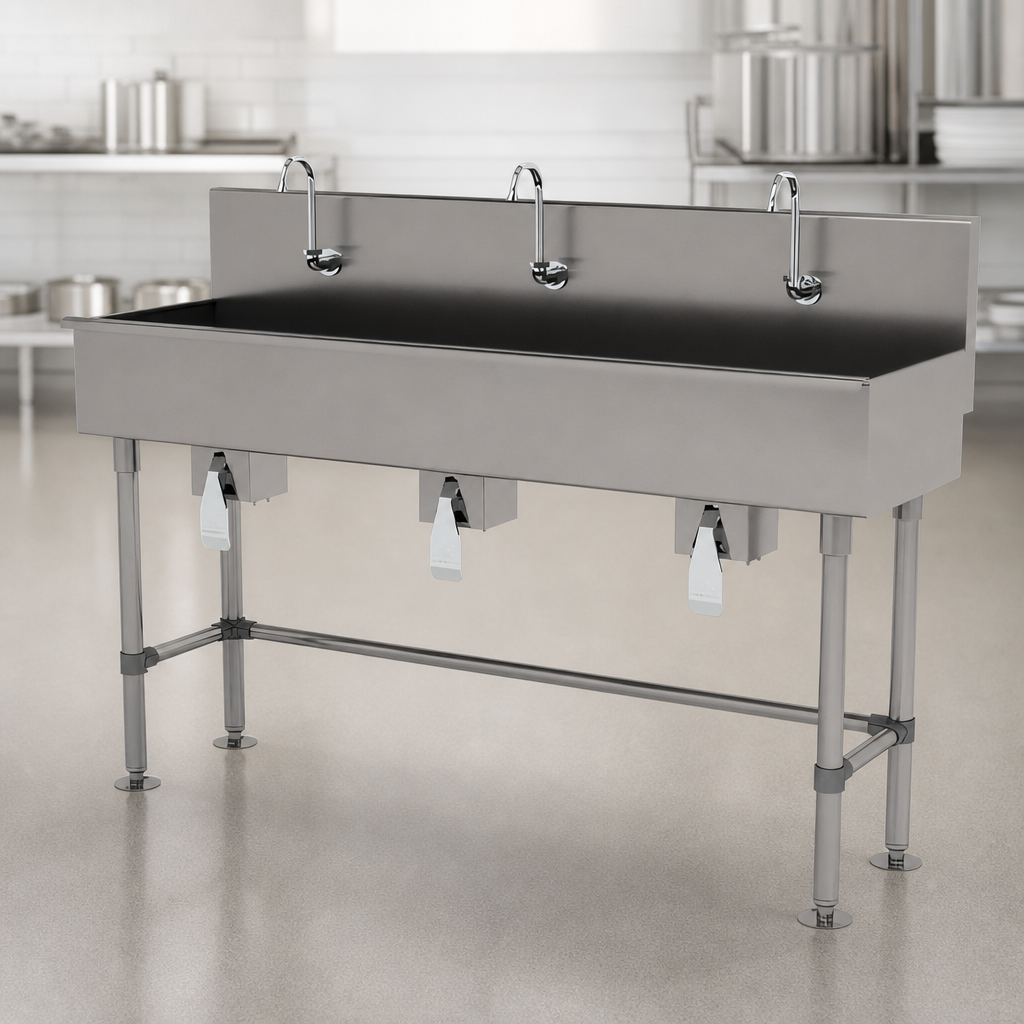

Advance Tabco 19-FM-60KV Multi-Wash Knee-Operated Hand Sink – 60″, 3 Stations

Hands-free, high-capacity sanitation in rugged 16-gauge 304 stainless steel

Built for demanding commercial and institutional environments, the Advance Tabco 19-FM-60KV delivers three independent wash stations in one compact 60-inch footprint. Knee-valve activation eliminates hand contact, while heavy-duty stainless construction, adjustable cross-bracing and flanged feet guarantee long-term stability on the busiest production floors.

Key Features

  • Hands-free operation – three 7-PS-32 knee valves with front-adjustable mixing.
  • Pre-punched with one single-hole faucet opening per station; includes three K-121 gooseneck spouts.
  • Full-width 8 ½″ backsplash protects walls and simplifies cleanup.
  • Deep 8″ bowls (16″ front-to-back) comfortably accommodate bulk handwashing tasks.
  • One-piece TIG-welded body in 16-gauge type 304 stainless steel with satin finish.
  • Tubular 1 ⅝″ 304 stainless steel legs with flanged feet for secure floor anchoring.
  • Side & rear adjustable cross-bracing and wall “Z” brackets included for maximum rigidity.
  • 3 ½″ K-6 basket drain supplied; fits standard 1 ½″ connections.
  • NSF compliant design helps meet health-code hand-sink requirements.

Specifications

Model No. 19-FM-60KV
Stations / Faucet Holes 3 / 3 single-hole
Overall Dimensions 60″ W × 19 ½″ D × 42 ½″ H
Bowl Size (each) 16″ F-B × 8″ D
Backsplash Height 8 ½″
Material / Gauge 16-gauge type 304 stainless steel
Drain 1 × 3 ½″ K-6 rear basket drain (included)
Activation (3) knee valves, mechanical (no electricity required)
Shipping Weight Approx. 130 lb
Certifications NSF • Lead-Free (NSF 61/9) components

Quick Installation Tips

  • Mount supplied “Z” brackets at 42 ½″ from finished floor, then slide sink into place.
  • Level unit using the adjustable cross-bracing before final tightening.
  • Single rear drain simplifies plumbing; 3 ⁄ 8″ NPT hot & cold inlets on each knee valve.
  • Optional K-425 thermostatic mixing valve can be added for precise temperature control.

Always verify local code requirements prior to installation.

California Proposition 65
This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. More information

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

60.0in

Depth

19.5in

Shipping Weight

130.0lbs

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

freestanding

Faucet

faucet included

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, with knee valve, 60"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) single faucet holes, gooseneck spouts, includes basket drain, 16 gauge 304 stainless steel construction
