Advance Tabco  |  SKU: 19-FM-60FV  |  UPC: 747545215925

Advance Tabco 19-FM-60FV Hand Sinks

$3,816.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

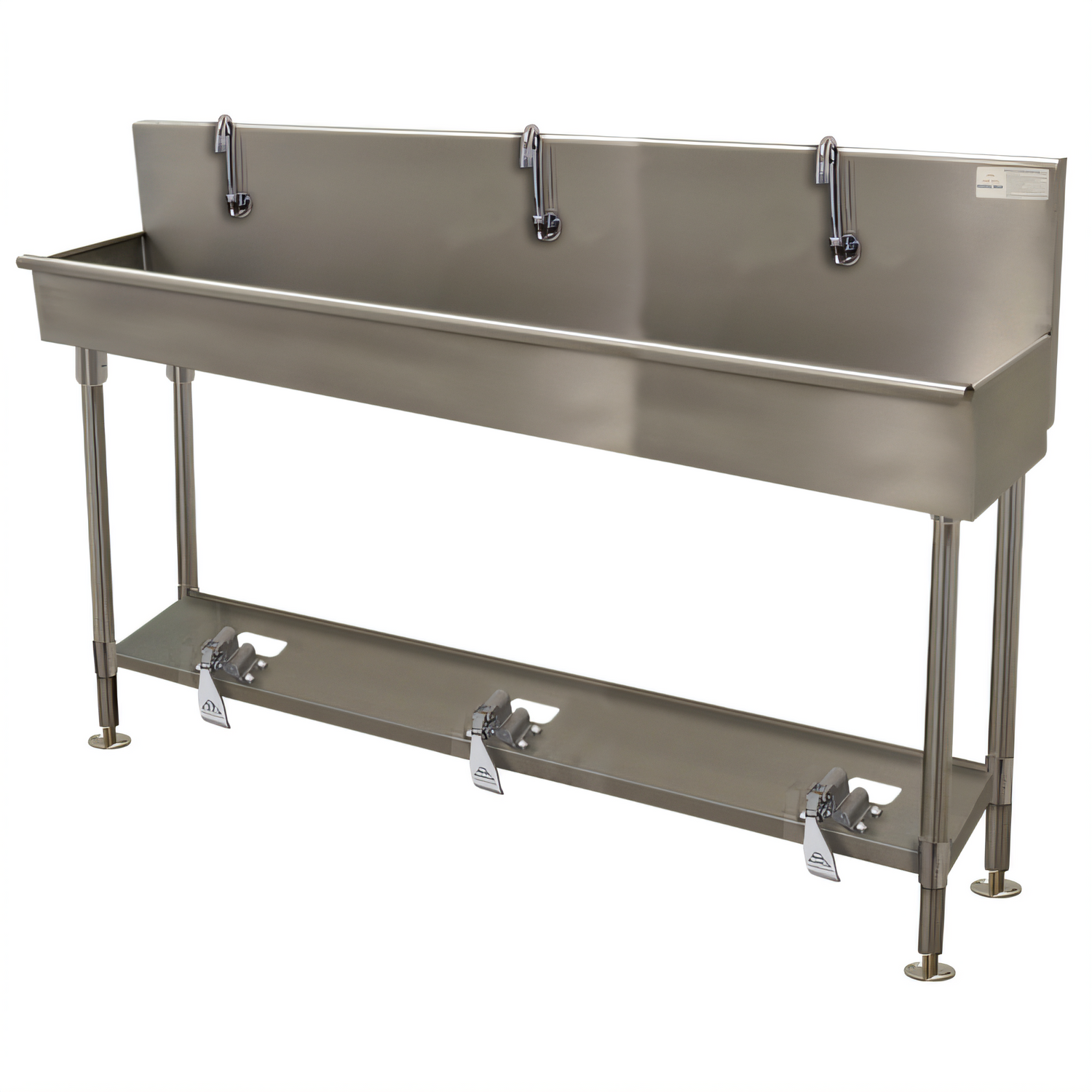

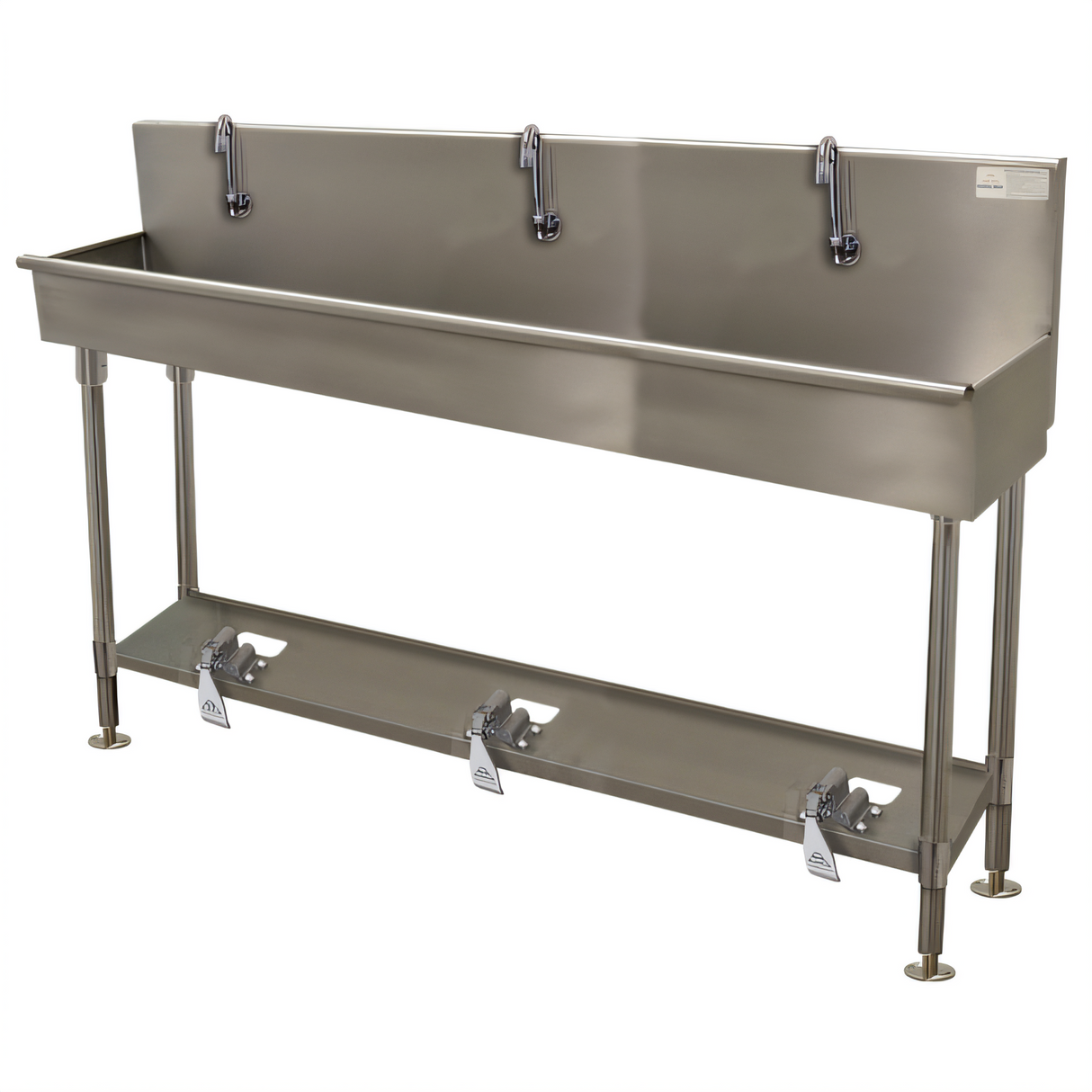

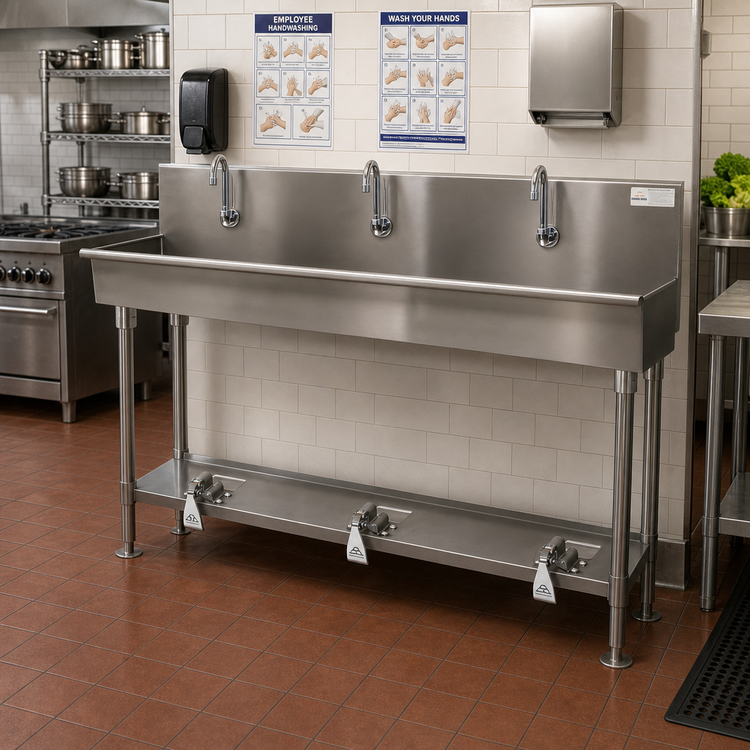

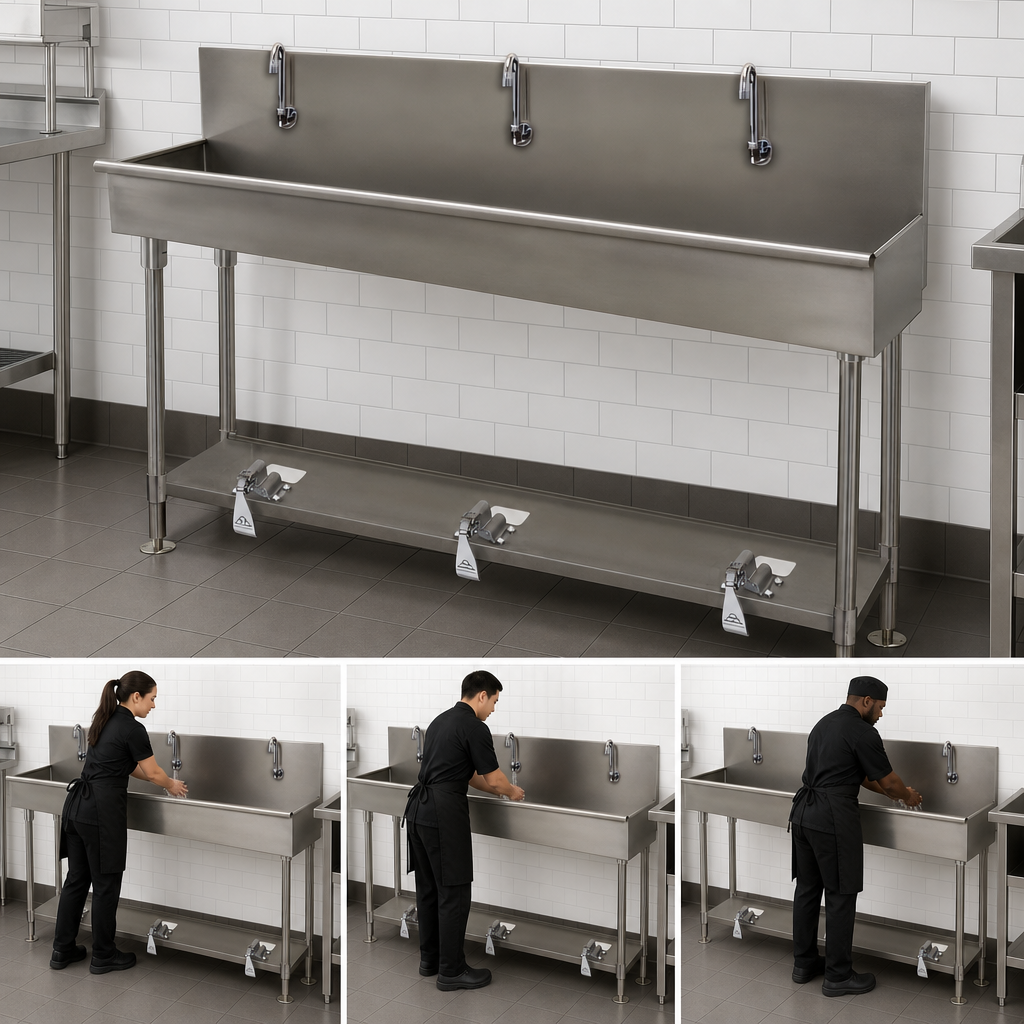

Advance Tabco 60" Multi-Wash Hand Sink – Model 19-FM-60FV

3-Station | Toe-Push Operated | 16 ga. Type 304 Stainless Steel

Designed for busy kitchens, laboratories, and production areas, the Advance Tabco 19-FM-60FV delivers fast, sanitary, hands-free washing for up to three users at a time. A rugged 16-gauge type 304 stainless body, welded tubular leg base, and toe-activated mixing valves make this the long-term solution for high-volume hygiene zones.

Why Choose the 19-FM-60FV?

  • Hands-free washing – K-104 toe-push valves let staff activate water flow without using their hands.
  • Three single-hole stations with K-121 gooseneck spouts keep water exactly where it belongs.
  • 8 ½" high backsplash protects surrounding walls and simplifies clean-up.
  • Heavy-duty 16 ga. type 304 stainless sink and 1 ⅝" tubular legs resist dents, corrosion, and chemicals.
  • Adjustable side & rear cross-bracing for rock-solid stability on uneven floors.
  • TIG-welded seams blended to a satin finish for a smooth, professional appearance.
  • NSF listed for food-service applications.

What Comes in the Box

  • One 60" floor-mounted sink body with square corners
  • (3) K-104 toe-push mixing valves, factory-installed
  • (3) K-121 stainless steel gooseneck spouts
  • (1) 3 ½" K-6 rear basket drain assembly
  • (4) stainless steel tubular legs with flanged feet
  • Pedal bracket support & stainless “Z” wall brackets
  • All required mounting hardware & documentation

Technical Specs

Model 19-FM-60FV
Number of Stations 3
Overall Dimensions (W × D × H) 60" × 19 ½" × 42 ½"
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8 ½"
Faucet Holes (3) single 1-hole punches – 4" OC
Valve Type K-104 toe-push mixing valves, lead-free
Spouts K-121 gooseneck, 3 ⅜" NPT female outlet
Drain 3 ½" K-6 rear basket drain
Material & Gauge 16 ga. type 304 stainless steel
Leg Construction 1 ⅝" OD tubular 304 stainless with flanged feet
Weight (ship) Approx. 138 lb
Certifications NSF, Lead-Free (NSF 61/9)

Perfect For

  • Commercial kitchens & commissaries
  • Food processing & packaging rooms
  • Breweries & beverage plants
  • Laboratories & R&D facilities
  • Manufacturing clean rooms

Installation Highlights

  • Mount supplied stainless “Z” brackets at 42 ½" AFF to support rear of sink.
  • 1 × ½" hot & cold supplies terminate at each K-104 valve (3/8" NPT female).
  • Single 3 ½" drain outlet – connect to 2" P-trap (by others).
  • Adjust mixing temperature via front-access screw on each valve.
  • Ensure toe pedals clear finished floor when fully depressed.

Refer to included rough-in drawings for detailed dimensions and clearances.

California Proposition 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

60.0in

Depth

19.5in

Shipping Weight

130.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Faucet

faucet included

Bowl Width (left to right)

20" & up

Style

freestanding

Features

multi-station

Specifications

Multiwash Hand Sink, with toe-operated push valve, 60"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
