Advance Tabco  |  SKU: 19-FM-60  |  UPC: 747545216618

Advance Tabco 19-FM-60 Hand Sinks

$2,567.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

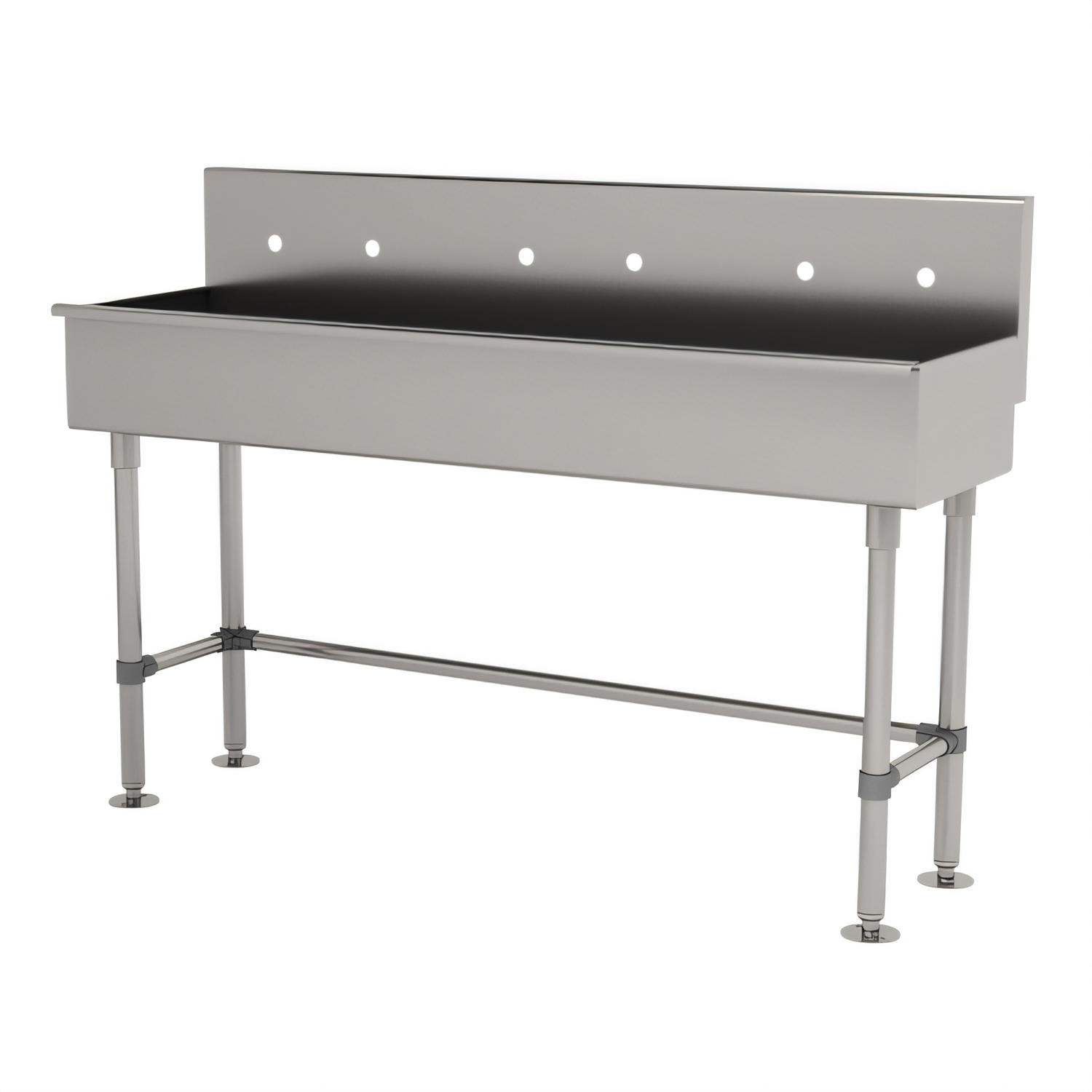

Advance Tabco 60" Multi-Station Hand Sink – 3 Station

Model 19-FM-60 · Sink only – faucets sold separately

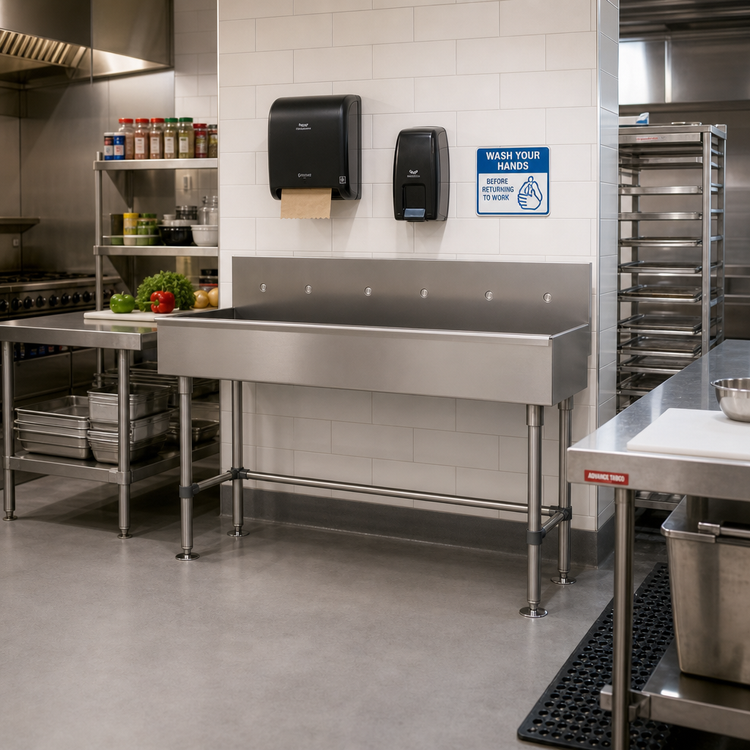

Built for high-traffic wash areas, this floor-mounted Advance Tabco multiwash sink lets three users clean up at once while meeting the toughest sanitation standards. All-stainless construction, a space-saving footprint and rock-solid leg bracing make it the perfect choice for commercial kitchens, labs, schools and back-of-house workrooms.

Key Features
  • Three user stations across a generous 60" width – no more waiting in line.

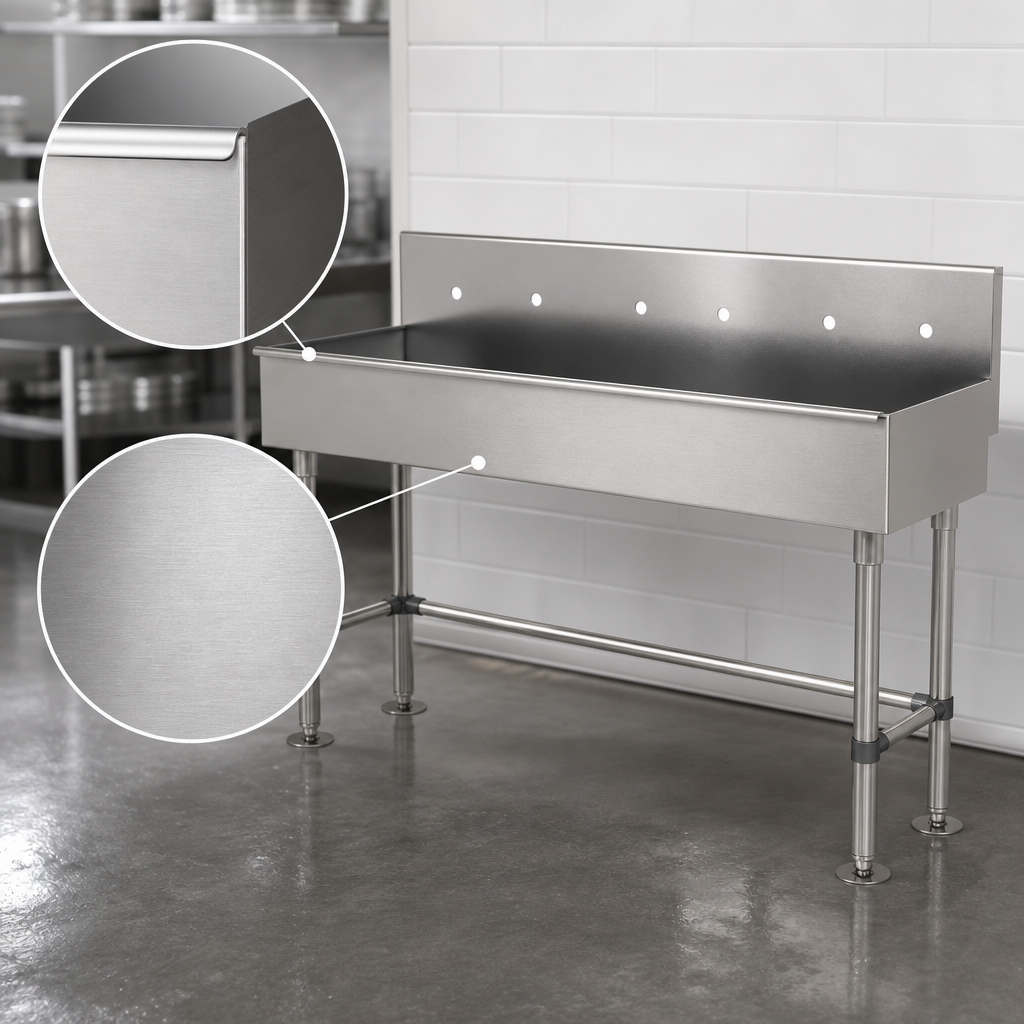

  • 16 ga. type 304 stainless steel sink body & legs – corrosion-proof and easy to sanitize.
  • One-piece TIG-welded construction; welds blended to a satin finish.
  • 16" front-to-back bowl with 8" working depth (standard series).
  • 8 ½" backsplash pre-punched with (3) sets of 8" on-center deck-mount faucet holes.
  • Includes 3 ½" K-6 rear basket drain to trap food particles and debris.
  • 1 ⅝" Ø tubular 304 SS legs with adjustable side/rear cross-bracing and 2" flanged feet.
  • Stainless steel “Z” wall bracket supplied for extra stability during installation.
  • NSF listed; made in the USA by Advance Tabco.
Specifications
Overall width 60" / 1524 mm
Overall depth 19 ½" / 495 mm
Overall height 42 ½" / 1080 mm (to top of backsplash)
Bowl size 16" front-to-back × 19 ½" left-to-right (shared) × 8" deep
Backsplash height 8 ½"
Faucet punchings (3) sets  |  8" on center  |  1 ⅛" dia. holes
Drain opening 3 ½" rear basket drain (K-6) supplied
Material & gauge 16 ga. (1.5 mm) type 304 stainless steel
Legs / feet 1 ⅝" Ø 304 SS tubular legs with flanged feet & adjustable cross-bracing
Shipping weight ≈ 94 lb / 42.6 kg
Installation Notes
  • Mount the supplied wall “Z” bracket 42.5" above finished floor before positioning sink.
  • Sink ships fully punched; simply add any 8" O.C. deck-mount faucets.
  • Hot/cold supply lines and P-trap are field-supplied and must be installed by a licensed plumber.
  • Level sink using adjustable cross-bracing and flanged feet once plumbing connections are complete.

Looking for ADA depth, electronic faucets or additional lengths? Ask our team for the full Advance Tabco multi-station catalog.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

60.0in

Depth

19.5in

Shipping Weight

94.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

freestanding

Faucet

faucet not included

Features

multi-station

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, 60"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) sets of faucet holes 8" OC, 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
