Advance Tabco  |  SKU: 19-FM-60-F  |  UPC: 747545217769

Advance Tabco 19-FM-60-F Hand Sinks

$3,058.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

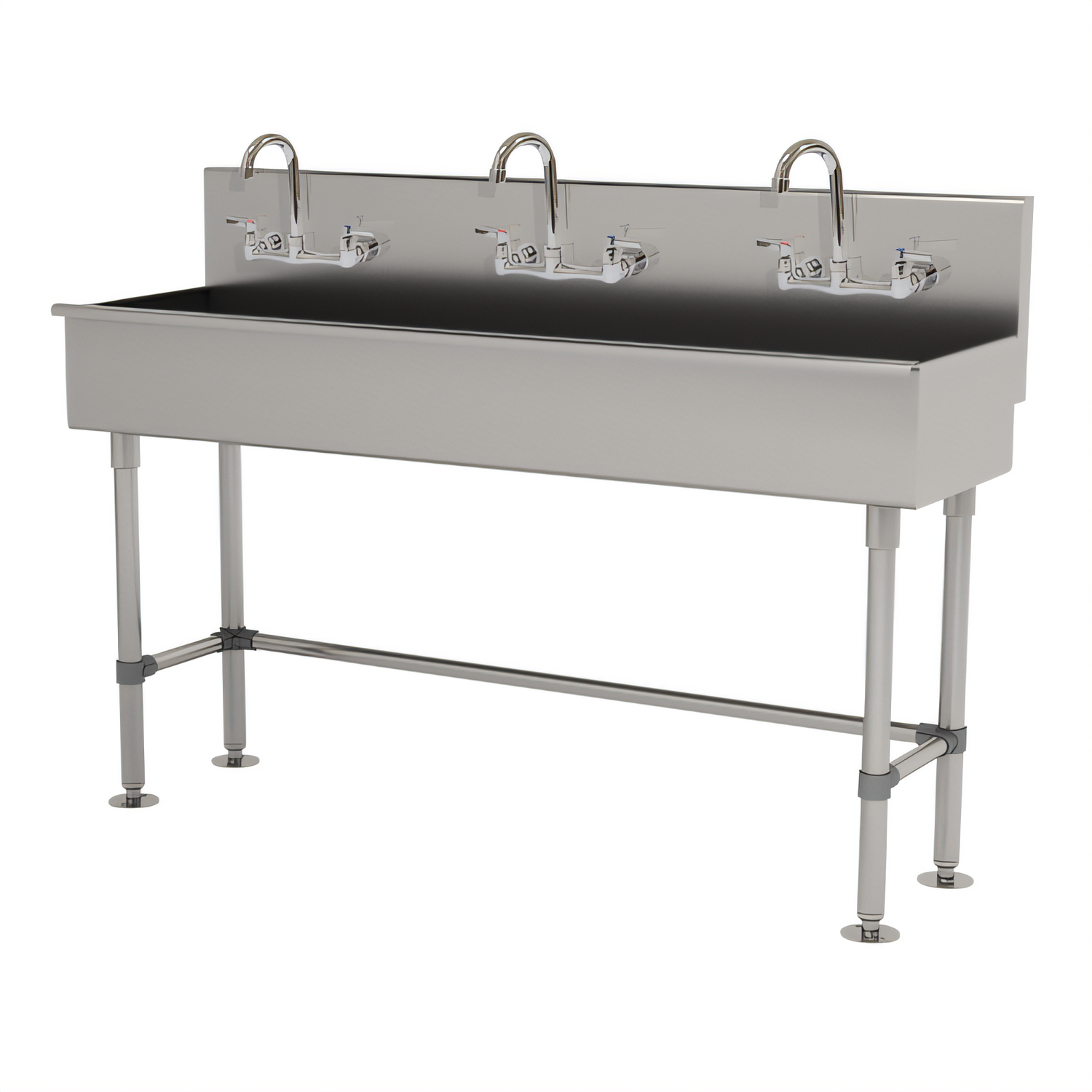

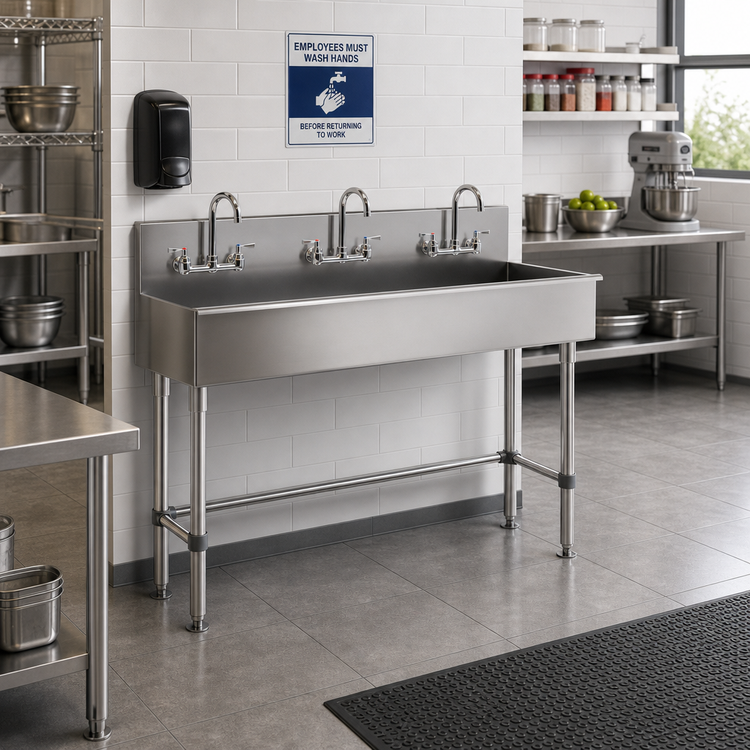

Multi-Station Hand Sink – 60" Wide (3 Faucets)

Advance Tabco Model 19-FM-60-F

Built for busy prep areas, laboratories and wash rooms, the Advance Tabco 19-FM-60-F provides three spacious hand-washing stations in one rugged, floor-mounted unit. Heavy-duty 16 ga. 304 stainless steel, fully TIG-welded construction and factory-installed K-159 gooseneck faucets deliver NSF-listed hygiene and years of trouble-free service.

Key Benefits

  • Three separate 16" F-to-B × 8" deep bowls for simultaneous use.
  • Factory-installed K-159 8-1/2" swivel gooseneck faucets (8" O.C.).
  • 8-1/2" high integral backsplash controls splashes and simplifies installation.
  • One rear-mounted 3-1/2" basket drain (K-6) speeds up plumbing.
  • 16 ga. Type 304 stainless steel – corrosion-resistant, food-safe and easy to sanitize.
  • TIG-welded seams blended to a satin finish for professional appearance.
  • 1-5/8" Ø tubular stainless steel legs with flanged feet for rock-solid floor mounting.
  • Adjustable side & rear cross-bracing plus stainless “Z” wall bracket included.

Typical Applications

  • Commercial kitchens & commissaries
  • Food-processing or packaging plants
  • Laboratories & clean rooms
  • School, stadium & theme-park concession areas

Specifications

Overall width 60" (1524 mm)
Overall depth 19-1/2" (495 mm)
Overall height 42-1/2" (1080 mm) to top of backsplash
Bowl interior (each) 16" front-to-back × 8" deep
Backsplash height 8-1/2"
Faucets included 3 × K-159 manual gooseneck faucets
Drain One 3-1/2" rear basket drain (K-6)
Material / thickness 16 ga. Type 304 stainless steel
Supports 1-5/8" tubular stainless legs, adjustable cross-bracing, flanged feet
Shipping weight ≈ 100 lb (45 kg)
NSF listing Yes – sink and faucets

Installation Notes

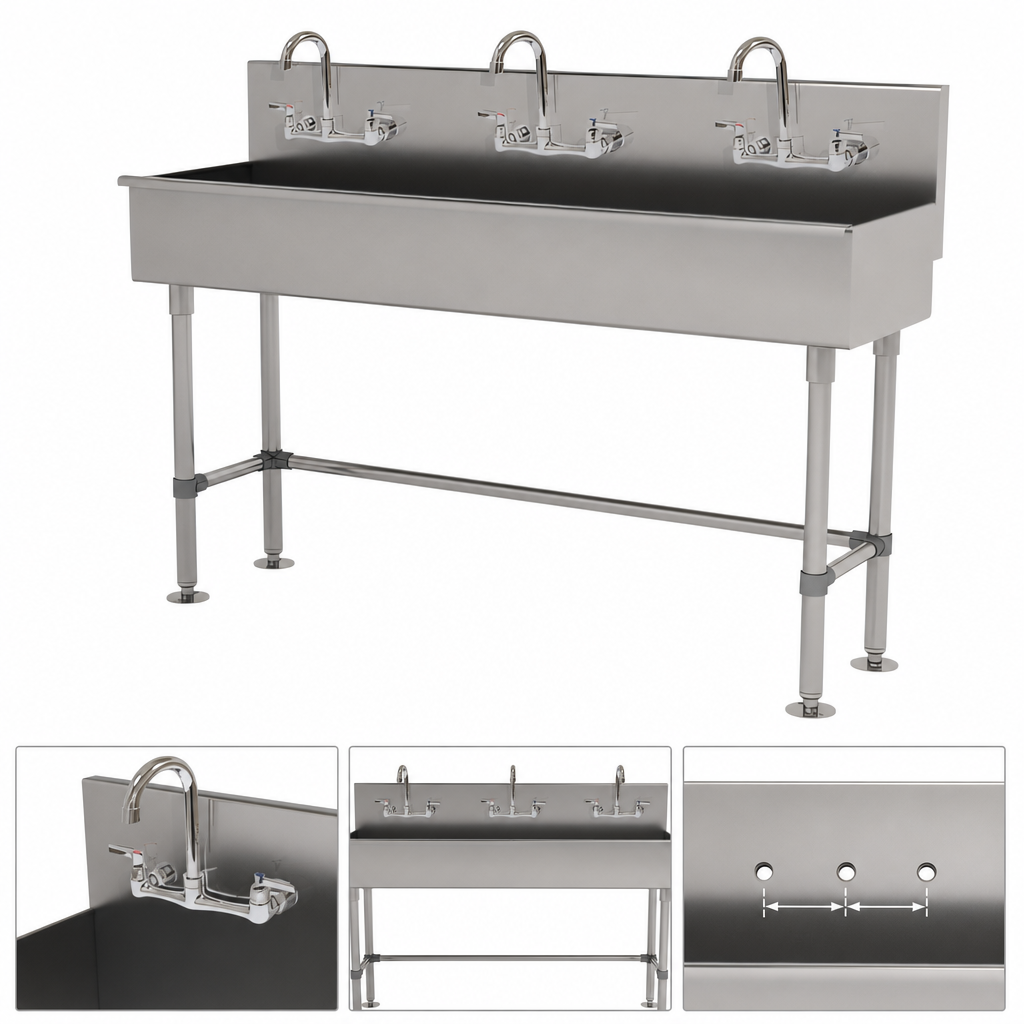

  • Faucet holes are punched 8" on-center in backsplash.
  • Mount provided stainless “Z” bracket 42-1/2" above finished floor before positioning sink.
  • 3/8" NPT female inlets on faucets; 1-1/2" OD drain outlet fits standard traps.

Detailed rough-in drawings ship with unit and are available from Advance Tabco upon request.

Proposition 65 Notice: This product contains faucet components that may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

60.0in

Depth

19.5in

Shipping Weight

100.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

freestanding

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, includes (3) faucets, 60"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) sets of faucet holes 8" OC, 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
