Description

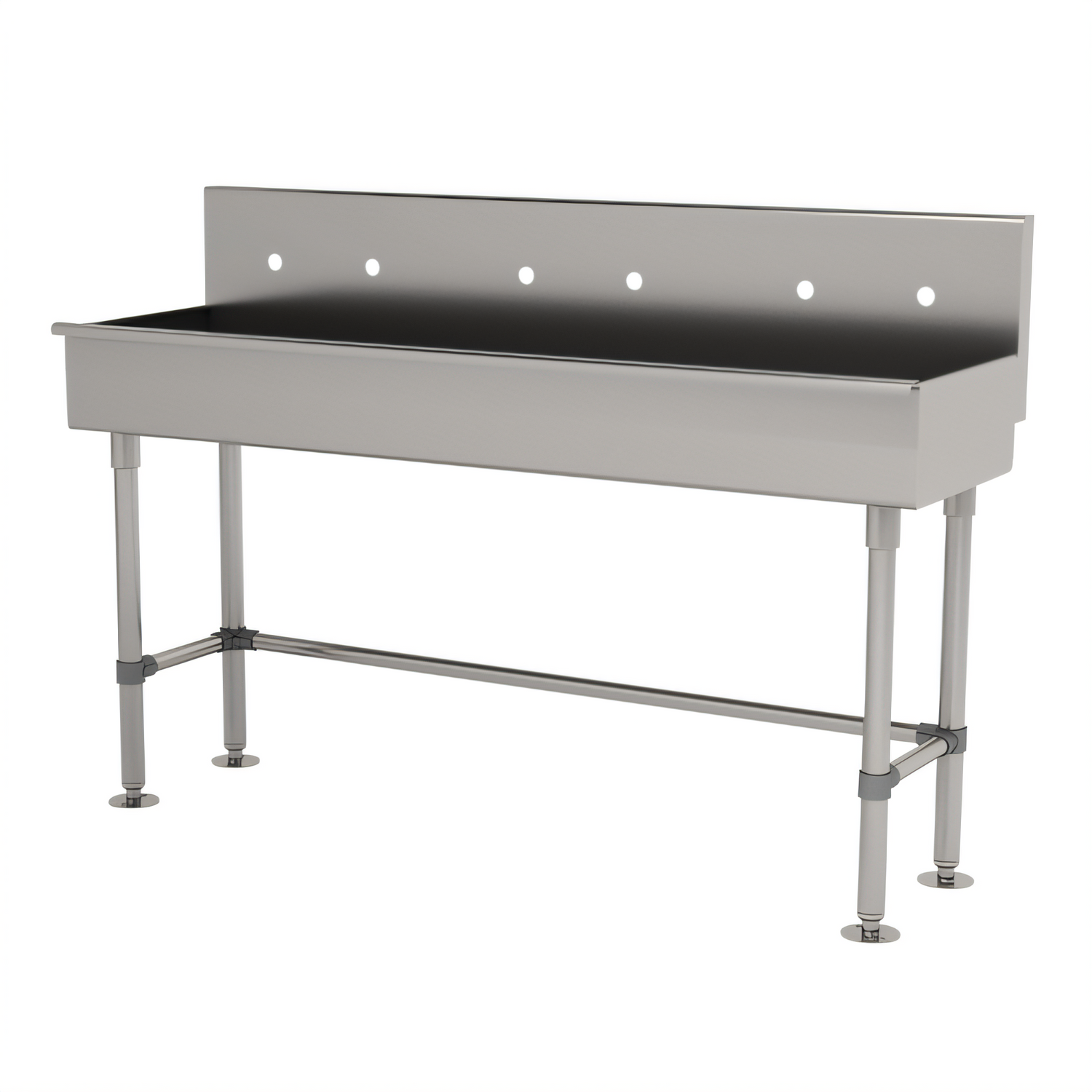

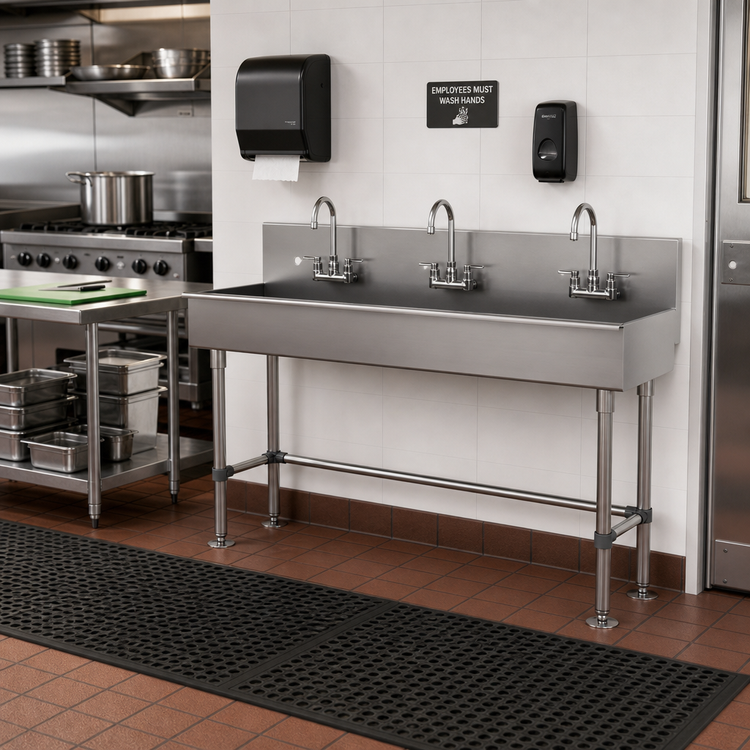

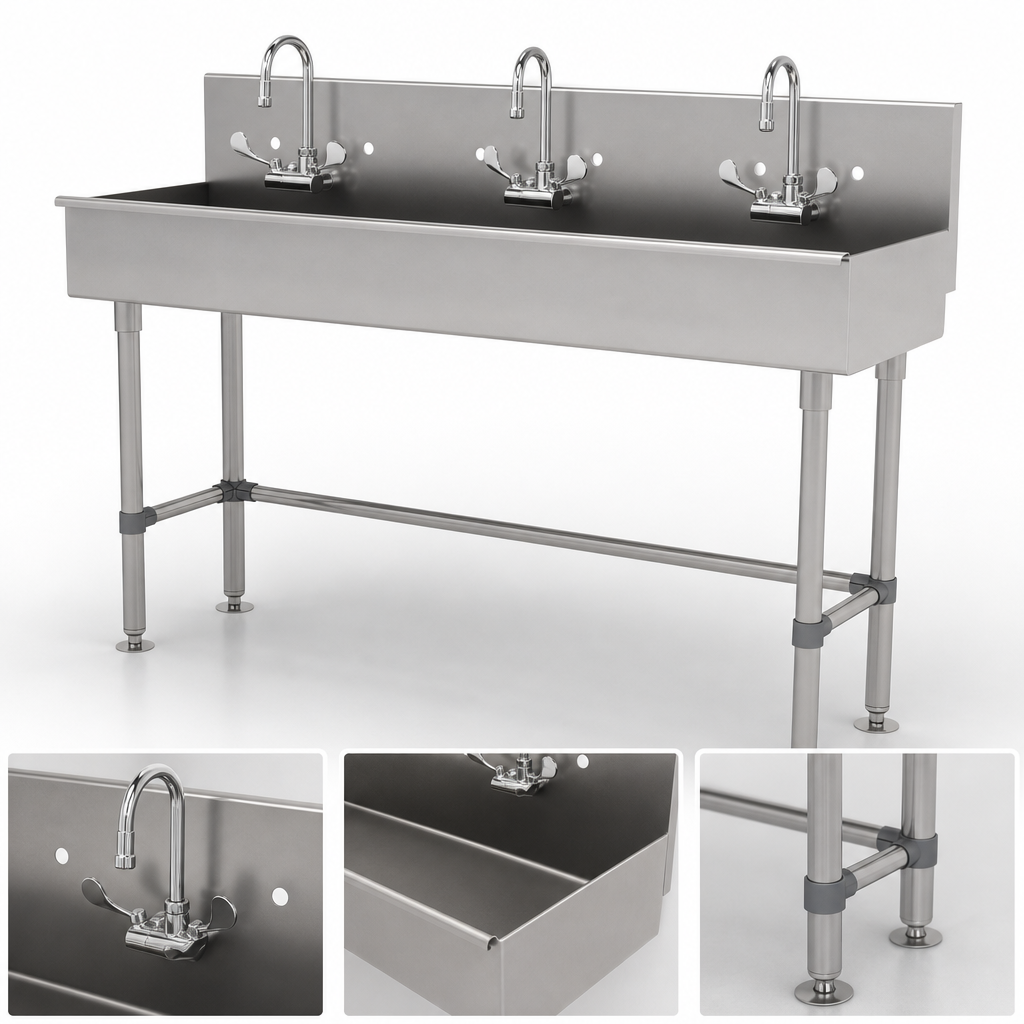

Advance Tabco 60" Multi-Station ADA Hand Sink

Model 19-FM-60-ADA-F  |  3 Stations  |  Faucets Included

Give three users simultaneous, ADA-compliant hand-washing in one durable, space-saving unit. Fabricated from heavy 16 ga. Type 304 stainless steel and factory-equipped with wrist-blade faucets, this Advance Tabco floor-mounted multiwash sink is built for the rigorous demands of commercial kitchens, healthcare, labs and industrial production areas.

  • ADA bowl depth (5") keeps knee space clear for seated or standing users.
  • (3) K-161-LU 8 ½" gooseneck faucets with easy-to-operate wrist blades—no separate purchase required.
  • Integral 8 ½" backsplash is pre-punched on 8" centers for quick hook-ups and to contain splashes.
  • One K-6 3 ½" rear basket drain included—ready for plumbing straight out of the box.
  • TIG-welded, square-corner bowl with satin finish wipes down fast and resists corrosion.
  • 1 ⅝" tubular 304-SS legs with flanged feet plus adjustable side & rear cross-bracing for rock-solid stability.
  • Pair of stainless “Z” wall brackets adds extra rigidity and keeps the sink perfectly level.
  • NSF/ANSI 61 & 372 lead-free compliant faucets; unit meets or exceeds all current food-service codes.

Technical Specifications

Stations 3
Overall dimensions (W × D × H) 60" × 19 ½" × 42 ½"
Bowl size (each) 16" front-to-back × 5" deep
Backsplash height 8 ½"
Faucet hole spacing 8" on center (3 sets)
Faucets included (3) K-161-LU gooseneck, wrist-blade handles, lead-free
Drain One 3 ½" basket drain, rear mounted
Material 16 ga. Type 304 stainless steel
Legs / supports 1 ⅝" tubular 304-SS legs with flanged feet & adjustable cross-bracing
Mounting hardware (2) stainless “Z” wall brackets supplied
Compliance ADA, NSF/ANSI 61 & 372, Prop 65

Looking for a different length, bowl depth or electronic/hands-free valves? Ask us about the full Advance Tabco Multi-Station series.

California Prop 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

42.5in

Width

60.0in

Depth

19.5in

Shipping Weight

96.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

5" deep

Faucet

faucet included

Features

multi-station

Style

freestanding

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, includes (3) faucets with wrist blades, 60"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (3) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, ADA compliant
