Advance Tabco  |  SKU: 19-FM-40KV  |  UPC: 747545216908

Advance Tabco 19-FM-40KV Hand Sinks

$2,885.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Optional mixing valve Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

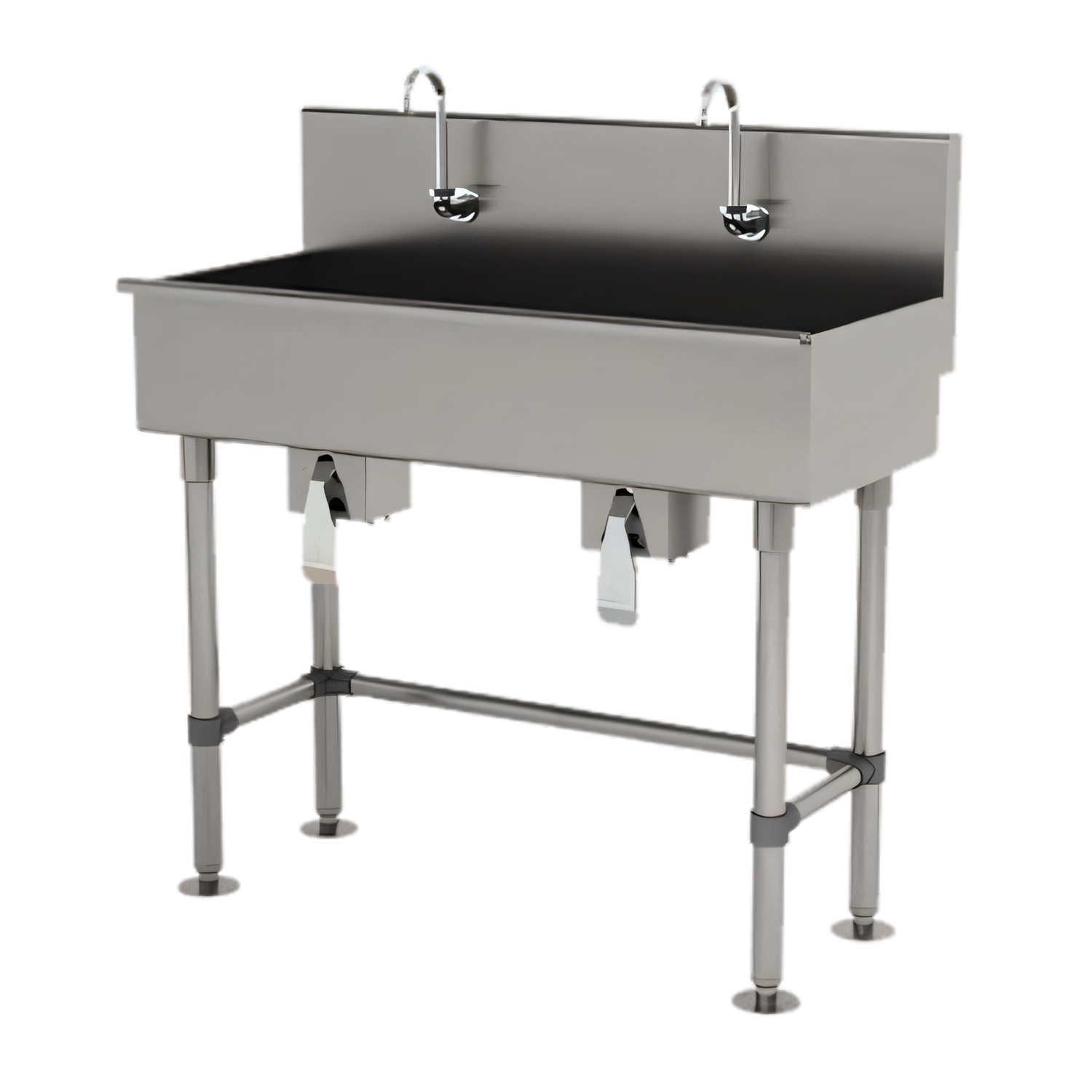

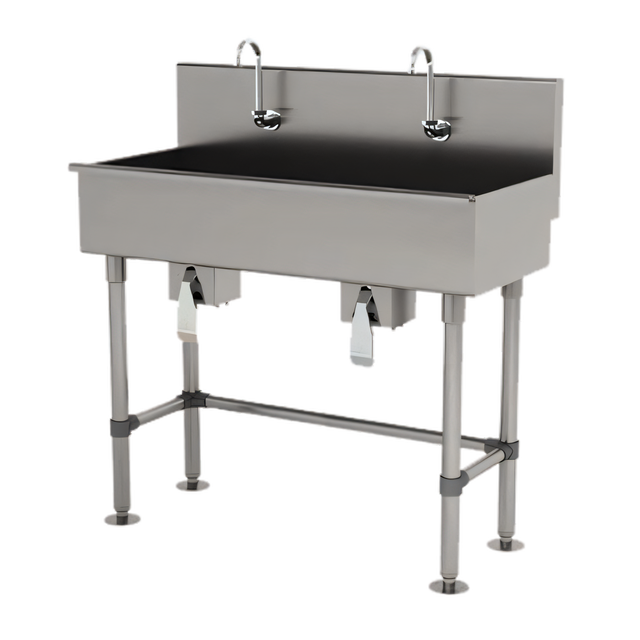

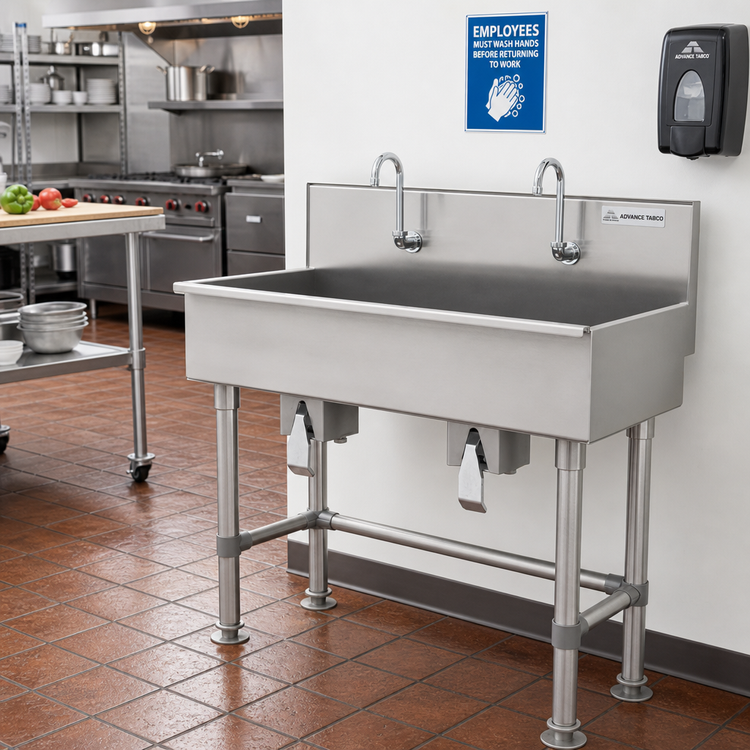

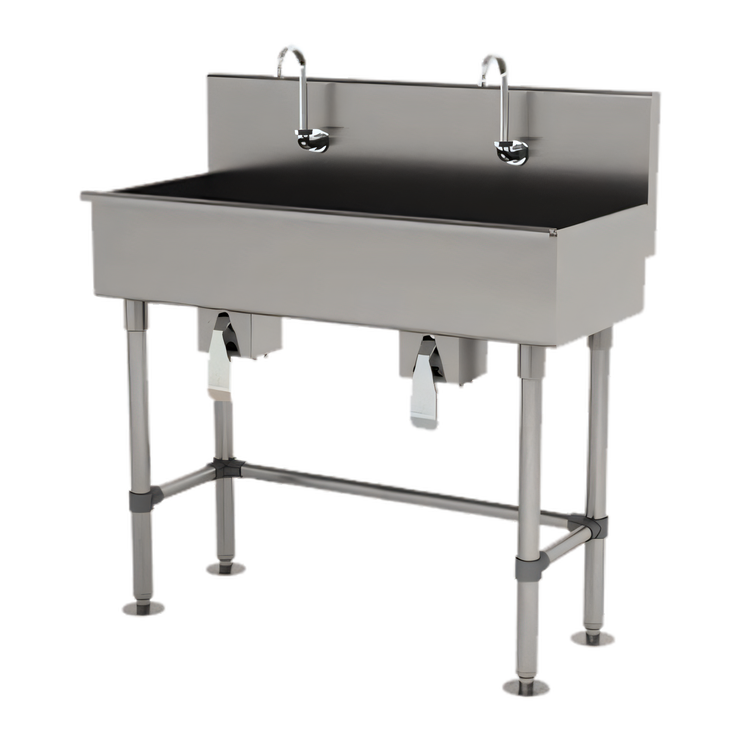

Advance Tabco 40" Multi-Wash Knee-Operated Hand Sink

Model 19-FM-40KV  •  2-Station  •  16 ga Type 304 Stainless Steel

Built for the busiest prep rooms, labs and production floors, this free-standing multi-user sink delivers true hands-free sanitation without sacrificing durability. A simple tap of the knee activates water flow, while the rugged 16 gauge stainless steel body, backsplash and flanged legs stand up to years of daily wear.

Key Features

  • Hands-free knee operation – two 7-PS-32 valves let users wash without touching faucet handles.
  • Pre-punched with (2) single-hole stations and fitted with K-121 gooseneck spouts for full pan clearance.
  • Generous 16" front-to-back bowl, 8" depth and smooth square corners simplify clean-ups.
  • 8 1/2" high backsplash keeps water off surrounding walls; stainless “Z” brackets supplied for secure mounting.
  • 1 5/8" tubular 304 SS legs with flanged feet and adjustable side/rear cross-bracing for rock-solid stability.
  • Includes 3 1/2" K-6 rear basket drain to prevent clogs and speed drainage.
  • All TIG-welded construction; welds are blended to a sleek satin finish.
  • NSF listed and built from food-grade 16 gauge 304 stainless steel for maximum corrosion resistance.

Technical Specifications

Model 19-FM-40KV
User Stations 2
Overall Dimensions 40" W × 19 1/2" D × 42 1/2" H
Bowl Dimensions 16" front-to-back × 8" deep
(continuous multi-station bowl)
Backsplash Height 8 1/2"
Material / Gauge Type 304 stainless steel / 16 ga
Legs & Base 1 5/8" tubular 304 SS legs with flanged feet & adjustable cross-bracing
Faucet Holes (2) single-hole, 4" OC
Valves Included (2) 7-PS-32 knee valves
Spouts Included (2) K-121 gooseneck spouts
Drain 3 1/2" K-6 basket drain (rear)
Water Connections 3/8" NPT female inlets on each valve
Finish Satin, easy-clean
Shipping Weight ≈ 92 lb
Certifications NSF

Perfect For

  • Food-service prep areas and commissaries
  • Pharmaceutical or laboratory clean rooms
  • Manufacturing & packaging lines
  • School, stadium & institutional hand-wash stations

Need tempered water? Pair this sink with the optional Advance Tabco K-425 thermostatic mixing valve (sold separately).

California Prop 65 Warning: This product, including its faucets, can expose you to chemicals such as lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

92.0lbs

Features

multi-station

Style

freestanding

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet included

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, with knee valve, 40"W x 19-1/2"D x 42-1/2H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, gooseneck spouts, includes basket drain, 16 gauge 304 stainless steel construction
