Advance Tabco  |  SKU: 19-FM-40FV  |  UPC: 747545216359

Advance Tabco 19-FM-40FV Hand Sinks

$2,990.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

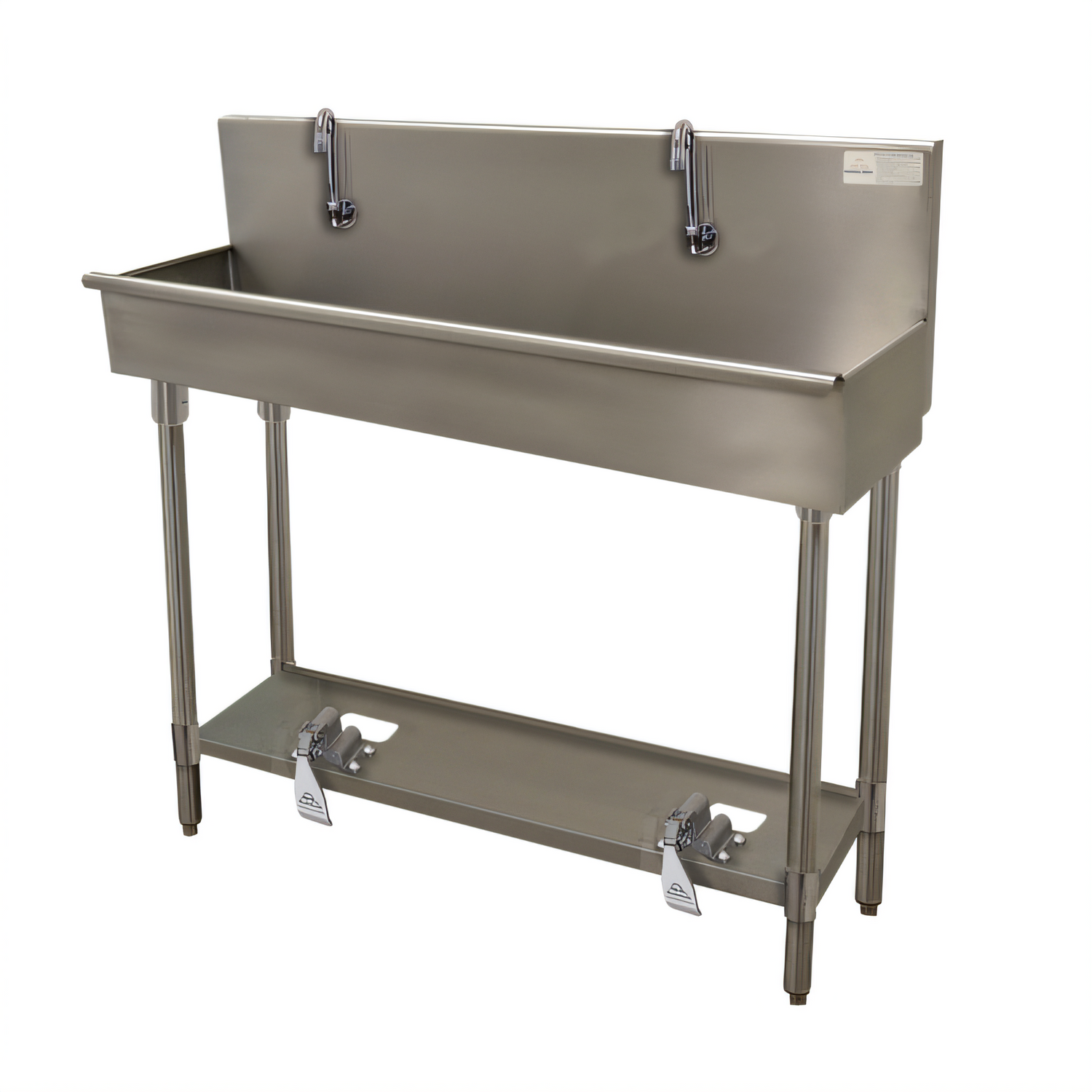

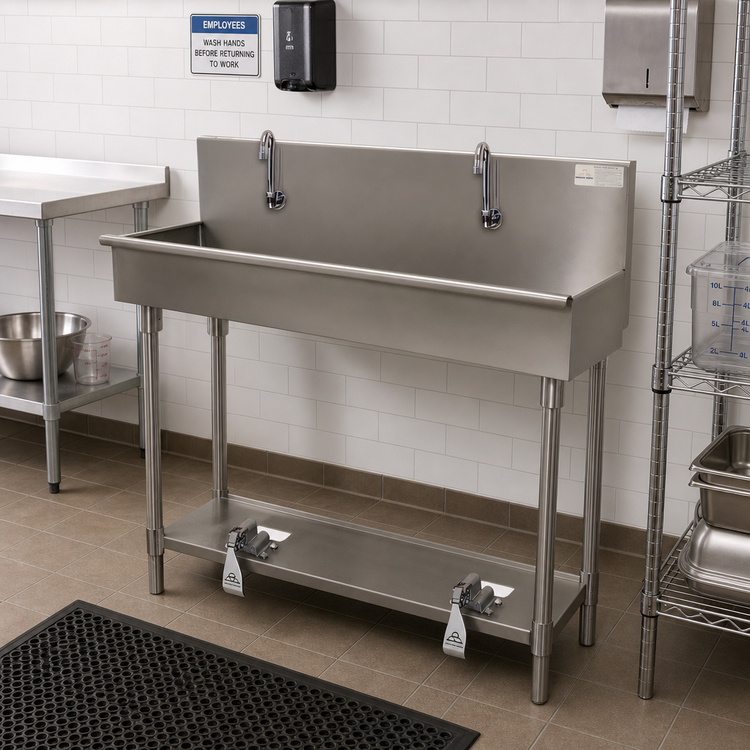

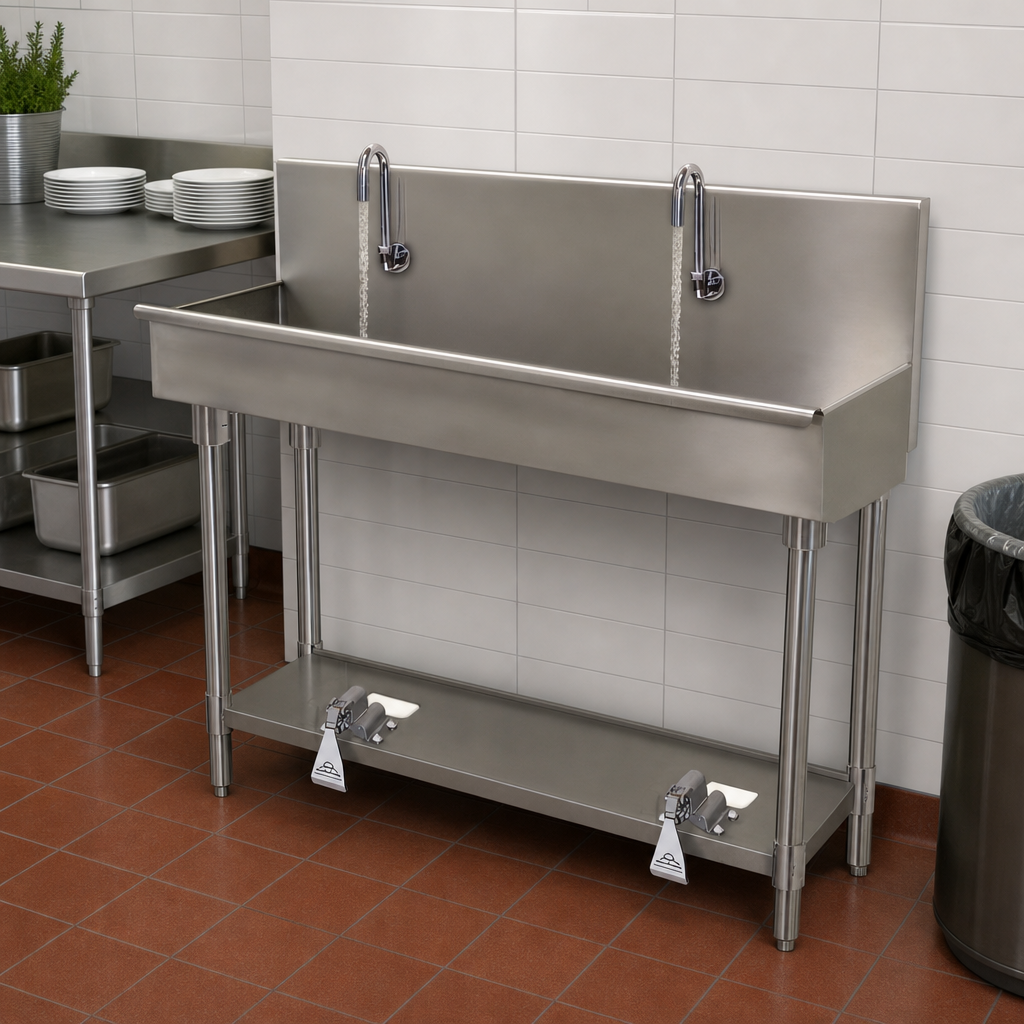

Advance Tabco 19-FM-40FV Multi-Wash Hand Sink

2-Station • Toe-Push Operated • 40" Wide, Floor-Mounted

Built for busy commercial environments, this Advance Tabco stainless-steel multi-wash sink delivers fast, contact-free handwashing for two users at once. Rugged 16 gauge 304 construction, foot-activated valves and gooseneck spouts make it the sanitary, code-compliant choice for kitchens, laboratories, manufacturing plants and more.

Top Features

  • Hands-free K-104 toe-push valves with K-121 gooseneck spouts—activate water with a light tap of the foot.
  • Two spacious bowls, each 16" front-to-back x 8" deep, handle high-volume traffic without splashing.
  • Integral 8-1/2" backsplash with (2) single faucet holes keeps surrounding walls dry and simplifies rough-ins.
  • All TIG-welded, satin-finished 16 ga. type 304 stainless steel resists corrosion and cleans up fast.
  • 1-5/8" tubular stainless legs with flanged feet provide rock-solid floor support.
  • Pedal-bracket under-shelf shields the valves and doubles as a handy foot rest.
  • Includes 3-1/2" K-6 rear basket drain for each station.
  • NSF listed for food-service sanitation.

Specifications

Model 19-FM-40FV
Number of Stations 2
Overall Dimensions 40" W × 19-1/2" D × 42-1/2" H
Bowl Size (each) 16" F-B × 8" D
Backsplash Height 8-1/2"
Material 16 ga. 304 stainless steel
Operation Toe-push (K-104) valves, lead-free, NSF 61/9 compliant
Faucet Holes (2) single-hole punches—one per station
Spouts Stainless gooseneck (K-121)
Drain 3-1/2" rear basket drain included
Legs & Feet 1-5/8" Ø tubular SS legs with flanged feet
Mounting Floor-mounted; stainless “Z” wall brackets supplied

Why Toe-Push?

  • Eliminates hand contact—reduces cross-contamination risks.
  • No batteries or sensors to fail—purely mechanical reliability.
  • Meets or exceeds many local health-code hands-free requirements.
California Prop 65 Notice: Components in the faucet valves can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Looking for additional stations, knee-operated models or electronic sensors? Contact us—Advance Tabco offers a full portfolio of customizable multi-station sinks.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

62.0lbs

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

freestanding

Bowl Height (rim to drain)

8" deep

Specifications

Multiwash Hand Sink, with toe-operated push valve, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
