Description

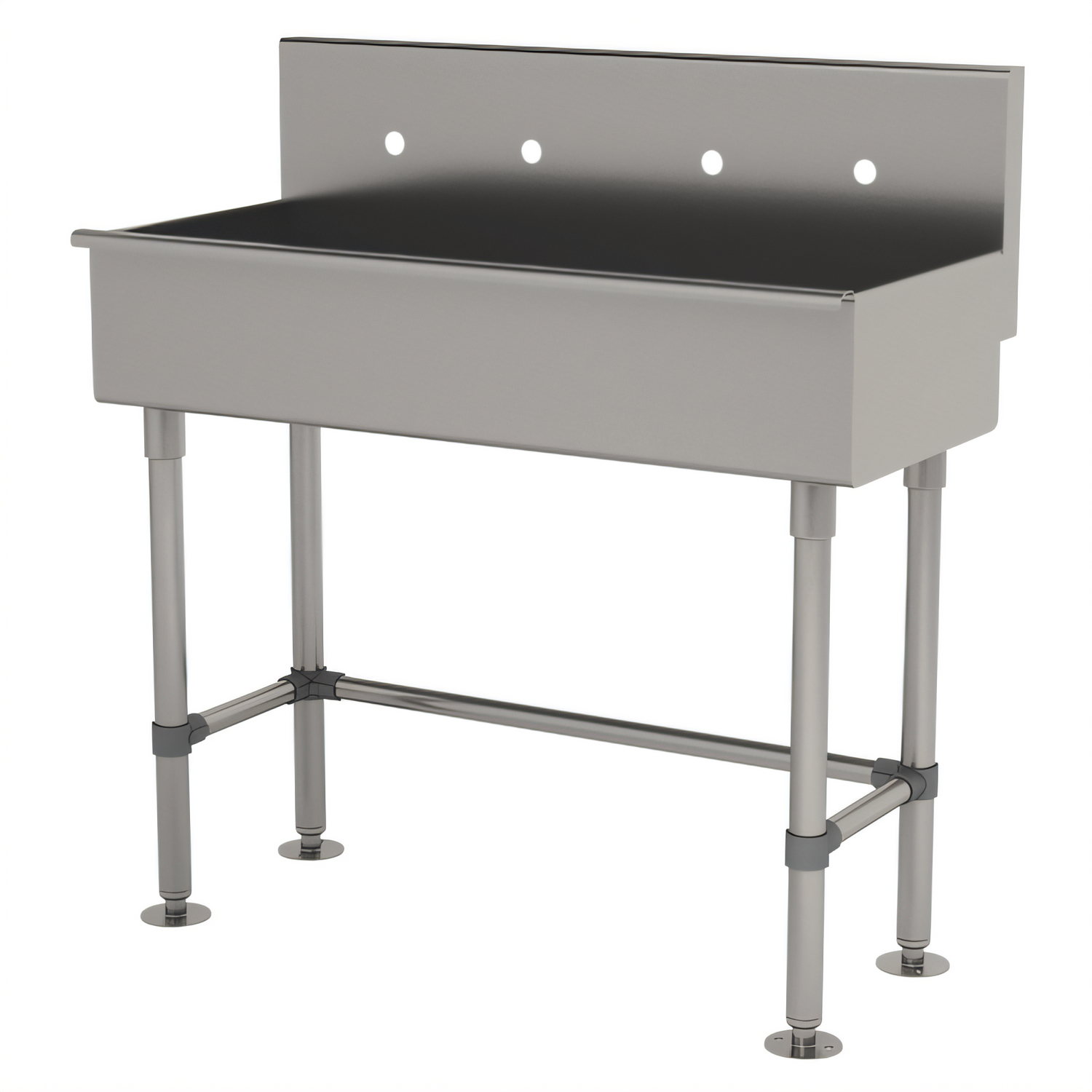

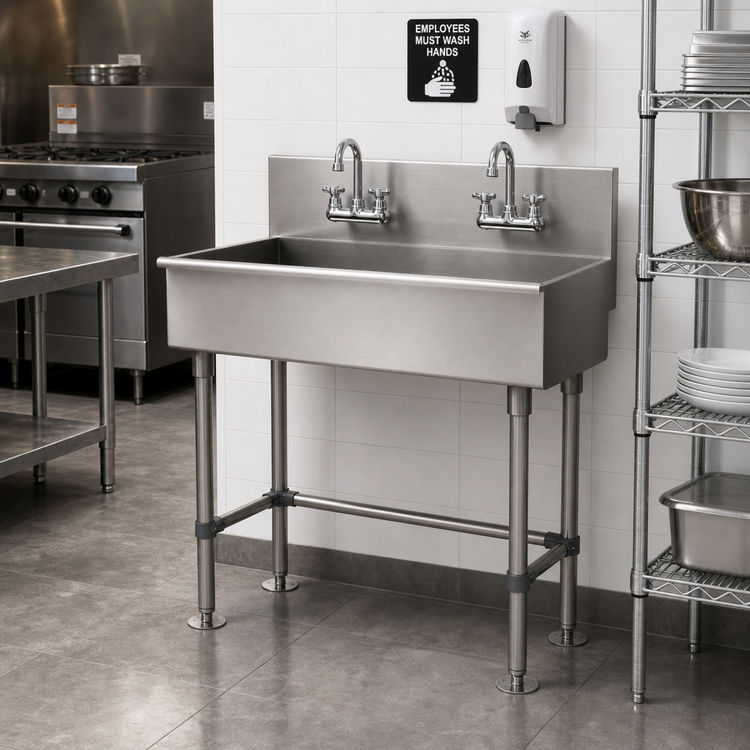

Advance Tabco 40" Multi-Wash Hand Sink – 2 Station

Model 19-FM-40 | Sink-only, faucet-ready

Built for heavy-duty, high-traffic environments, this floor-mounted Advance Tabco hand sink offers two generous wash stations in a compact 40" footprint. The all-stainless design, TIG-welded construction and integrated backsplash make daily sanitation fast and effortless.

Key Features
  • Two user stations with roomy 16" front-to-back x 8" deep bowls.
  • 16 ga. Type 304 stainless steel body – corrosion-resistant & NSF listed.
  • Full TIG-welded seams blended to a uniform satin finish.
  • 8 ½" high integral backsplash contains splashes and protects walls.
  • Pre-punched with (2) sets of 8" on-center faucet holes (faucets sold separately).
  • Includes one K-6 3 ½" rear basket drain assembly.
  • 1 5/8" O.D. tubular 304 stainless legs with flanged feet for secure floor anchoring.
  • Adjustable side & rear cross-bracing with leg clamps for rock-solid stability.
  • Stainless steel “Z” wall bracket supplied for added support.
At-a-Glance Specifications
Overall dimensions 40" W × 19 ½" D × 42 ½" H
Bowl size (each) 16" front-to-back × 8" deep
Stations 2
Backsplash height 8 ½"
Faucet holes (2) sets, 8" centers, punched in backsplash
Drain One 3 ½" rear basket drain included
Material thickness 16 ga. (0.062")
Material type 304 series stainless steel
Legs 1 5/8" O.D. 304 stainless tube with flanged, adjustable feet
Compliance NSF certified
Ideal Applications
  • Commercial kitchens & commissaries
  • Food processing & packaging facilities
  • Laboratories & clean rooms
  • Industrial production wash-up areas

Faucets, mixing valves and supply lines are not included and must be ordered separately.

California Proposition 65 Notice: Installing or using faucets with this sink could expose you to chemicals, including lead, known to the State of California to cause cancer or birth defects. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

70.0lbs

Style

freestanding

Faucet

faucet not included

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Features

multi-station

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
