Advance Tabco | SKU:
19-FM-40-ADA
Advance Tabco 19-FM-40-ADA Hand Sinks
$2,135.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 19-FM-40-ADA Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 19-FM-40-ADA Hand Sinks
$2,135.00
Unit price
/
Unavailable
Description

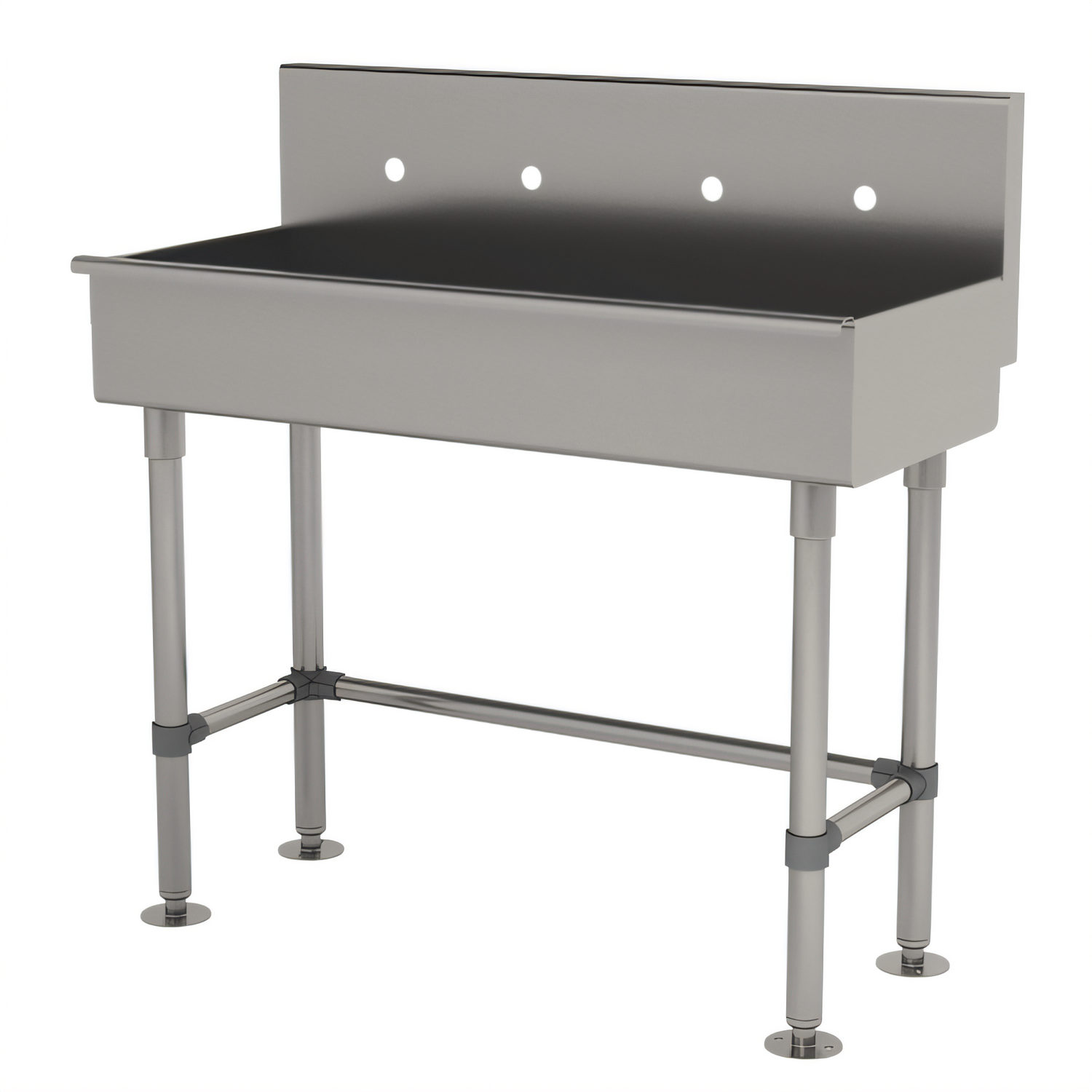

Advance Tabco 40" ADA Multi-Station Hand Sink
Model 19-FM-40-ADA • Two Stations • No Faucets IncludedBuilt for high-volume, front-of-house hygiene, this free-standing multi-wash sink delivers ADA-compliant access, heavy-duty 16 ga. 304 stainless steel durability, and easy installation right out of the box.
Why It Stands Out
- Two user stations in only 40" of wall space – perfect for tight lines or corridors.
- 5" deep bowl (ADA series) with 16" front-to-back work area for comfortable handwashing.
- 8 ½" backsplash pre-punched with (2) 8" O.C. faucet hole sets.
- Includes one K-6 3 ½" rear basket drain – no extra kit required.
- Rugged 1 5/8" tubular 304 stainless legs with flanged feet and adjustable cross-bracing for rock-solid floor mounting.
- Stainless steel “Z” wall bracket supplied to anchor the sink to the wall and meet code.
- All TIG-welded construction, blended to a sanitary satin finish; NSF listed.

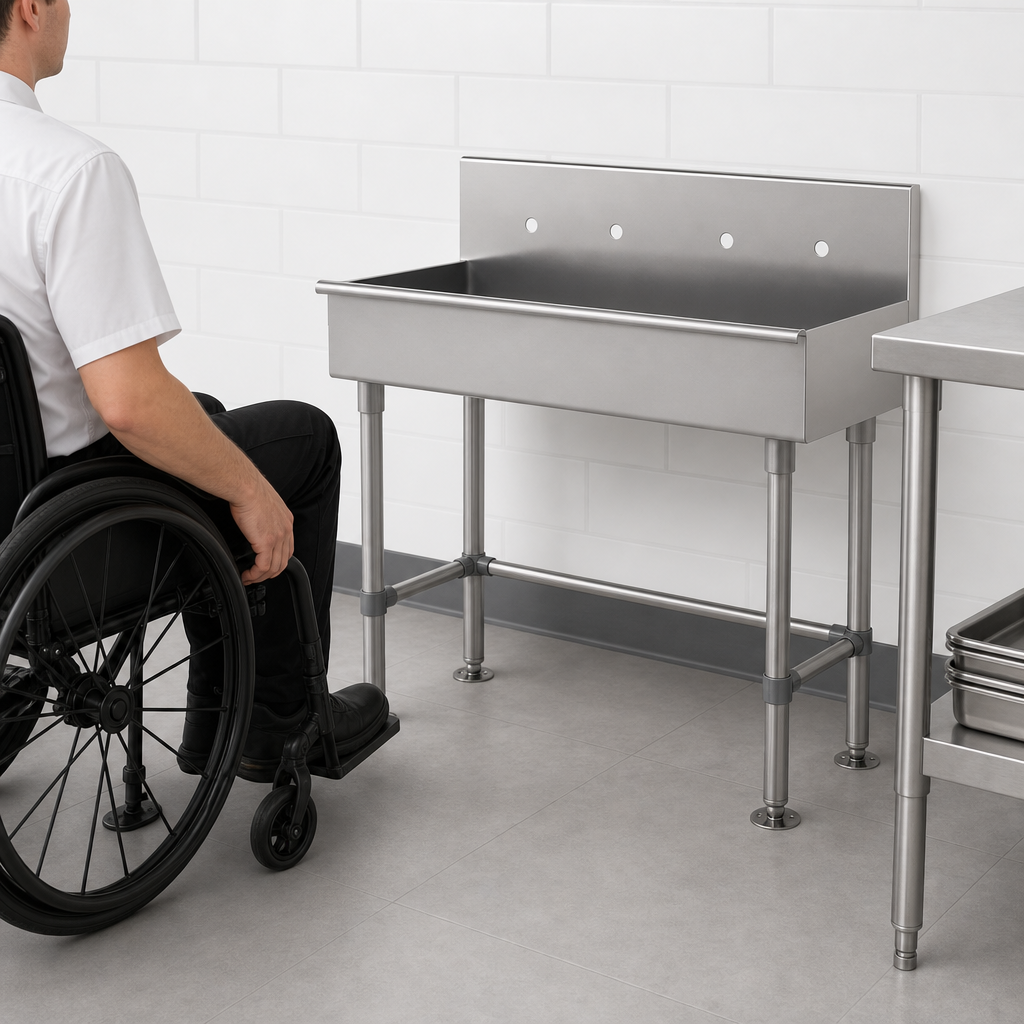

- Fully ADA compliant design helps you satisfy accessibility requirements.
Specifications
| Overall Width | 40" |
|---|---|
| Overall Depth (front-to-back) | 19 1/2" |
| Overall Height | 42 1/2" (to top of backsplash) |
| Bowl Size (each station) | 16" front-to-back × 5" deep |
| Backsplash Height | 8 1/2" |
| Faucet Holes | (2) sets • 8" centers |
| Drain | 3 1/2" rear basket drain (included) |
| Material | 16 gauge, Type 304 stainless steel |
| Legs / Feet | 1 5/8" Ø tubular 304 SS legs with welded flanged feet |
| Compliance | NSF • ADA |
Ideal Applications
- School & university cafeterias
- Healthcare corridors & labs
- Food-service prep & production areas
- Manufacturing & industrial wash-down stations
Quick Installation Tips
- Mount supplied “Z” bracket at 42 1/2" from finished floor, then set sink in place.
- Anchor flanged feet to floor; adjust cross-bracing for perfect level.
- Connect 1 1/2" drain line and your choice of 8" O.C. manual, wrist-action, or hands-free faucets (sold separately).
Need hands-free operation? Compatible knee-, toe-, and sensor-operated faucet kits are available – ask our team!
California Prop 65 Warning: Installing this product with a faucet may expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
ADA Compliant
Height
42.5in
Width
40.0in
Depth
19.5in
Shipping Weight
70.0lbs
Bowl Depth (front to back)
15" - 19" front-to-back
Faucet
faucet not included
Style
freestanding
Bowl Height (rim to drain)
5" deep
Features
multi-station
Specifications
Multiwash Hand Sink, with stainless steel legs and flanged feet, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, ADA compliant
