Advance Tabco  |  SKU: 19-FM-40-ADA-F

Advance Tabco 19-FM-40-ADA-F Hand Sinks

$2,605.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

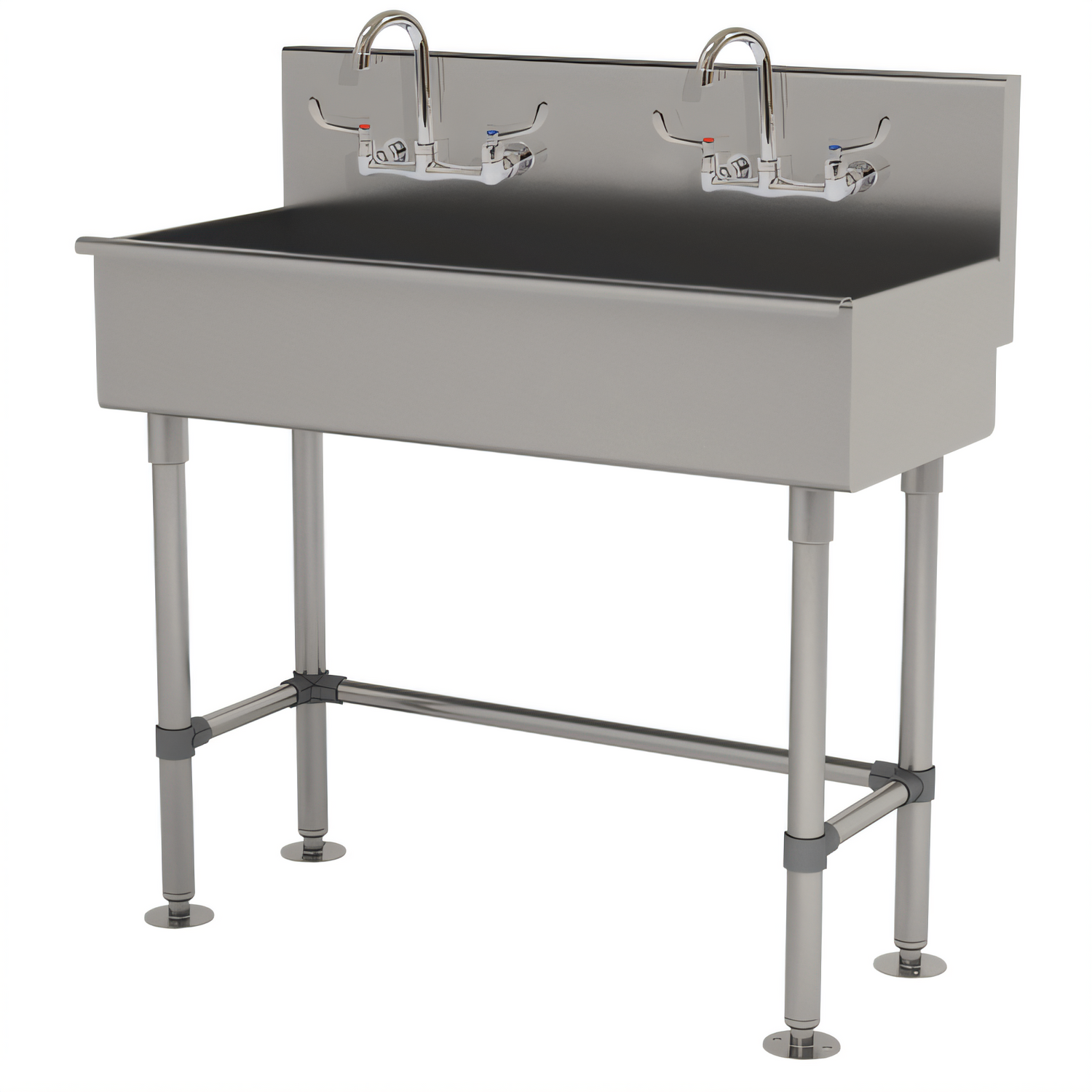

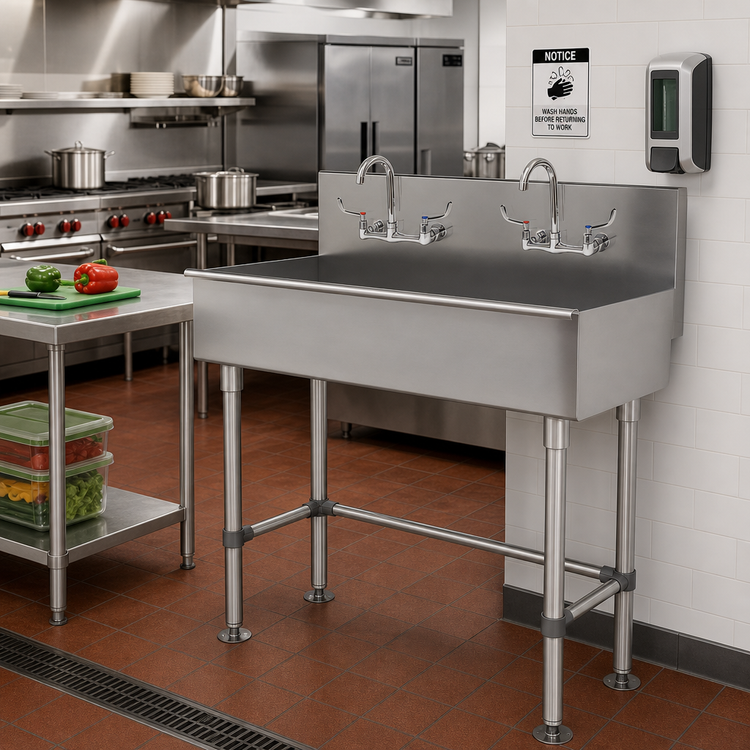

Advance Tabco 19-FM-40-ADA-F Multi-Wash Hand Sink

40" two-station, floor-mounted, ADA compliant

Built for demanding commercial and institutional settings, this stainless-steel sink provides two fully ADA-compatible hand-washing stations in a single, space-saving unit. Rugged 16-gauge 304 construction, tubular legs with cross-bracing, and included wrist-blade faucets make it a ready-to-install solution for kitchens, labs, manufacturing floors and more.

Why you'll love it

  • Two individual bowls let multiple users wash at once without crowding.

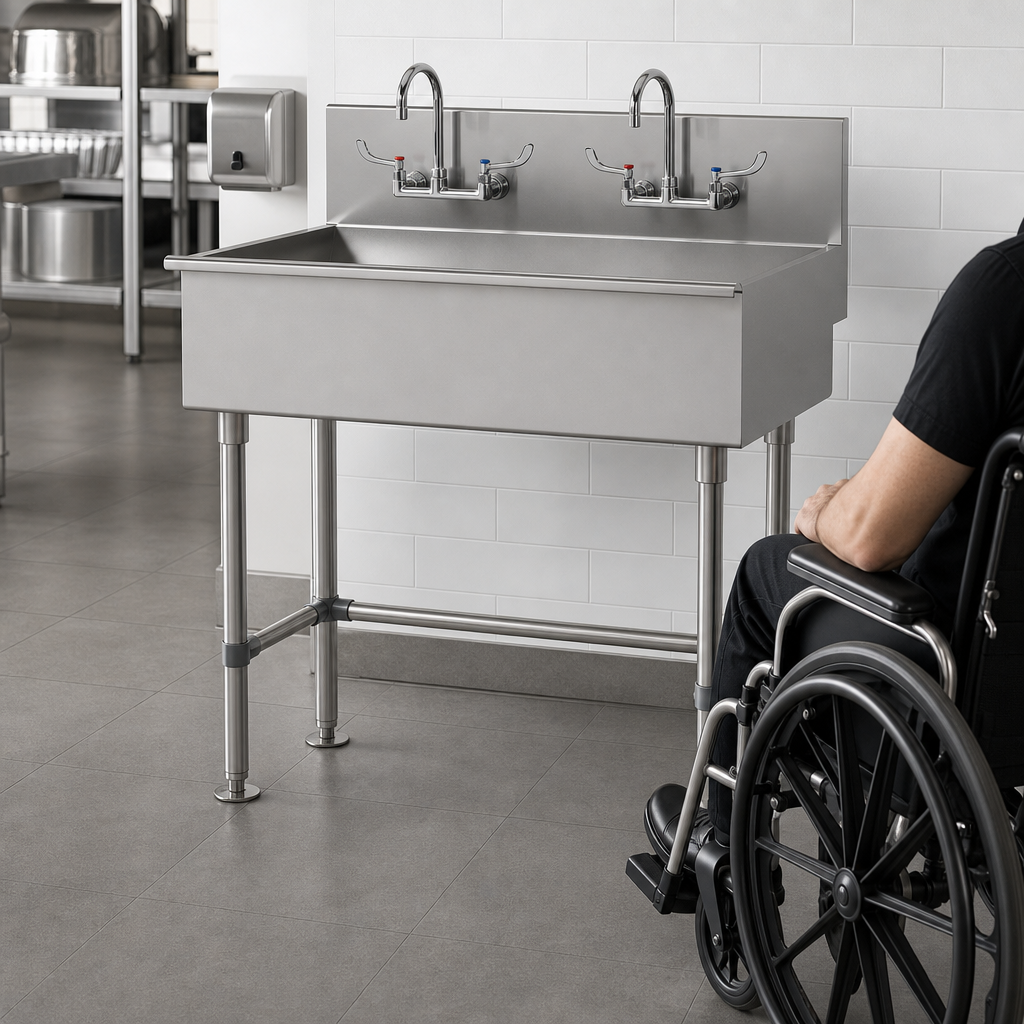

  • ADA series 5" bowl depth and wrist-action handles meet accessibility requirements.
  • 16-gauge type 304 stainless steel resists corrosion and wipes clean fast.
  • 8-1/2" high backsplash contains splashes and is pre-punched 8" on-center for the included faucets.
  • 1 ⅝" tubular stainless-steel legs with flanged feet for rock-solid, floor-mount stability.
  • Adjustable side & rear cross-bracing plus a stainless “Z” wall bracket for extra rigidity.
  • K-6 3-1/2" rear basket drain and two K-161-LU gooseneck faucets (with wrist blades) ship with the sink – nothing extra to buy.
  • Satin-blended welds deliver a professional look and easy sanitation.

Specifications

Model 19-FM-40-ADA-F
Stations 2
Overall dimensions 40" W × 19-1/2" D × 42-1/2" H
Bowl size (each) 16" front-to-back × 5" deep
Backsplash height 8-1/2"
Faucet centers 8" on-center (2 sets punched)
Included faucets (2) K-161-LU gooseneck faucets with 4" wrist blades
Drain 3-1/2" K-6 rear basket drain
Material / gauge 16-gauge type 304 stainless steel
Legs & feet 1 ⅝" Ø tubular stainless legs, flanged feet
Weight (ship) Approx. 71 lb
Compliance NSF, ADA

Included with purchase

  • Sink assembly with welded backsplash
  • (2) K-161-LU wrist-blade faucets
  • (1) K-6 rear basket drain with strainer
  • (4) stainless-steel support legs with flanged feet
  • Adjustable side & rear cross-bracing
  • Stainless “Z” wall mounting bracket

Mount “Z” bracket 42-1/2" from finished floor to bracket top. Plumbing rough-ins should follow local code.

California Proposition 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

74.0lbs

Style

freestanding

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, includes (2) faucets with wrist blades, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, ADA compliant
