Advance Tabco  |  SKU: 19-FM-23FV  |  UPC: 747545216540

Advance Tabco 19-FM-23FV Hand Sinks

$1,902.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

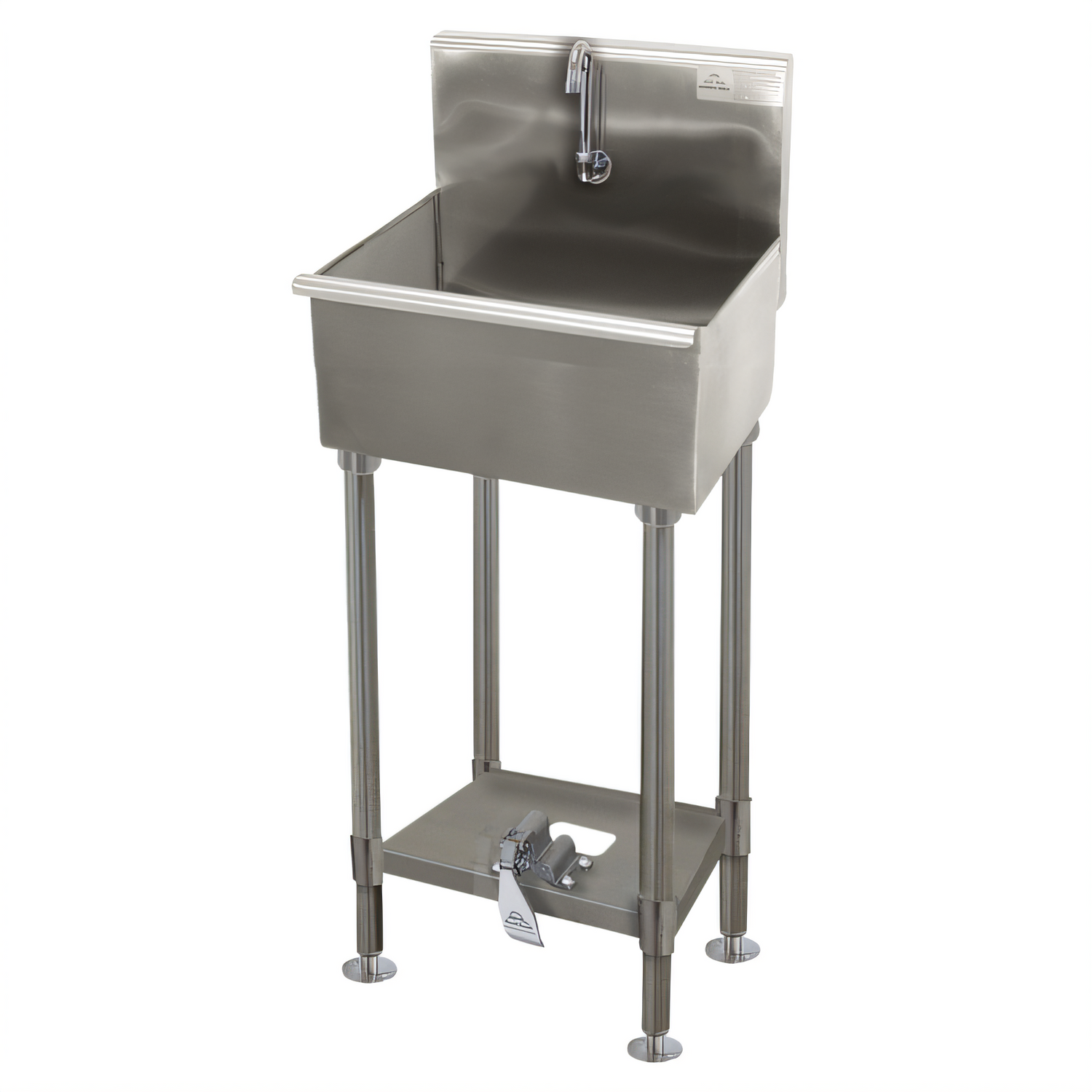

Advance Tabco 19-FM-23FV Multi-Wash Hand Sink – Foot Pedal Operated

Single-station • Floor-mounted • 16 ga 304 stainless steel

Compact, rugged and completely hands-free, the 19-FM-23FV is purpose-built for environments where hygiene is mission-critical—think food prep areas, laboratories, manufacturing floors and healthcare facilities. A toe-push mixing valve lets users activate water with a simple foot press, eliminating hand contact and cross-contamination.

Why you’ll love it

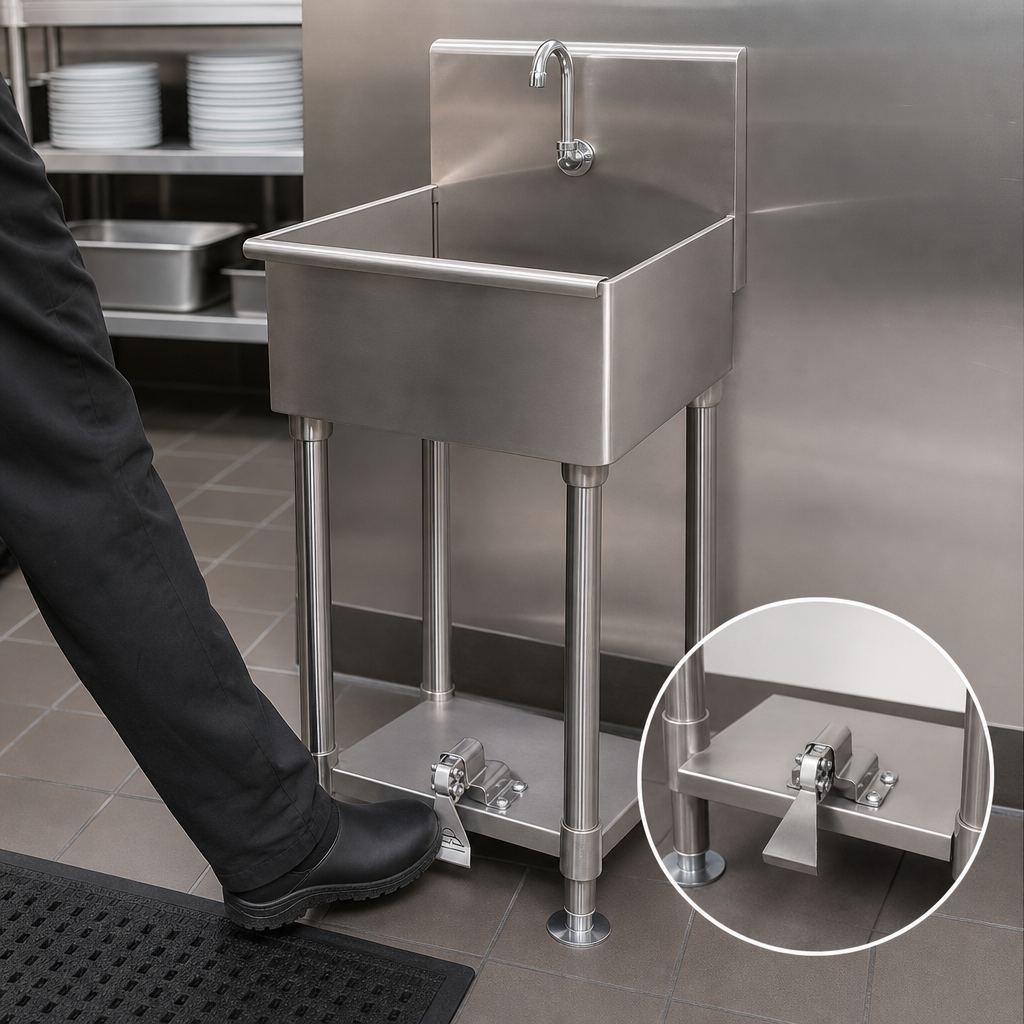

  • Foot-activated K-104 valve + gooseneck K-121 spout for true hands-free operation.
  • 16 ga type 304 stainless steel—corrosion-resistant and easy to sanitize.
  • Full 8 in bowl depth keeps splashes contained; 16 in front-to-back workspace.
  • 8-1/2 in high backsplash protects surrounding walls.
  • Tubular stainless legs with flanged feet and pedal support bar provide rock-solid stability.
  • Adjustable side & rear cross-bracing increases rigidity on uneven floors.
  • Pre-punched single faucet hole speeds installation.
  • K-6 3-1/2 in rear basket drain included—no extra parts to buy.
  • All TIG-welded seams blended to a smooth satin finish.
  • NSF listed; conforms to NSF/ANSI 61 | 9 lead-free requirements.

At-a-glance specifications

Attribute Detail
Model 19-FM-23FV
Stations 1 (single user)
Overall dimensions 23 in W × 19-1/2 in D × 42-1/2 in H
Bowl size 16 in front-to-back × 8 in deep
Backsplash height 8-1/2 in
Material thickness 16 ga (1.5 mm) type 304 stainless
Valve type Toe-push tempering valve with built-in check valves
Faucet Gooseneck spout, single hole pre-punched
Drain 3-1/2 in rear basket drain (K-6)
Mounting Floor legs with flanged feet + stainless “Z” wall brackets
Shipping weight Approx. 58 lb

Looking for multi-station configurations? Check out the 2- to 6-station models in the same series under “Related Products.”

California Prop 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. See www.P65Warnings.ca.gov for more information.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

23.0in

Depth

19.5in

Shipping Weight

50.0lbs

Style

freestanding

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Faucet

faucet included

Specifications

Multiwash Hand Sink, with toe-operated push valve, 23"W x 19-1/2"D x 42-1/2H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with single faucet hole, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
