Advance Tabco  |  SKU: 19-FM-23-F  |  UPC: 747545217424

Advance Tabco 19-FM-23-F Hand Sinks

$1,606.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

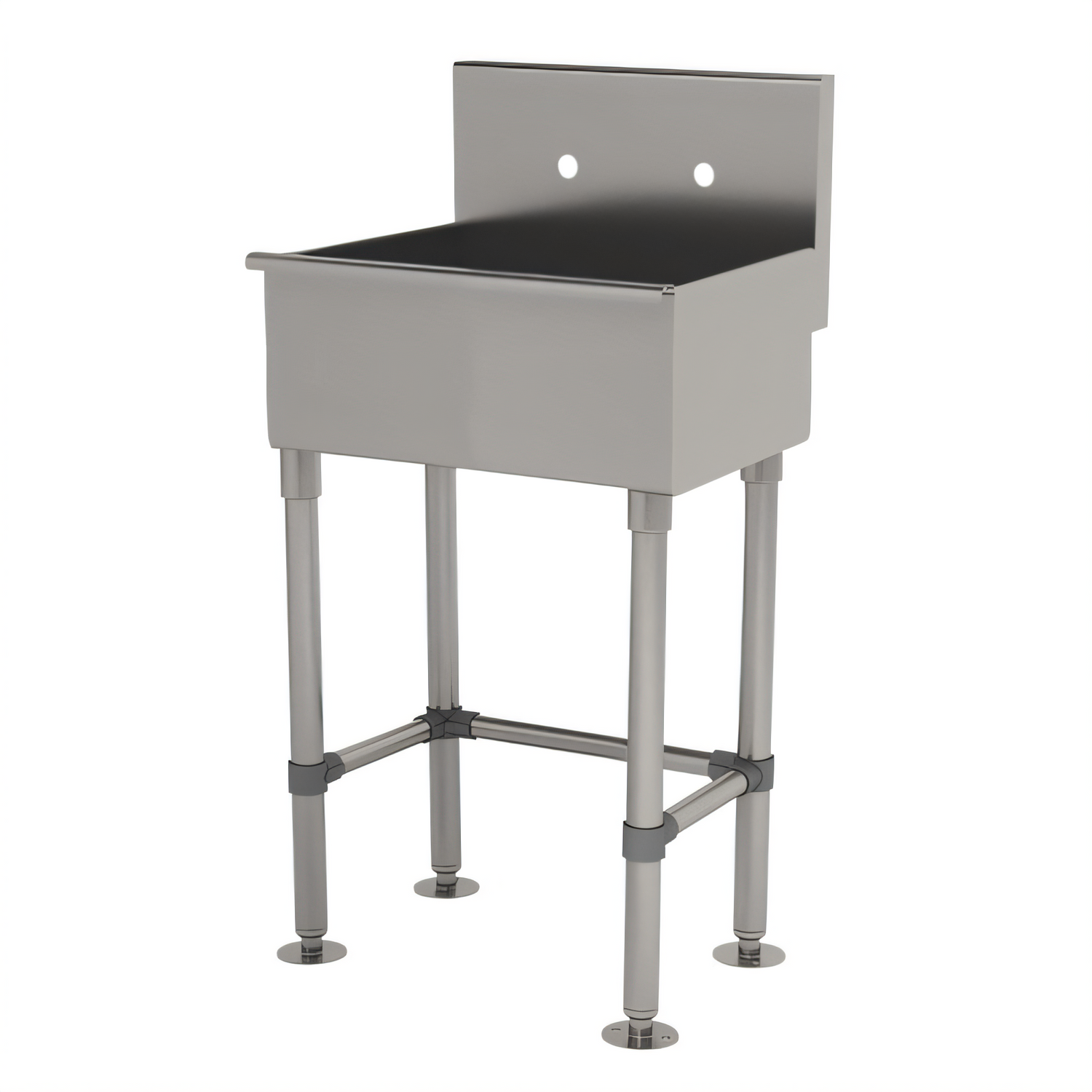

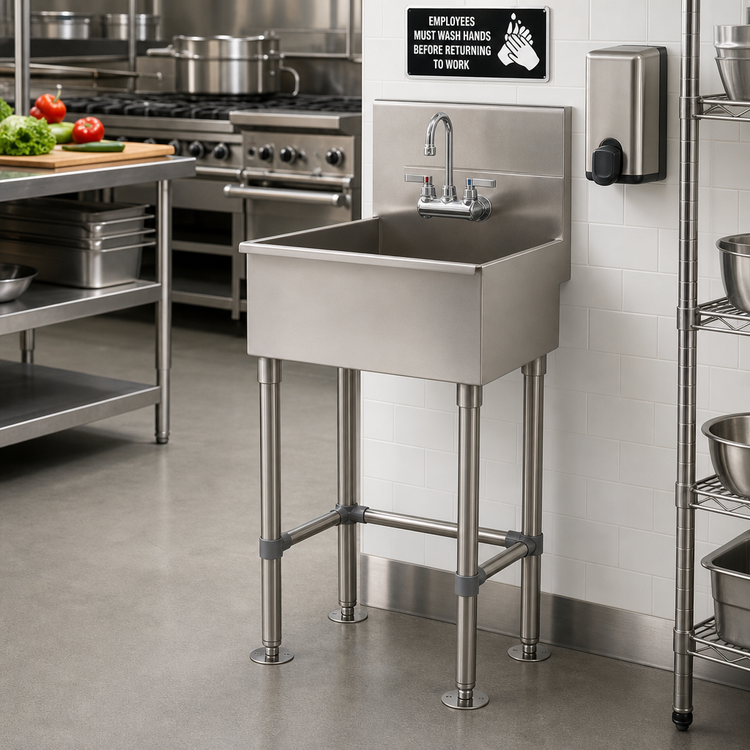

Advance Tabco 19-FM-23-F Multi-Wash Hand Sink

23" floor-mounted square-corner sink with faucet & drain

Built to thrive in the toughest commercial environments, the 19-FM-23-F delivers a complete one-station hand-wash solution in a compact 23-inch footprint. Heavy-duty 16-gauge type 304 stainless steel, factory-installed gooseneck faucet and floor-mount leg set mean you can uncrate, level and plumb in minutes.

Key Features

  • 16 ga. type 304 stainless steel sink body TIG-welded to a smooth satin finish.
  • 8-1/2" high integral backsplash with one set of 8" on-center faucet holes.
  • Spacious 16" front-to-back x 8" deep bowl for comfortable washing.

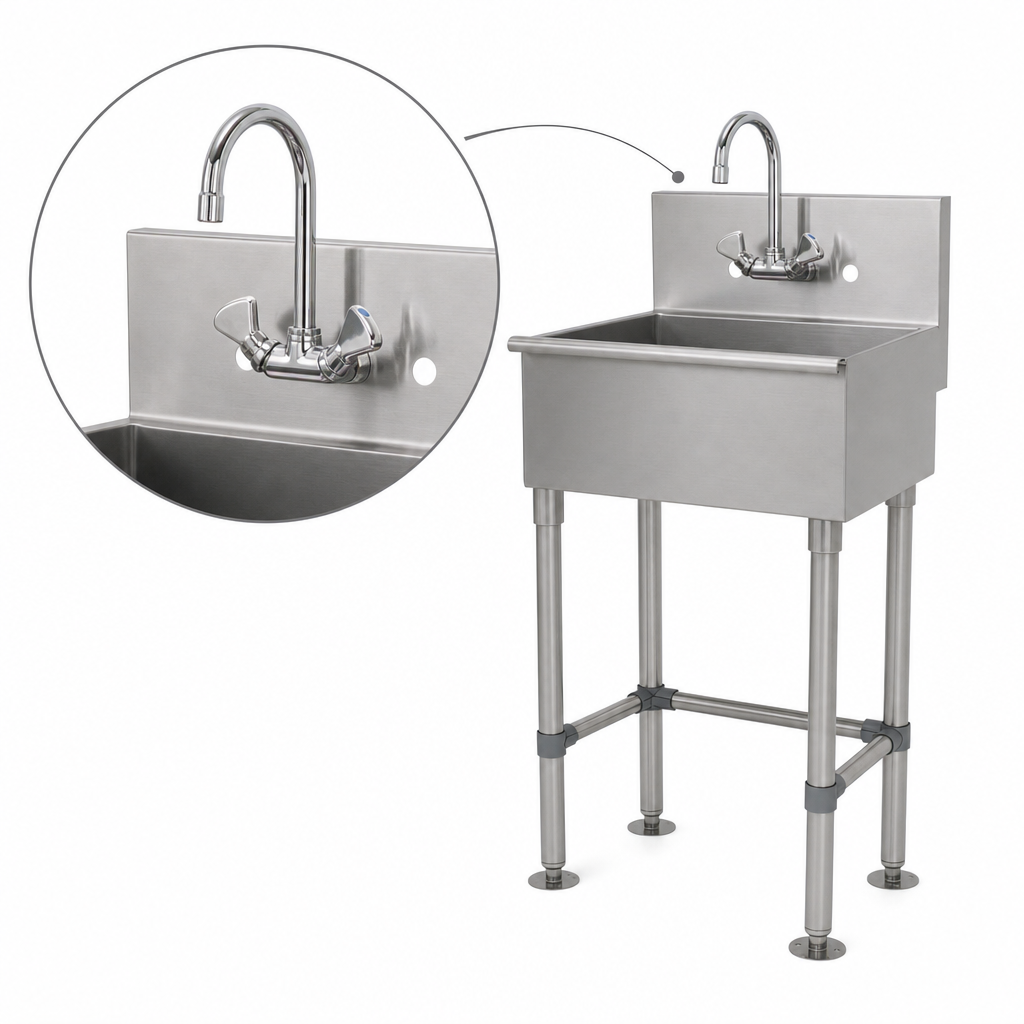

  • Includes K-159 8-1/2" swivel gooseneck faucet (NSF/ANSI 61/9 lead-free compliant).
  • Factory-installed K-6 3-1/2" rear basket drain with strainer.
  • 1-5/8" O.D. tubular stainless steel legs with adjustable side & rear cross-bracing.
  • Flanged feet bolt securely to the floor; stainless steel “Z” wall bracket supplied for added support.
  • NSF listed for hand-wash and prep areas in foodservice, lab and industrial settings.

Specifications

Model 19-FM-23-F
Number of Stations 1
Overall Dimensions 23" W × 19-1/2" D × 42-1/2" H (to top of backsplash)
Working Height 34"
Bowl Size 16" F/B × 8" deep
Backsplash Height 8-1/2"
Faucet Holes One set, 8" on center (pre-punched)
Included Faucet K-159 manual gooseneck, 1 GPM aerator
Drain K-6 3-1/2" rear basket drain
Construction 16 ga. type 304 stainless steel, TIG-welded
Legs / Feet 1-5/8" tubular stainless steel legs with flanged feet
Shipping Weight Approx. 57 lb
Certifications NSF, Lead-Free

Looking for electronic or knee-valve activation, additional drains, or custom lengths? Ask about Advance Tabco Smart Fabrication™ options.

California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

23.0in

Depth

19.5in

Shipping Weight

57.0lbs

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Style

freestanding

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, includes faucet, 23"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (1) set of faucet holes 8" OC, 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
