Advance Tabco  |  SKU: 19-FM-120KV

Advance Tabco 19-FM-120KV Hand Sinks

$6,126.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation Optional mixing valve
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

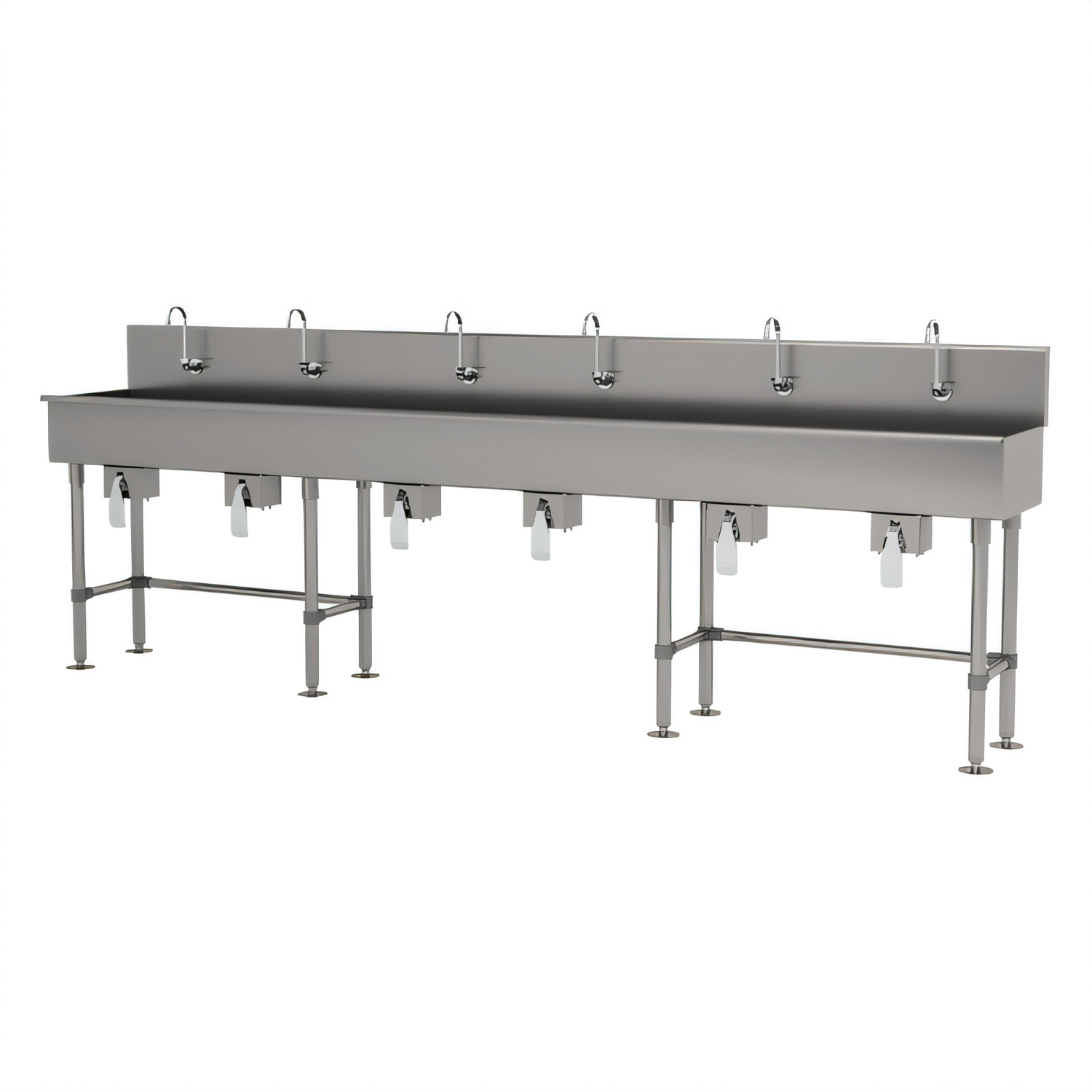

Advance Tabco 19-FM-120KV Multi-Station Knee-Operated Hand Sink

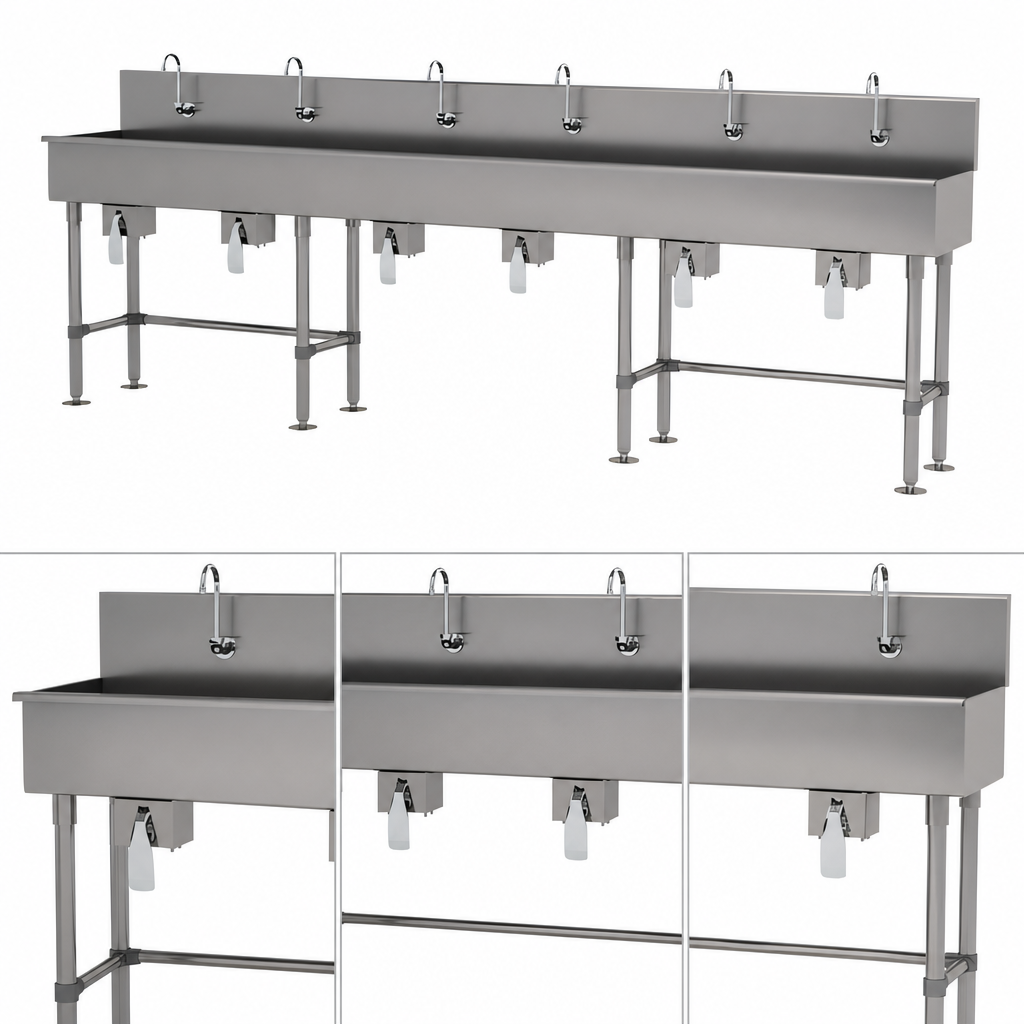

120" – Six-User, Floor-Mounted Square Corner Sink

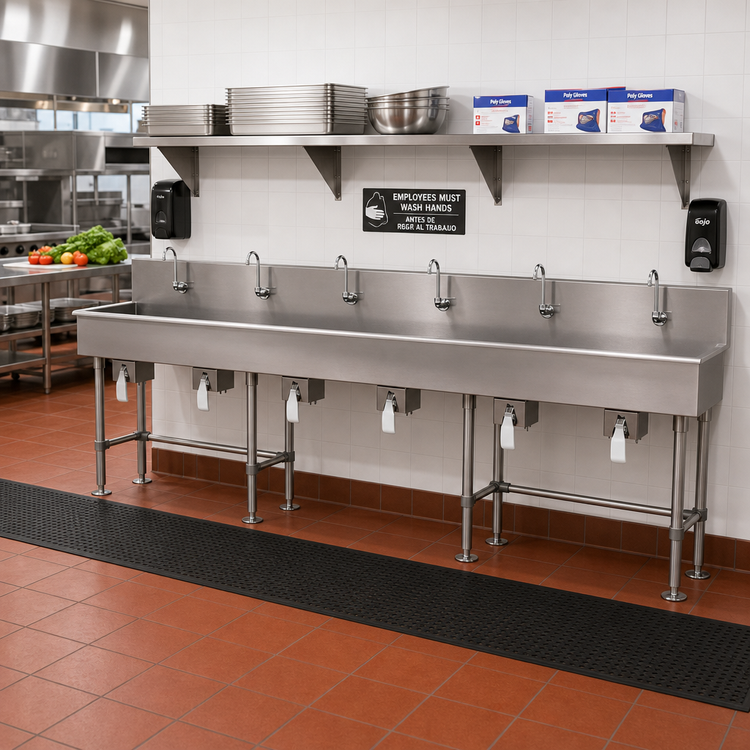

Built for the busiest prep rooms, the 19-FM-120KV delivers sanitary, hands-free washing for up to six users at once. Heavy-duty 16 ga. type 304 stainless steel resists corrosion, while knee valves and gooseneck spouts keep your team compliant with food-safety codes and HACCP best practices.

Why You’ll Love It

  • Six individual stations with single-hole punch and included K-121 gooseneck spouts.
  • Hands-free 7-PS-32 knee valves—reduce cross-contamination and save water.
  • 16 ga. 304 stainless steel sink body with TIG-welded, satin-finished seams.
  • 1-5/8" tubular 304 SS legs with flanged feet plus side & rear adjustable cross-bracing for rock-solid stability.
  • Full-length 8-1/2" backsplash keeps surrounding walls dry and clean.
  • Three 3-1/2" K-6 basket drains included; ready for standard 1-1/2" plumbing connections.
  • NSF listed & conforms to NSF 61/9 lead-free requirements.

Quick Specs

Model 19-FM-120KV
Stations 6
Overall Dimensions 120" W × 19-1/2" D × 42-1/2" H (to top of backsplash)
Rim Height 34"
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8-1/2"
Material / Gauge Type 304 stainless steel / 16 ga.
Legs 1-5/8" Ø tubular 304 SS with flanged feet
Faucet Holes (6) single 1-hole punches, centers pre-drilled
Operation Knee-activated mixing valves (included)
Drains Supplied (3) K-6 basket drains, 3-1/2"
Finish Satin polish, easy-clean square corners
Mounting Floor mount with supplied stainless “Z” brackets
Certifications NSF, Lead-Free, Prop 65

What’s in the Box

  • (1) 120" multi-station sink body
  • (6) 7-PS-32 knee valves
  • (6) K-121 lead-free gooseneck spouts
  • (3) K-6 basket drains with washers & nuts
  • (2) Stainless “Z” wall brackets
  • Tubular legs, cross-bracing & required hardware

Need tempered water? Pair the knee valves with an optional K-425 thermostatic mixing valve (sold separately).

California Prop 65 Warning: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

120.0in

Depth

19.5in

Shipping Weight

235.0lbs

Features

multi-station

Style

freestanding

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet included

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, with knee valve, 120"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, gooseneck spouts, includes basket drain, 16 gauge 304 stainless steel construction
