Description

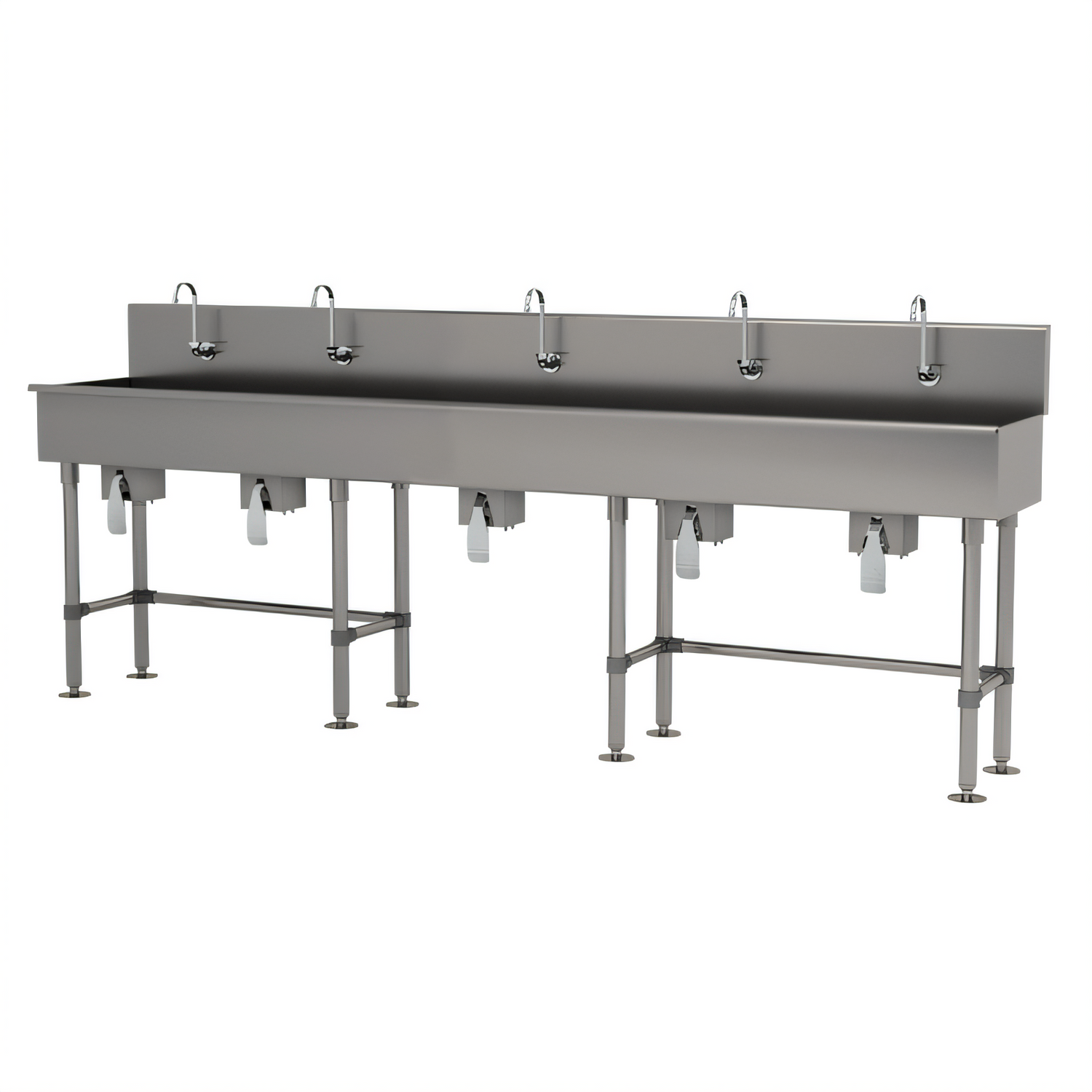

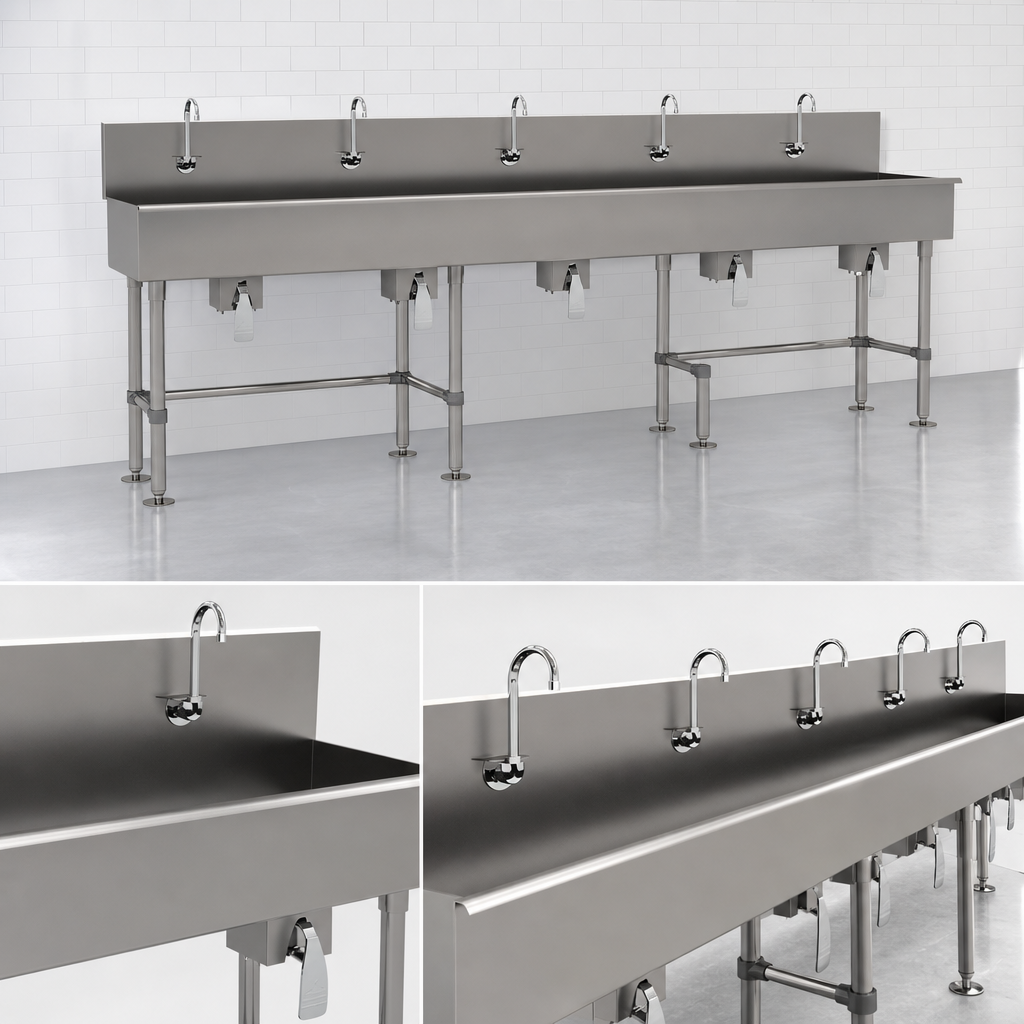

Advance Tabco 19-FM-100KV • 5-Station Knee-Operated Multi-Wash Hand Sink

100" floor-mounted unit | 16 ga 304 stainless steel

Engineered for high-volume hand-washing in demanding food-service, healthcare and industrial environments, this Advance Tabco 19-FM-100KV multi-station sink delivers rugged performance, easy sanitation and completely hands-free operation for up to five users at once.

Key benefits

  • Five knee-operated 7-PS-32 valves provide true hands-free activation to reduce cross-contamination.
  • Gooseneck K-121 spouts at each station for comfortable clearance and splash control.
  • Extra-strong 16 ga type 304 stainless steel sink body with TIG-welded square corners and a satin finish.
  • 8 ½" integrated backsplash helps protect your walls and keeps water in the sink.
  • Generous 16" front-to-back x 8" deep bowls handle heavy traffic without splashing.
  • 1 ⅝" tubular stainless steel legs with flanged feet and adjustable side/rear cross-bracing for rock-solid floor mounting.
  • Factory-punched with five single faucet holes – ready for the included valves and spouts.
  • (2) K-6 rear basket drains supplied for efficient water removal.
  • NSF listed construction meets the toughest sanitation standards.

Technical specifications

Model 19-FM-100KV
Stations 5
Overall dimensions 100" W × 19 ½" D × 42 ½" H
Bowl size (each) 16" F/B × 8" D
Backsplash height 8 ½"
Faucet holes 5 – single hole, 1 per station
Operation Knee-activated valves with gooseneck spouts (included)
Material & gauge 16 ga 304 stainless steel
Legs & supports 1 ⅝" Ø stainless tubular legs, flanged feet, adjustable cross-bracing
Drains (2) 3 ½" K-6 basket drains
Finish Satin, welded seams blended to match
Compliance NSF listed

Ideal applications

  • School and university cafeterias
  • Commercial kitchens & commissaries
  • Meat- & poultry-processing facilities
  • Healthcare & laboratory prep areas
  • Industrial production lines
California Prop 65 notice: Components that include faucets may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm.

Need thermostatic mixing? This sink is compatible with the Advance Tabco K-425 mixing valve (sold separately).

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

200.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

freestanding

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, with knee valve, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, gooseneck spouts, includes basket drain, 16 gauge 304 stainless steel construction
