Advance Tabco 19-FM-100FV Hand Sinks
Description

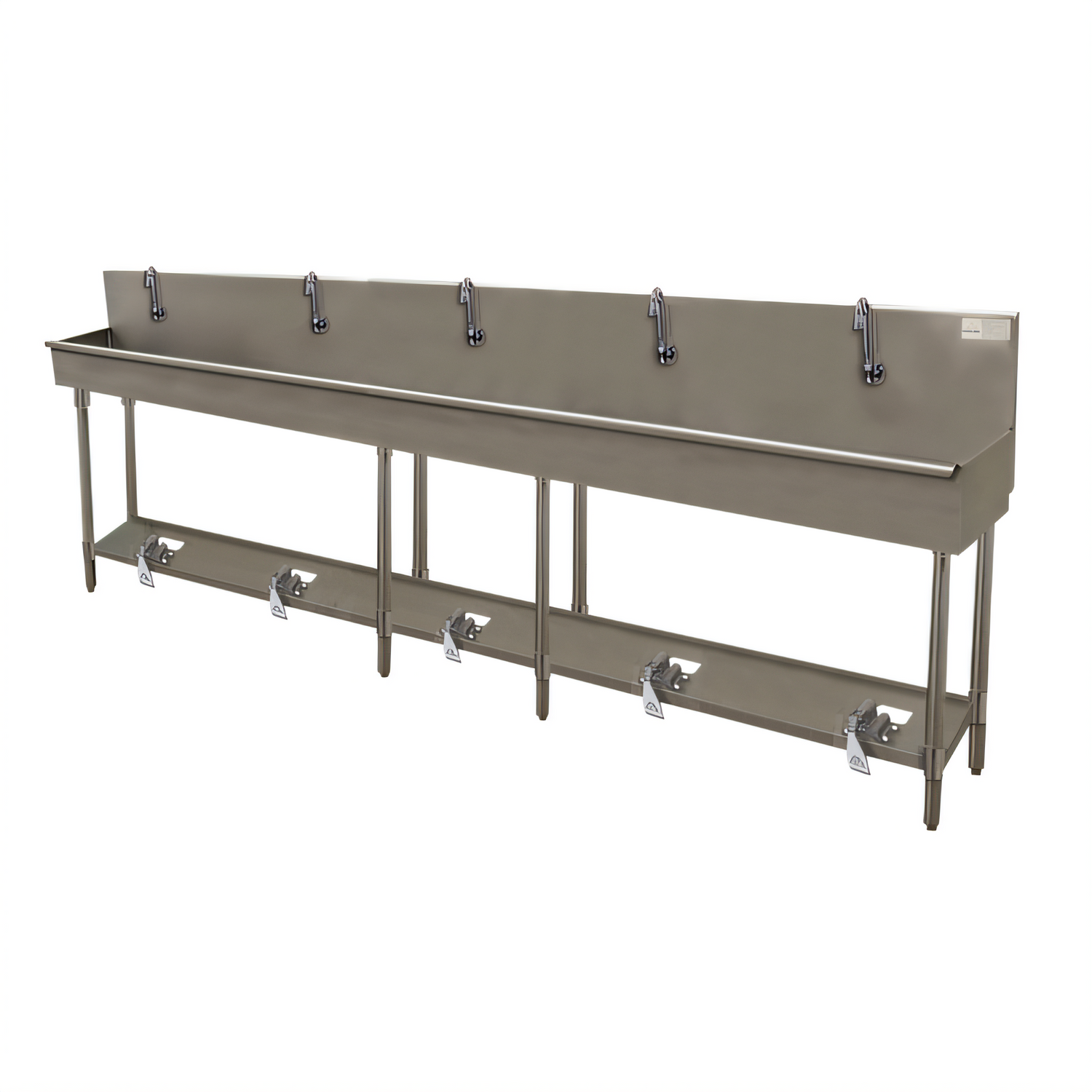

Advance Tabco 19-FM-100FV Multi-Station Toe-Push Hand Sink
100" W | 5 Stations | 16 ga 304 Stainless SteelEngineered for fast-moving commercial environments, the 19-FM-100FV delivers hands-free hygiene for up to five users at once. Durable 16-gauge type 304 stainless steel, toe-push valves, and gooseneck spouts combine for a sink that stands up to daily abuse while keeping operators compliant with food-safety codes.
Key Features
- Five single-hole stations with K-104 toe-push valves—no hand contact required.
- Includes five K-121 lead-free gooseneck spouts for full sink clearance.
- 8-½" high backsplash protects adjacent walls and simplifies cleanup.
- Dual 3-½" K-6 rear basket drains speed water evacuation and resist clogging.
- Floor-mounted frame with 1 5/8" tubular stainless steel legs, flanged feet, and pedal support bracket for rock-solid stability.
- Side & rear adjustable cross-bracing plus stainless “Z” wall brackets for quick, code-ready installation.
- All TIG-welded seams are blended to a satin finish for a professional look and easy sanitation.
- NSF compliant; meets lead-free requirements for potable water components.
Dimensions & Capacities
| Overall width | 100 in (2540 mm) |
|---|---|
| Overall depth | 19 1/2 in (495 mm) |
| Overall height (to backsplash top) |
42 1/2 in (1080 mm) |
| Bowl front-to-back | 16 in (406 mm) |
| Bowl depth | 8 in (203 mm) |
| Backsplash height | 8 1/2 in (216 mm) |
| Number of stations | 5 |
| Faucet holes | 5 single-hole punches (1 per station) |
| Drains supplied | 2 × 3-1/2" rear basket drains |
| Shipping weight | ≈ 243 lb (110 kg) |
| Crated volume | 35 ft³ |
Construction Details
- Sink body: 16-ga type 304 stainless steel, square-corner design.
- Supports: 16-ga, 1 5/8" O.D. type 304 stainless tubing.
- Finish: satin polish on all exposed surfaces.
- Welding: full TIG welds, ground and polished to match adjoining metal.
Ideal Applications
- High-volume food prep & processing facilities
- School & university cafeterias
- Healthcare & pharmaceutical clean rooms
- Industrial manufacturing & packaging plants
Need a different length, depth, or faucet style? Ask us about custom Advance Tabco Smart Fabrication® options.
