Description

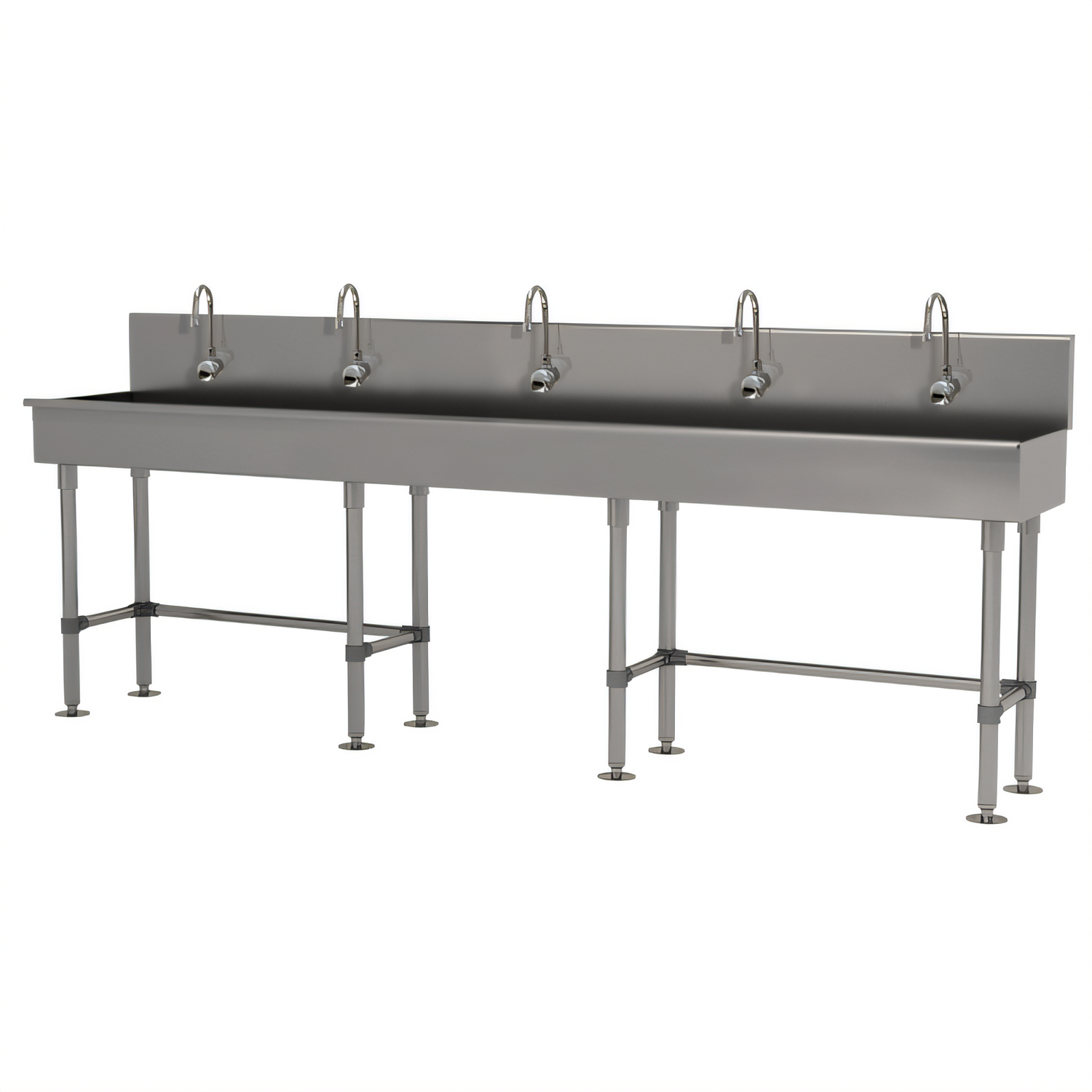

Advance Tabco 100" Multi-Station Electronic Hand Sink – ADA

Model 19-FM-100EFADA  •  5 Touch-Free Stations

Give staff and guests fast, hygienic access to hand-washing with this floor-mounted, five-user Advance Tabco multiwash sink. Built entirely from heavy-duty 16 ga type 304 stainless steel and equipped with K-175 electronic sensor faucets, it delivers years of trouble-free performance while meeting strict ADA accessibility guidelines.

Key Benefits

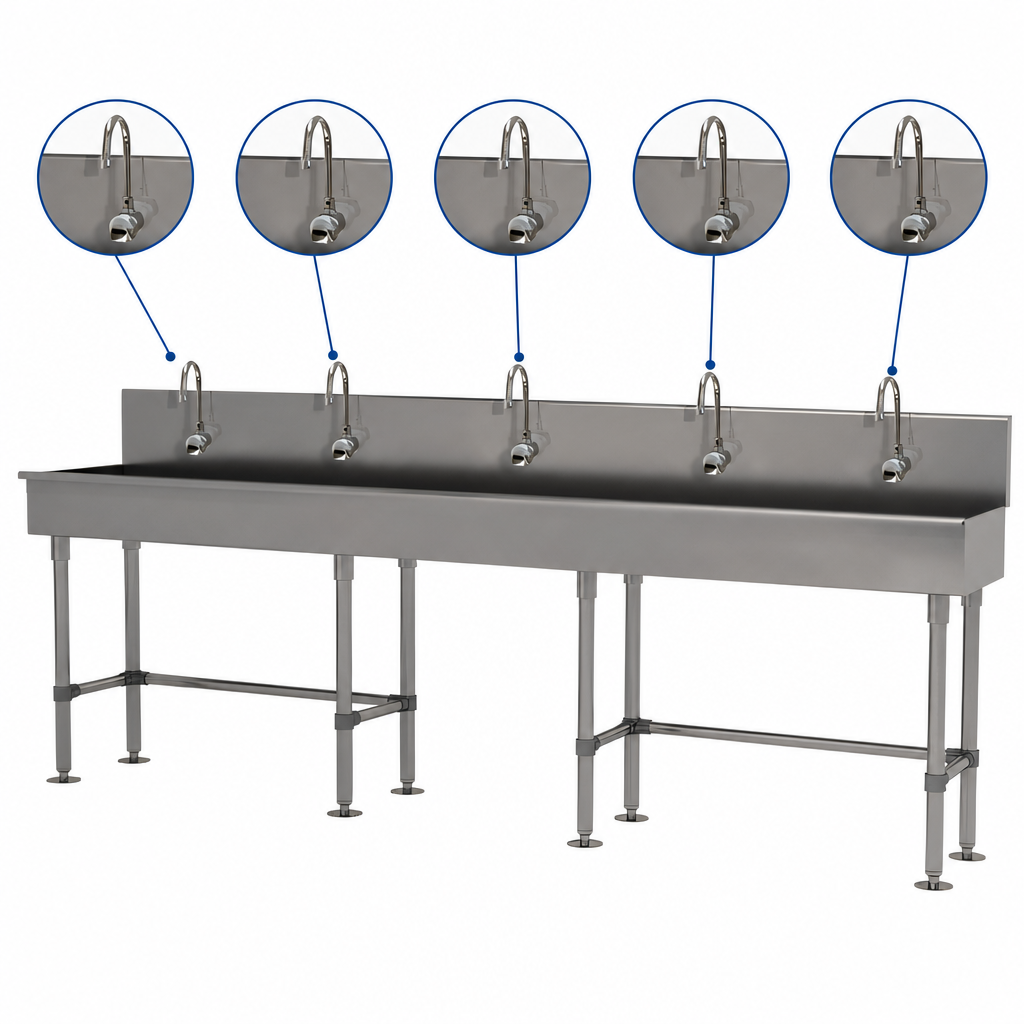

  • Hands-free operation – five splash-mounted K-175 electronic faucets reduce cross-contamination and conserve water.
  • ADA compliant – 5" bowl depth and 34" deck height satisfy ADA 4.19 requirements for seated users.
  • Generous 100" width offers ample elbow room between stations.
  • Integrated 8-1/2" backsplash contains splashes and protects walls.
  • 16 ga 304 stainless steel sink body with TIG-welded, satin-finished square corners for superior durability and easy cleaning.
  • (2) 3-1/2" rear basket drains supplied for quick installation.
  • 1-5/8" Ø tubular stainless steel legs with flanged feet and adjustable side/rear cross-bracing for rock-solid support.
  • Punched with (5) single faucet holes – no field drilling required.
  • Stainless steel “Z” wall brackets add extra rigidity.
  • NSF listed and conforms to NSF 61/9 lead-free requirements.

Specifications

Overall dimensions (W × D × H) 100" × 19-1/2" × 42-1/2"
Bowl size (each station) 16" front-to-back × 5" deep
Number of stations 5
Faucets (5) K-175 electronic sensor faucets, 2.2 GPM aerators
Backsplash height 8-1/2"
Drain size 3-1/2" rear basket drain(s) included
Material / gauge 16 ga type 304 stainless steel
Legs & support 1-5/8" Ø tubular 304 SS legs, flanged feet, adjustable cross-bracing
Power requirement 100–240 VAC adapter supplied for faucet solenoids
Certifications ADA, NSF

Looking for a different length or valve style? Contact us for custom Advance Tabco Smart Fabrication ™ options.

California Prop 65 Warning: This product may expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

138.0lbs

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Style

freestanding

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, with (5) electronic faucets, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, ADA compliant
