Description

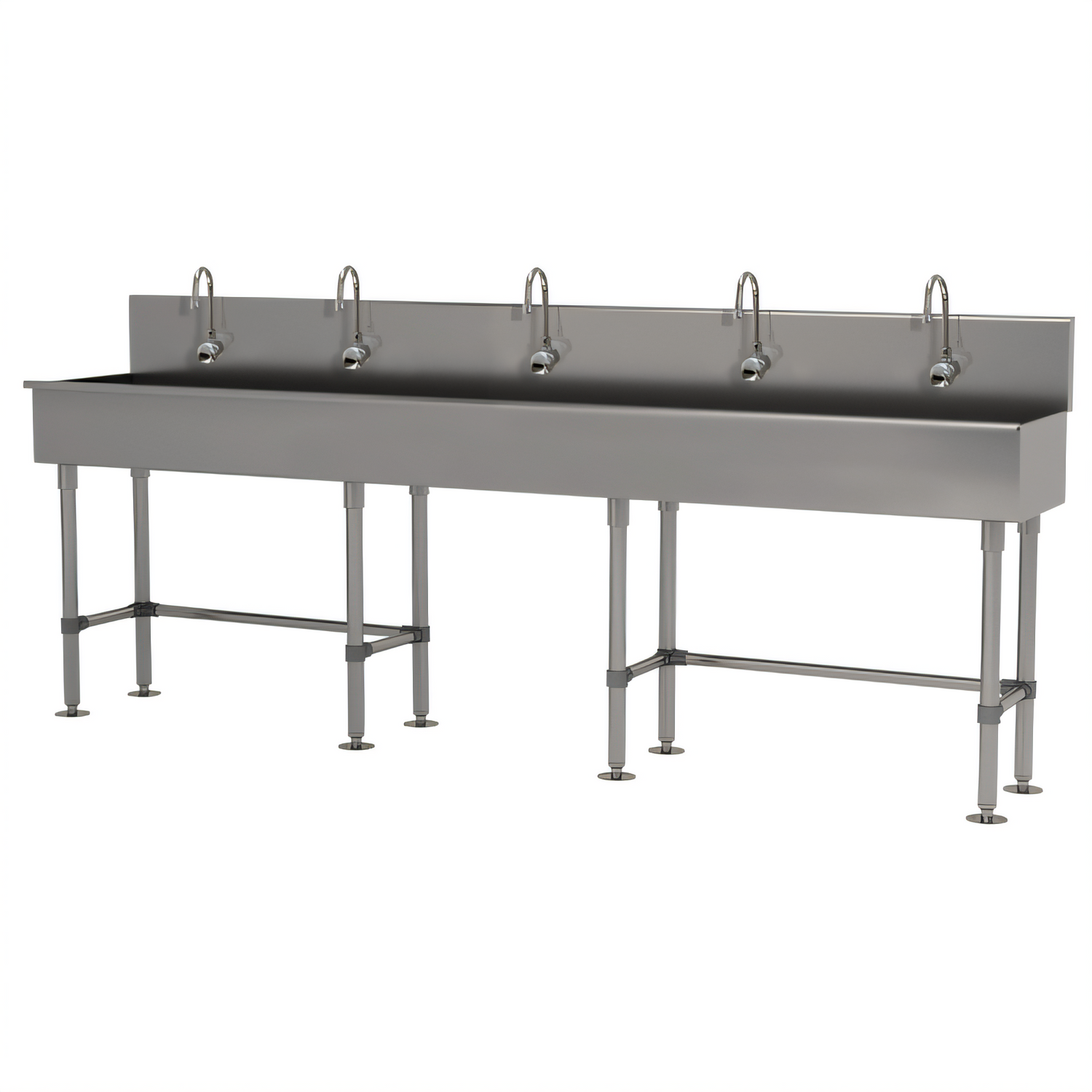

Advance Tabco 19-FM-100EF Multi-Wash Hand Sink

5-Station • Electronic Faucets • 100 in. Wide

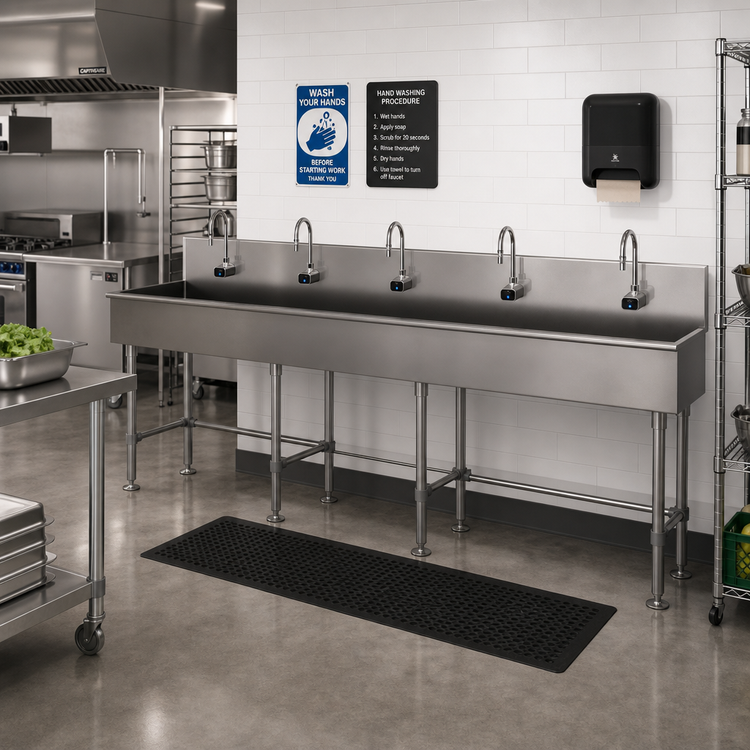

Give staff fast, hygienic access to hand-washing with this heavy-duty, five-station sink. Engineered from food-grade 16 ga 304 stainless steel and outfitted with touch-free sensor faucets, the 19-FM-100EF is ideal for kitchens, production areas, classrooms and anywhere high-volume sanitation is required.

Highlights

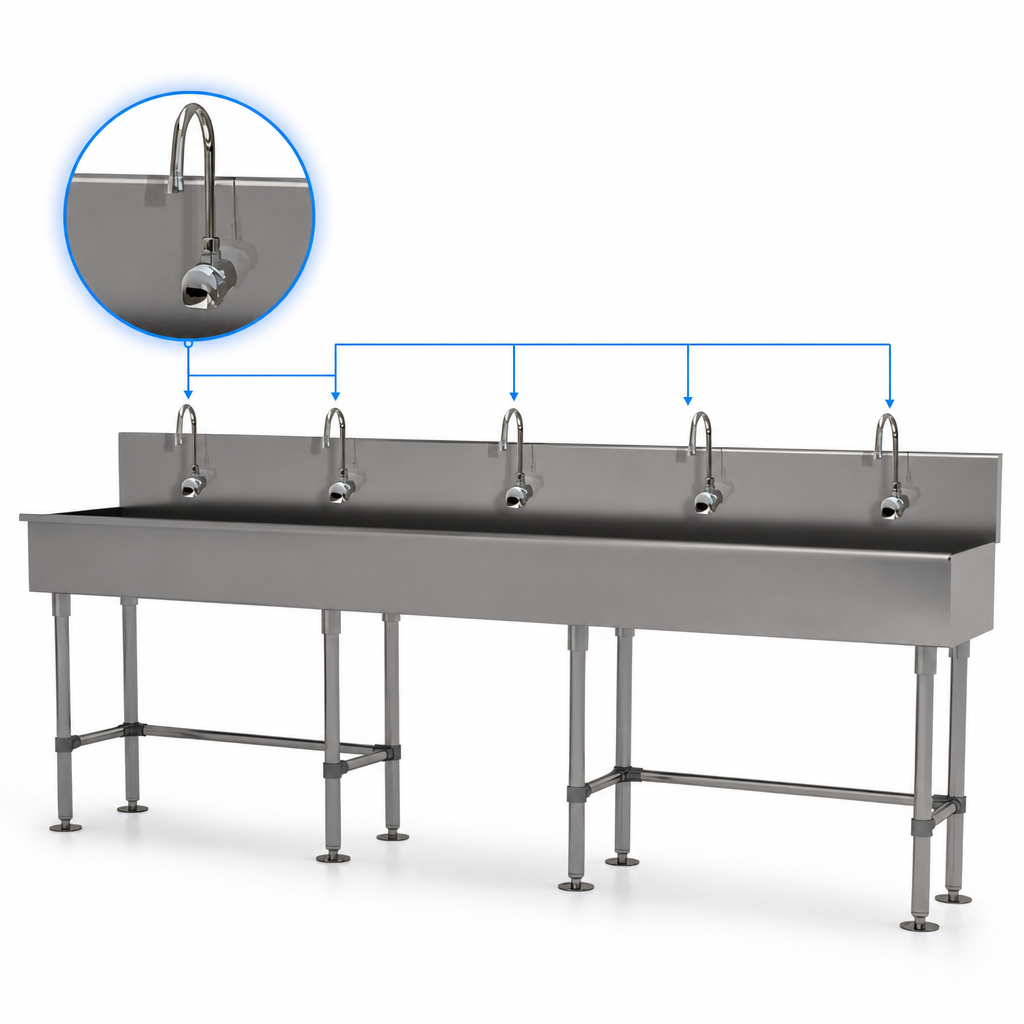

  • Five K-175 splash-mounted infrared faucets — hands-free activation, NSF 61/9 lead-free, 2.2 GPM aerators.
  • Spacious 100 in. wide continuous bowl with 16 in. front-to-back work area and 8 in. depth.
  • 8 1/2 in. integral backsplash is pre-punched with single faucet hole at each station.
  • TIG-welded 16 ga type 304 stainless steel top & bowl; satin finish blends seamlessly with commercial environments.
  • 1 5/8 in. O.D. tubular stainless steel legs with flanged feet plus side & rear adjustable cross-bracing for rock-solid stability.
  • Includes stainless steel “Z” wall brackets and (2) 3 1/2 in. K-6 rear basket drains.
  • UL-listed 100–240 VAC adapters for each faucet; less than 1 A draw.
  • NSF listed construction; built in the USA by Advance Tabco.

Technical Specifications

Model 19-FM-100EF
Number of Stations 5
Overall Dimensions 100" W × 19 1/2" D × 42 1/2" H (to top of backsplash)
Bowl Dimensions 16" front-to-back × 8" deep (continuous basin)
Backsplash Height 8 1/2"
Material 16 ga type 304 stainless steel
Legs / Feet 1 5/8" tubular 304 SS with flanged feet
Faucets (5) Advance Tabco K-175 electronic sensor faucets
Drains (2) 3 1/2" rear-mount basket drains (K-6)
Electrical (per faucet) 100–240 VAC adapter, < 1 A, UL listed
Shipping Weight ≈ 145 lb / 35 cu ft

Looking for a different length or ADA-compliant depth? Contact us for additional Advance Tabco multi-station options.

California Residents: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

145.0lbs

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Style

freestanding

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, with (5) electronic faucets, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
