Description

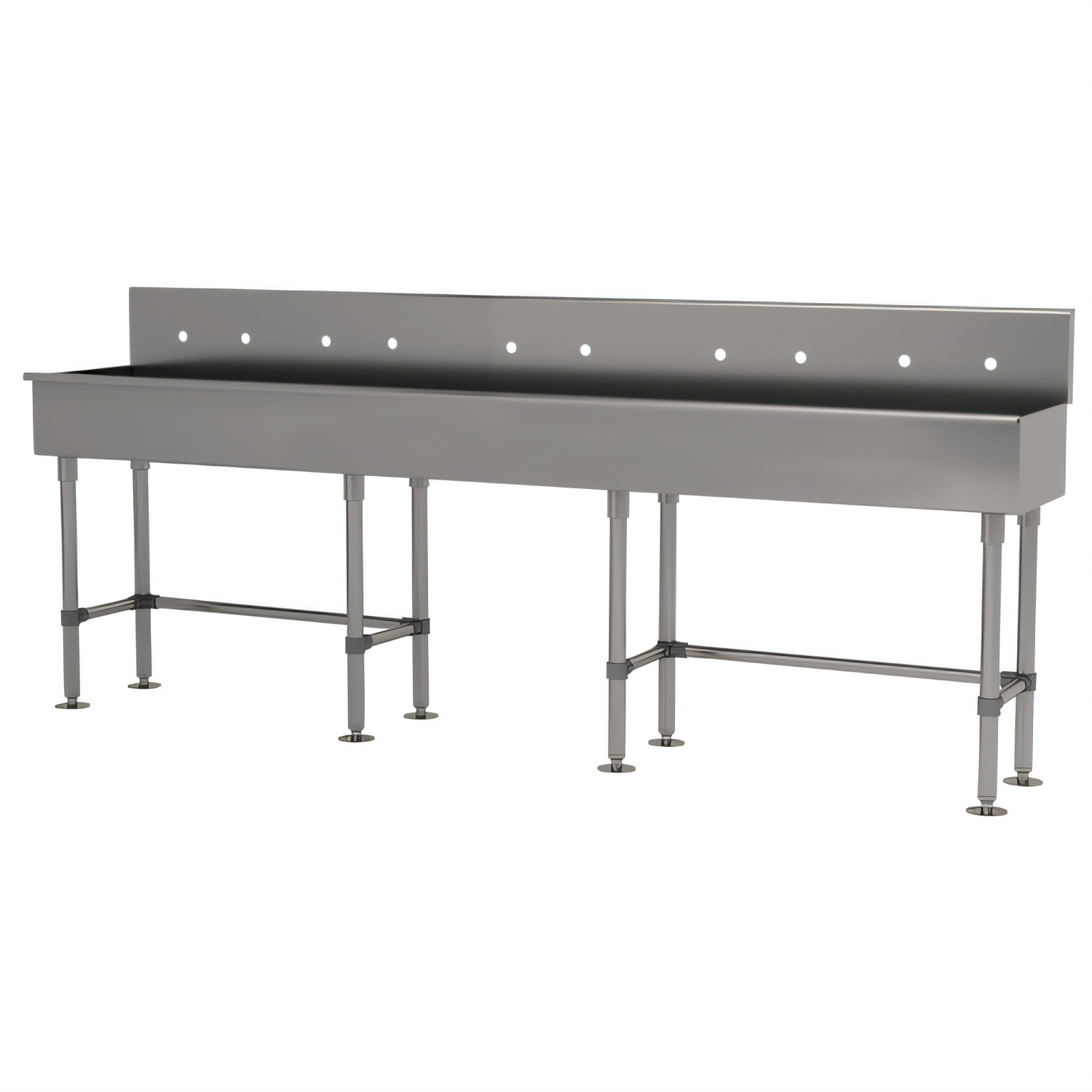

Advance Tabco 19-FM-100 Multi-Station Hand Sink

5-Station • Floor-Mounted • 100 in. Wide • 16 ga 304 Stainless Steel

Built for the busiest prep rooms, commissaries and educational labs, the Advance Tabco 19-FM-100 delivers five independent hand-wash stations in one rugged, easy-to-install unit. The heavy-duty 16 ga type 304 stainless steel body, tubular legs and adjustable cross-bracing withstand years of commercial use while the sleek satin finish looks great in any front- or back-of-house setting.

Key Features

  • Five spacious hand-wash stations in a single 100 ″ sink body.
  • 8 ″ deep, 16 ″ front-to-back bowl provides comfortable washing space.
  • 8 ½ ″ integral backsplash keeps walls dry and is pre-punched with 5 sets of 8 ″ on-center faucet holes.
  • Includes (2) K-6 3 ½ ″ rear basket drains – everything you need on the drain side.
  • 1 ⅝ ″ O.D. tubular stainless steel legs with flanged feet for rock-solid floor mounting.
  • Side & rear adjustable stainless cross-bracing with positive-lock clamps for extra rigidity.
  • Stainless steel “Z” wall bracket supplied to secure the sink and speed installation.
  • All TIG-welded construction; welds blended to a smooth, easy-to-clean satin finish.
  • NSF listed for food-service sanitation.

Faucets are not included. Compatible 8 ″ O.C. manual, knee, toe or electronic faucets sold separately.

Technical Specifications

Model 19-FM-100 (standard series, no faucets)
Stations 5
Overall Width 100 ″ (2540 mm)
Overall Depth 19 ½ ″ (495 mm)
Overall Height 42 ½ ″ to top of backsplash
Bowl Size (each) 16 ″ F/B × 8 ″ deep
Backsplash Height 8 ½ ″
Faucet Holes (5) sets, 8 ″ on-center
Drains Included (2) 3 ½ ″ K-6 basket drains (rear)
Material 16 ga type 304 stainless steel sink & 1 ⅝ ″ tubular legs
Finish Satin polish
Mounting Floor mounted, flanged feet + stainless “Z” wall bracket
Approx. Shipping Weight 145 lb
Certifications NSF

Included With Your Sink

  • (1) 100 ″ multi-station sink body
  • (2) Stainless steel “Z” wall brackets
  • (4) Tubular stainless support legs with flanged feet
  • Side & rear adjustable cross-bracing with clamps
  • (2) K-6 3 ½ ″ basket drains
  • Installation instructions

Why Choose Advance Tabco?

  • Engineered & manufactured in the USA for more than 90 years.
  • Field-proven durability backed by industry-leading customer support.
  • Full line of compatible manual, knee-, toe- and sensor-operated faucets available.
NOTE: This model is supplied without faucets. When adding faucets, comply with local codes. Equipment that includes a faucet may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

145.0lbs

Faucet

faucet not included

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

freestanding

Features

multi-station

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
