Advance Tabco  |  SKU: 19-FM-100-F  |  UPC: 747545217431

Advance Tabco 19-FM-100-F Hand Sinks

$4,189.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

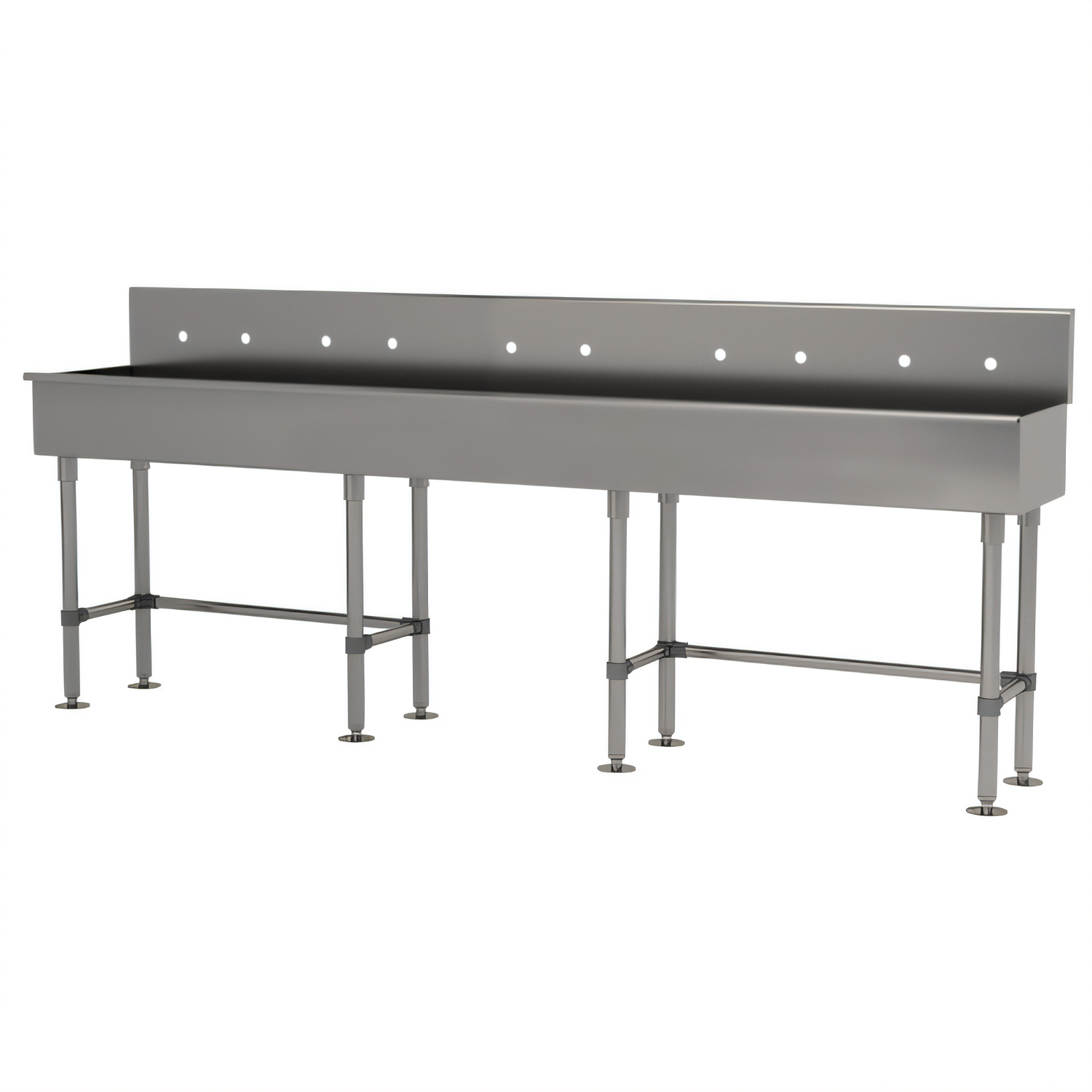

Advance Tabco 5-Station Multi-Wash Hand Sink – 100" Wide

Model 19-FM-100-F | Includes five K-159 manual gooseneck faucets

Designed for high-traffic foodservice, manufacturing, and laboratory environments, this free-standing multi-station hand sink delivers uncompromising durability and sanitation in one space-saving unit. Its heavy-duty 16 gauge 304 stainless steel construction, integral backsplash, and tubular leg system stand up to everyday punishment while keeping your wash area spotless and code-compliant.

Key Features

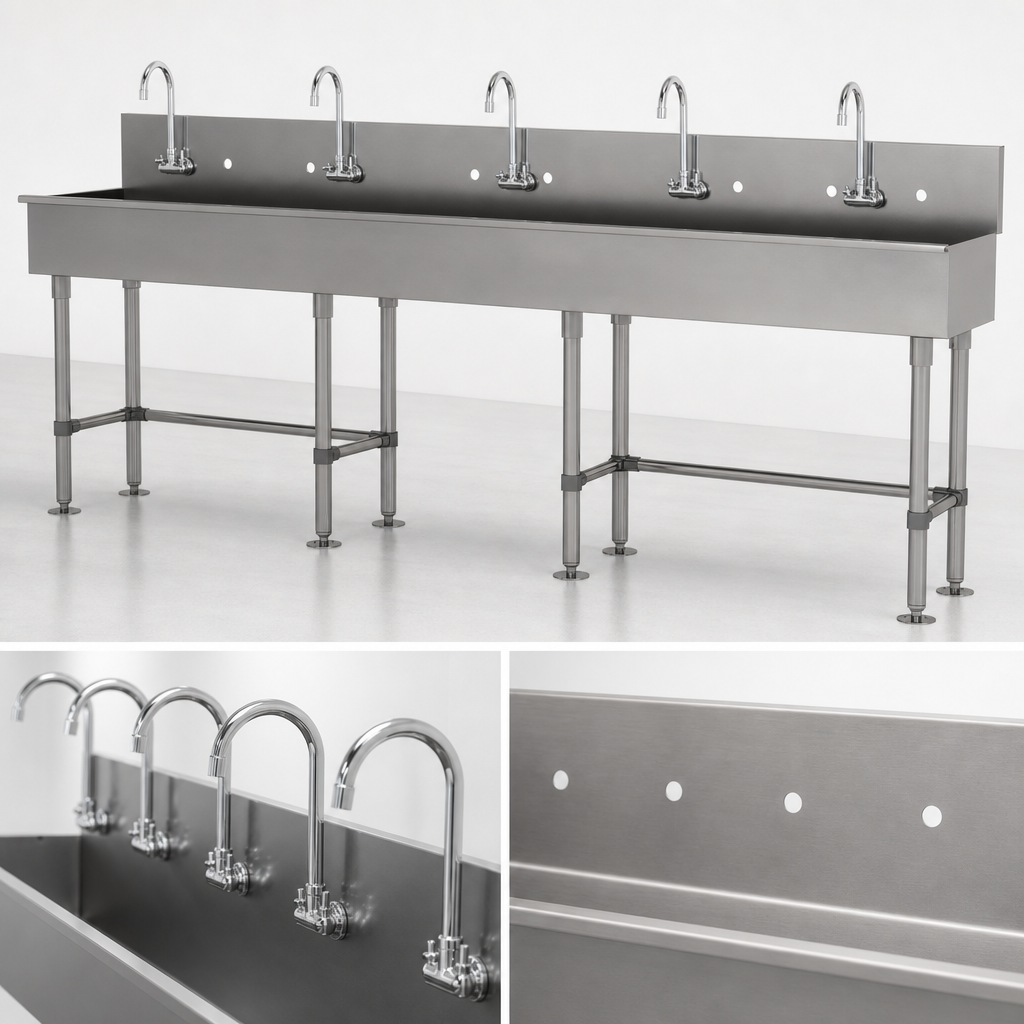

  • Five independent hand-wash stations in a single 100" long footprint.
  • Generous 16" front-to-back bowl with 8" depth minimizes splash.
  • 8 ½" high backsplash protects walls; pre-punched 8" O.C. faucet holes.
  • Includes (5) NSF-listed K-159 8 ½" swivel gooseneck faucets.
  • TIG-welded 16 ga. type 304 stainless steel with sanitary satin finish.
  • 1 ⅝" tubular 304 SS legs with flanged feet & adjustable side/rear cross-bracing.
  • Supplied 3 ½" rear basket drain for quick hook-up to standard plumbing.
  • Stainless “Z” wall brackets add extra stability during installation.
  • NSF certified & lead-free components meet NSF/ANSI 61 & 372.

What’s in the Box

  • (5) K-159 manual faucets with swivel gooseneck spouts
  • (1) K-6 3 ½" basket drain with strainer
  • (2) Stainless steel “Z” wall brackets & mounting hardware
  • Factory-installed adjustable leg cross-bracing

Technical Specifications

Overall dimensions (W × D × H) 100" × 19 1⁄2" × 42 1⁄2"
Work height 34"
Number of stations 5
Bowl dimensions 16" front-to-back × 8" deep
Backsplash height 8 ½"
Faucet mounting (5) sets of 8" O.C. holes — faucets included
Material / gauge 16 ga. type 304 stainless steel
Legs & feet 1 ⅝" Ø tubular 304 SS legs with stainless flanged feet
Drain 3 ½" rear basket drain (included)
Approx. shipping weight 155 lb
Certifications NSF, Lead-Free, Prop 65

Looking for a different size or hands-free activation? The Advance Tabco 19-FM series is available in one- to six-station models with manual, knee, toe-push, or electronic faucets.

California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

155.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

freestanding

Specifications

Multiwash Hand Sink, with stainless steel legs and flanged feet, includes (5) faucets, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction
