Advance Tabco  |  SKU: 19-18-80KV  |  UPC: 747545212313

Advance Tabco 19-18-80KV Hand Sinks

$4,148.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Optional mixing valve Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

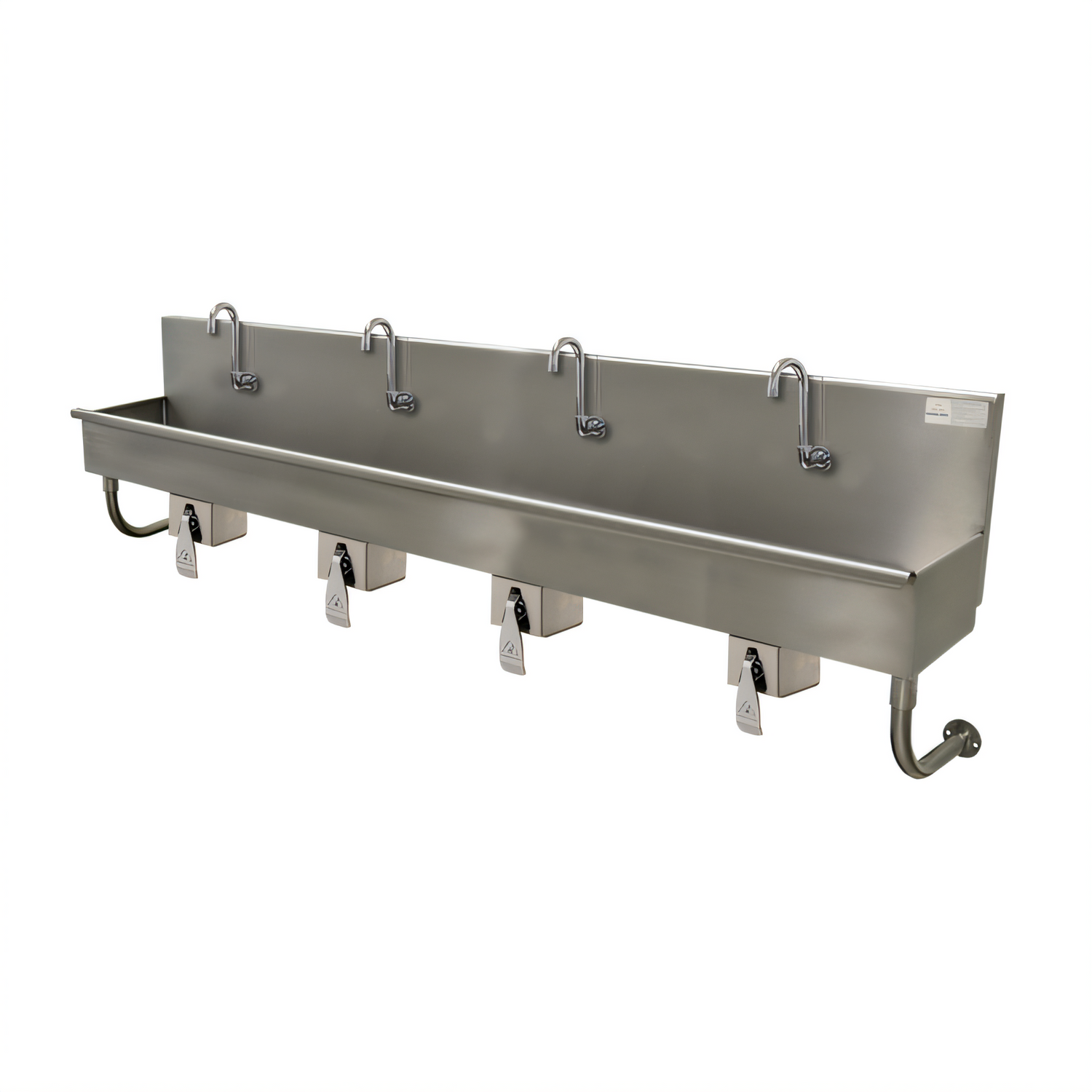

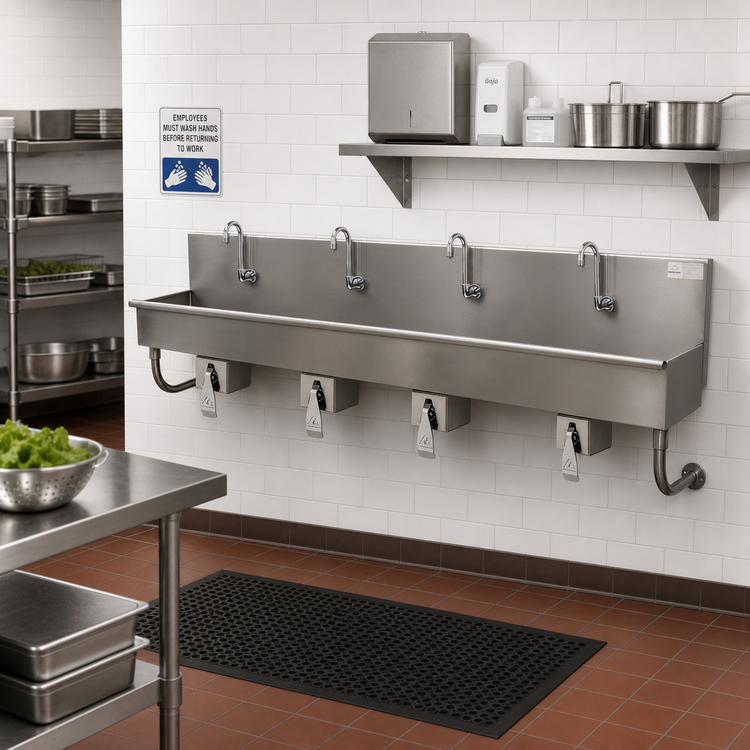

Advance Tabco 80" Multi-Wash Hand Sink – Knee Operated

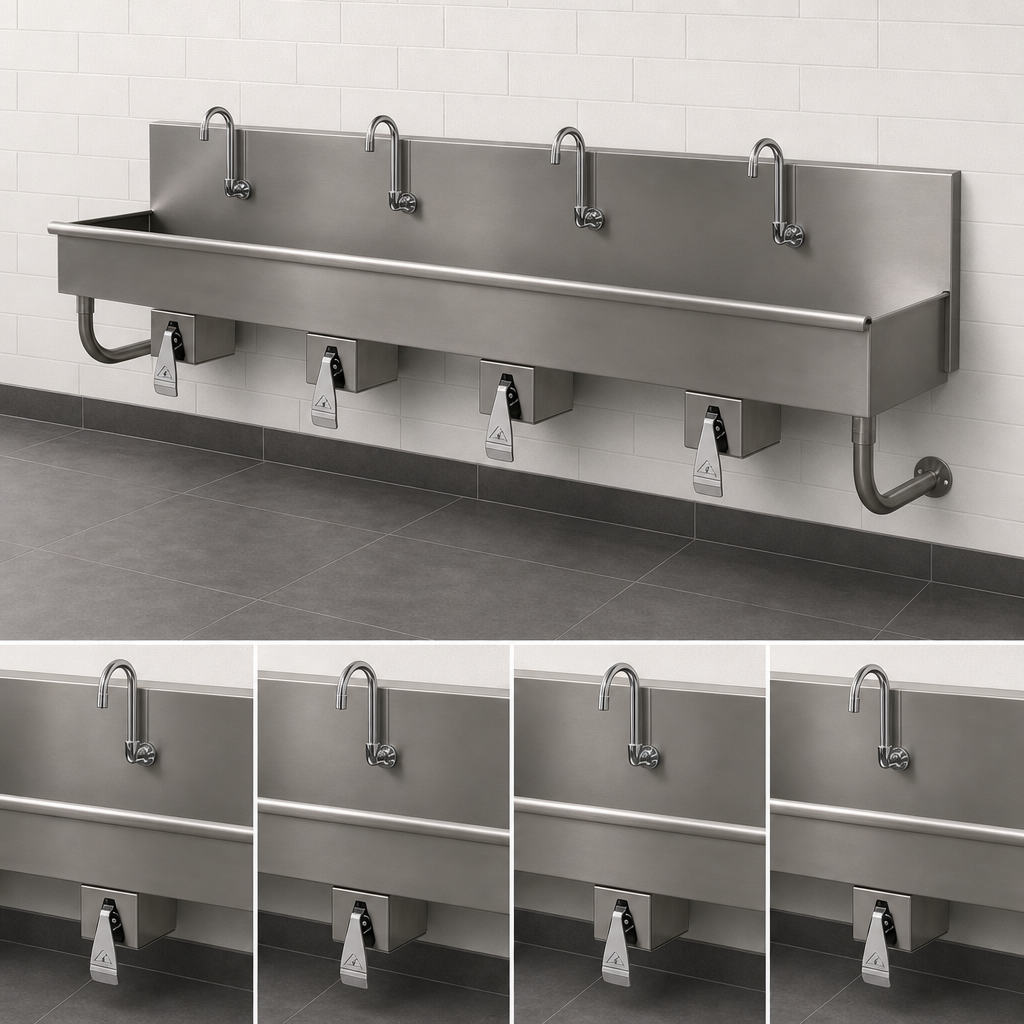

Model 19-18-80KV  |  4-Station, Wall-Mounted

Built for demanding foodservice and healthcare environments, this hands-free, four-station sink delivers fast, hygienic hand-washing while standing up to years of heavy use.

Why You’ll Love It

  • Hands-free activation – four 7-PS-32 stainless knee valves reduce cross-contamination.
  • Heavy-duty 16-gauge 304 stainless steel construction with smooth TIG-welded seams.
  • 8 ½ inch backsplash keeps surrounding walls dry and sanitary.
  • (4) pre-punched single-hole stations with K-121 gooseneck spouts for generous hand clearance.
  • One 3 ½" K-6 rear basket drain included for reliable debris capture.
  • 1 5⁄8" tubular stainless wall supports and “Z” brackets leave the floor completely open for easy cleanup.
  • Satin-finish surfaces wipe down quickly and maintain a professional appearance.

Perfect For

  • Restaurant & commissary prep areas
  • Food & beverage production lines
  • Hospitals, labs and clean rooms
  • School, stadium & arena concessions

Specifications

Model 19-18-80KV
Number of Stations 4
Overall Dimensions (W × D × H) 80" × 19 ½" × 28 ½"
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8 ½"
Material / Gauge 16-gauge type 304 stainless steel
Operation (4) knee valves with gooseneck spouts
Faucet Holes (4) single holes – 1 per station
Drain (1) 3 ½" K-6 basket drain (rear-mounted)
Wall Mounting Stainless “Z” brackets & 1 5⁄8" tubular supports
Approx. Net Weight 142 lb
Certifications NSF

Installation Highlights

  • Mount “Z” brackets roughly 44" above finished floor (verify ADA/local codes).
  • Secure knee valves to factory-installed studs beneath the sink, then attach water lines.
  • Hook up the single basket drain and tighten tubular support flanges flush to the wall.
  • Compatible with Advance Tabco K-425 thermostatic mixing valve (sold separately) for tempered water.

Looking for other lengths or electronic activation? Explore additional Advance Tabco 19-18 series options in our store.

California Prop 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

28.5in

Width

80.0in

Depth

19.5in

Shipping Weight

142.0lbs

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, with knee valve, 80"W x 19-1/2"D x 28-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (4) single faucet holes, gooseneck spouts, includes basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports
