Advance Tabco 19-18-80 Hand Sinks
Description

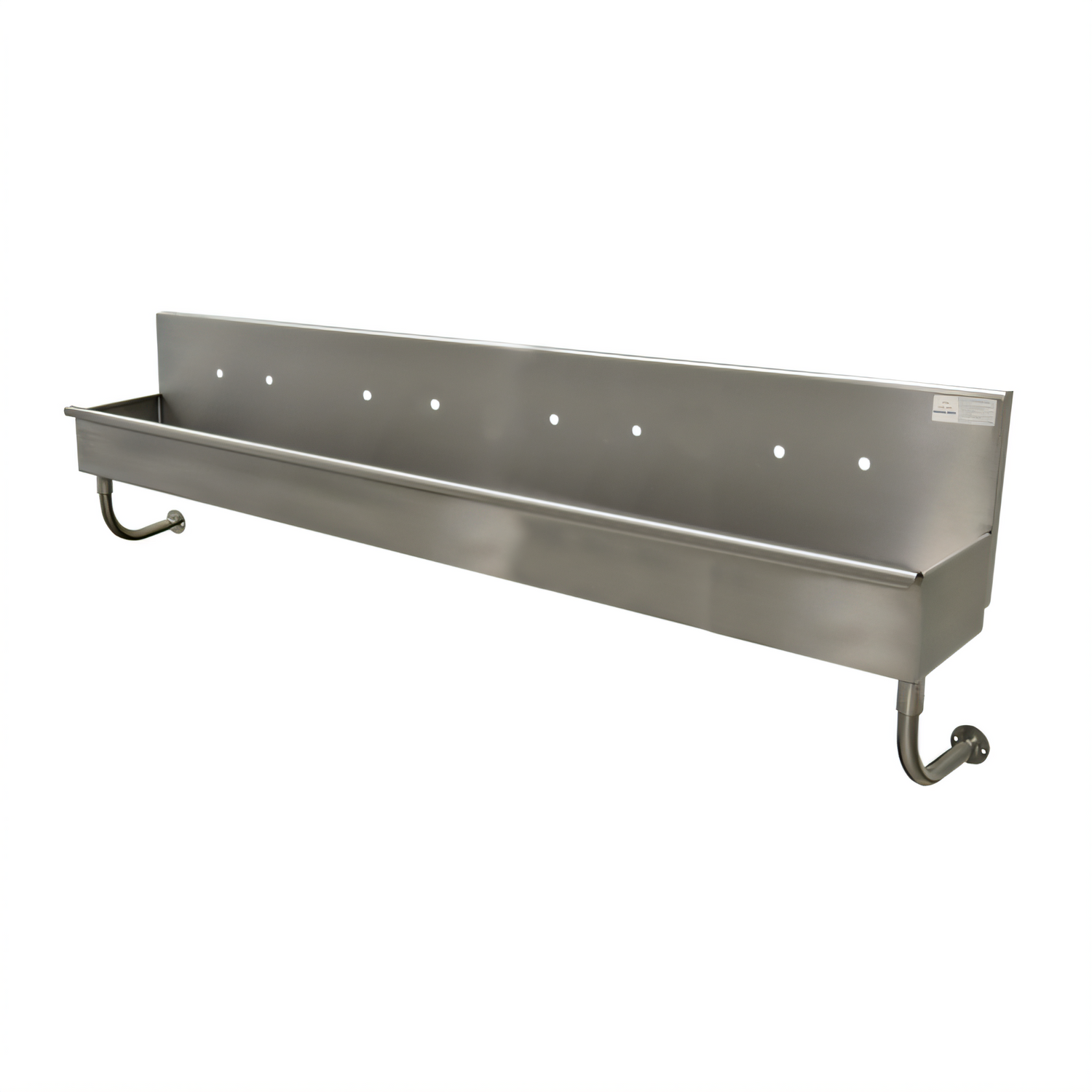

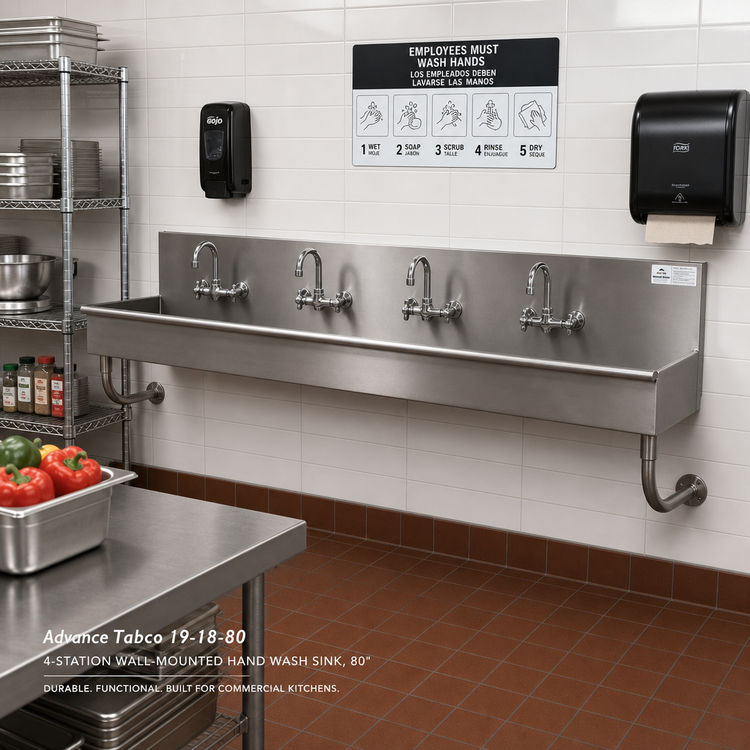

Advance Tabco 80" Wall-Mounted Multi-Station Hand Sink – 4 Stations
Model 19-18-80 | Standard Series, 8" Bowl DepthEngineered for the demands of high-traffic prep areas, this 80" Advance Tabco multi-wash hand sink delivers four spacious hand-washing stations in one seamless, wall-mounted unit. Built from heavy-duty 16-gauge 304 stainless steel with sanitary square corners, it’s the reliable, easy-to-clean solution for commissaries, production kitchens, laboratories, schools, and more.
Highlights

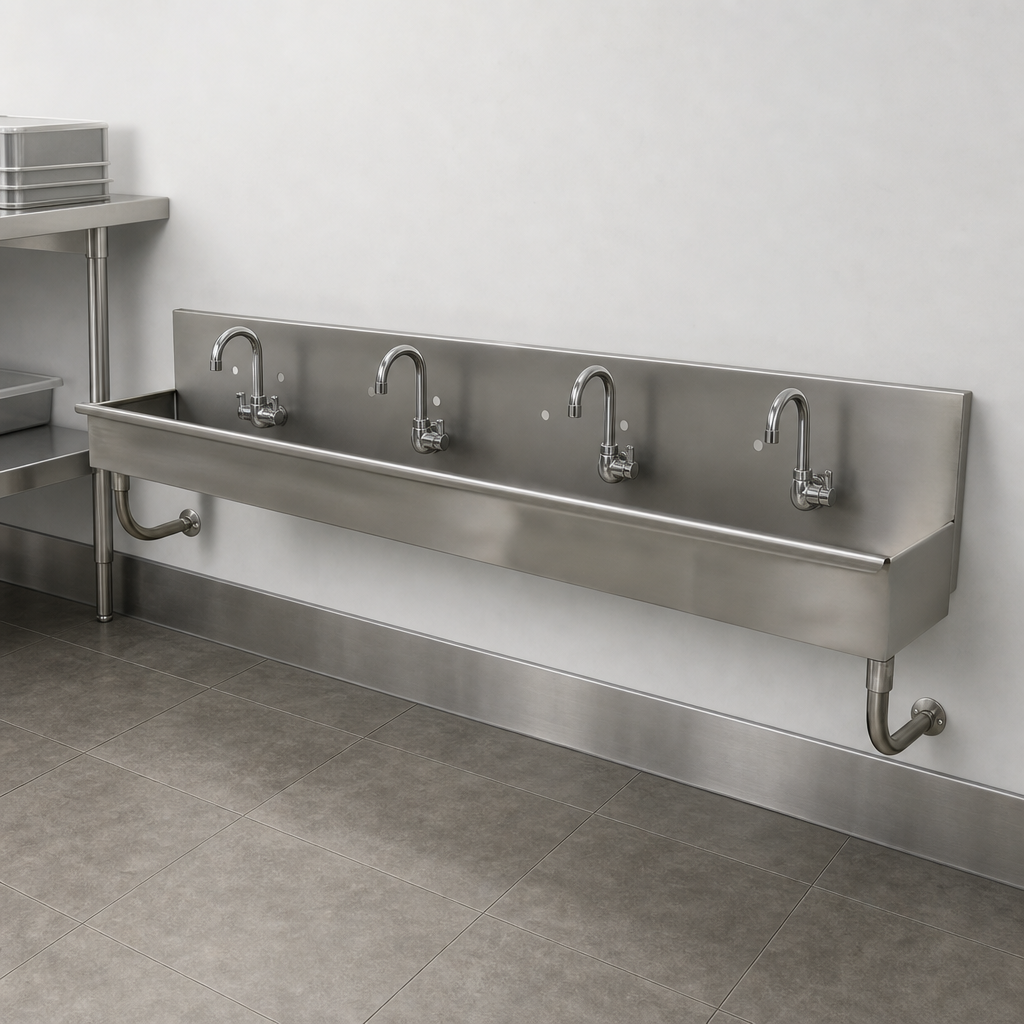

- Four (4) station design – perfect for busy back-of-house traffic flow.
- 16 ga. 304 stainless steel – resists corrosion, chemicals & daily wear.
- Large bowl: 16" front-to-back x 8" deep for comfortable hand washing.
- 8 ½" integral backsplash keeps surrounding walls dry and hygienic.
- Punched with four sets of 8" on-center faucet holes – compatible with deck or splash-mount faucets (sold separately).
- Includes one K-6 3 ½" rear basket drain with strainer.
- Wall-mounted “Z” bracket plus 1 5⁄8" tubular stainless steel supports with flanged feet for rock-solid installation.
- TIG-welded & satin-finished seams for a professional, easy-sanitize surface.
- NSF Listed and fully factory-assembled to speed up installation.
Specifications
| Overall width | 80 in. |
|---|---|
| Overall depth | 19 1⁄2 in. |
| Overall height | 30 3⁄4 in. (to rim) | 39 1⁄4 in. (to top of backsplash) |
| Bowl size (each station) | 16 in. F-B × 8 in. deep |
| Backsplash height | 8 1⁄2 in. |
| Material/thickness | 16 ga. Type 304 stainless steel |
| Mounting hardware | Stainless “Z” wall bracket & (2) tubular wall supports with flanged feet |
| Faucet holes | (4) sets, 8" on-center, 1 1⁄4" dia. |
| Drain | 3 1⁄2" rear basket drain with strainer |
| Shipping weight | Approx. 98 lb |
| Certifications | NSF |
What’s Included
- (1) 80" wall-mounted sink assembly, fully TIG-welded
- (1) Stainless steel “Z” mounting bracket
- (2) Tubular stainless steel wall supports with adjustable flanged feet
- (1) K-6 3 ½" basket drain
- Installation & operation manual
Faucets, supply lines and trap are not included. Choose manual, knee-, or electronic-operated faucets with 8" centers to suit your application.
Install in Minutes
- Mount “Z” bracket 44" above finished floor (verify local & ADA codes).
- Set sink on bracket, level, and secure tubular supports to wall.
- Connect drain and faucet supply lines; you’re ready for service.
Upgrade your wash-station capacity and compliance in one step with this rugged, space-saving Advance Tabco 19-18-80 hand sink – built to work as hard as you do.
