Advance Tabco  |  SKU: 19-18-80-F  |  UPC: 747545215376

Advance Tabco 19-18-80-F Hand Sinks

$3,136.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

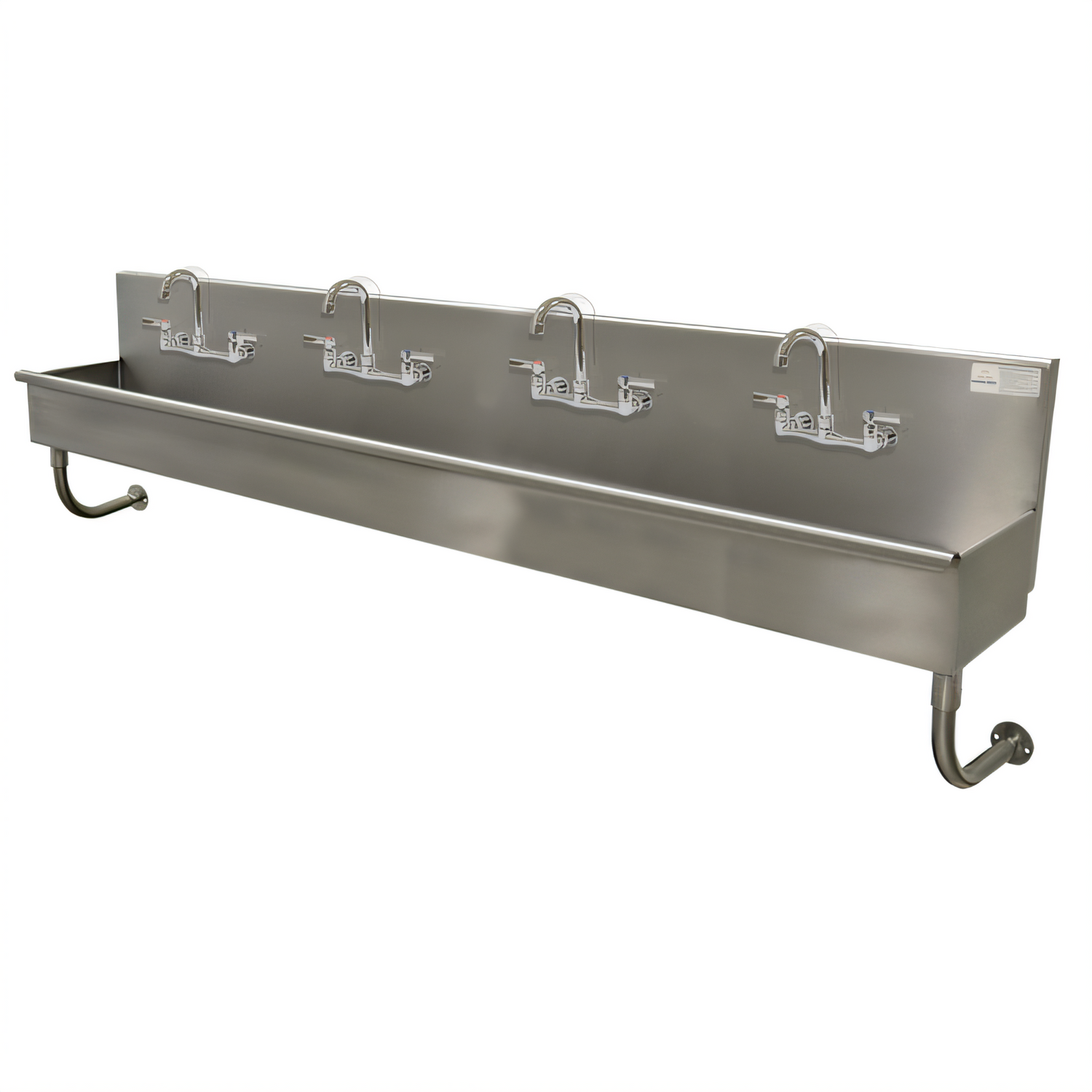

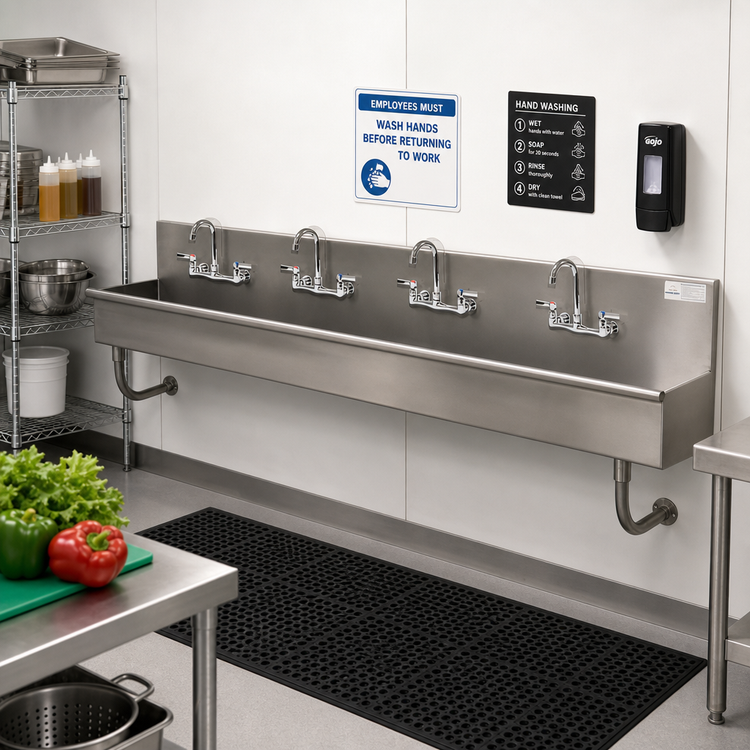

Advance Tabco 19-18-80-F | 4-Station Wall-Mounted Hand-Wash Sink

80" stainless-steel multi-wash sink with gooseneck faucets & tubular wall supports

Built for busy kitchens, classrooms, and production areas, the Advance Tabco 19-18-80-F provides four dedicated hand-wash stations in one sleek, space-saving unit. Heavy-duty 16-gauge 304 stainless steel, an 8 inch-deep bowl, and factory-installed K-159 gooseneck faucets ensure years of hygienic, worry-free performance.

Key Features

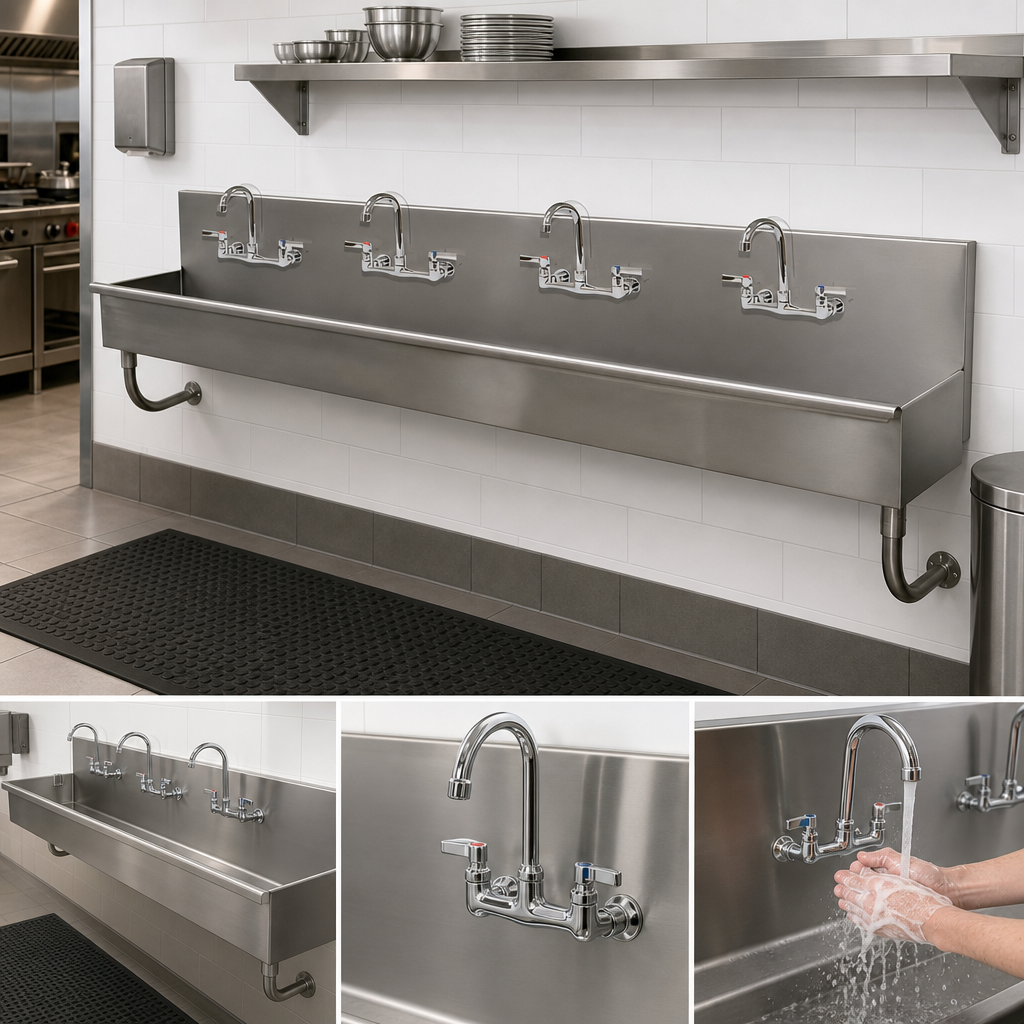

  • Four individual hand-wash stations across an 80 inch wide sink
  • (4) 8 ½" high K-159 manual gooseneck faucets included & installed
  • Standard 8" bowl depth with generous 16" front-to-back clearance
  • 8 ½" integral backsplash, pre-punched with 8" O.C. faucet holes
  • Single 3 ½" rear basket drain simplifies installation & cleaning
  • All TIG-welded 16-gauge type 304 stainless steel construction
  • 1 5/8" tubular stainless steel wall supports with adjustable cross-bracing & flanged feet
  • Satin-finished welds blend seamlessly for an easy-clean, professional look
  • Stainless steel “Z” wall-mounting bracket supplied
  • NSF compliant for foodservice & institutional use

Specifications

Model 19-18-80-F
Stations 4
Overall Dimensions (W × D × H) 80" × 19 ½" × 30 ¾"
Bowl Dimensions (each) 16" front-to-back × 8" deep
Backsplash Height 8 ½"
Drain (1) 3 ½" rear basket drain (K-6)
Faucets (4) K-159 manual 8 ½" gooseneck faucets, 8" O.C.
Material Thickness 16 gauge
Material Type 304 series stainless steel
Support Structure 1 5/8" tubular stainless steel legs & wall supports
Shipping Weight ≈ 106 lb

What’s Included

  • Advance Tabco 19-18-80-F 4-station sink
  • (4) K-159 8 ½" gooseneck faucets (installed)
  • (1) 3 ½" rear basket drain
  • Stainless steel “Z” wall bracket
  • Tubular stainless steel wall supports with flanged feet & cross-braces

Plumbing rough-ins are 8" on-center at each station. Hot & cold supplies and waste line must be provided by the installer.

Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

30.75in

Width

80.0in

Depth

19.5in

Shipping Weight

106.0lbs

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Faucet

faucet included

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, includes (4) faucets, 80"W x 19-1/2"D x 30-3/4"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (4) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports
