Description

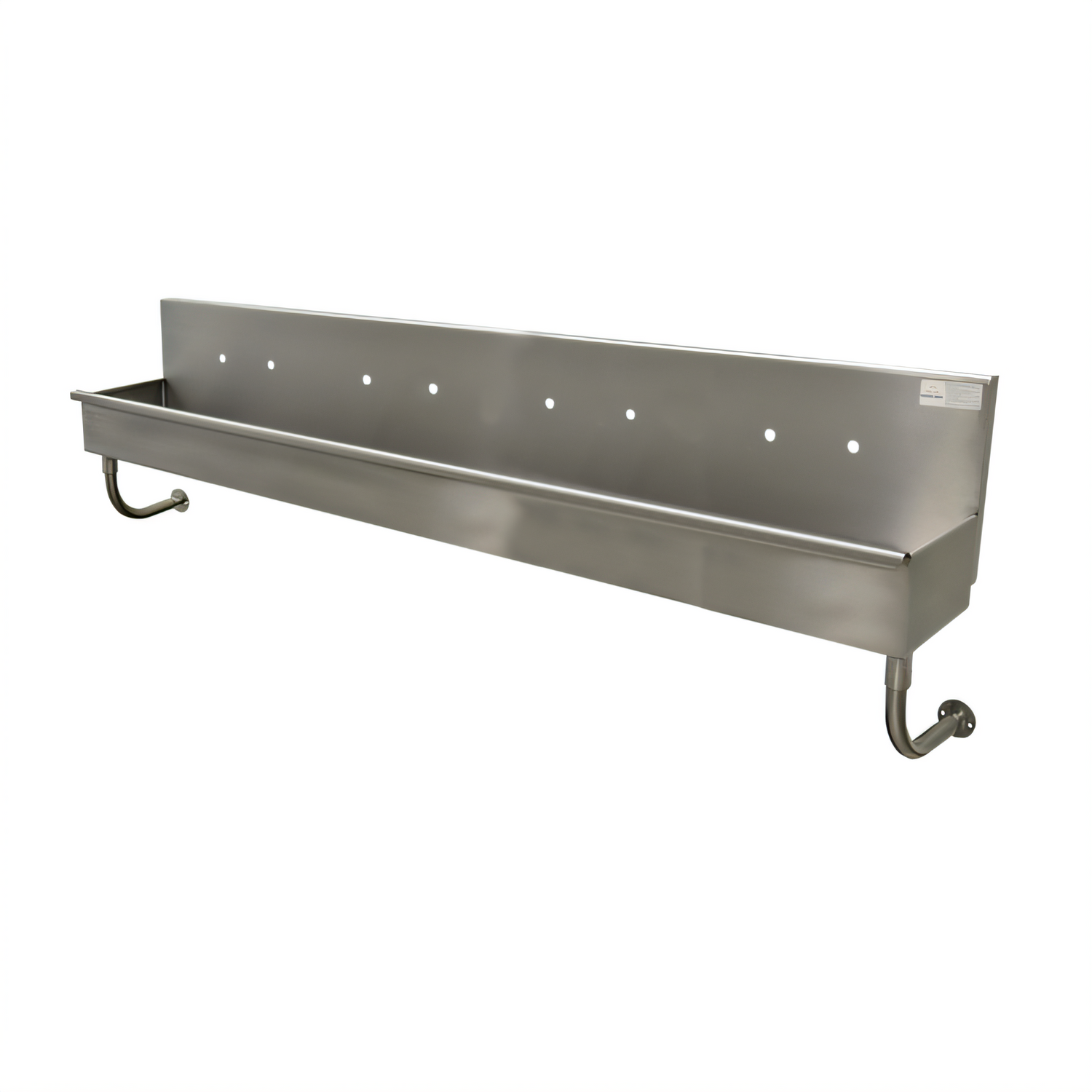

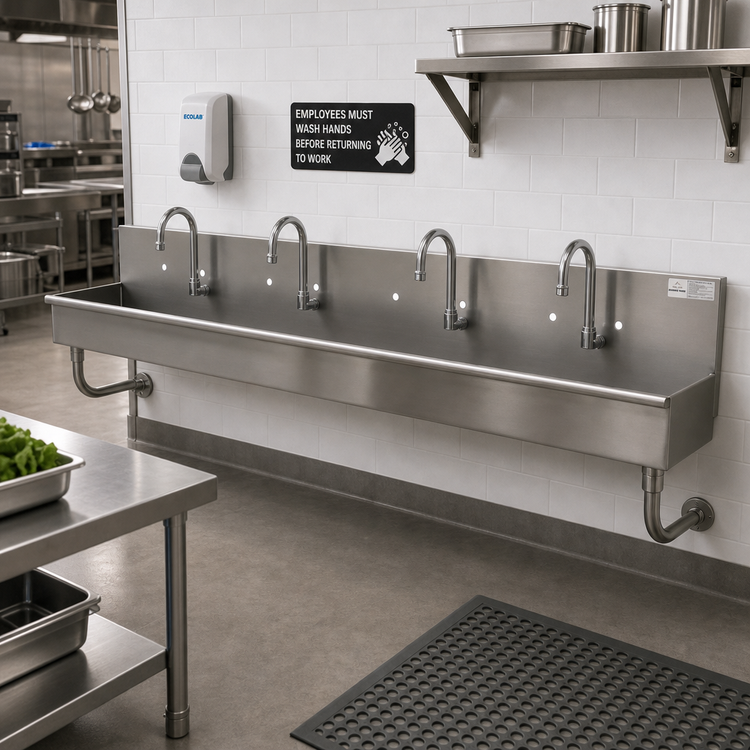

Advance Tabco 80" Wall-Mounted Multi-Station Hand Sink – ADA

Model 19-18-80-ADA • Four-User • Sink Only (No Faucets)

Give up to four team members instant access to hygienic hand-washing in one streamlined unit. Engineered from 16 gauge 304 stainless steel, this Advance Tabco trough sink withstands the daily rigors of commercial kitchens, manufacturing floors, school cafeterias and healthcare facilities while meeting ADA forward-reach requirements.

Key Performance Features

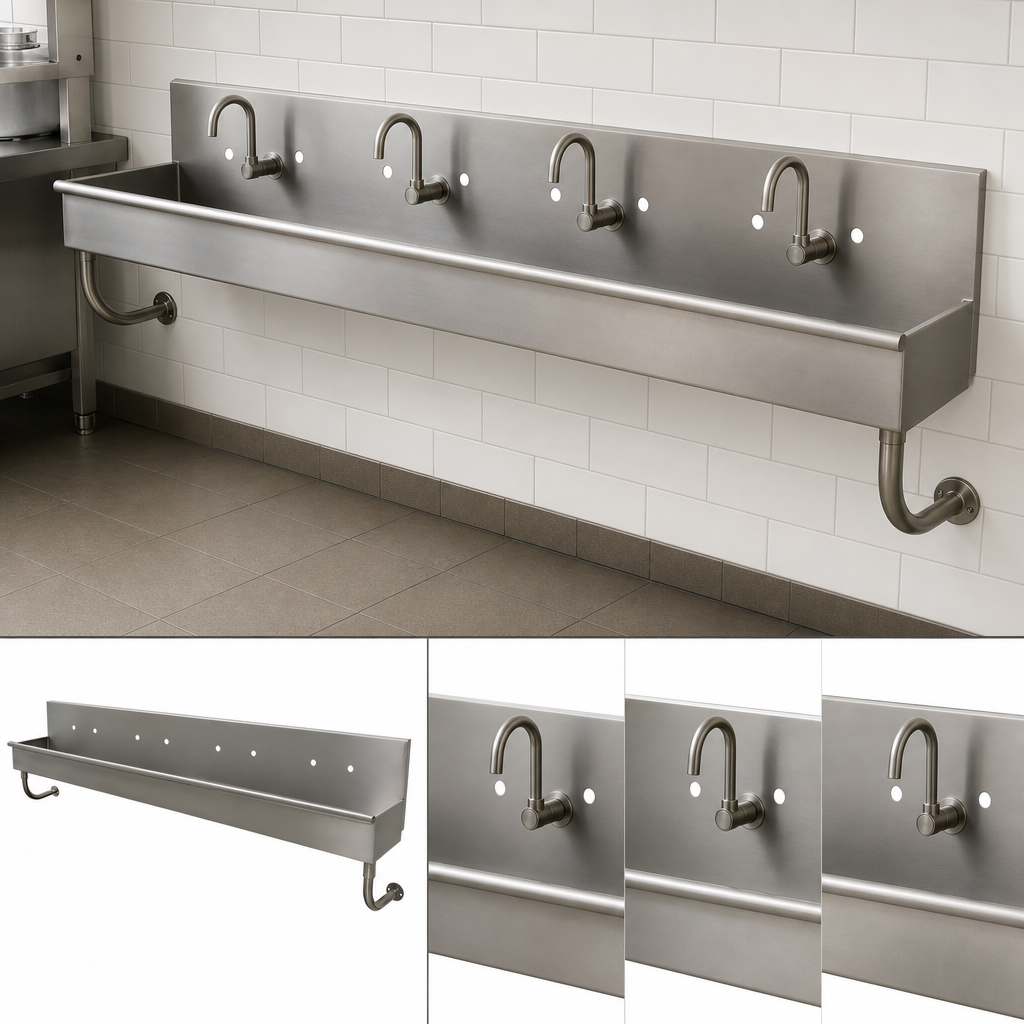

  • 80" wide basin serves four users simultaneously – perfect for high-traffic areas.
  • 5" deep, 16" front-to-back bowl is ADA compliant without sacrificing capacity.
  • Integral 8-1/2" backsplash contains splashes and protects surrounding walls.
  • Punched with four sets of 8" on-center faucet holes – ready for manual, electronic or knee-operated valves (sold separately).
  • Includes 3-1/2" rear basket drain for quick, clog-resistant drainage.

Built to Last

  • Heavy-duty 16 ga Type 304 stainless steel – fully TIG-welded & satin-polished.
  • Square-corner, one-piece design eliminates crevices for superior sanitation.
  • 1-5/8" tubular 304 stainless steel wall supports with flanged feet and adjustable cross-bracing ensure rock-solid installation.
  • Stainless steel “Z” mounting bracket supplied for fast, secure wall attachment.

Specifications

Overall Width 80" (2032 mm)
Overall Depth 19-1/2" (495 mm)
Overall Height * 25-1/2" (648 mm) to rim
Bowl Size 16" front-to-back × 5" deep
Backsplash Height 8-1/2" (216 mm)
Faucet Holes 4 sets • 8" on center
Drain Opening 3-1/2" rear basket drain (included)
Material / Gauge 16 ga Type 304 stainless steel
Compliance NSF listed • ADA compliant when mounted per code

*Height shown excludes optional faucets and valves.

Ideal Applications

  • Restaurants & commissaries
  • School & stadium concessions
  • Industrial production lines
  • Healthcare, labs & clean rooms

Listing is for sink and mounting hardware only. Faucets, knee valves, carrier bolts and plumbing connections are sold separately.

California Prop 65: Installing certain faucet components on this sink may expose you to chemicals known to the State of California to cause cancer or reproductive harm. Learn more.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

25.5in

Width

80.0in

Depth

19.5in

Shipping Weight

92.0lbs

Faucet

faucet not included

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Features

multi-station

Bowl Height (rim to drain)

5" deep

Specifications

Multiwash Hand Sink, wall mounted, 80"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (4) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant
