Advance Tabco  |  SKU: 19-18-80-ADA-F  |  UPC: 747545215420

Advance Tabco 19-18-80-ADA-F Hand Sinks

$3,419.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

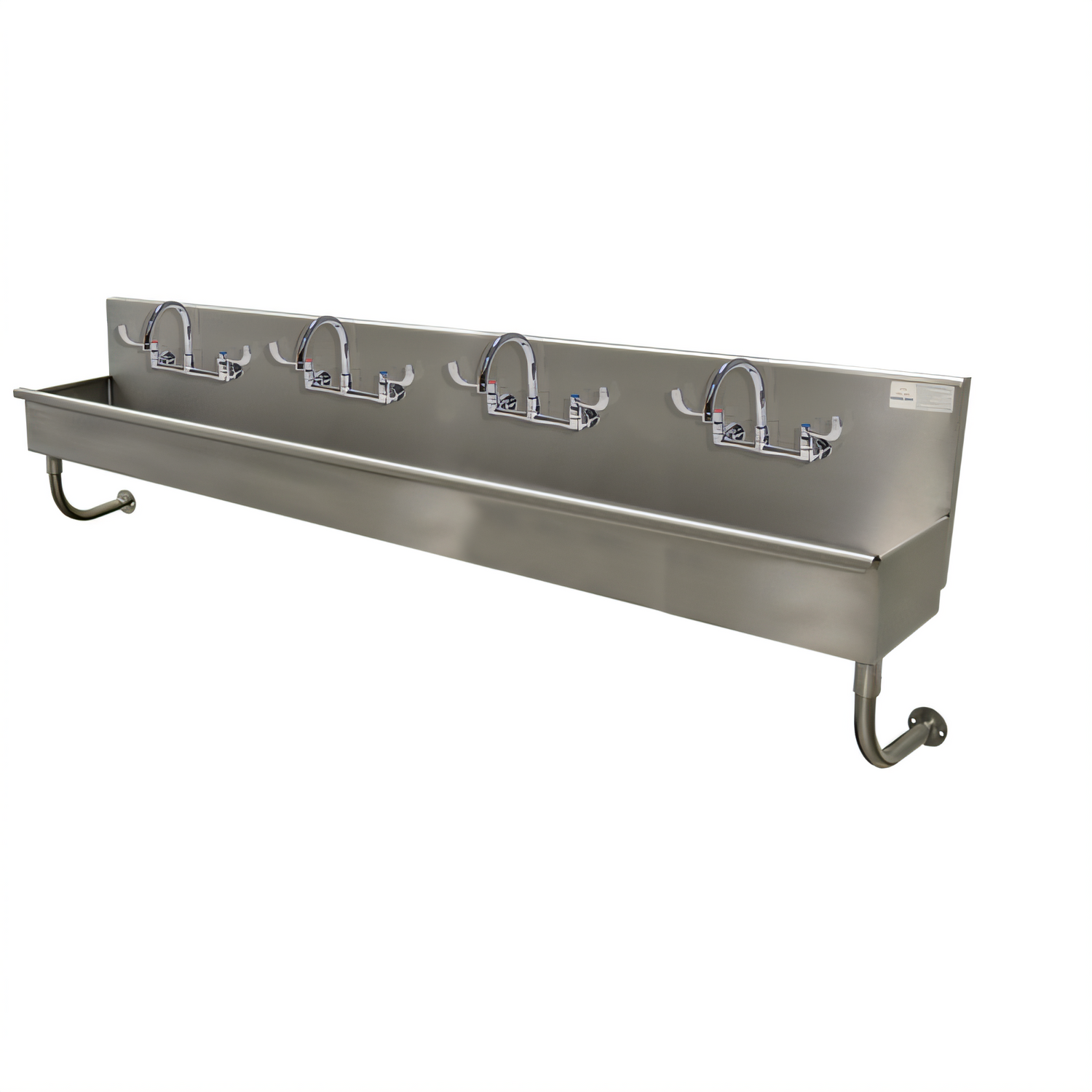

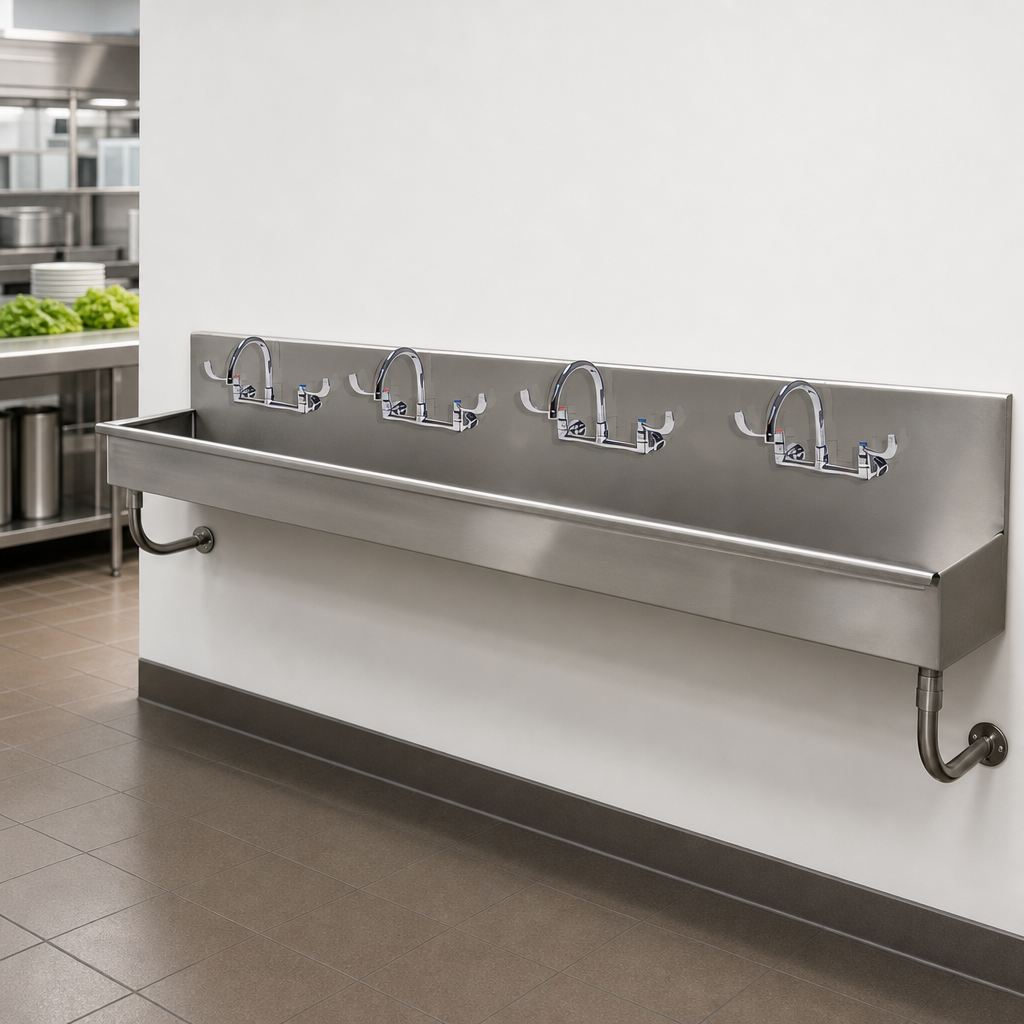

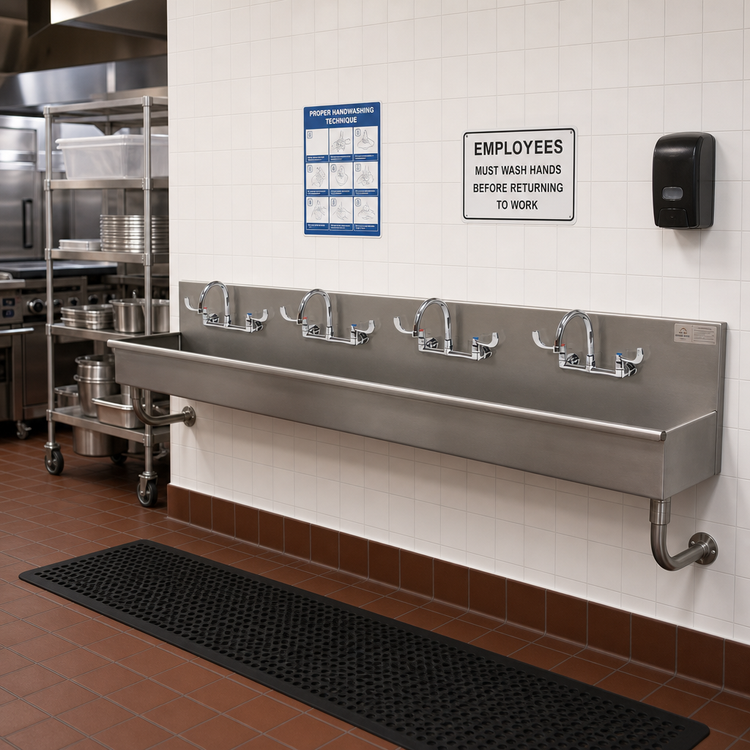

Advance Tabco 80" ADA Multi-Wash Hand Sink – 4 Stations

Model 19-18-80-ADA-F | Includes four K-161-LU wrist-blade faucets

Give guests, staff or students instant access to safe, convenient hand-washing. Designed for wall mounting and built from heavy-duty 16-gauge type 304 stainless steel, the 19-18-80-ADA-F delivers long-lasting performance, effortless sanitation and full ADA compliance in a space-saving profile.

Key Advantages

  • Four individual hand-wash stations in one 80" trough-style sink
  • ADA 5" bowl depth and ergonomic wrist-blade handles for universal accessibility
  • Integrated 8 ½" backsplash keeps walls dry and is pre-punched 8" O.C. for each faucet
  • Includes (4) NSF lead-free K-161-LU 8 ½" gooseneck faucets
  • K-6 3 ½" rear basket drain simplifies plumbing and prevents clogs
  • Fully TIG-welded construction with satin-smooth finish for fast wipe-downs
  • 1 5⁄8" tubular 304 stainless steel wall supports with flanged feet add strength and stability
  • Supplied stainless-steel “Z” mounting bracket for quick, secure wall installation

Typical Applications

  • K-12 and university corridors
  • Healthcare & laboratory hand-wash zones
  • Food-prep areas, commissaries & cafeterias
  • Industrial plants and employee locker rooms

Specifications

Overall width 80 in. (2032 mm)
Overall depth 19 ½ in. (495 mm)
Overall height 25 ½ in. (648 mm)
Bowl front-to-back 16 in. (406 mm)
Bowl depth 5 in. (127 mm) – ADA
Backsplash height 8 ½ in. (216 mm)
Stations / faucets 4 stations, 4 gooseneck faucets with wrist blades
Faucet holes (4) sets, 8" on center
Drain K-6 3 ½" rear basket drain
Material 16-gauge type 304 stainless steel
Supports 1 5⁄8" tubular 304 stainless steel legs, wall-mounted
Shipping weight Approx. 106 lb. (48 kg)
Compliance ADA, NSF, lead-free (NSF 61/9)

Need a different length or faucet configuration? Ask about additional Advance Tabco multi-station models ranging from 23" to 120".

California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

25.5in

Width

80.0in

Depth

19.5in

Shipping Weight

100.0lbs

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

5" deep

Faucet

faucet included

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, includes (4) faucets with wrist blades, 80"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (4) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant
