Advance Tabco 19-18-60EFADA Hand Sinks
$4,499.00
Unit price
/
Unavailable
Description

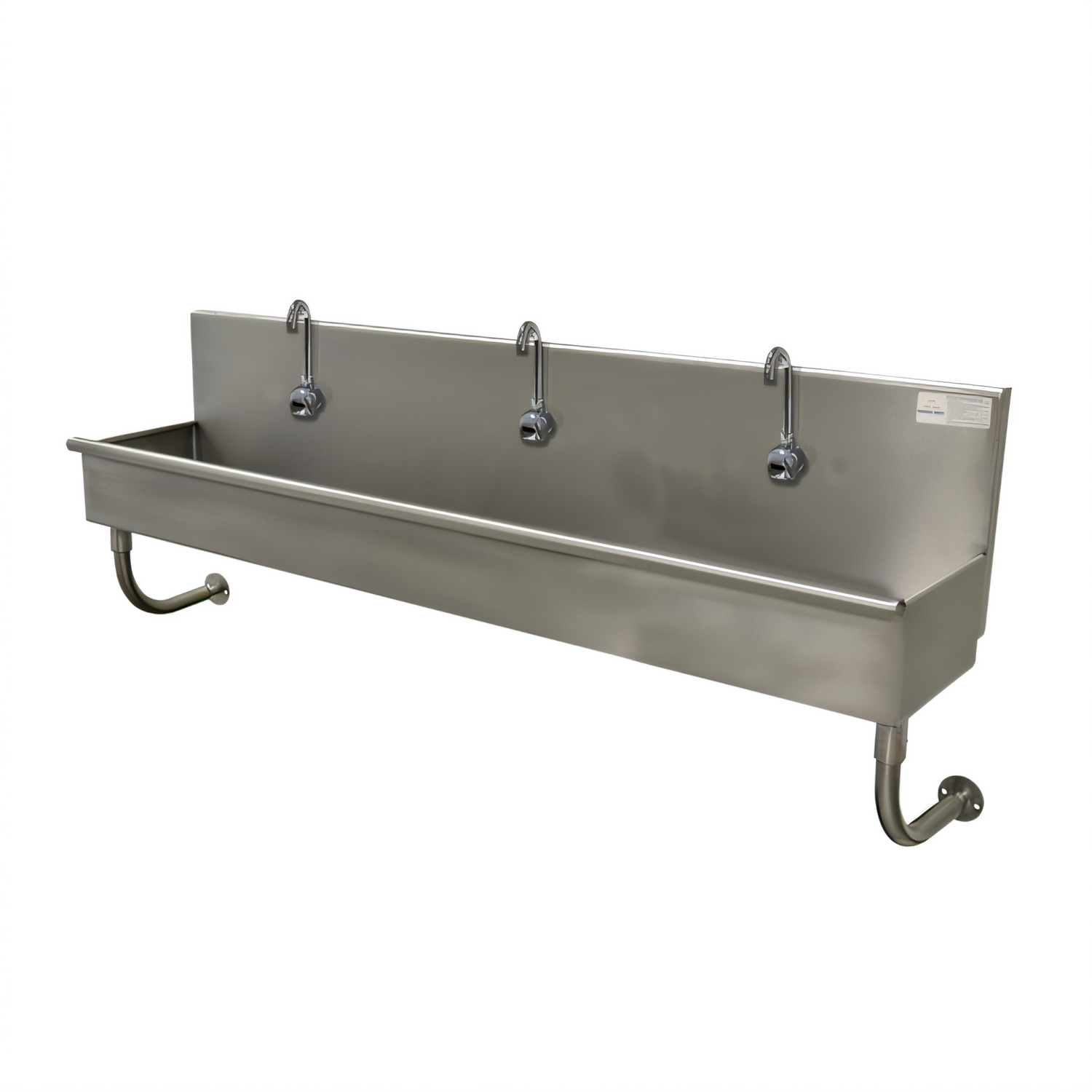

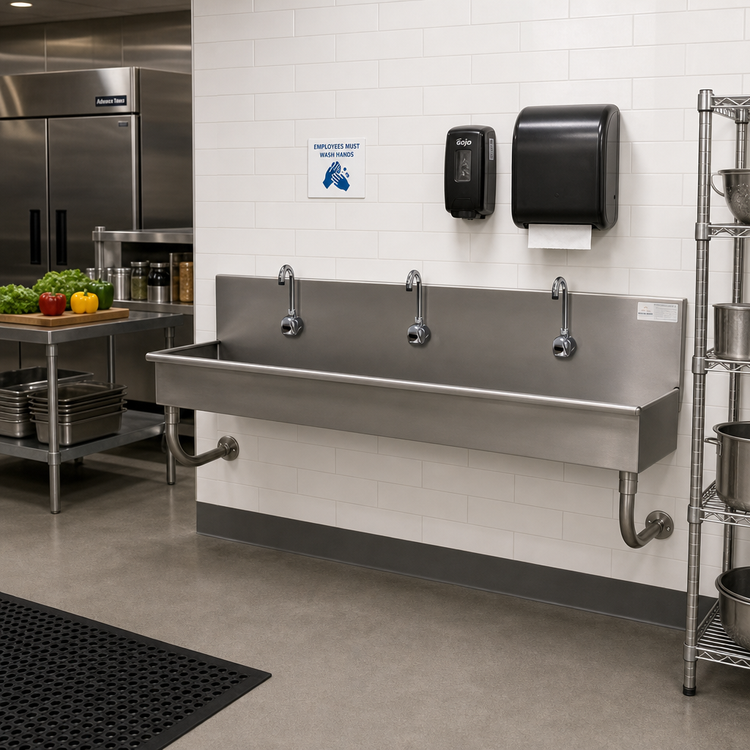

Advance Tabco 60" ADA Multi-Wash Hand Sink – 3 Station, Electronic
Model 19-18-60EFADABuilt for high-traffic food-service, healthcare and industrial hand-washing areas, this wall-mounted Advance Tabco multi-station sink delivers touch-free hygiene, rugged 16-gauge 304 stainless durability and full ADA knee-space clearance in one easy-to-install package.
Key Features
- Three (3) K-175 splash-mount electronic sensor faucets – 2.2 GPM swing spouts with plug-in control box (UL listed) for reliable hands-free operation

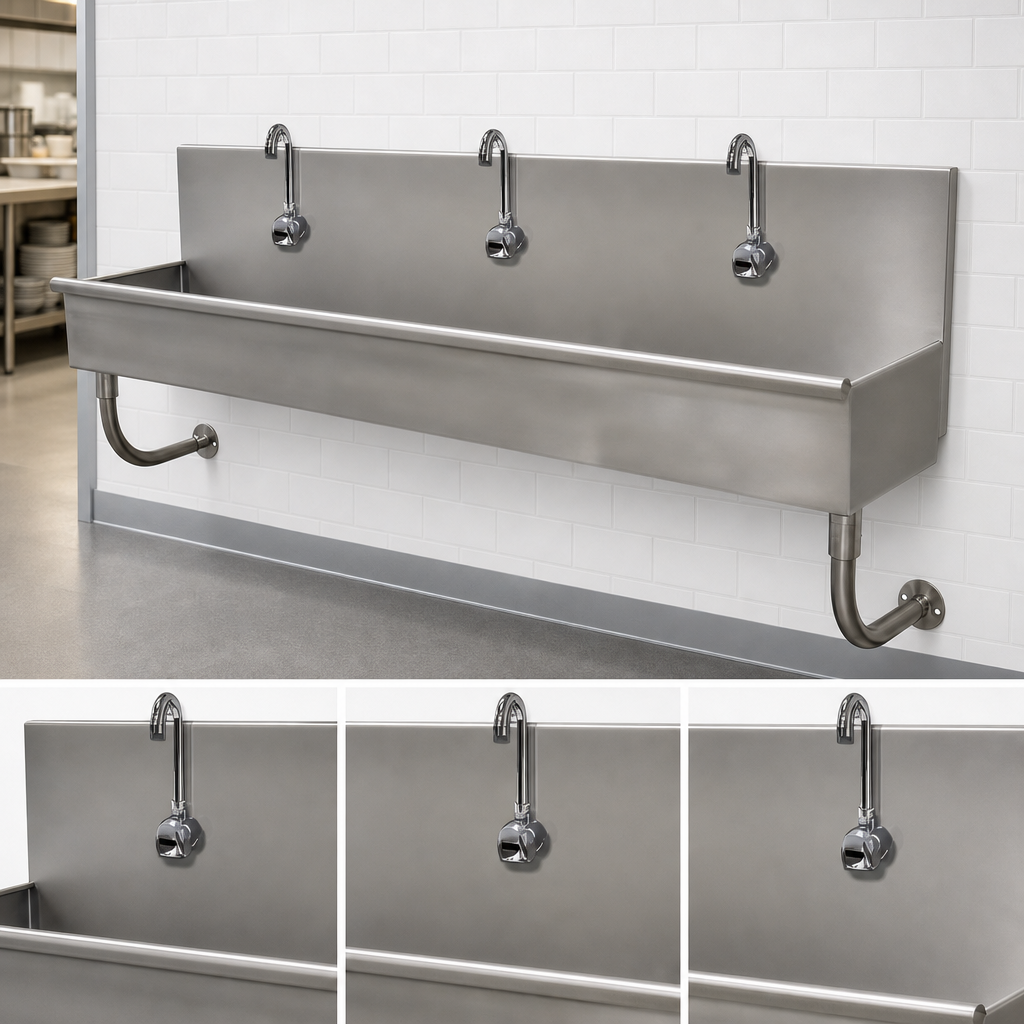

- 60" wide one-piece sink body – serves up to three users simultaneously
- ADA compliant 5" deep bowl with 16" front-to-back working area for comfortable wheelchair access
- 8 1/2" high integral backsplash contains splashes and hides plumbing
- 16-gauge type 304 stainless steel, TIG-welded and blended to a sanitary satin finish
- 3 1/2" K-6 rear basket drain included
- Tubular 1 5⁄8" stainless wall supports & stainless “Z” brackets – provide rock-solid mounting with full open space below for storage or easy floor cleaning
- Single hole punched at each station – faucets factory installed & tested
- NSF listed for food-service applications
At-a-Glance Specifications
| Overall width | 60" (1524 mm) |
|---|---|
| Overall depth | 19 1⁄2" (495 mm) |
| Overall height | 25 1⁄2" (648 mm) to top of backsplash |
| Bowl size (each station) | 16" front-to-back x 5" deep |
| Number of stations | 3 |
| Faucets supplied | Three K-175 electronic sensor faucets (2.2 GPM, AC-powered) |
| Drain size / type | 3 1⁄2" K-6 rear basket drain (included) |
| Material & gauge | 16 ga. type 304 stainless steel |
| Mounting | Wall mount with stainless “Z” brackets & tubular supports (hardware included) |
| Compliance | ADA, NSF, Lead-Free (NSF/ANSI 61/9) |
| Shipping weight | Approx. 80 lb. (36 kg) |
What’s in the Box
- Advance Tabco 19-18-60EFADA sink body
- (3) K-175 sensor faucets with control box & power adapter
- (1) 3 1⁄2" rear basket drain assembly
- (2) Stainless “Z” wall brackets
- (2) Tubular stainless support legs with adjustable wall flanges
- Installation & operation manual
Installation hardware for wall brackets, supply lines and p-trap are field-supplied to suit local codes.
California Prop 65 Notice: This product can expose you to chemicals including lead, which are known
to the State of California to cause cancer and birth defects or other reproductive harm.
For more information, visit the
official Prop 65 website.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
ADA Compliant
Height
25.5in
Width
60.0in
Depth
19.5in
Shipping Weight
80.0lbs
Features
multi-station
Bowl Depth (front to back)
15" - 19" front-to-back
Bowl Width (left to right)
20" & up
Faucet
faucet included
Bowl Height (rim to drain)
5" deep
Style
wall mounted
Specifications
Multiwash Hand Sink, wall mounted, with (3) electronic faucets, 60"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (3) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant
