Advance Tabco  |  SKU: 19-18-60EF  |  UPC: 747545212269

Advance Tabco 19-18-60EF Hand Sinks

$4,528.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Troubleshooting manual Parts list Installation manual 2 Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

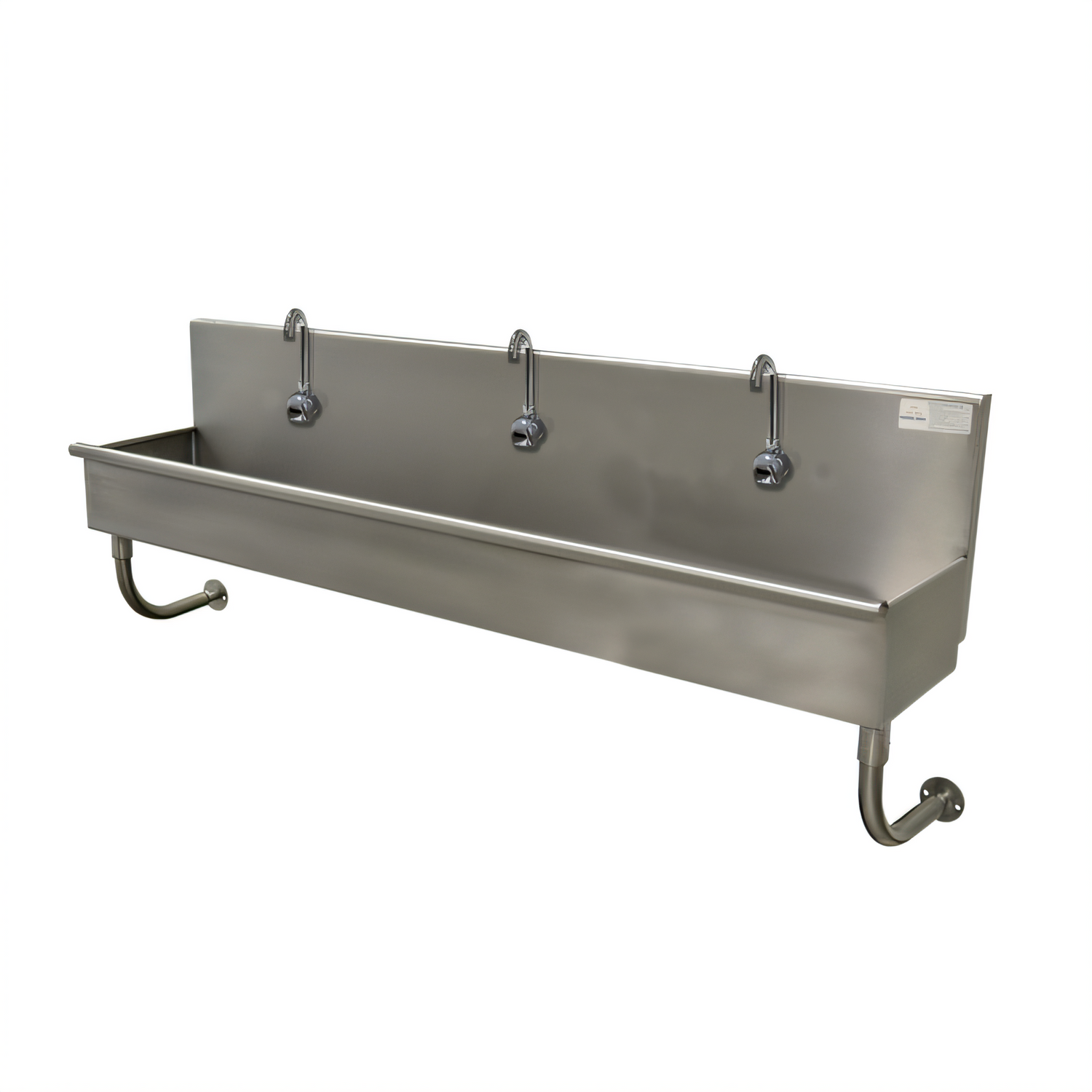

Advance Tabco 19-18-60EF Multi-Wash Hand Sink – 3-Station, Electronic

Heavy-duty wall-mounted hand-washing center, built for the busiest workspaces

Speed up sanitation without giving up floor space. The Advance Tabco 19-18-60EF combines rugged 16-gauge stainless steel with touch-free electronic faucets, creating a reliable three-user sink that conquers the rush of commercial kitchens, laboratories and production lines.

Key Advantages

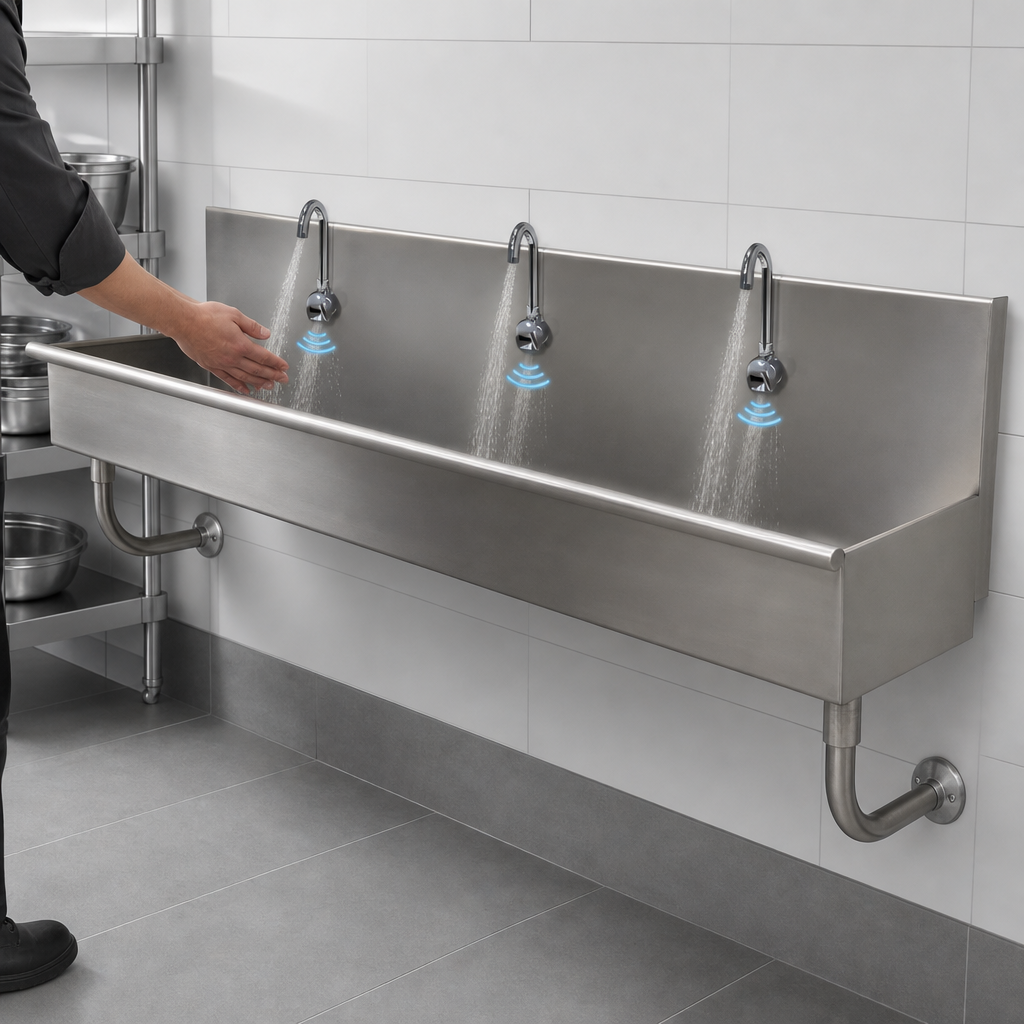

  • Hands-free hygiene – (3) K-175 electronic sensor faucets limit cross-contamination.
  • Full 60 inch width provides simultaneous access for three users.
  • 8-½ inch high backsplash protects walls and simplifies cleanup.
  • Deep square-corner bowl (16 in. front-to-back × 8 in. deep) contains splashes and large wares.
  • All TIG-welded 16-gauge Type 304 stainless steel with satin finish – corrosion resistant & easy to wipe.
  • Tubular stainless supports & “Z” wall brackets keep the floor area completely clear.
  • Pre-punched single-hole pattern plus included 3-½ in. rear basket drain for fast installation.

What’s Included

  • Wall-mounted sink body with square corners
  • (3) Advance Tabco K-175 splash-mounted electronic faucets (2.2 GPM aerators)
  • (1) 3-½ in. K-6 rear basket drain assembly
  • (2) Tubular stainless steel wall support legs with adjustable flanges
  • (2) Stainless steel “Z” mounting brackets
  • UL-listed 100-240 VAC power adapter & control box for faucets

Technical Specifications

Model 19-18-60EF
Number of Stations 3 (electronic, hands-free)
Overall Dimensions 60" W × 19-1/2" D × 28-1/2" H
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8-1/2"
Material / Gauge 16-ga Type 304 stainless steel (sink & supports)
Drain 3-1/2" rear basket drain (included)
Mounting Wall mount with tubular supports & “Z” brackets (hardware by others)
Finish Satin-polished with blended TIG-welded seams
Compliance NSF; Lead-Free (NSF 61/9); CA Prop 65 notice for faucets

Perfect For

  • High-volume commercial kitchens & commissaries
  • Food processing or packaging plants
  • Laboratories & pharmaceutical wash areas
  • Manufacturing & industrial facilities

Installation hardware, supply lines and trap are field-supplied. Always verify local plumbing codes before installation.

Prop 65 Notice: Faucets supplied with this sink may expose you to chemicals, including lead, known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

28.5in

Width

60.0in

Depth

19.5in

Shipping Weight

84.0lbs

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, with (3) electronic faucets, 60"W x 19-1/2"D x 28-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports
