Advance Tabco  |  SKU: 19-18-40EF  |  UPC: 747545212238

Advance Tabco 19-18-40EF Hand Sinks

$3,419.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Troubleshooting manual Parts list Installation manual 2 Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

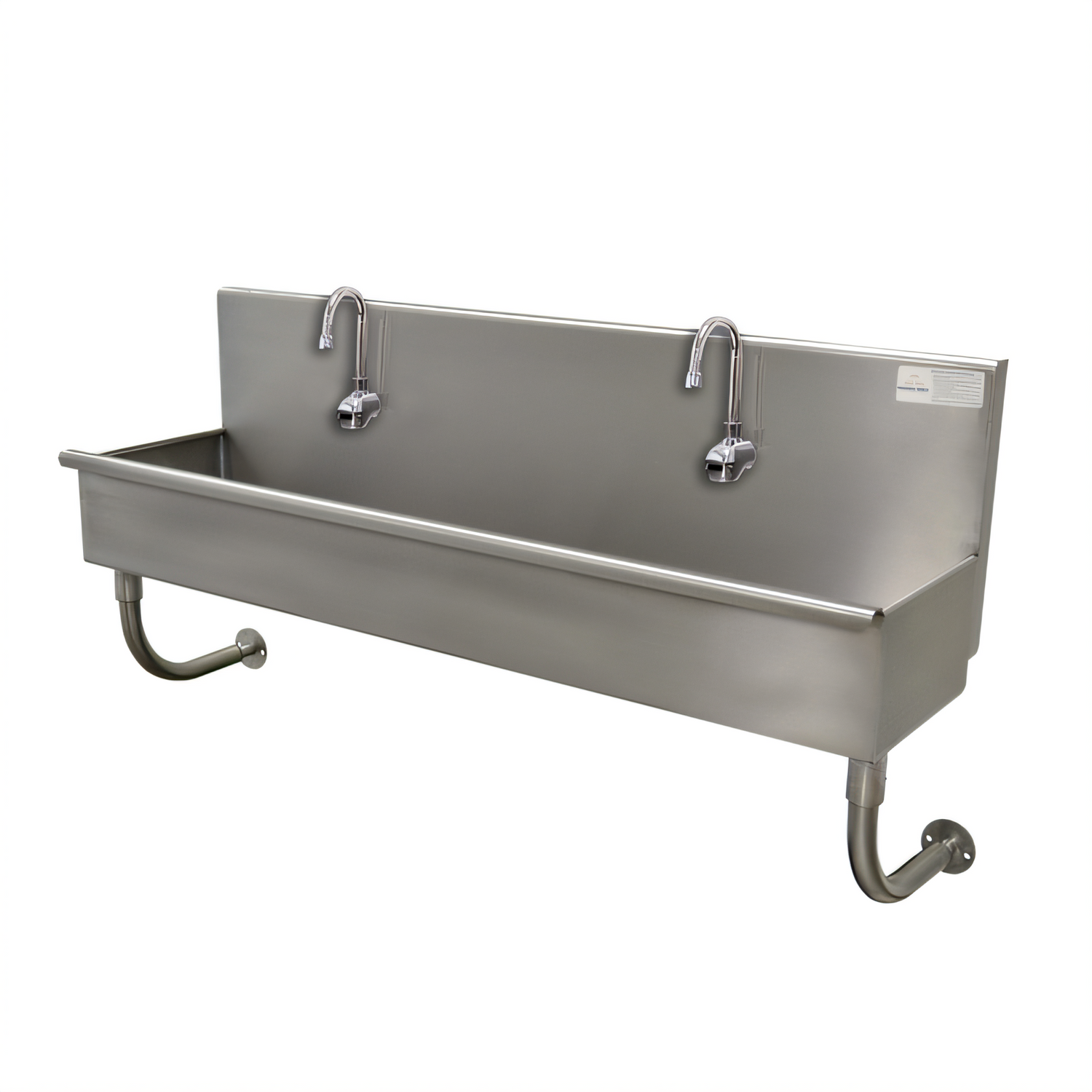

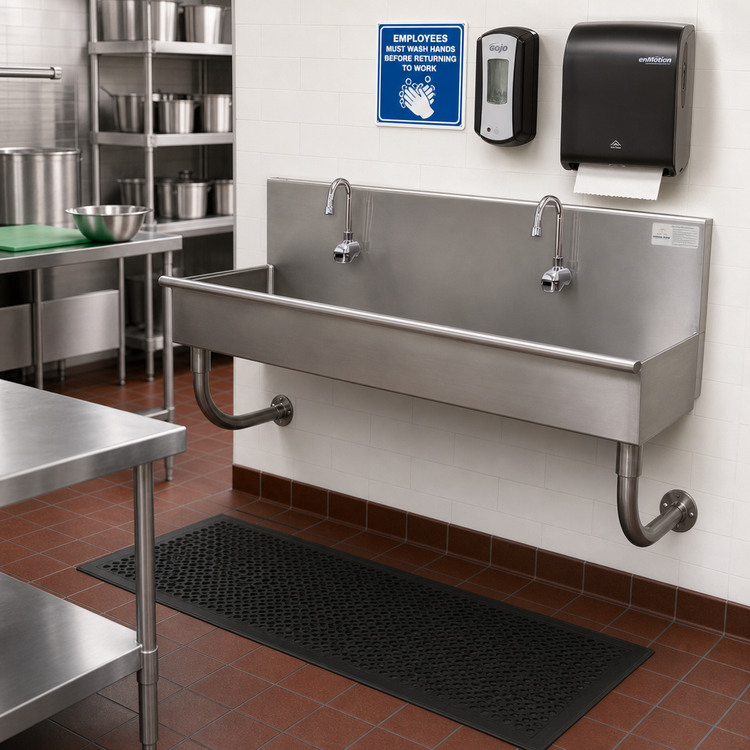

Advance Tabco 19-18-40EF Two-Station Wall-Mounted Hand Sink

40 ″ W • 16 ga 304 Stainless • Touch-Free Electronic Faucets

Give staff fast, hygienic hand-washing without sacrificing floor space. The 19-18-40EF combines two NSF-listed sensor faucets with a rugged, easy-to-clean stainless sink that mounts securely to the wall and leaves the area beneath completely open for effortless sanitation.

Key Features
  • Two complete hand-wash stations in a compact 40 ″ footprint.

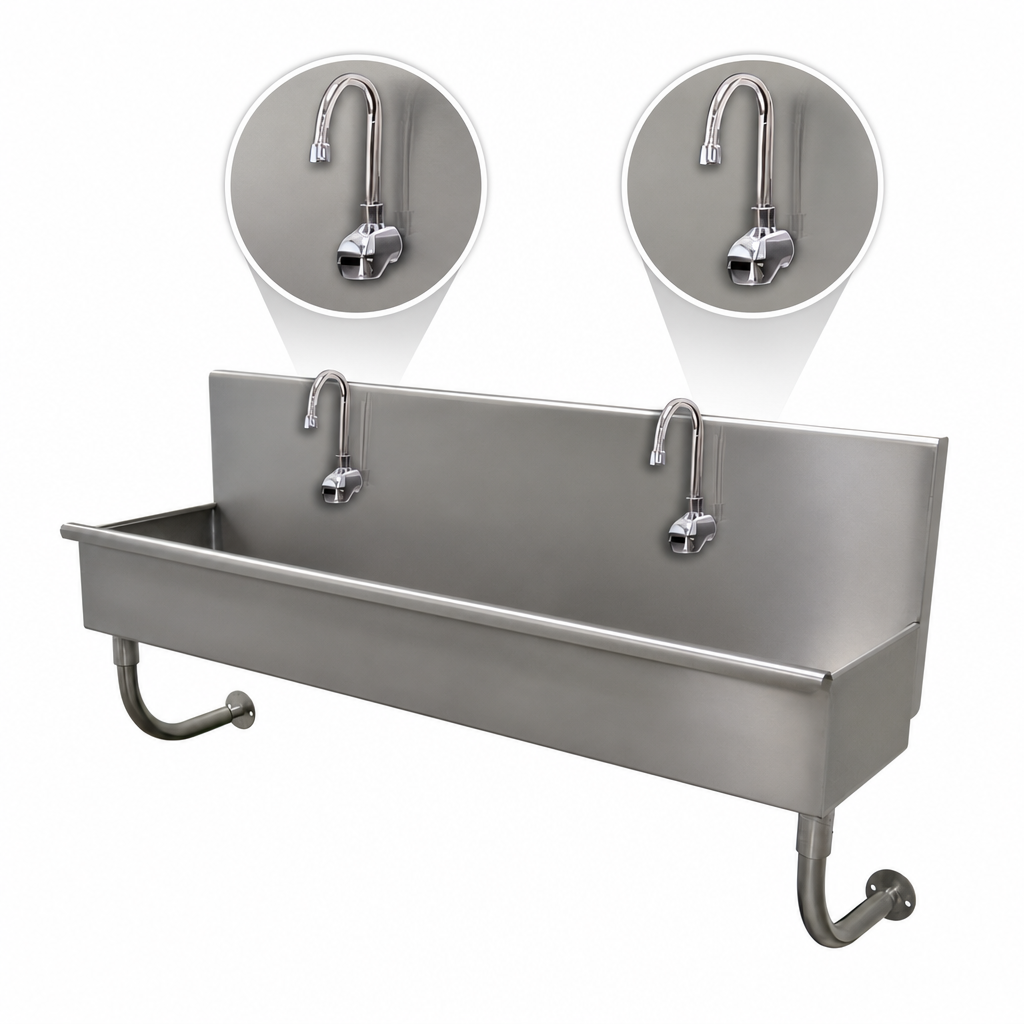

  • (2) K-175 electronic splash-mounted faucets – touch-free operation reduces cross-contamination and water waste.
  • 16 ga type 304 stainless steel sink body with satin finish resists corrosion and harsh cleaners.
  • 8 ½ ″ integral backsplash protects surrounding walls and contains splashes.
  • Sink bowl: 16 ″ front-to-back x 8 ″ deep – plenty of room for thorough scrubbing.
  • Pre-punched with (2) single faucet holes – no on-site drilling required.
  • (1) 3 ½ ″ K-6 rear basket drain included for quick installation.
  • 1 5⁄8 ″ Ø tubular 304 stainless steel wall supports provide full floor clearance and stable mounting.
  • All TIG-welded construction; welds blended for a seamless look.
  • NSF listed and conforms to NSF/ANSI 61 & 9 lead-free requirements.
Technical Specifications
Manufacturer Advance Tabco
Model 19-18-40EF
Number of Stations 2
Overall Dimensions 40 ″ W × 19 ½ ″ D × 28 ½ ″ H
Bowl Dimensions 16 ″ front-to-back × 8 ″ deep
Backsplash Height 8 ½ ″
Material Thickness 16 ga (1.5 mm) 304 stainless steel
Faucets (2) K-175 electronic, 2.2 GPM (optional 0.5 GPM low-flow aerator)
Drain (1) 3 ½ ″ rear basket drain (K-6)
Mounting Hardware Stainless “Z” wall brackets & tubular supports (included)
Certifications NSF, Lead-Free, Prop 65 compliant
Why a Multi-Station Sink?
  • Speeds up employee hand-washing during peak periods.
  • Saves wall and floor space versus individual sinks.
  • Single drain and supply lines simplify plumbing rough-in.
  • Open base design eliminates hard-to-clean floor contact points.
California Prop 65 Notice: This product may expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Need a different length or faucet style? Explore the full Advance Tabco 19-18 series or contact us for a custom Smart Fabrication™ quote.

Features & Specs

Manufacturer

Advance Tabco

Height

28.5in

Width

40.0in

Depth

19.5in

Shipping Weight

65.0lbs

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Bowl Height (rim to drain)

8" deep

Specifications

Multiwash Hand Sink, wall mounted, with (2) electronic faucets, 40"W x 19-1/2"D x 28-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports
