Advance Tabco  |  SKU: 19-18-40-F  |  UPC: 747545215345

Advance Tabco 19-18-40-F Hand Sinks

$2,211.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

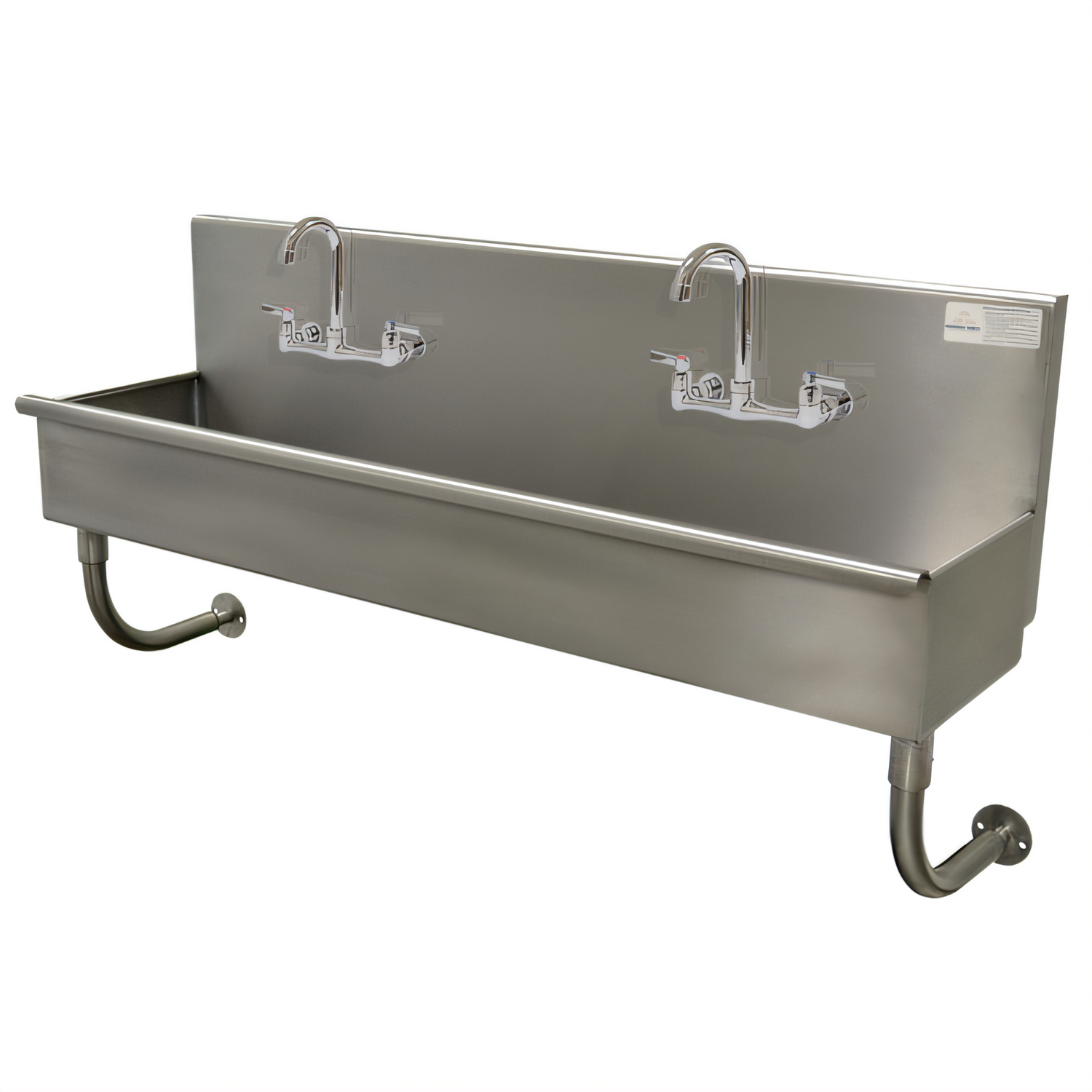

Advance Tabco 19-18-40-F Multi-Wash Wall-Mounted Hand Sink

40" two-station model – ships complete with (2) K-159 gooseneck faucets

Designed for high-traffic wash-up areas, the 19-18-40-F provides two full-size hand-washing stations in a single, space-saving unit. Heavy-duty type 304 stainless steel, TIG-welded seams, and rock-solid tubular wall supports ensure years of worry-free, sanitary service in the most demanding commercial environments.

Key features
  • Two spacious 16" front-to-back x 8" deep bowls for comfortable, splash-free washing
  • 8-1/2" high backsplash with pre-punched 8" O.C. holes – protects walls and simplifies installation
  • Includes (2) manual K-159 8-1/2" swivel gooseneck faucets – NSF 61/9 lead-free compliant
  • 3-1/2" rear basket drain (K-6) keeps solids out of your plumbing
  • Tubular 1-5/8" stainless steel wall supports with rear “Z” mounting bracket and adjustable cross-bracing
  • All-TIG welded 16-gauge type 304 stainless steel with easy-clean satin finish
  • Wall-mount design frees floor space and allows unobstructed access for cleaning underneath
At-a-glance specifications
Model 19-18-40-F
Stations 2
Overall width 40 in.
Overall depth 19-1/2 in.
Overall height 30-3/4 in. (to top of backsplash)
Bowl size (each) 16 in. F/B × 8 in. deep
Backsplash height 8-1/2 in.
Faucet centers 8 in. on center, (2) sets
Included faucets (2) K-159 manual gooseneck
Drain (1) 3-1/2 in. rear basket drain
Material 16-gauge type 304 stainless steel
Mounting hardware Stainless “Z” bracket & tubular supports
Finish Satin polish
NSF listed Yes
Perfect for
  • Food-service prep rooms & production kitchens
  • Commissaries, bakeries & butcher shops
  • Laboratories and healthcare facilities
  • School, stadium & amusement-park concession areas
  • Industrial and manufacturing wash-up stations

Need a different length or ADA-compliant bowl depth? Contact Advance Tabco Smart Fabrication™ for custom solutions.

Prop 65 Notice: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

30.75in

Width

40.0in

Depth

19.5in

Shipping Weight

69.0lbs

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, includes (2) faucets, 40"W x 19-1/2"D x 30-3/4"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports
