Advance Tabco  |  SKU: 19-18-40-ADA  |  UPC: 747545212436

Advance Tabco 19-18-40-ADA Hand Sinks

$1,862.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

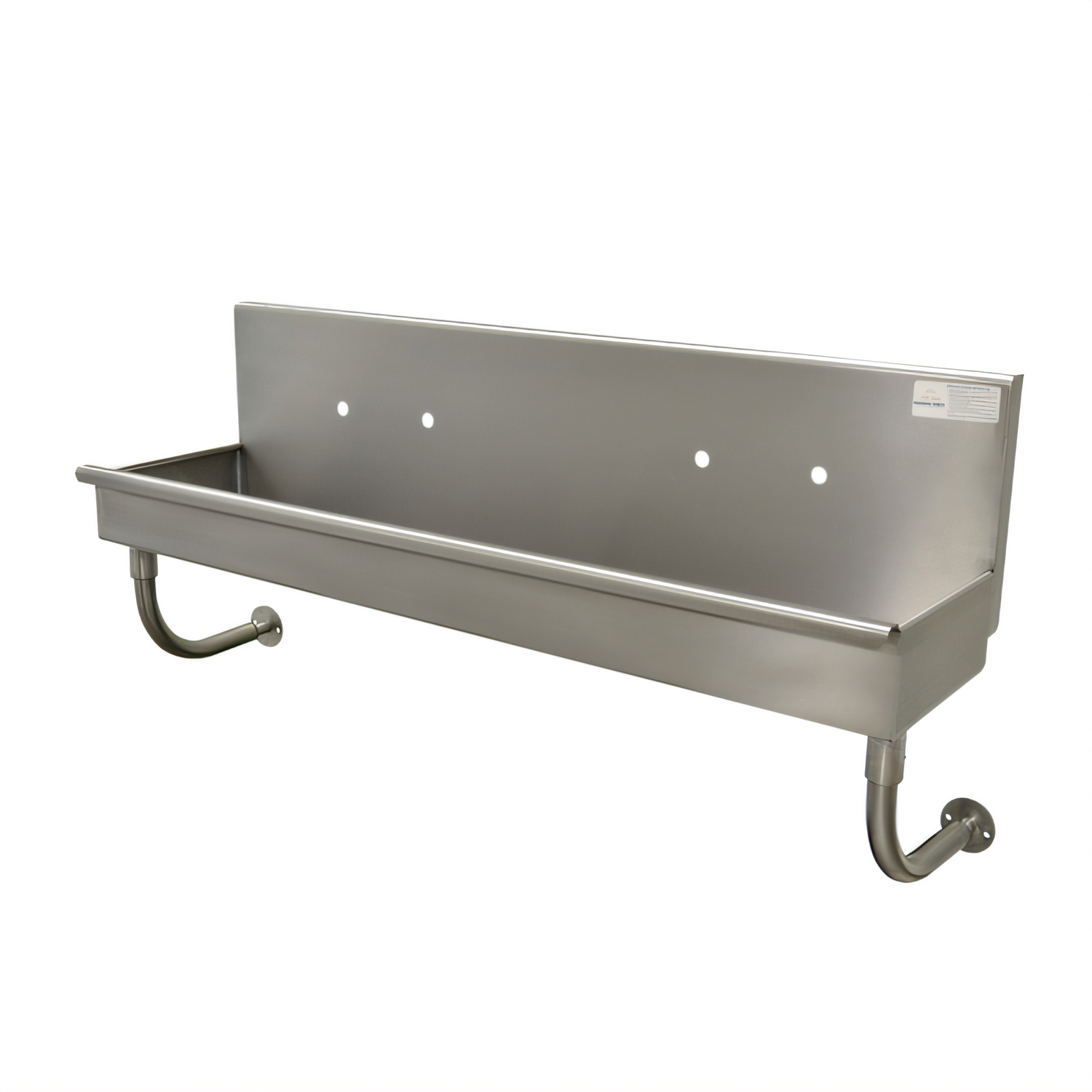

Advance Tabco 40" ADA Multi-Station Wall Mounted Hand Sink

Model 19-18-40-ADA • Two-Station • Faucet-Ready

Give customers and staff fast, code-compliant access to hand-washing with this rugged two-station Advance Tabco Multi-Wash sink. Built from heavy-duty 16 ga. type 304 stainless, it withstands demanding food-service, healthcare and industrial environments while the 5" deep bowl and open knee space keep you ADA compliant.

Key Advantages

  • ADA compliant 5" deep bowl allows wheelchair access without sacrificing capacity.
  • 40" wide sink body provides two simultaneous hand-wash stations.
  • TIG-welded 16 ga. 304 stainless steel—corrosion-resistant, sanitary and easy to clean.
  • 8 1/2" high integral backsplash with (2) 8" on-center faucet punchings—ready for your choice of faucets.
  • Includes K-6 3 1/2" rear basket drain for efficient water removal and debris capture.
  • Stainless “Z” mounting bracket and 1 5/8" tubular stainless wall supports with flanged feet for rock-solid installation.
  • Satin-polished finish hides fingerprints and maintains a professional appearance.
  • All welded seams blended for a smooth, easy-to-sanitize surface.

Perfect For

  • Restaurant and food-prep hand-wash stations
  • Healthcare & laboratory hygiene areas
  • Industrial production lines
  • School cafeterias & stadium concessions

Technical Specifications

Model 19-18-40-ADA (faucets sold separately)
User Stations 2
Overall Dimensions 40" W × 19 1/2" D × 25 1/2" H*
Inside Bowl Size (each) 40" W × 16" F-B × 5" D
Single open bowl—no dividers
Backsplash Height 8 1/2"
Faucet Holes (2) sets – 8" on-center
Drain K-6 3 1/2" rear basket drain (included)
Construction 16 ga. type 304 stainless steel, all TIG welded
Mounting Hardware Stainless “Z” wall bracket & 1 5/8" tubular SS supports
Shipping Weight Approx. 62 lb
Compliance ADA, NSF

*Height measured from top of backsplash to bottom of tubular supports.

Fast, Straightforward Installation

  • Mount the stainless “Z” bracket at 44" from finished floor (verify local ADA requirements).
  • Slide sink onto bracket, adjust tubular supports and secure flanged feet.
  • Connect drain and 1 1/2" P-trap, then add your choice of 8" O.C. faucets.
Attention: Faucets are not included. Equipment that incorporates faucets may expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.5in

Shipping Weight

60.0lbs

Bowl Height (rim to drain)

5" deep

Style

wall mounted

Faucet

faucet not included

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Features

multi-station

Specifications

Multiwash Hand Sink, wall mounted, 40"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant
