Advance Tabco  |  SKU: 19-18-40-ADA-F  |  UPC: 747545215406

Advance Tabco 19-18-40-ADA-F Hand Sinks

$2,189.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

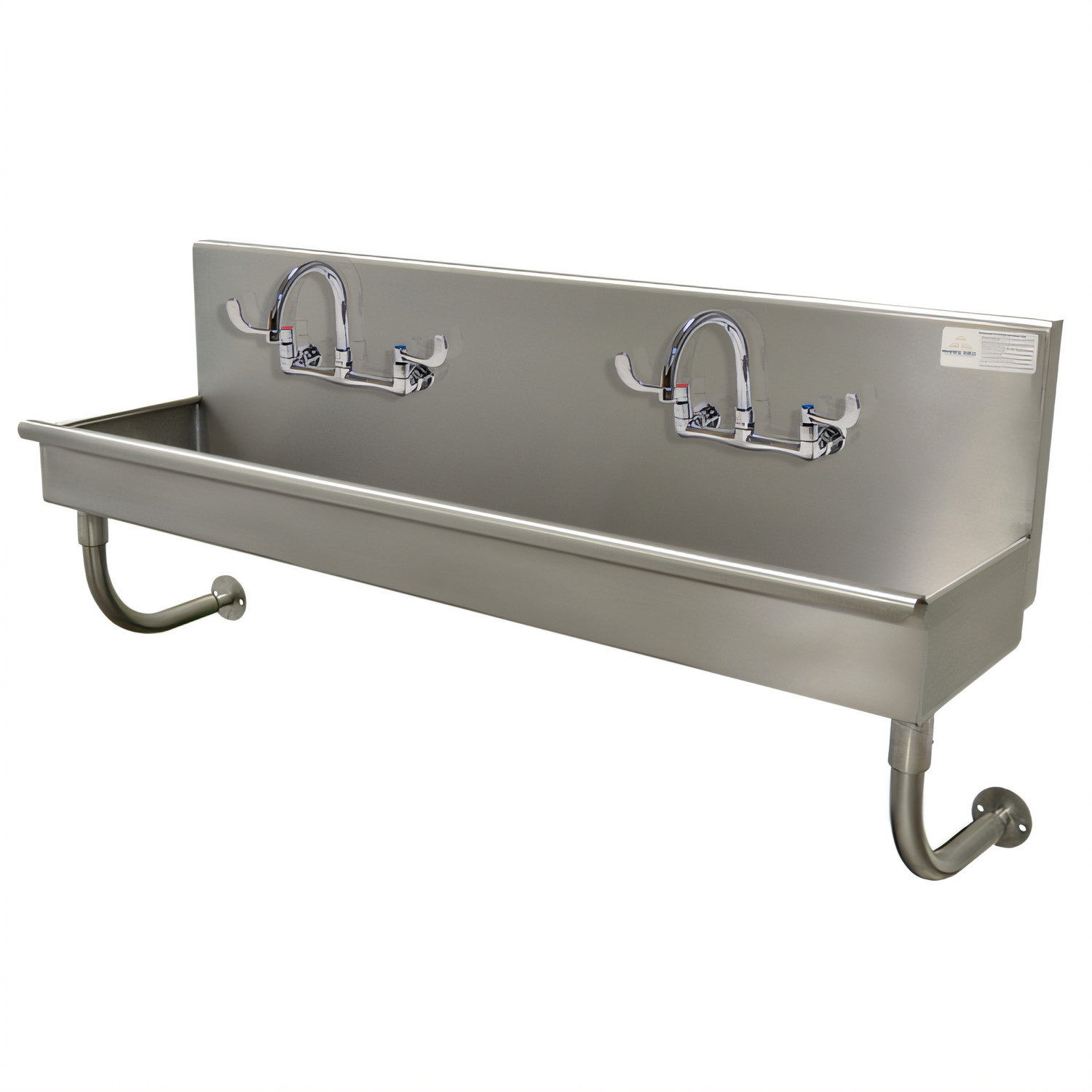

Advance Tabco Dual-Station ADA Multi-Wash Hand Sink – 40″ Wide

Model 19-18-40-ADA-F | includes (2) K-161-LU wrist-blade faucets

Built for continuous commercial use, this wall-mounted, two-user hand-wash sink combines rugged 16-gauge type 304 stainless steel with ADA-compliant ergonomics. Its factory-installed gooseneck faucets, shallow 5″ bowl depth and generous knee clearance provide safe, convenient access for every user while the high backsplash and square-corner design keep work areas sanitary and splash-free.

Why You’ll Love It

  • Ready to install – (2) 8 ½″ gooseneck faucets with wrist-blade handles included

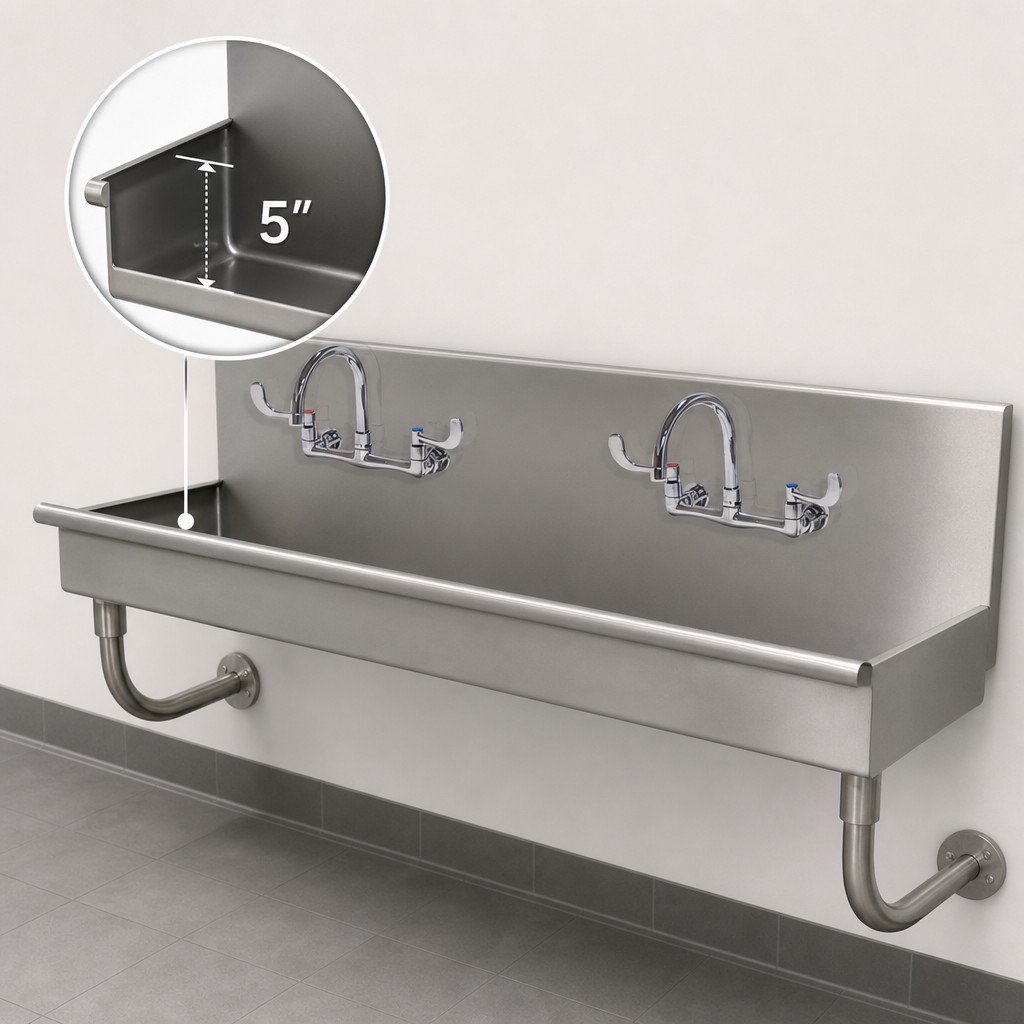

  • ADA 2010 compliant 5″ bowl depth & ample knee clearance
  • 16 ga. 304 stainless construction resists rust, pitting and harsh cleaners
  • 8 ½″ high integral backsplash protects walls and simplifies clean-up
  • Pre-punched 8″ on-center faucet holes – no field drilling required
  • 3 ½″ rear basket drain (K-6) speeds debris removal & prevents clogs
  • TIG-welded, satin-finished seams for a sleek, easy-to-wipe surface
  • Heavy-duty tubular wall supports & “Z” mounting bracket supplied

Ideal Applications

  • Food-processing & packaging plants
  • Healthcare & laboratory hand-wash stations
  • School, stadium & airport concessions
  • Brewery, winery & beverage production lines

Technical Specifications

Overall width 40″ (1016 mm)
Overall depth 19 ½″ (495 mm)
Overall height 25 ½″ (648 mm) – to top of backsplash
Bowl size (each) 16″ front-to-back × 5″ deep
Stations / users 2
Backsplash height 8 ½″
Faucet holes (2) sets, 8″ on center
Faucets included (2) K-161-LU lead-free gooseneck, wrist-blade handles
Drain 3 ½″ rear basket drain (K-6)
Material 16-gauge type 304 stainless steel throughout
Supports 1 5⁄8″ O.D. tubular stainless with adjustable cross-bracing
Mounting hardware Stainless “Z” wall bracket (included)
Certifications ADA, NSF, lead-free (NSF/ANSI 61/9)
Shipping weight 66 lb / 30 kg (approx.)
California Prop 65 Warning: This product may expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Looking for a different size or faucet configuration? Ask about Advance Tabco’s Smart Fabrication™ custom options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.5in

Shipping Weight

64.0lbs

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

5" deep

Faucet

faucet included

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, includes (2) faucets with wrist blades, 40"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant
