Description

Advance Tabco 23" Single-Station Multiwash Hand Sink with Electronic Faucet

Model 19-18-23EF  |  Wall Mounted  |  16 ga Type 304 Stainless Steel

Built for demanding commercial, institutional and healthcare settings, the Advance Tabco 19-18-23EF delivers rugged, space-saving performance and completely touch-free operation in one sleek stainless-steel package.

Key Features

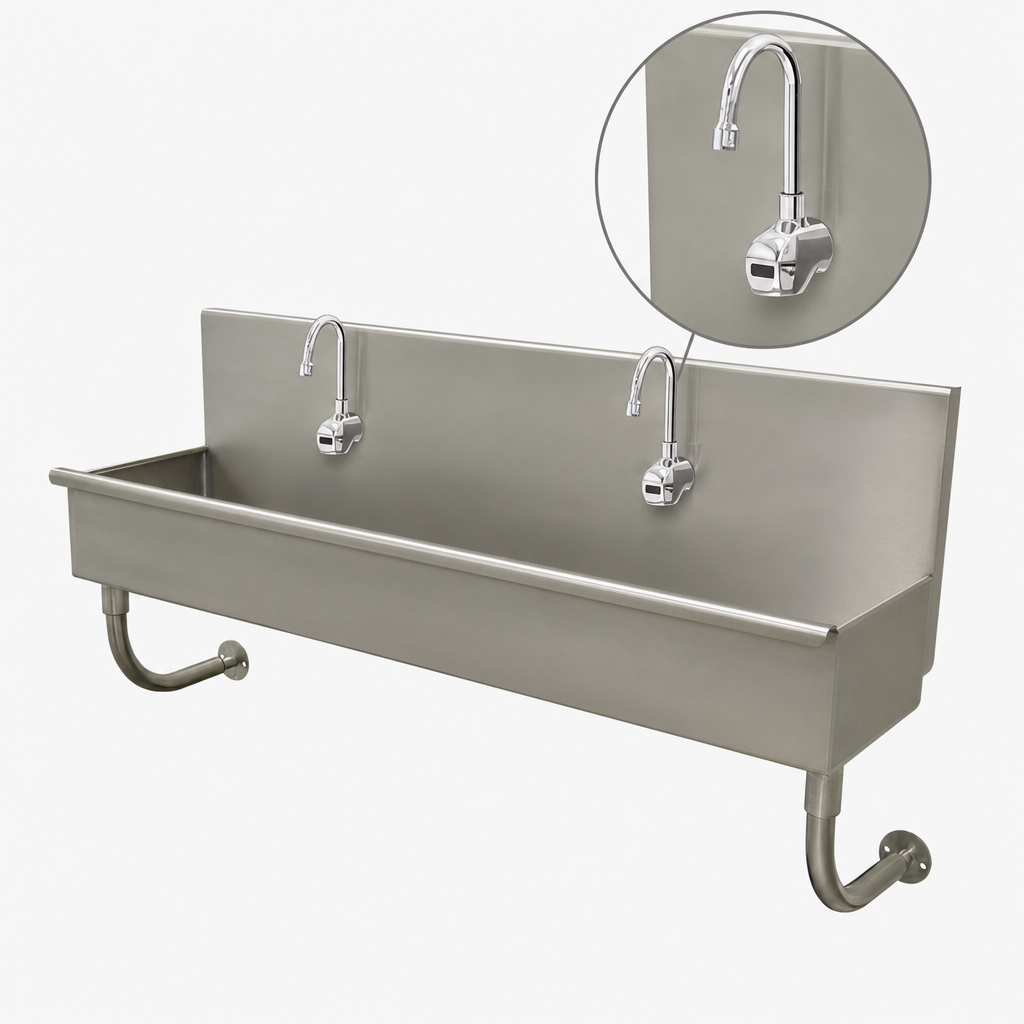

  • Hands-free K-175 electronic faucet with infrared sensor and 2.2 GPM swing spout.
  • 16 ga type 304 stainless steel bowl and apron finished to an easy-to-clean satin sheen.
  • 8 1/2" integral backsplash shields nearby walls from splashes.
  • Roomy 16" front-to-back bowl with full 8" depth for comfortable hand washing.
  • Factory-punched single faucet hole—no field drilling required.
  • 3 1/2" K-6 rear basket drain with strainer included.
  • Stainless-steel “Z” mounting brackets and 1 5/8" tubular wall supports provide open knee clearance and quick, rock-solid installation.
  • All TIG-welded seams blended to match adjoining surfaces for a seamless look.
  • NSF compliant, low-lead faucet meets NSF 61/9 requirements.

Specifications

Overall width 23" (584 mm)
Overall front-to-back 19 1/2" (495 mm)
Overall height 28 1/2" (724 mm)
Bowl size (W × F/B × D) 16" × 16" × 8" deep
Backsplash height 8 1/2"
Material thickness 16 ga (1.5 mm) 304 stainless steel
Mounting style Wall mounted, square corner
Drain opening 3 1/2" rear basket drain (included)
Faucet type K-175 electronic, splash-mounted, 2.2 GPM
Faucet holes (1) 1-1/4" dia. pre-punched
Supports (2) 1 5/8" tubular 304 SS wall supports
Approx. weight 45 lb (20 kg)

What’s in the Box

  • Single-station hand sink (assembled)
  • (1) K-175 electronic faucet with control box & UL-listed power adapter
  • (1) 3 1/2" rear basket drain with strainer
  • (2) Stainless-steel “Z” wall brackets
  • (2) Tubular stainless-steel wall supports with adjustable flanges
  • Installation instructions & mounting hardware

*Provides open space beneath the bowl for easier cleaning and potential ADA pathway clearance. Always verify local codes before installation.

California Proposition 65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

28.5in

Width

23.0in

Depth

19.5in

Shipping Weight

45.0lbs

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, with electronic faucet, 23"W x 19-1/2"D x 28-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with single faucet hole, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports
