Advance Tabco  |  SKU: 19-18-120EFADA  |  UPC: 747545212788

Advance Tabco 19-18-120EFADA Hand Sinks

$8,114.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Troubleshooting manual Parts list Installation & operation Installation manual 2
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

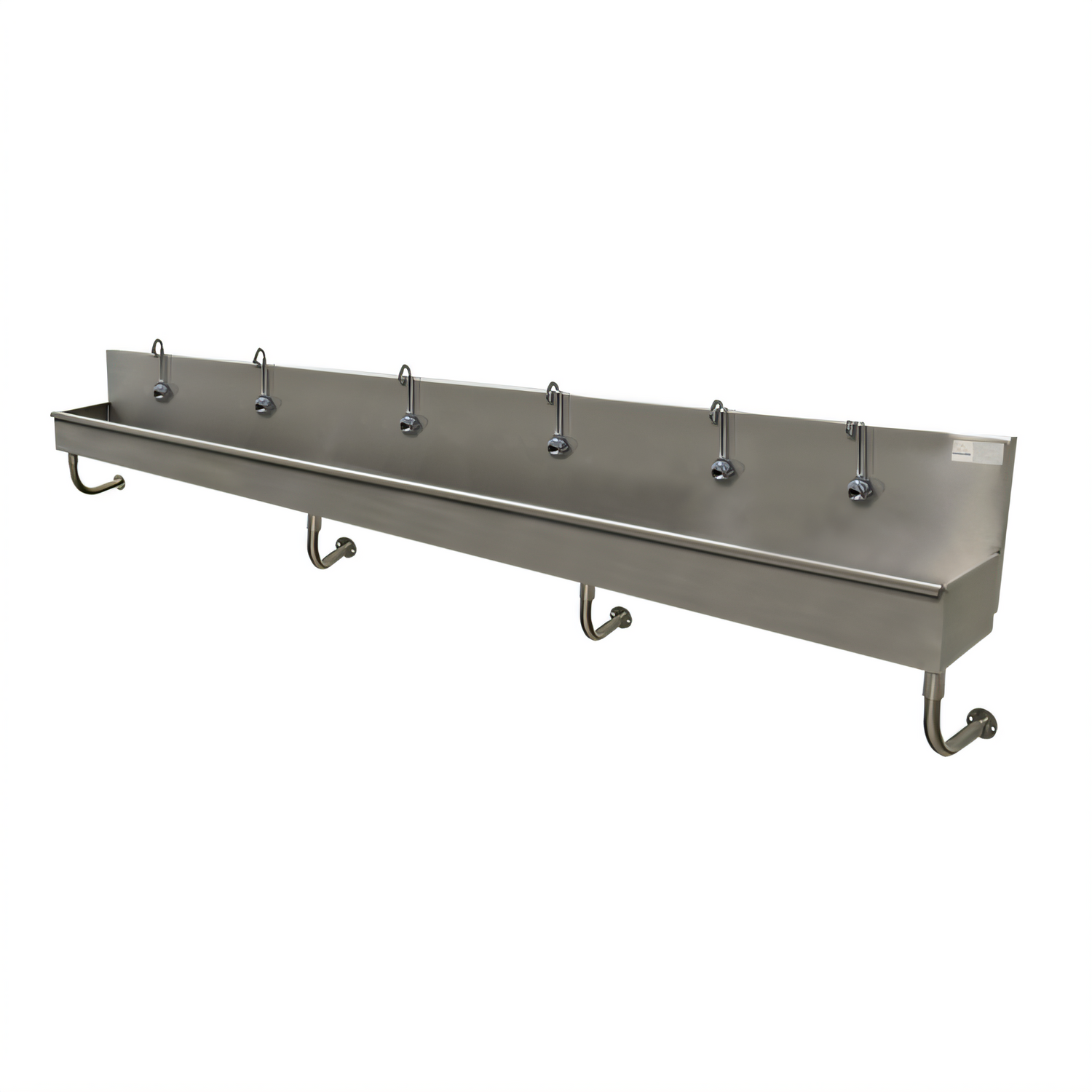

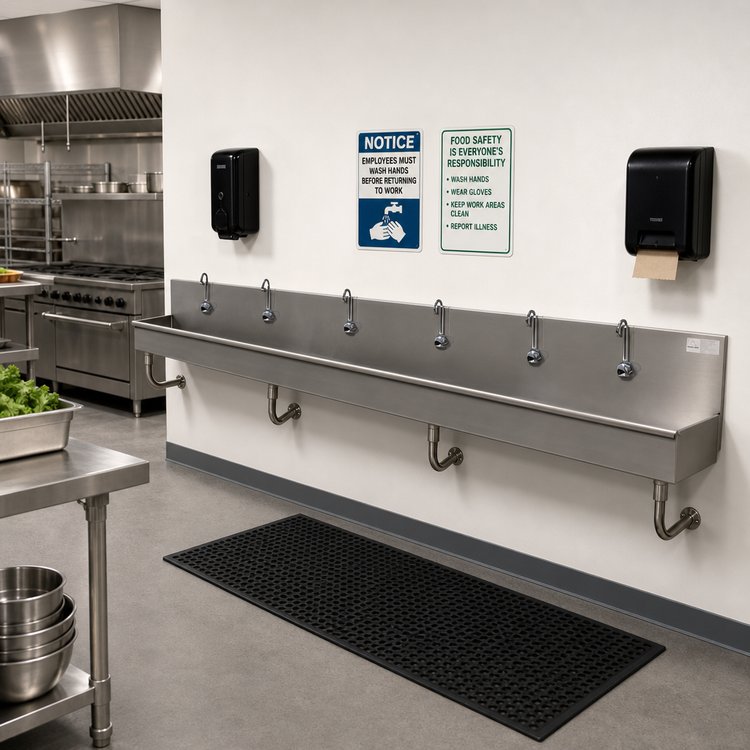

Advance Tabco 19-18-120EFADA Multi-Station Hand Sink

6-Station • Wall Mounted • Electronic • ADA Compliant

Engineered for the busiest wash areas, this 120 inch Advance Tabco Multi-Wash hand sink delivers fast, hygienic, hands-free washing for up to six users at once. The fully welded, 16 gauge 304 stainless steel construction and sensor-activated K-175 faucets make it the ideal long-term solution for food-service, healthcare, manufacturing, and education facilities that demand durability and infection control.

Key Advantages

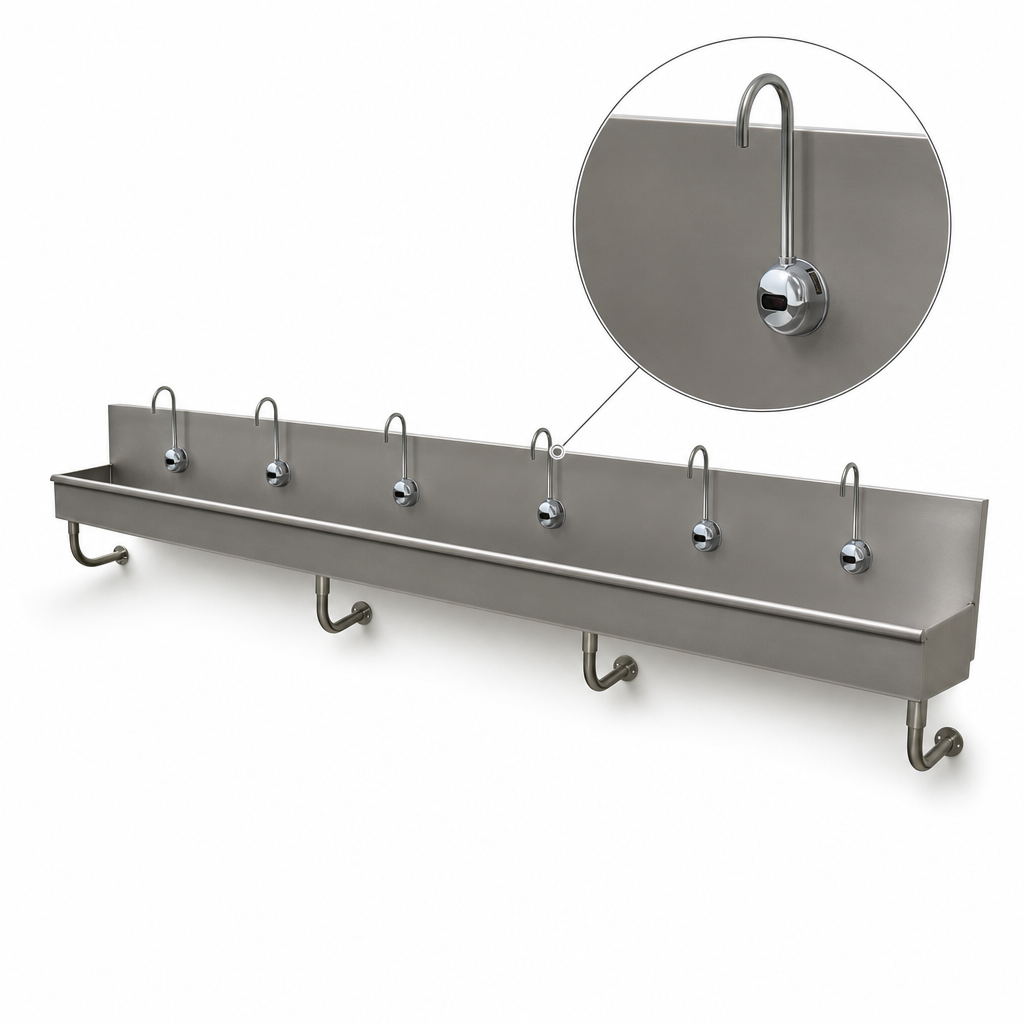

  • Hands-free operation – six splash-mounted K-175 electronic faucets reduce cross-contamination and water waste.
  • ADA 5 inch bowl depth allows wheelchair access while maintaining a roomy 16 inch front-to-back work area.
  • Massive 120 inch wide sink body serves high-traffic environments without bottlenecks.
  • 16 gauge 304 stainless steel with satin finish resists corrosion and makes clean-ups effortless.
  • 8-1/2 inch integral backsplash protects walls and keeps water where it belongs.
  • (3) 3-1/2 inch rear basket drains speed drainage and stop solids from entering the plumbing.
  • 1-5/8 inch tubular stainless steel wall supports and “Z” mounting brackets provide full knee clearance underneath for ADA compliance and easy floor maintenance.
  • Factory-punched single faucet hole at each station for simple installation of included electronics.
  • UL-listed control box and universal 100-240 VAC adapter supplied – just connect hot and cold water lines.

At-a-Glance Specs

Model 19-18-120EFADA
User Stations / Faucets 6
Overall Dimensions (W × D × H) 120" W × 19-1/2" D × 25-1/2" H
Bowl Size (each) 16" front-to-back × 5" deep
Backsplash Height 8-1/2"
Material / Thickness 304 stainless steel / 16 ga.
Drains (3) 3-1/2" rear basket drains included
Support System 1-5/8" tubular stainless steel wall supports with “Z” brackets
Faucet Type K-175 splash-mounted electronic sensor faucets, 2.2 GPM
Compliance ADA, NSF/ANSI 61/9 lead-free (faucets), UL (control box)
Shipping Weight ≈ 150 lb

Ideal Applications

  • High-volume kitchens & commissaries
  • Hospitals, clinics & labs
  • Food & beverage processing plants
  • Schools, stadiums & arenas
  • Pharmaceutical & clean-room environments
California Proposition 65: Faucets on this unit can expose you to chemicals, including lead, known to the State of California to cause cancer or birth defects. For more information, visit www.P65Warnings.ca.gov.

Need a custom size, knee-operated valves, or low-flow aerators? Contact us for a tailored Advance Tabco Smart Fabrication™ quote.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

25.5in

Width

120.0in

Depth

19.5in

Shipping Weight

142.0lbs

Features

multi-station

Faucet

faucet included

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

5" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, with (6) electronic faucets, 120"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant
