Advance Tabco 6-Station Wall Mounted ADA Multiwash Hand Sink, 120-Inch Wide

SKU: 19-18-120-ADA
GTIN: 747545212429
$3,686.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Plumbing Supplies Commercial Sinks Hand Sinks Hand Wash Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

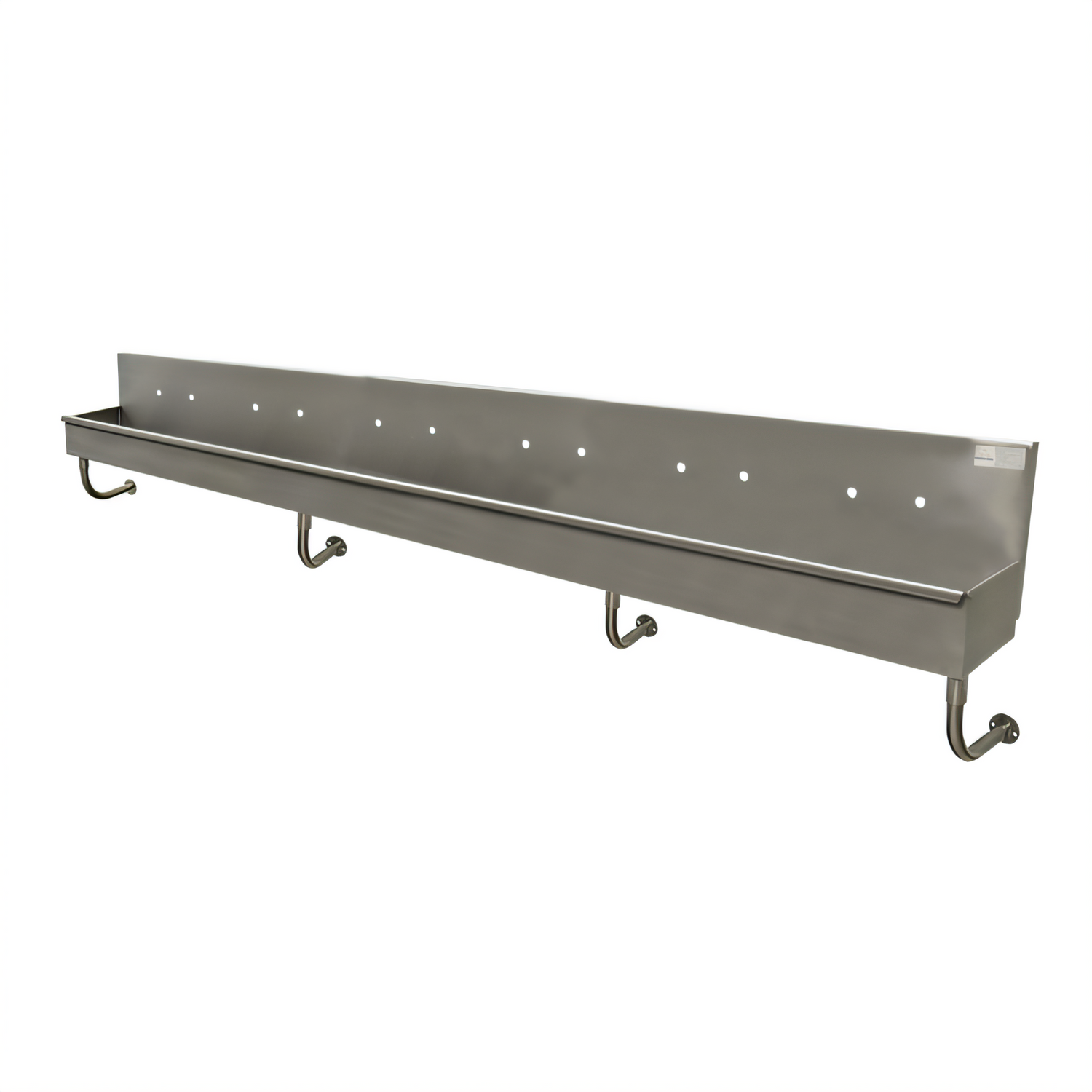

Advance Tabco 6-Station Wall Mounted ADA Multiwash Hand Sink, 120-Inch Wide

16-Gauge 304 Stainless Steel, 5-Inch Deep Bowls, Faucet Holes Punched

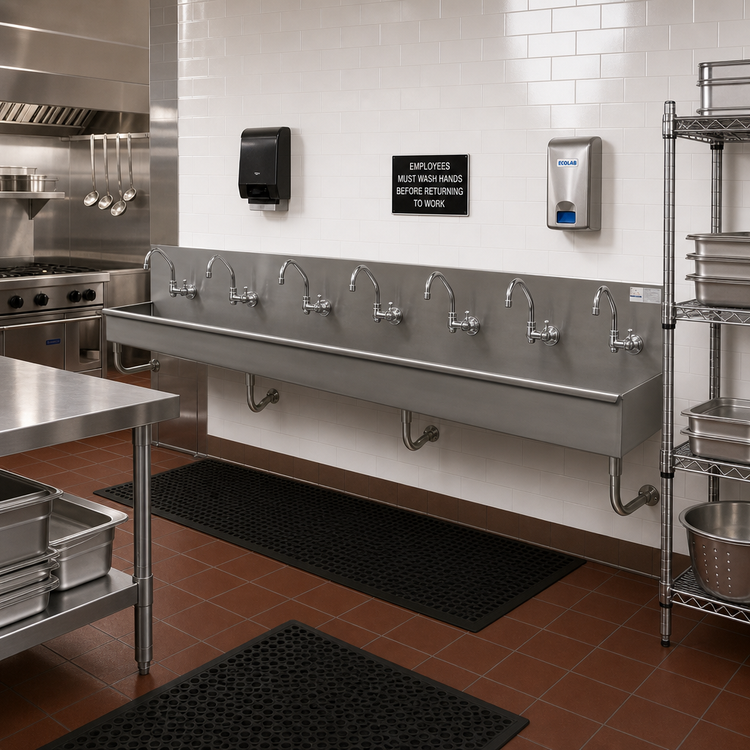

Built for high-volume handwashing, this six-station wall-mounted sink combines ADA-compliant bowl depth with rugged 304 stainless steel construction.

  • Six-station layout provides high-capacity handwashing in a single wall-mounted unit.
  • ADA-compliant 5-inch bowl depth supports accessible use.
  • Heavy-duty 16-gauge 304 stainless steel construction is TIG welded and finished smooth.
  • 8-1/2-inch backsplash and tubular stainless steel wall supports help stabilize the sink and protect the wall.
  • 8-inch O.C. faucet holes are punched at each station; faucets are sold separately.
  • Rear basket drain(s) are included for installation convenience.

Overall Dimensions:

120.0"W x 19.5"D x 25.5"H

Product Weight:

142.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

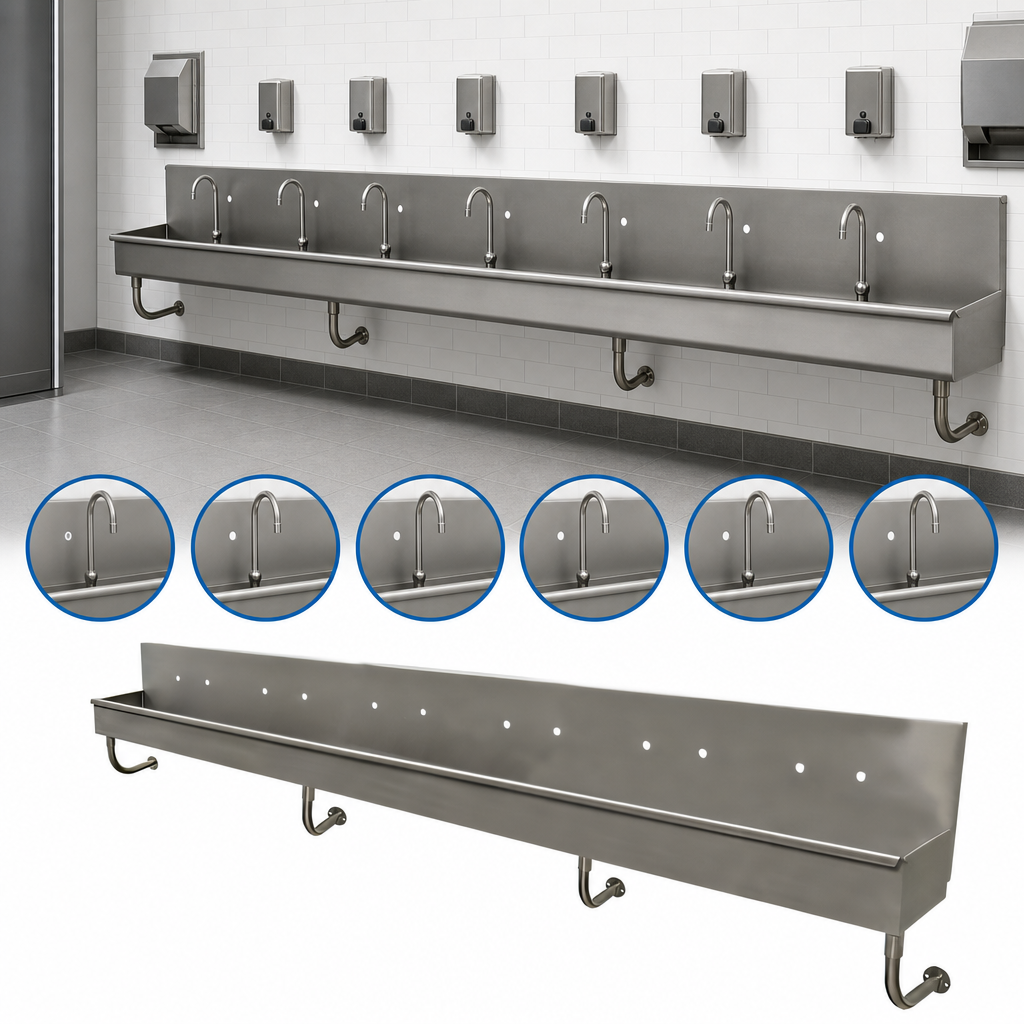

Six-Station Design

Provides six handwashing stations in one continuous 120-inch sink assembly.

ADA-Compliant Bowl Depth

The 5-inch deep bowl configuration is designed to meet ADA requirements.

16-Gauge 304 Stainless Steel Construction

Commercial-grade stainless steel construction offers durability and corrosion resistance.

Wall-Mounted Support System

Tubular stainless steel wall supports and Z brackets help secure the sink to the wall.

8-1/2-Inch Backsplash

Helps contain splashes and protect the wall behind the sink.

Pre-Punched Faucet Holes

Splash is punched with 8-inch on-center faucet holes at each station; faucets are not included.

Rear Basket Drain

Includes 3-1/2-inch rear basket drain(s) as part of the sink assembly.

TIG Welded Satin Finish

Welded areas are blended smooth to match adjacent surfaces and finished to a satin sheen.

Type Multi-Station Hand Sink
Style Square Corner
Installation Type Wall Mounted
Stations 6
Bowl Depth 5 Inches
Backsplash Height 8 1/2 Inches
Faucet Holes 6 Sets, 8 Inches O.C.
Drain Type Rear Basket Drain
Material 304 Stainless Steel
Finish Satin
Selling Unit Each
Units Per Case 1
Shipping Width 120 Inches
Shipping Depth 20 Inches
Shipping Height 26 Inches
Shipping Weight 142 lb.

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

Yes. This model uses the ADA-compliant 5-inch bowl depth.
No. Faucets are sold separately.
It has six stations.
It is constructed from 16-gauge 304 stainless steel.
The backsplash is punched with 8-inch on-center faucet holes at each station.
The sink includes rear basket drain(s) with a 3-1/2-inch connection size.
