Description

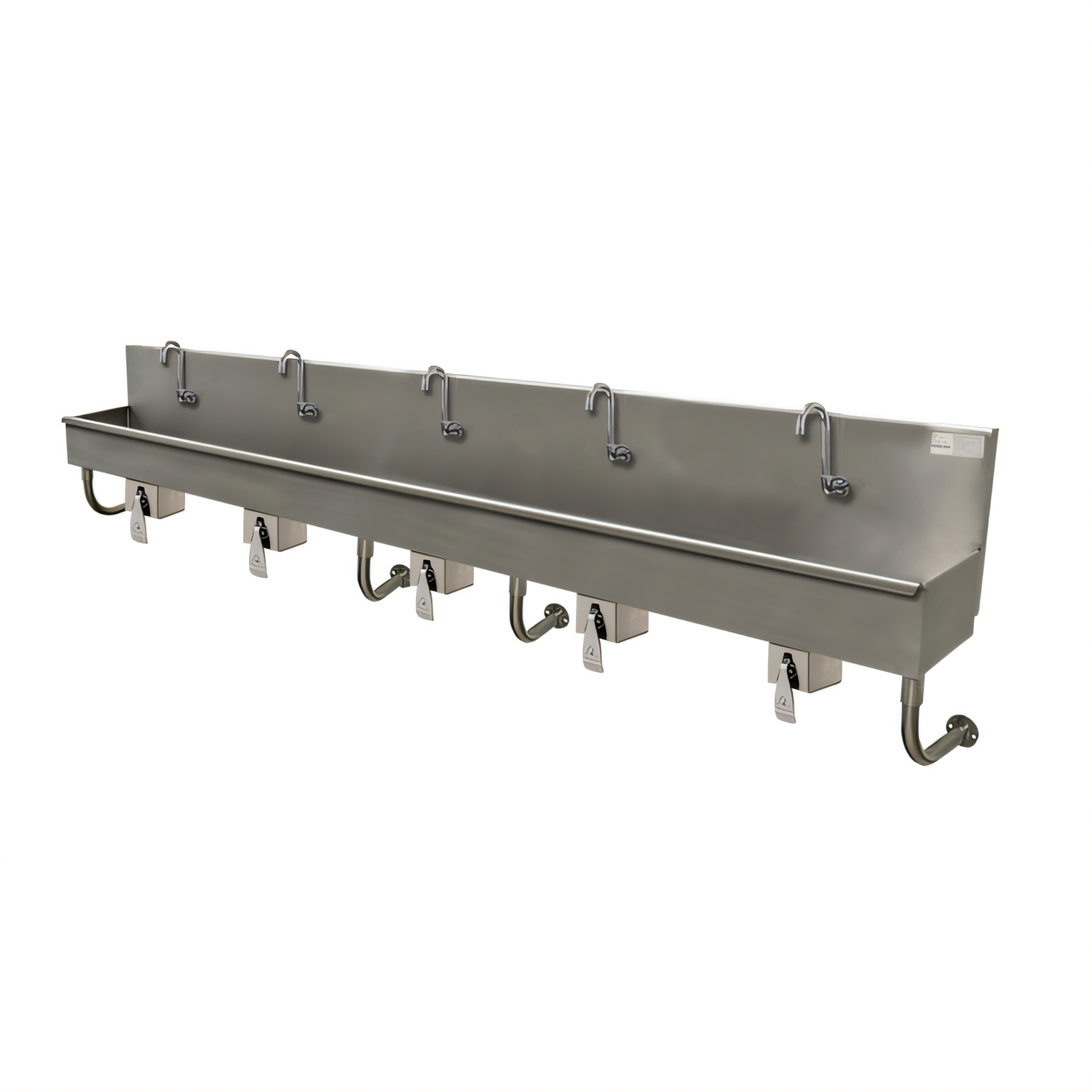

Advance Tabco 100" Multi-Station Knee Valve Hand Sink

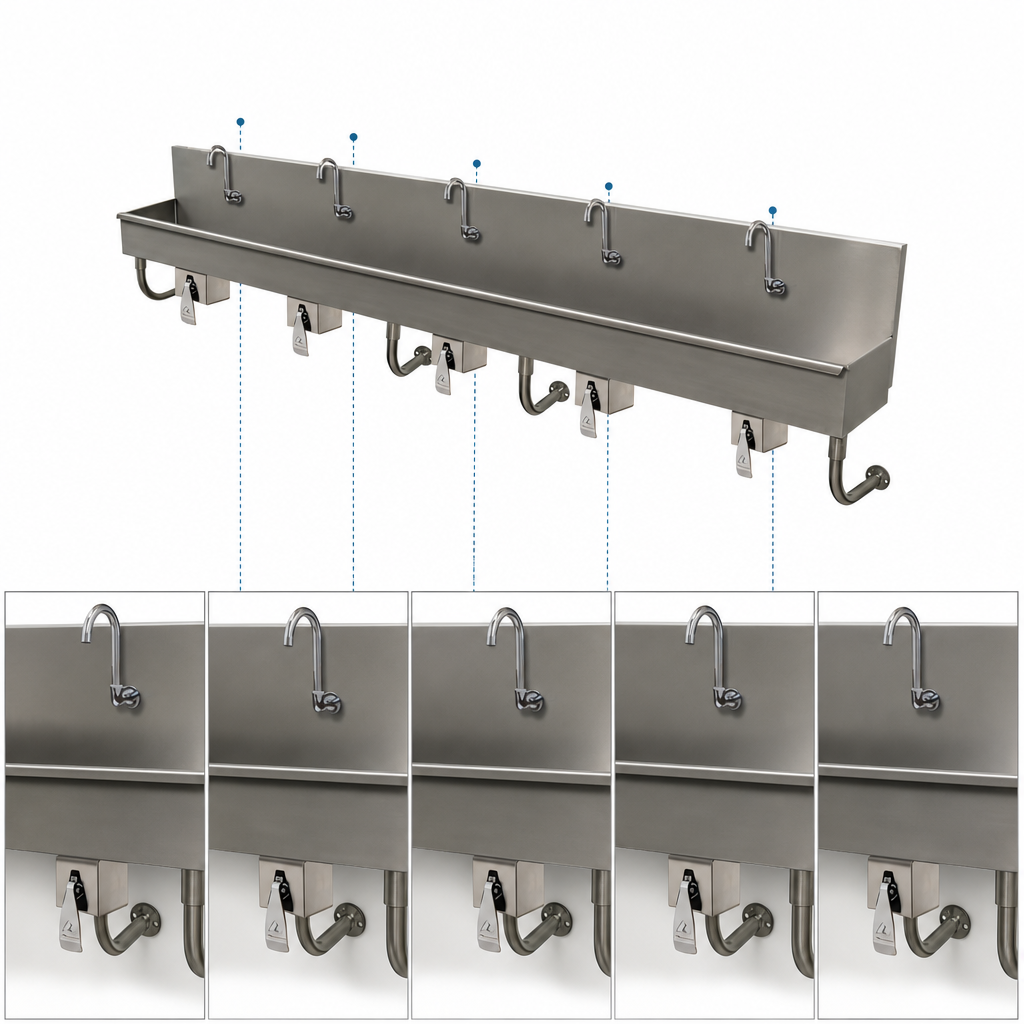

Model 19-18-100KV  |  5 User Stations

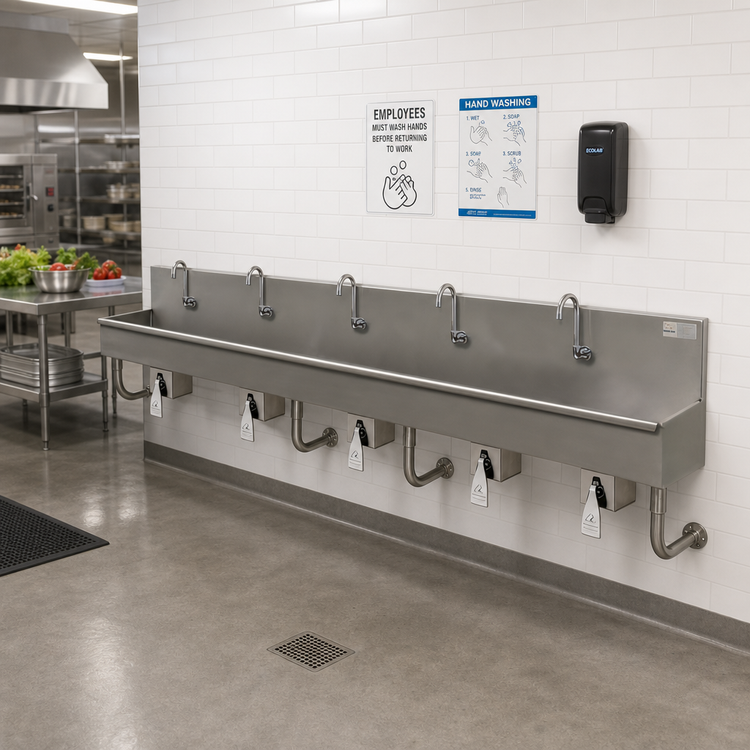

Built for high-volume, hygiene-critical environments, this wall-mounted stainless steel sink lets five users wash up at once without touching a faucet. Knee-operated valves, deep bowls and rugged 16 ga. 304 stainless steel construction deliver the perfect balance of sanitation, durability and workflow efficiency.

Why you’ll love it

  • Hands-free washing with five 7-PS-32 knee valves—reduce cross-contamination and keep faucets clean.
  • (5) K-121 gooseneck spouts (single-hole mount) provide a smooth, splash-free rinse.
  • Generous 16" front-to-back x 8" deep bowl minimizes splatter during peak periods.
  • 8-1/2" high backsplash contains water and protects adjacent walls.
  • (2) 3-1/2" basket drains with strainers included—ready for quick hook-up.
  • Fully TIG-welded, satin-finished, 16 ga. type 304 stainless steel resists corrosion & chemicals.
  • 1-5/8" OD tubular stainless supports and “Z” wall brackets give full under-sink clearance for cleaning or ADA access.
  • Pre-punched single faucet hole at every station speeds installation.

Technical specifications

Overall width 100 in  (2540 mm)
Overall depth 19-1/2 in  (495 mm)
Overall height 28-1/2 in  (724 mm) to top of backsplash
Bowl size (per sink) 16 in F/B  ×  8 in deep
User stations 5
Faucet holes (5) single-hole punches
Drains supplied (2) 3-1/2" basket drains (K-6)
Material 16 ga 304 stainless steel
Mounting Wall mount with tubular stainless supports & “Z” brackets
Shipping weight Approx. 180 lb

Installation & accessories

  • Ships complete with knee valves, gooseneck spouts, drains, tubular supports and hardware.
  • Requires 3/8" hot & cold water supplies to each valve and standard 1-1/2" waste connection.
  • Need tempered water? Add the optional K-425 thermostatic mixing valve (sold separately).

Detailed rough-in drawings and step-by-step installation instructions are packed with the sink.

California Proposition 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

28.5in

Width

100.0in

Depth

19.5in

Shipping Weight

180.0lbs

Bowl Height (rim to drain)

8" deep

Faucet

faucet included

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Style

wall mounted

Specifications

Multiwash Hand Sink, wall mounted, with knee valve, 100"W x 19-1/2"D x 28-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, gooseneck spouts, includes basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports
