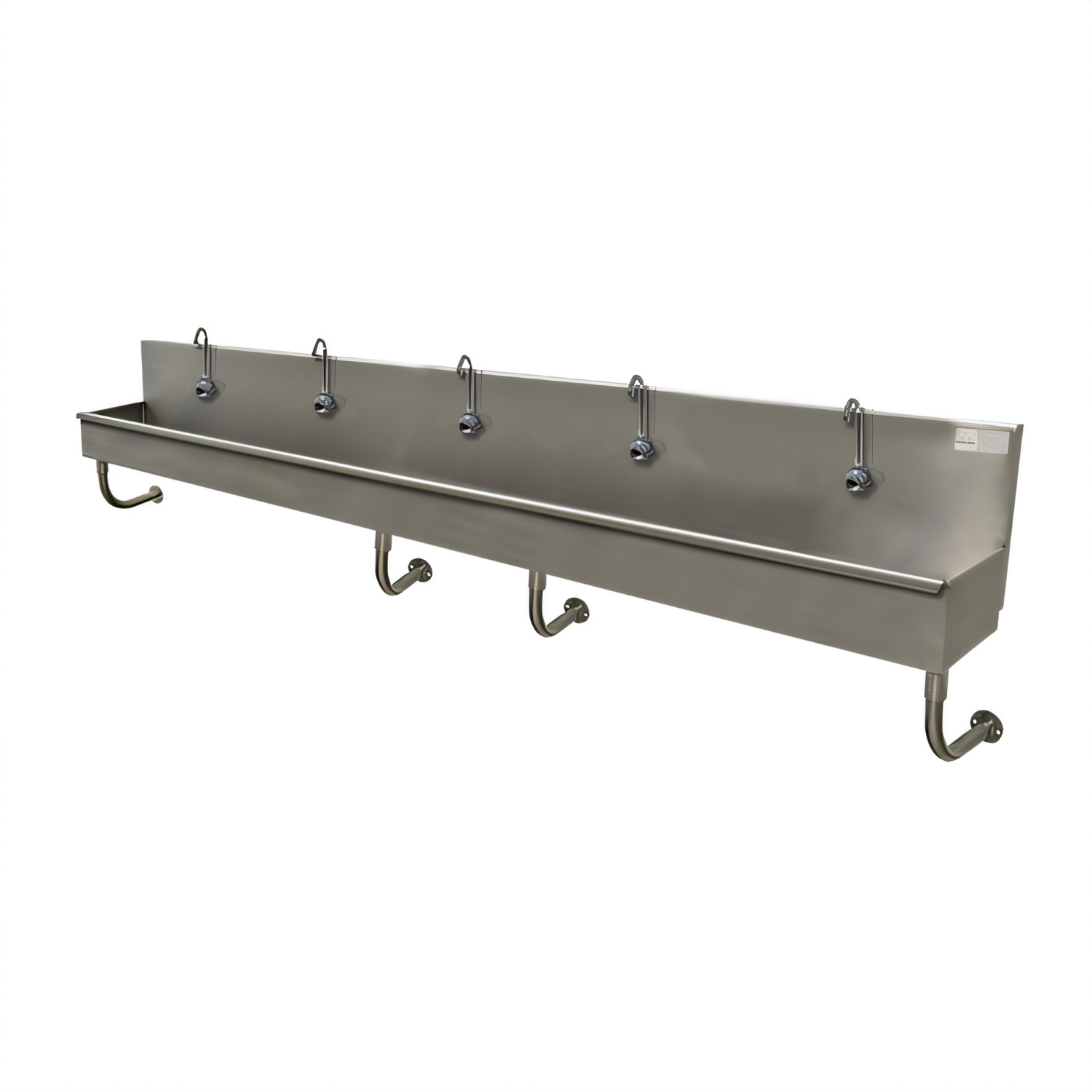

Advance Tabco 5-Station Wall-Mounted ADA Square-Corner Hand Sink with 5 Electronic Faucets, 100 Inch Wide

16-Gauge 304 Stainless Steel, 5-Inch Deep ADA Bowls, 8-1/2-Inch Backsplash

Built for high-traffic handwashing areas, this 5-station ADA sink combines touch-free electronic faucets, rugged 304 stainless steel construction, and open-underneath wall-mounted support.

  • 5-station wall-mounted hand sink designed for busy commercial wash areas
  • Includes 5 K-175 electronic faucets for hands-free operation
  • ADA-compliant 5-inch bowl depth supports accessible installations
  • 16-gauge 304 stainless steel construction with TIG-welded satin finish
  • Tubular stainless steel supports and Z brackets provide secure mounting and full clearance underneath
  • Includes 3-1/2-inch rear basket drains and single faucet hole punch at each station

Overall Dimensions:

100.0"W x 19.5"D x 25.5"H

Product Weight:

118.0 lb
Standard Faucet Note: Conforms to NSF 61/9 lead free requirements. Notice for use in California: Proposition 65 - This faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65Warnings.ca.gov (nc)

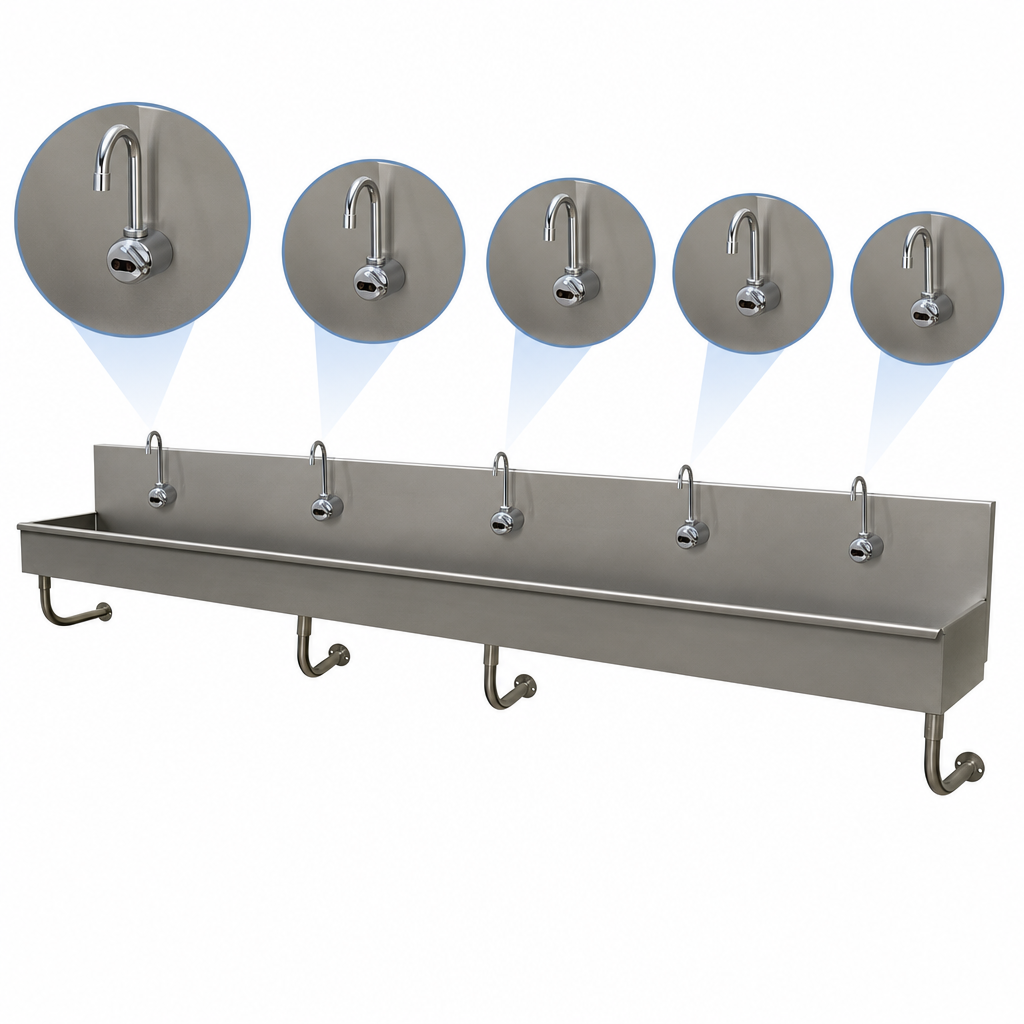

Five Electronic Faucets Included

Ships with five K-175 electronic faucets for touch-free handwashing at each station.

ADA-Compliant 5-Inch Bowl Depth

The ADA series uses a 5-inch deep bowl design to support compliant installations.

16-Gauge 304 Stainless Steel Construction

Heavy-duty stainless steel construction is built for commercial use and long service life.

Wall-Mounted Support System

Tubular 304 stainless steel supports and stainless steel Z brackets provide sturdy wall mounting and open clearance underneath.

Rear Basket Drains

Includes 3-1/2-inch rear basket drain(s) to simplify plumbing connection.

Single Faucet Hole Punches

Each station is punched with a single faucet hole for the included electronic faucet.

TIG-Welded Satin Finish

Welded areas are blended to adjacent surfaces and finished to a satin sheen for a clean appearance.

8-1/2-Inch Backsplash

The backsplash helps reduce splashback and protects the wall behind the sink.

Type Hand Sink
Style Multi-Station
Installation Type Wall Mounted
Capacity 5 Stations
Material 304 Stainless Steel
Finish Satin Finish
Selling Unit Each
Units Per Case 1
Shipping Width 100 Inches
Shipping Depth 20 Inches
Shipping Height 26 Inches
Shipping Weight 118 lb.

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Installation & operation PDF Download PDF Installation manual 2 PDF Download PDF Troubleshooting manual PDF Download

Frequently Asked Questions

Five K-175 electronic faucets are included, one for each station.
Yes. This ADA version uses a 5-inch bowl depth and is ADA compliant.
This 5-station ADA model includes two 3-1/2-inch rear basket drains.
It is constructed from 16-gauge type 304 stainless steel with 304 stainless steel tubular supports.
It is wall mounted and uses tubular stainless steel supports plus stainless steel Z brackets for installation.
