Advance Tabco 19-18-100 Hand Sinks
Description

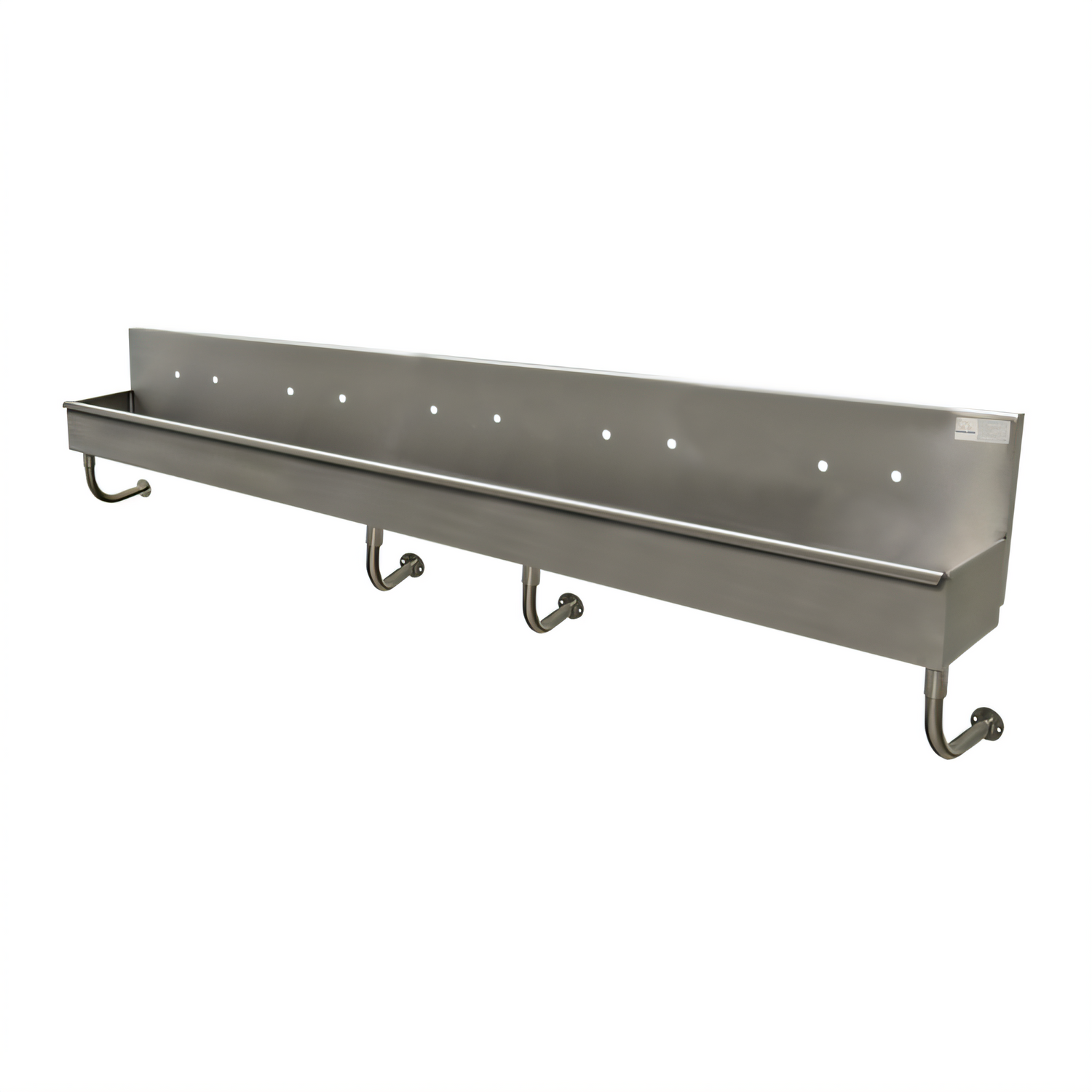

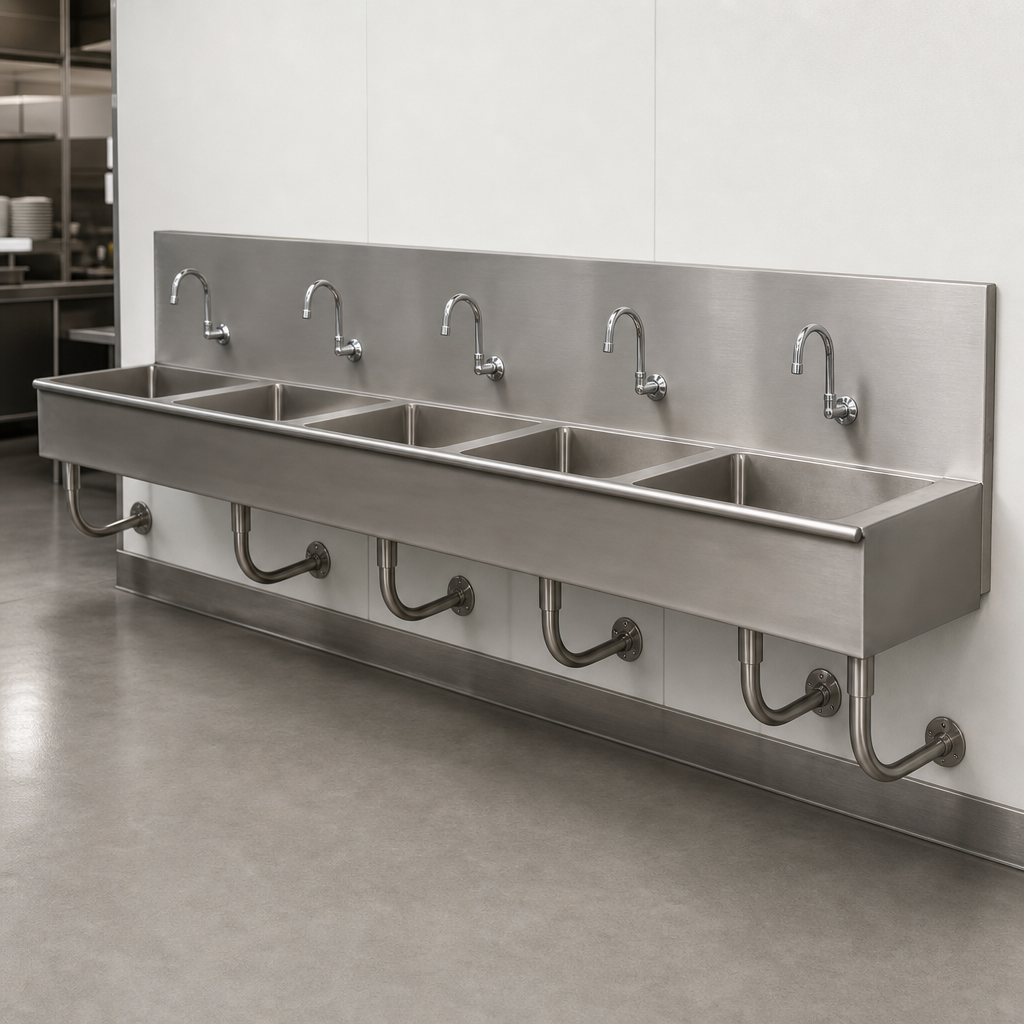

Advance Tabco 19-18-100 Multi-Wash 5-Station Hand Sink
100 in. Wall-Mounted • 16 ga. 304 SS • Bowls 16" × 16" × 8"Built for busy prep rooms, production lines and educational facilities, the Advance Tabco 19-18-100 delivers five full-size hand-wash stations in one rugged, wall-mounted unit. Heavy-duty 16-gauge type 304 stainless steel, square-corner bowls and an integral backsplash combine for long-term durability and simple sanitation.
Key Features
- Five individual bowls – each 16" front-to-back × 16" left-to-right × 8" deep for comfortable hand washing.
- Generous 100" W × 19-1/2" D × 30-3/4" H overall size maximises throughput while fitting standard wall space.
- 8-1/2" high integral backsplash keeps water contained and your wall protected.
- Punched with (5) sets of 8" on-center faucet holes – ready for your choice of deck-mount faucets (sold separately).
- Includes one K-6 3-1/2" rear basket drain; helps prevent solids from entering the waste line.
- All TIG-welded seams ground & blended to a smooth, satin finish for effortless cleaning.
- 1-5/8" Ø tubular stainless-steel wall supports with flanged feet and adjustable cross-bracing ensure rock-solid installation.
- Stainless-steel “Z” wall mounting bracket supplied for fast, secure mounting.
- NSF listed for safe use in foodservice and healthcare environments.
Typical Applications
- High-volume commercial kitchens & commissaries
- Food-processing & packaging plants
- School, stadium & park concession areas
- Laboratories, clean rooms & industrial workplaces
Technical Specifications
| Model # | 19-18-100 (no faucets) |
|---|---|
| Stations | 5 |
| Overall Dimensions | 100" W × 19-1/2" D × 30-3/4" H |
| Bowl Size (each) | 16" L × 16" W × 8" D |
| Backsplash Height | 8-1/2" |
| Faucet Hole Pattern | (5) sets, 8" on-center, 1-1/4" dia. |
| Drain | (1) 3-1/2" rear basket drain (K-6) included |
| Material | 16-ga. type 304 stainless steel, satin finish |
| Supports | 1-5/8" tubular 304 SS wall supports with flanged feet & adjustable cross-bracing |
| Mounting Hardware | Stainless-steel “Z” bracket (fasteners by installer) |
| Compliance | NSF listed; all welds TIG-welded & blended |
Faucets, supply lines and P-trap are not included and must be purchased separately. Dimensions are nominal; Advance Tabco reserves the right to modify specs without notice.
