Advance Tabco  |  SKU: 19-18-1-EFADA  |  UPC: 747545212504

Advance Tabco 19-18-1-EFADA Hand Sinks

$2,613.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual 2 Parts list Installation & operation Troubleshooting manual
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

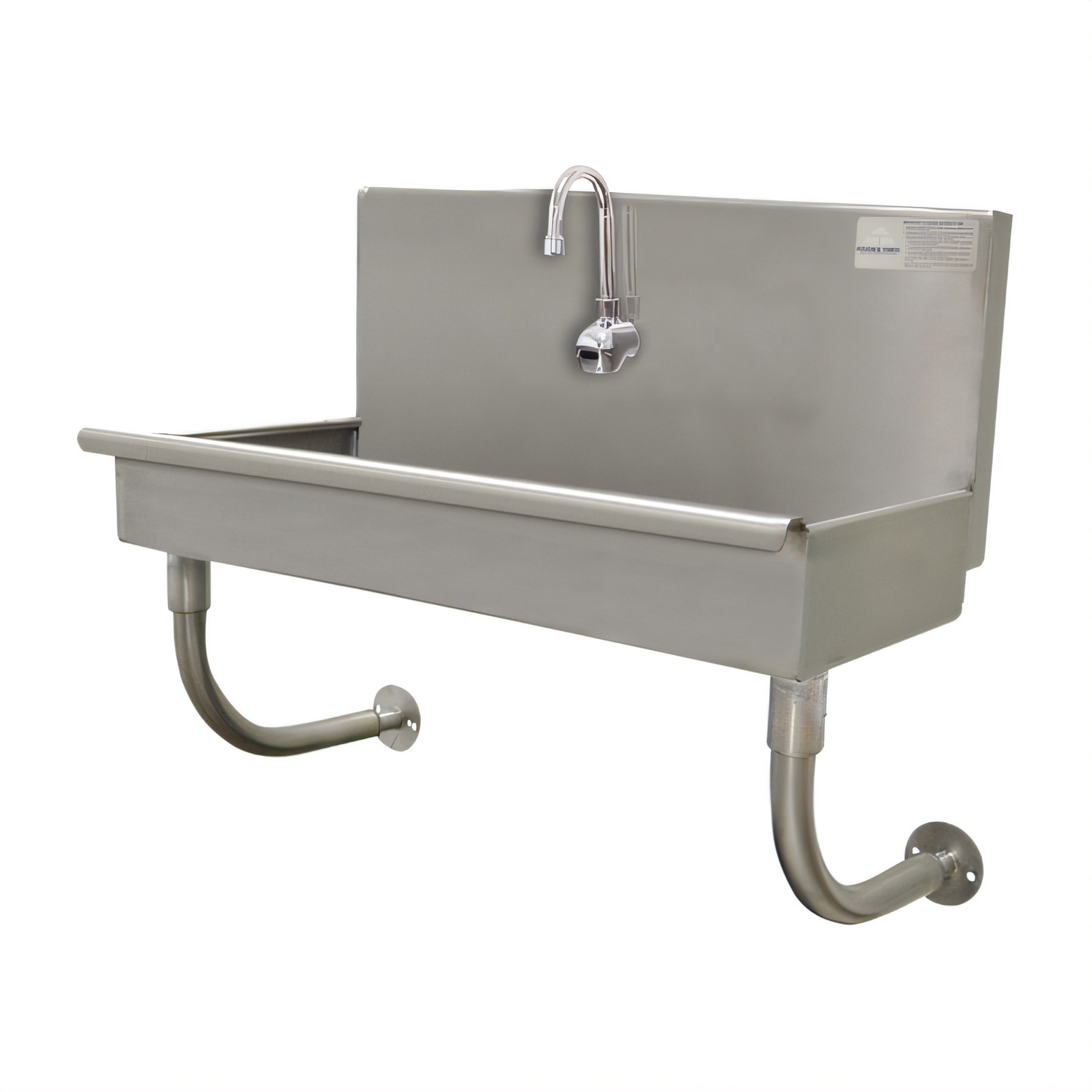

Advance Tabco 19-18-1-EFADA Wall-Mounted Service Sink

40" one-station • electronic faucet included • ADA compliant

Built for high-demand janitorial, healthcare, and food-service environments, this heavy-duty 16 gauge 304 stainless steel service sink pairs a generous 40" wide work area with a hands-free electronic faucet—delivering maximum hygiene, strength, and wheelchair accessibility in one space-saving package.

Why you’ll love it

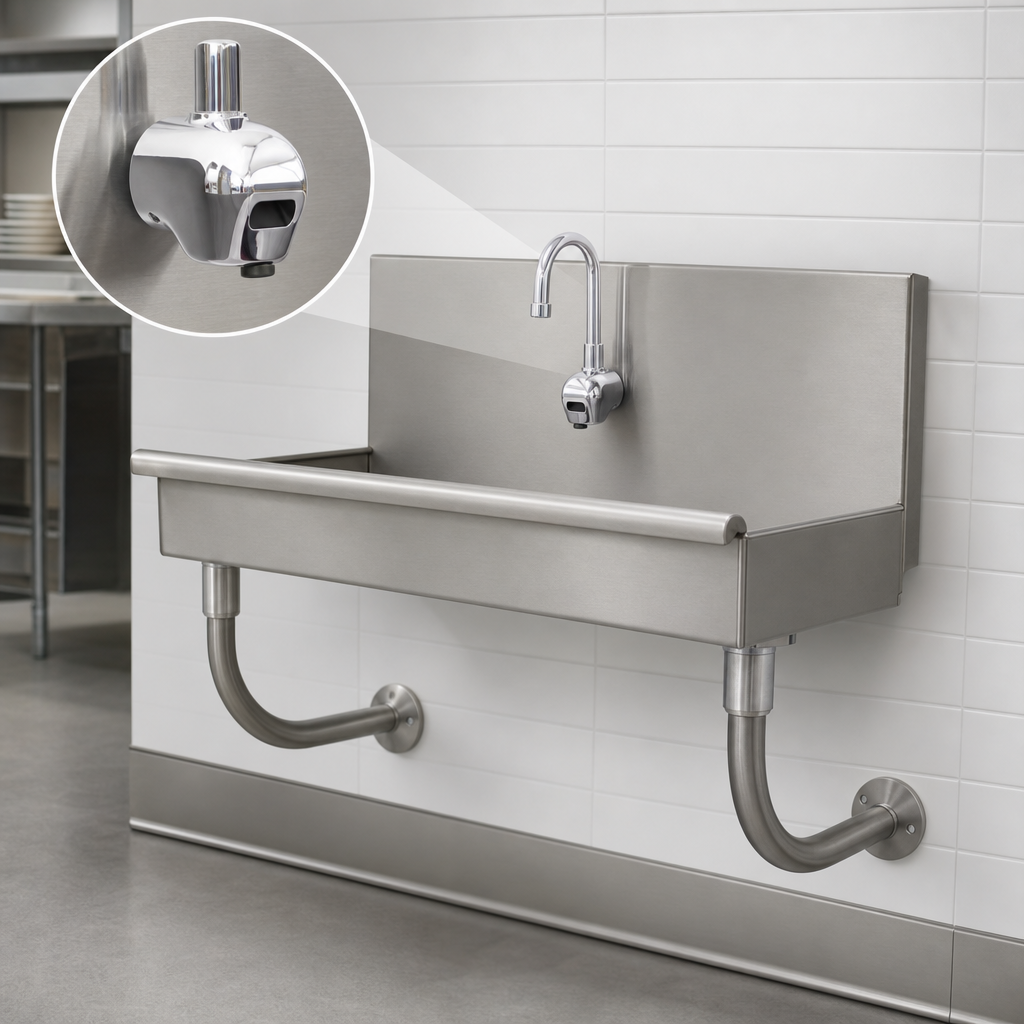

  • Hands-free operation – K-175 splash-mounted electronic faucet with 2.2 GPM swing spout reduces cross-contamination.
  • Lasting durability – All TIG-welded 16 ga. type 304 stainless steel with satin finish stands up to harsh daily use.

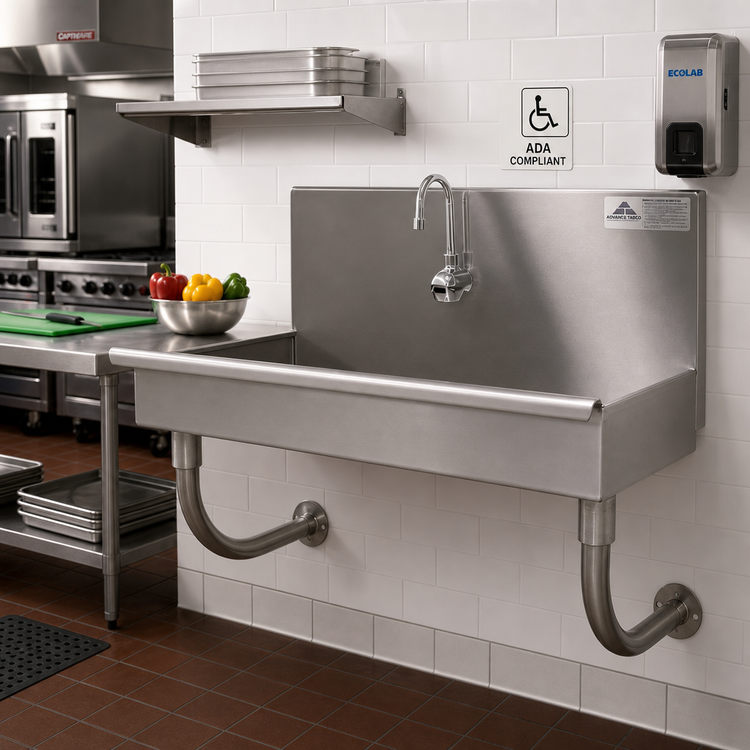

  • ADA clearance – Tubular wall supports create full open space beneath the bowl for wheelchair access.
  • Integrated 8½" backsplash – Protects surrounding walls and arrives pre-punched with a single faucet hole.
  • Easy to install – Includes “Z” wall brackets, tubular supports, basket drain, and UL-listed plug-in power adapter.

What’s in the box

  • 19-18-1-EFADA stainless steel sink body
  • K-175 electronic faucet + control box & 100–240 V AC adapter
  • K-6 3½" rear basket drain with strainer plate
  • (2) 1 5/8" Ø tubular 304 stainless steel wall supports
  • (2) Stainless steel “Z” mounting brackets & hardware

Technical specifications

Model 19-18-1-EFADA
Overall size (W × D × H) 40" × 19 ½" × 25 ½"
Bowl size 16" front-to-back × 5" deep
Backsplash height 8 ½"
Material & finish 16 ga. type 304 stainless steel, satin finish
Faucet K-175 electronic, 2.2 GPM aerator (optional 0.5 GPM low-flow available)
Drain 3½" rear basket drain, 1½" IPS outlet
Wall supports 1 5/8" Ø tubular 304 stainless steel (included)
Compliance ADA, NSF 61/9 lead-free, AB 1953, UL (adapter)
Shipping weight 65 lb

For ADA installations, mount the supplied “Z” wall brackets approximately 44" above the finished floor and verify local codes before rough-in.

California Prop 65: This product can expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.5in

Shipping Weight

60.0lbs

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Style

wall mounted

Specifications

Service Sink, wall mounted, with electronic faucet, 40"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with single faucet hole, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant
